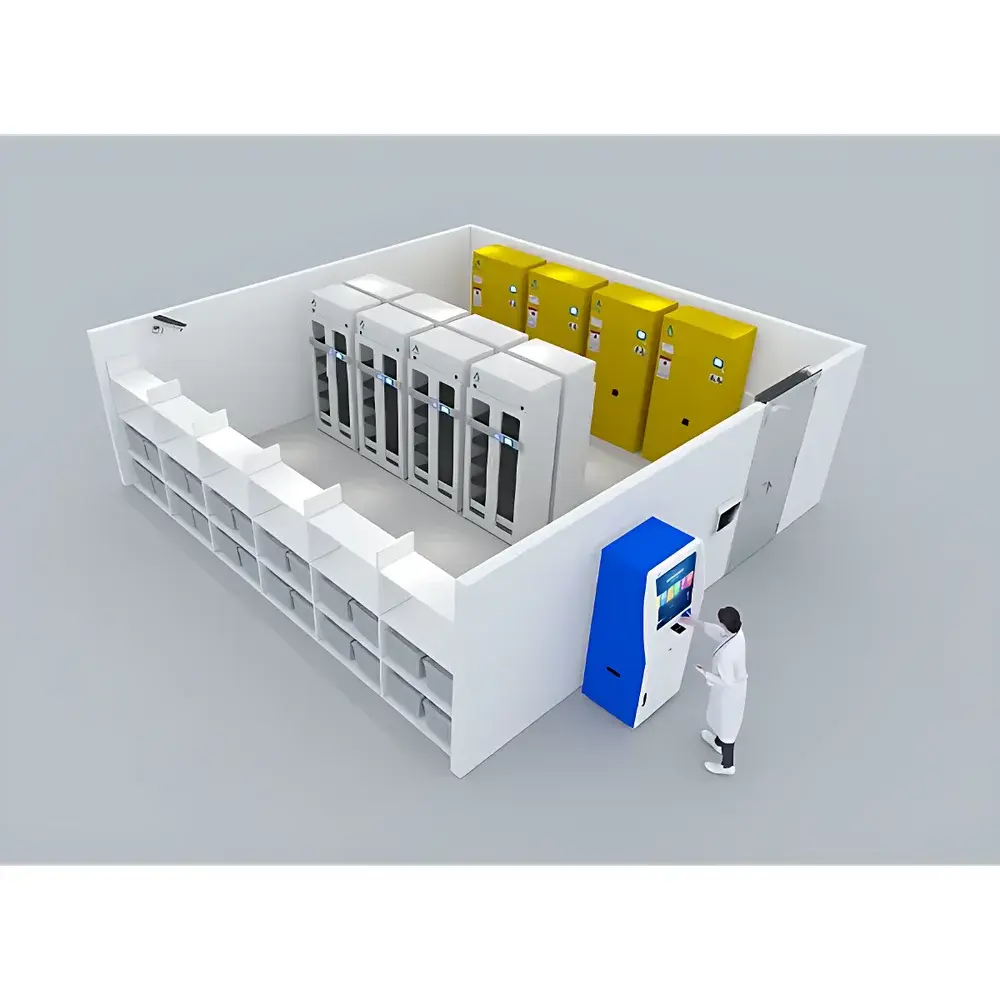

Airs AGS900A Smart Air-Purifying Chemical Storage Cabinet (Transparent Door, Main & Satellite Configuration)

Overview

The Airs AGS900A Smart Air-Purifying Chemical Storage Cabinet is an engineered solution for safe, compliant, and intelligent storage of volatile, flammable, and corrosive laboratory chemicals. Unlike conventional ventilated cabinets requiring external ducting, the AGS900A employs a closed-loop, active filtration system—integrating high-efficiency axial fans and multi-stage filter modules—to continuously draw, treat, and recirculate internal air. This design eliminates the need for building-integrated exhaust infrastructure while maintaining stable interior environmental conditions. The cabinet operates on the principle of adsorption-based air purification, utilizing activated carbon and specialized impregnated media to capture organic vapors (e.g., acetone, ethanol, xylene), acidic gases (e.g., HCl, NO₂), and alkaline compounds (e.g., ammonia). Its transparent polycarbonate door enables real-time visual verification of inventory without physical access—reducing unnecessary door openings, minimizing exposure risk, and supporting rapid identification during routine audits or emergency response.

Key Features

• Self-contained air purification system with dual high-volume centrifugal fans and replaceable multi-layer filter cartridges (VOC + acid gas + particulate); filter saturation status monitored in real time via integrated sensors
• 5-inch medical-grade capacitive touchscreen display with Airs-Touch OS, supporting bilingual (English/Chinese) interface, dynamic chemical inventory tagging, and configurable alert thresholds for temperature, humidity, and filter life
• Intelligent dual-lock security architecture: RFID card authentication + numeric PIN entry; optional remote unlock capability via encrypted TLS-secured cloud API
• Honeycomb-structured polypropylene storage trays—optimized for structural rigidity, uniform load distribution, and resistance to deformation under static loads up to 15 kg per tray; compatible with standard 100–1000 mL reagent bottles and HDPE carboys
• Modular main-satellite configuration: AGS900A (main unit) supports synchronized operation with AGS900B (steel-bodied opaque satellite cabinet) via CAN bus communication for unified monitoring and access control
• Embedded environmental sensors: NIST-traceable digital hygrometer (±3% RH accuracy) and thermistor (±0.5°C accuracy); data logged at user-defined intervals (1–60 min)

Sample Compatibility & Compliance

The AGS900A is validated for storage of Class I–III hazardous substances per GHS classification, including flammable liquids (UN 1219, UN 1993), oxidizers (UN 1479), and corrosives (UN 1789). It conforms to EN 14470-1:2019 (fire resistance for safety cabinets), ANSI Z9.2–2018 (laboratory ventilation standards), and ISO 15195:2018 (calibration of environmental monitoring instruments). Filter performance meets ASTM D5209–17 requirements for carbon bed adsorption efficiency. The cabinet’s electronic logging system supports audit-ready records aligned with GLP (Good Laboratory Practice) and ISO/IEC 17025:2017 documentation requirements—including timestamped access logs, filter replacement history, and environmental deviation alerts.

Software & Data Management

Airs CloudLink™ software provides centralized management of multiple AGS cabinets across lab sites. The platform delivers role-based access control (RBAC), automated report generation (PDF/CSV), and integration with LIMS via RESTful API. All touchscreen interactions—including lock/unlock events, filter change confirmations, and manual override entries—are cryptographically signed and stored with SHA-256 hashing. Audit trails comply with FDA 21 CFR Part 11 requirements for electronic records and signatures, featuring immutable timestamps, operator ID binding, and tamper-evident log archiving. Mobile application (iOS/Android) enables push notifications for threshold breaches, remote status checks, and QR-code-assisted chemical registration.

Applications

• Academic and industrial research laboratories requiring secure, low-footprint storage of solvents, catalysts, and reactive intermediates
• Quality control environments where trace VOC contamination must be prevented near analytical instrumentation (e.g., GC-MS, HPLC rooms)
• Pharmaceutical development labs managing reference standards and stability study samples under controlled温湿度 conditions
• Educational institutions implementing tiered chemical access protocols with student-level vs. instructor-level permissions
• Contract manufacturing organizations (CMOs) maintaining compliance with EU GMP Annex 13 and USP analytical instrument qualification frameworks

FAQ

Does the AGS900A require external ductwork or make-up air systems?
No. It operates as a fully recirculating unit with internal filtration; no wall penetration or HVAC integration is needed.
How often must the filter cartridges be replaced?
Filter service intervals depend on chemical loading and volatility; typical replacement is every 6–12 months under moderate use, with real-time saturation indicators displayed on-screen.
Can the cabinet be integrated into an existing laboratory BMS or SCADA network?
Yes—via Modbus TCP or optional BACnet/IP gateway module for interoperability with major building automation platforms.
Is the honeycomb tray design compatible with third-party containers?
Trays accommodate standard cylindrical and square-bottom reagent bottles (diameter ≤95 mm, height ≤350 mm); custom tray inserts are available upon request.
What cybersecurity measures protect remote access functionality?
All cloud communications use AES-256 encryption; device authentication employs X.509 certificates; firmware updates are digitally signed and verified prior to installation.
