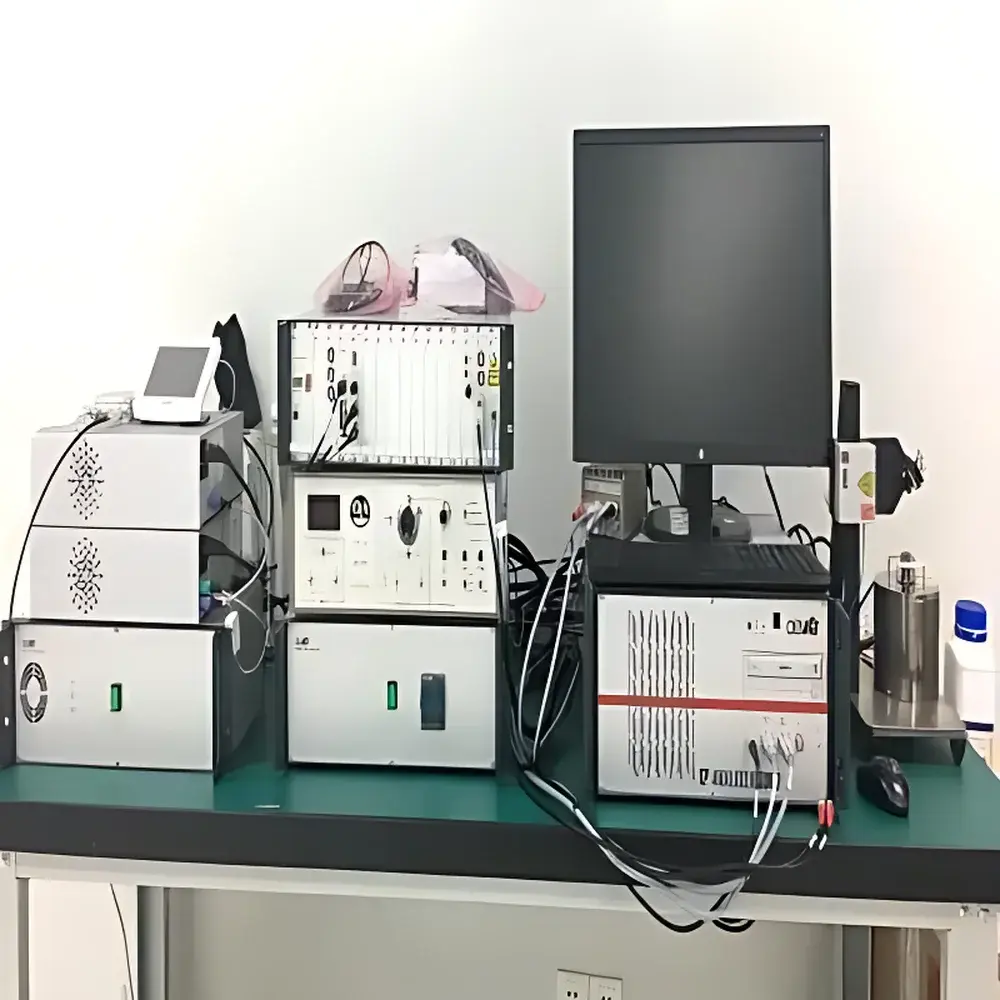

aixACCT TF Analyzer 3000E High-Speed Modular Ferroelectric Test System

Overview

The aixACCT TF Analyzer 3000E is a high-speed, modular ferroelectric characterization system engineered for precision measurement of polarization, charge, and dielectric response in advanced functional materials. Based on the principle of controlled voltage waveform application and real-time current integration, the system enables quantitative determination of remnant polarization (P_r), coercive field (E_c), fatigue behavior, imprint, retention, and leakage mechanisms under dynamic and quasi-static conditions. Its architecture integrates high-bandwidth analog signal generation, sub-nanosecond timing resolution, and low-noise current sensing—critical for characterizing next-generation ferroelectric thin films (e.g., HfO₂-based), perovskite oxides (PZT, BTO), polymer ferroelectrics, and multiferroic heterostructures. Designed for both academic research laboratories and semiconductor process development environments, the TF Analyzer 3000E meets the stringent demands of emerging memory technologies—including FeRAM, FeFET, and ferroelectric tunnel junctions—where nanosecond-scale switching dynamics and cycle-to-cycle reproducibility are essential.

Key Features

• Modular platform supporting FE (ferroelectric), MR (magnetoresistive), RX (relaxation current), and DR (self-discharge) test modules—configurable per application requirements
• High-speed FE module with 1 MHz dynamic hysteresis acquisition and 16 MHz fatigue cycling capability, enabling accelerated reliability assessment
• Sub-10 ns rise time and 50 ns minimum pulse width for precise control of polarization switching transients
• 1 pA–1 A programmable current amplification range with auto-ranging, optimized for ultra-low-leakage film stacks and high-current bulk ceramics
• Integrated high-voltage amplifier option (±10 kV) for breakdown analysis and domain nucleation studies in thick films and single crystals
• 256-channel automated test sequencing for statistical process control (SPC) and wafer-level screening in pilot-line environments
• Full compatibility with external instrumentation: laser interferometers (for strain mapping), AFM/SPM systems (for local piezoresponse), cryogenic stages (4 K–473 K), and PPMS platforms

Sample Compatibility & Compliance

The TF Analyzer 3000E accommodates diverse sample geometries—including sputtered or ALD-deposited thin films (5 nm–1 µm), screen-printed thick films (10–100 µm), bulk ceramic discs (up to Ø25 mm), and packaged MEMS devices—with configurable probe stations (vacuum-compatible, shielded, guarded). All measurement routines adhere to internationally recognized standards for ferroelectric evaluation: ASTM D991 (dielectric hysteresis of thin films), IEC 62047-18 (microelectromechanical systems—ferroelectric characterization), and ISO/IEC 17025-aligned traceability protocols. The system supports GLP/GMP-compliant operation through audit-trail-enabled software logging, electronic signatures, and user-access-controlled method templates—fully compatible with FDA 21 CFR Part 11 requirements when deployed with validated aixPlorer configuration.

Software & Data Management

Controlled by the aixPlorer v7.x software suite, the TF Analyzer 3000E provides a deterministic, deterministic Windows 7-based environment with deterministic real-time task scheduling. All measurement sequences—including PUND, double-pulse fatigue, temperature-ramped C(V), and multi-step imprint protocols—are scriptable via Python API or GUI-driven workflow builder. Raw data (voltage, current, time stamps) are stored in HDF5 format with embedded metadata (sample ID, operator, calibration timestamp, environmental conditions). Built-in post-processing tools compute P_r, E_c, switchable charge density, wake-up effect quantification, and activation energy from Arrhenius plots. Export options include CSV, MATLAB .mat, and standardized MDF4 for integration into enterprise LIMS or statistical analysis platforms (JMP, OriginPro).

Applications

• Ferroelectric memory development: FeFET threshold voltage stability, endurance (>10¹² cycles), and retention (>10 years at 85°C)
• Advanced gate stack qualification: HfO₂/SiO₂ interfacial charge trapping, wake-up suppression, and field-cycling induced phase stabilization
• Piezoelectric MEMS actuator characterization: d₃₃ coefficient mapping, butterfly loop linearity, and thermal drift compensation
• Multiferroic coupling studies: simultaneous electric field and magnetic field stimulus (via MR module + PPMS integration)
• DRAM capacitor screening: self-discharge rate (DR module), leakage current density (<1 fA/cm²), and bias-temperature instability (BTI)
• Thin-film reliability physics: time-dependent dielectric breakdown (TDDB), charge injection modeling, and trap-assisted conduction analysis

FAQ

What distinguishes the TF Analyzer 3000E from the 2000E model?

The 3000E introduces a high-speed FE module with 1 MHz hysteresis bandwidth and 16 MHz fatigue frequency—enabling nanosecond-resolved switching dynamics not achievable on the 2000E (max 5 kHz). It also features improved noise floor (<10 fA RMS), faster pulse edge fidelity (10 ns rise time), and native support for impedance spectroscopy when paired with optional hardware.
Can the system perform in-situ measurements during thermal cycling?

Yes—when integrated with aixACCT’s temperature-controlled probe stations (−180°C to +400°C) or custom furnace interfaces, the TF Analyzer 3000E executes fully synchronized thermo-electric protocols with closed-loop PID control and real-time data correlation.
Is the software compliant with FDA 21 CFR Part 11 for regulated environments?

The aixPlorer platform supports 21 CFR Part 11 compliance when configured with electronic signatures, audit trail logging, role-based access control, and validated installation—subject to site-specific IQ/OQ documentation per user requirements.
How is calibration traceability maintained across modules?

All analog front-end modules undergo factory calibration against NIST-traceable references; calibration certificates include uncertainty budgets per IEC/ISO 17025. User-performed verification routines are embedded in software and logged with timestamped digital signatures.
Does the system support third-party probe stations or vacuum chambers?

Yes—the TF Analyzer 3000E uses industry-standard SMA, triaxial, and LVDS interfaces; mechanical and electrical integration kits are available for Keysight, Lake Shore, Janis, and custom vacuum feedthrough configurations.
