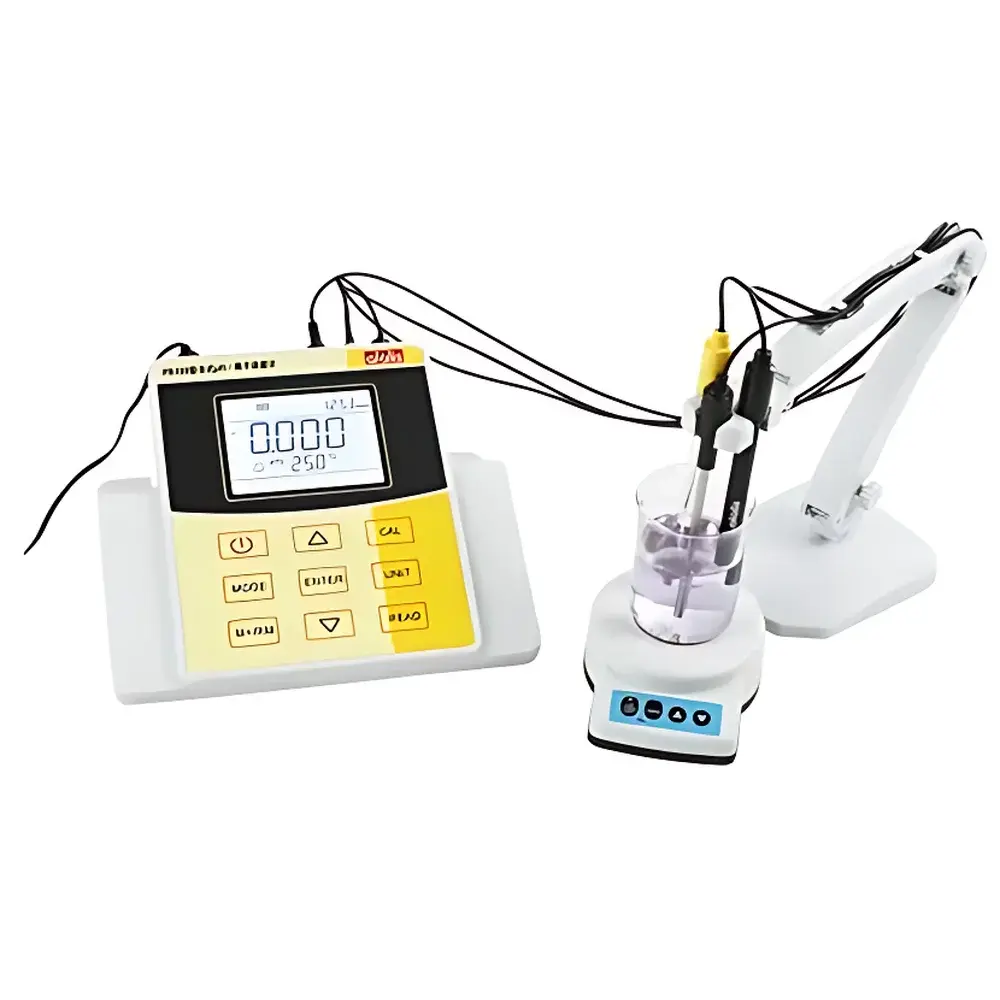

Alalis PI5100-K Potassium Ion Concentration Meter

Overview

The Alalis PI5100-K Potassium Ion Concentration Meter is a high-precision benchtop analyzer engineered for quantitative determination of potassium ion activity in aqueous solutions using potentiometric ion-selective electrode (ISE) methodology. Based on the Nernst equation, the instrument measures the potential difference between a potassium-selective membrane electrode and a stable reference electrode, converting voltage output into concentration values expressed in standardized units (pX, mol/L, mg/L, or ppm). Designed specifically for environmental monitoring laboratories, municipal water treatment facilities, and industrial process control environments, the PI5100-K delivers trace-level sensitivity (detection limit: 0.01 ppm), rapid response (<1 s), and metrological reliability compliant with international water quality standards including ISO 7888 (electrochemical determination of specific ions in water) and ASTM D1129 (standard terminology relating to water). Its dual-mode temperature compensation architecture—separately optimized for pH (−10 to 110 °C) and ion measurement (0 to 60.0 °C)—ensures thermodynamic consistency across variable sample conditions.

Key Features

• Potentiometric ISE-based measurement with built-in calibration algorithms supporting 2–5 point ion calibration and 1–5 point pH calibration, including automated calibration verification and step-by-step on-screen guidance
• Multi-unit concentration display: seamless switching between pX, mol/L, mg/L, and ppm—configurable per ion type and aligned with regulatory reporting requirements
• Integrated temperature compensation with independent ranges: 0–100.0 °C for pH mode; 0–60.0 °C for ion mode—enabling accurate activity-to-concentration conversion under non-standard thermal conditions
• GLP-compliant data handling: timestamped storage of up to 1000 measurement records (manual or interval-triggered), full audit trail capability, and export-ready USB interface compatible with LIMS integration
• Dual-reference architecture: includes R2223 double-junction reference electrode and S2211T tri-combination pH electrode to minimize liquid junction potential drift during long-term operation
• Specialized operational modes: high-purity water pH measurement (low-conductivity correction), ammoniated pure water mode (NH₃ interference mitigation), and redox (E_H) potential analysis
• Robust mechanical design: IP54-rated enclosure with sealed electrode ports and rubber protective caps—suitable for humid laboratory or field-deployable mobile lab use

Sample Compatibility & Compliance

The PI5100-K is validated for direct measurement of potassium ion activity in drinking water, surface water, wastewater effluents, soil leachates, and industrial cooling loops. Sample matrices must maintain conductivity >20 µS/cm for stable ISE response; low-ionic-strength samples require addition of ionic strength adjuster (ISA) solution—supplied as standard (500 mL R2223 K⁺ ISA). The instrument meets essential performance criteria outlined in ISO 7888:2012 (water quality — determination of chloride, nitrate, sulfate, and other anions by ion chromatography and potentiometry), EPA Method 300.0 (determination of inorganic anions by ion chromatography), and supports compliance with EU Directive 2020/2184 (drinking water quality). All calibration and measurement data adhere to GLP principles, with optional 21 CFR Part 11–compliant software modules available for regulated pharmaceutical and clinical environmental labs.

Software & Data Management

The PI5100-K features embedded firmware supporting real-time data logging, statistical summary (mean, SD, min/max), and automatic stability detection (±0.002 pX over 3 s). USB connectivity enables direct transfer of CSV-formatted datasets to Windows-based PCs running the included Alalis DataLink software—capable of generating PDF reports with configurable headers, metadata tagging (operator ID, location, method ID), and electronic signature fields. Audit trail functionality records all user actions—including calibration edits, unit changes, and factory reset events—with immutable timestamps. Data encryption and password-protected configuration access ensure alignment with ISO/IEC 27001 information security frameworks applicable to environmental data repositories.

Applications

• Regulatory compliance testing for potassium in potable water supplies (WHO Guideline Value: 20 mg/L; EU limit: no parametric requirement but monitored as indicator)
• Monitoring potassium release from agricultural runoff and fertilizer-contaminated groundwater
• Process control of potassium chloride dosing in desalination brine management systems
• Quality assurance of potassium-containing pharmaceutical excipients (e.g., KCl infusions, oral rehydration salts)
• Research-grade ion speciation studies in hydrogeochemical modeling and soil solution analysis
• Calibration validation of online potassium analyzers used in continuous emission monitoring systems (CEMS)

FAQ

What ion-selective electrode is required for potassium measurement on the PI5100-K?
The instrument requires the dedicated R2223 potassium-specific ISE (valinomycin-based PVC membrane), supplied with each system.
Can the PI5100-K measure other cations besides potassium?
Yes—it supports up to 10 pre-programmed ions (e.g., Na⁺, Ca²⁺, NH₄⁺, Ag⁺) and allows custom ion setup via user-defined slope and intercept parameters.
Is temperature compensation mandatory during ion measurement?
Automatic temperature compensation is enabled by default in ion mode (0–60.0 °C range); manual override is permitted when ambient sensor drift is suspected.
How does the instrument handle low-conductivity samples like deionized water?
The PI5100-K includes a dedicated high-purity water pH mode with resistivity compensation and recommends ISA addition for reliable potassium ISE response below 50 µS/cm.
Does the USB interface support direct connection to laboratory information management systems (LIMS)?
Yes—CSV export format and time-synchronized metadata enable seamless ingestion into common LIMS platforms without proprietary drivers.
