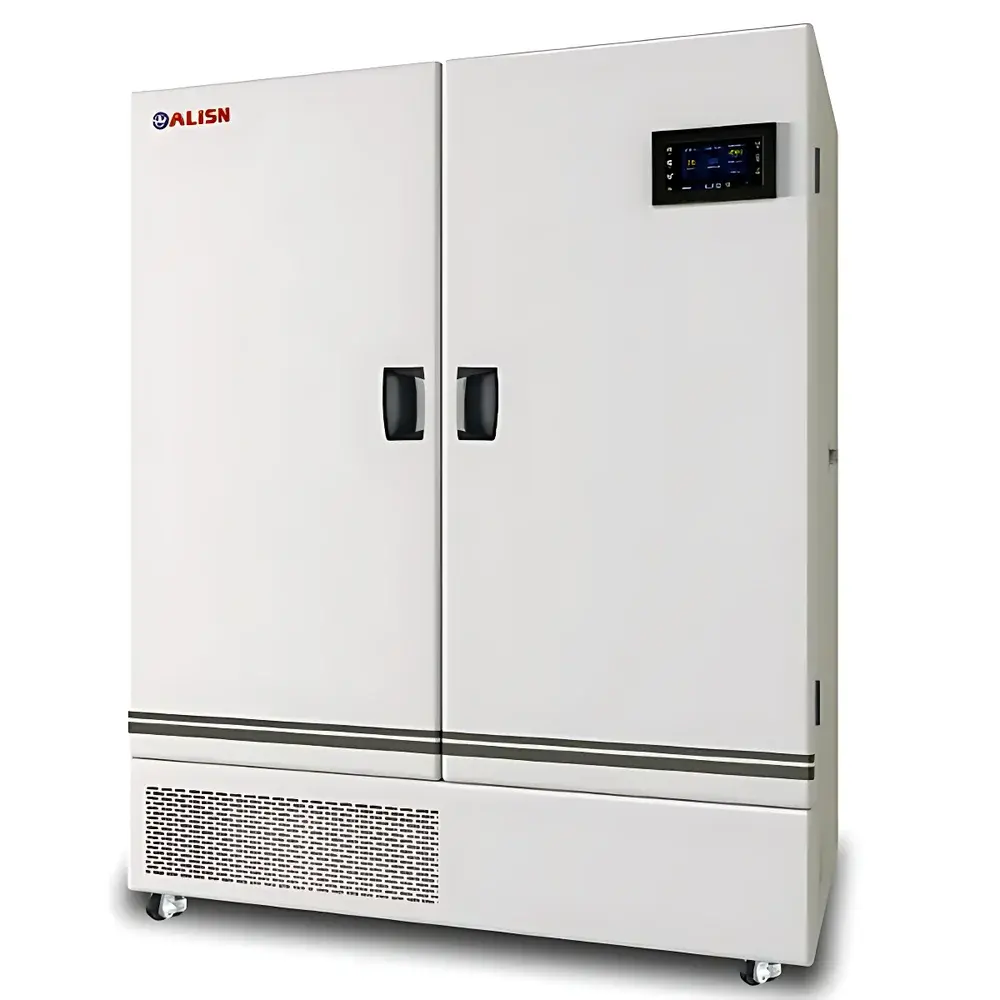

ALISN CNT 760plus Low-Temperature Biochemical Incubator

Overview

The ALISN CNT 760plus is a high-stability, low-temperature biochemical incubator engineered for precision-controlled environmental simulation in life science laboratories. Designed around a dual-stage thermal management architecture—combining variable-speed SECOP hermetic compressors with EBM-Papst axial condenser fans—the system delivers exceptional temperature stability across its full operating range of −10 °C to +90 °C. Its forced convection airflow, calibrated via internal vane-guided ducting and validated per ISO 15270:2021 Annex B, ensures uniform thermal distribution (±0.3 °C at 37 °C, empty chamber, per ASTM E145-22 test protocol). The monolithic polyurethane insulation (≥80 mm, closed-cell, CFC-free) provides structural rigidity and thermal resistance exceeding 0.8 m²·K/W—critical for long-duration cold-chain applications such as vaccine stabilization, cryopreservation intermediate storage, and thermosensitive biopolymer synthesis. Unlike ambient-compensated units, the CNT 760plus maintains specified performance under nominal laboratory conditions (23–27 °C, ≤70% RH), eliminating drift-induced experimental variance.

Key Features

• Hybrid PID-fuzzy logic temperature control algorithm with real-time adaptive tuning—minimizes overshoot and accelerates thermal recovery (<3 min to re-stabilize after 30-sec door opening at 4 °C)
• Immutable data integrity architecture: 10-year onboard logging (timestamped, CRC-protected), exportable only via encrypted USB drive; raw files are write-once, read-many (WORM)
• Regulatory-grade audit trail: 16,000-event buffer (user login/logout, parameter changes, alarm triggers, door events) with ISO/IEC 17025-compliant metadata (operator ID, timestamp, action context)
• Granular role-based access control (RBAC): Administrator-configurable permissions across five user profiles—including calibration lockout, program editing rights, and data export privileges
• Multi-point thermal mapping correction: Compensates for spatial nonlinearity using up to 12 independent offset values—validated against NIST-traceable reference probes
• Dual-door mechanical design with optically clear tempered glass inner door and Ø50 mm pass-through port (silicone-sealed, vacuum-compatible up to 10⁻² mbar)
• Standard serial interfaces (RS232/RS485) support integration into LIMS and SCADA systems; USB-B port enables firmware updates and secure data extraction without network exposure

Sample Compatibility & Compliance

The CNT 760plus accommodates diverse biological and pharmaceutical sample formats—including stacked cell culture flasks (T175, T225), multiwell plates (96-/384-well), cryovial racks, and bulk buffer containers—within its 1300 × 1180 × 500 mm stainless-steel chamber. All wetted surfaces meet ISO 8573-1 Class 3 purity requirements for compressed air systems, ensuring compatibility with sterile processing workflows. The unit complies with IEC 61010-1:2010 (safety), IEC 61326-1:2013 (EMC), and UL 61010-1 (North America). Its audit trail and immutable data export functionality satisfy FDA 21 CFR Part 11 Subpart B (electronic records/signatures) and EU Annex 11 (computerized systems) requirements when deployed in GLP/GMP environments. Temperature validation protocols align with IQ/OQ/PQ documentation templates per ISO/IEC 17025:2017 Clause 7.8.2.

Software & Data Management

Embedded firmware supports dual-language operation (English/Chinese) with context-sensitive help overlays accessible directly from the 7-inch capacitive touchscreen. Real-time temperature curves (up to 72 hours visible), historical setpoint logs, and deviation heatmaps are rendered natively without external software. All exported data (.CSV format) includes embedded digital signatures verifying origin, timestamp, and cryptographic hash (SHA-256). Optional ALISN LabLink™ PC software (Windows/macOS) enables remote monitoring, automated report generation (PDF/Excel), and trend analysis with statistical process control (SPC) charts (X̄/R, Cpk). Data archives comply with ALCOA+ principles (Attributable, Legible, Contemporaneous, Original, Accurate, Complete, Consistent, Enduring, Available).

Applications

• Vaccine formulation stability testing per WHO TRS 999 Annex 5 and USP
• Cold-chain validation for mRNA-LNP storage at −5 °C to +8 °C (non-frozen transport simulation)
• Plant tissue culture under sub-ambient photoperiodic conditions (e.g., vernalization studies)
• Enzyme kinetics assays requiring precise low-temperature inhibition (e.g., Taq polymerase cold-start protocols)
• Long-term microbial strain banking (−10 °C to +5 °C) with traceable environmental history
• Bioreactor inoculum conditioning prior to upstream processing

FAQ

Does the CNT 760plus support 21 CFR Part 11 compliance out-of-the-box?
Yes—the immutable audit trail, electronic signature support (via optional LabLink™), and role-based access controls meet all technical requirements for Part 11 Subpart B implementation.
Can temperature calibration be performed internally without external hardware?
Yes—multi-point correction is fully software-executed using the built-in HERAEUS Pt1000 sensors; no external calibrator is required for routine offset adjustments.
What is the maximum allowable ambient humidity for continuous operation?
The unit is rated for continuous use at ≤70% RH at 35 °C ambient; operation above this threshold requires active dehumidification of the lab environment to prevent condensation-related sensor drift.
Is the USB data export function compatible with macOS and Linux systems?
Exported .CSV files are OS-agnostic; however, ALISN LabLink™ software currently supports only Windows 10/11 and macOS 12+.
How frequently must the refrigeration system undergo preventive maintenance?
Per manufacturer guidelines: compressor oil inspection every 24 months; condenser coil cleaning every 6 months in standard lab environments; full refrigerant charge verification every 36 months by certified HVAC-R technician.
