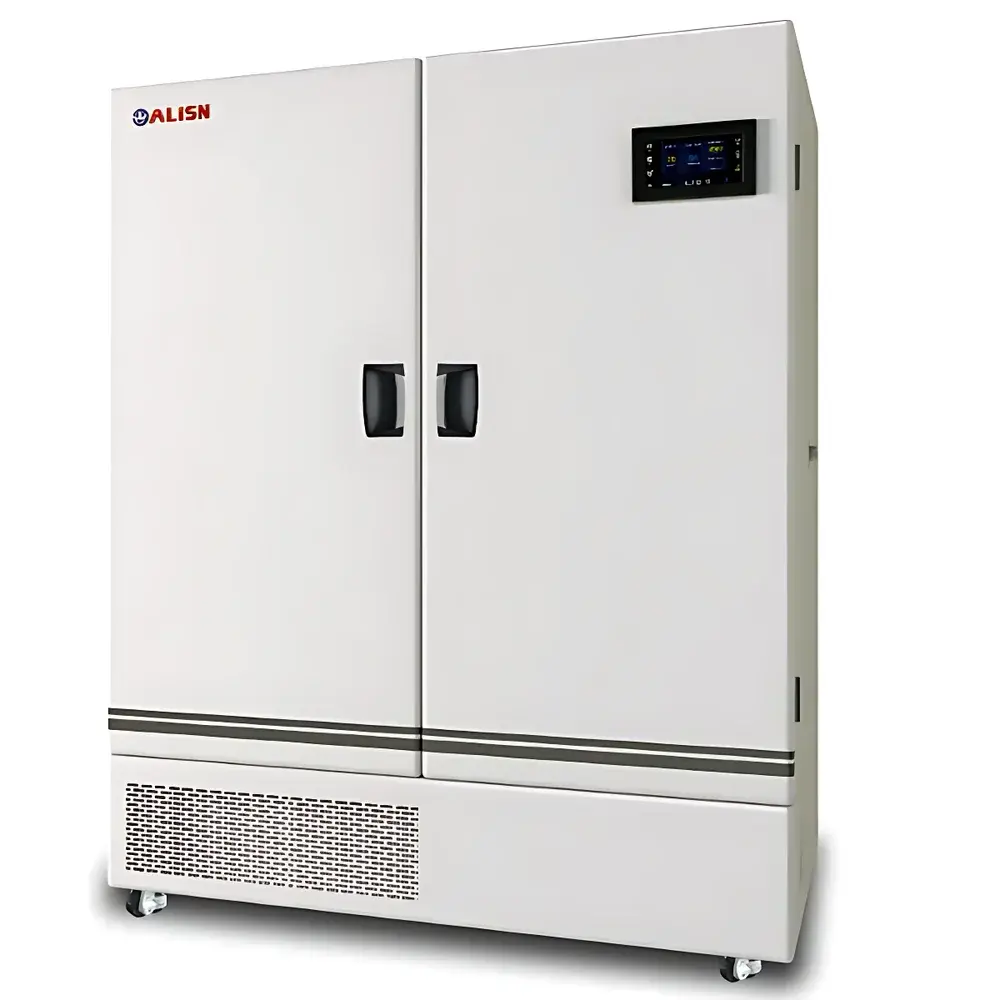

ALISN STC 1000 Drug Stability Testing Chamber

Overview

The ALISN STC 1000 Drug Stability Testing Chamber is an ICH-aligned environmental simulation system engineered for long-term, real-time, and accelerated stability studies in compliance with ICH Q1A(R3), Q5C, and WHO TRS 1010 Annex 2 requirements. It employs a dual-sensor, closed-loop PID-fuzzy hybrid control architecture to maintain precise temperature (±0.1°C accuracy) and relative humidity (±1.5% RH fluctuation) profiles across its 1012 L working chamber — critical for assessing pharmaceutical product degradation kinetics under defined stress conditions. The chamber integrates a spectrally calibrated D65 daylight simulator (0–8000 lux, six-step programmable intensity) with UVA-emitting fluorescent tubes (320–400 nm), enabling photostability testing per ICH Q5C and USP . Its inverter-driven SECOP (Danfoss) refrigeration system, coupled with E+E humidity and Heraeus platinum resistance temperature sensors, ensures thermal and hygroscopic reproducibility essential for regulatory submissions to FDA, EMA, PMDA, and NMPA.

Key Features

• True-color 7-inch capacitive touchscreen interface with intuitive menu navigation and bilingual (English/Chinese) language toggle — no firmware update required for language switching.
• Monolithic polyurethane insulation (≥120 mm wall thickness) achieving >40% energy reduction versus conventional chambers; validated at 25°C ambient, 70% RH.
• Dual-door design: outer insulated door + inner tempered glass door for real-time visual monitoring without compromising chamber integrity.
• Multi-point temperature offset calibration function — corrects spatial non-uniformity across 9 predefined probe locations, eliminating linear drift artifacts in multi-zone validation protocols.
• Non-volatile internal memory stores ≥10 years of timestamped温湿度 (T/RH) data at user-defined intervals (1 min to 24 h); raw logs exportable only via encrypted USB drive — write-protection enforced at firmware level.
• Audit trail module records 16,000+ entries including operator ID, parameter changes, alarm triggers, door openings, and system resets — fully compliant with FDA 21 CFR Part 11 electronic record requirements when paired with ALISN’s optional e-signature add-on.
• Granular role-based access control: administrator-configurable user accounts (up to five) with tiered permissions covering setup, run control, data export, calibration, and audit log review.

Sample Compatibility & Compliance

The STC 1000 accommodates diverse pharmaceutical formats — including blister-packed tablets, vials, ampoules, lyophilized powders, suspensions, and topical formulations — on two standard stainless-steel shelves (expandable to four). Its interior chamber (1300 × 1180 × 660 mm) meets ISO 14644-1 Class 8 cleanroom airflow specifications when operated with optional HEPA-filtered recirculation. All materials contacting the test environment comply with USP for extractables and leachables. The system supports qualification protocols per ASTM E2500-13 and ISPE GAMP 5, with documented IQ/OQ documentation packages available upon request. Calibration certificates traceable to NIM (China) or DKD (Germany) are provided with each unit.

Software & Data Management

Embedded firmware supports local data visualization via real-time T/RH trend curves and historical overlay comparisons. Exported CSV files conform to CDISC SDTM standards for direct ingestion into statistical analysis platforms (e.g., JMP, SAS, Python Pandas). Optional ALISN Connect™ software enables remote monitoring, multi-chamber fleet management, automated report generation (PDF/Excel), and integration with LIMS via HL7 or RESTful API. All exported datasets include cryptographic hash signatures to ensure data integrity verification — satisfying ALCOA+ principles (Attributable, Legible, Contemporaneous, Original, Accurate, Complete, Consistent, Enduring, Available).

Applications

• IQ/OQ/PQ execution for GMP-regulated stability programs (long-term, intermediate, accelerated).
• ICH Q1B photostability assessment of APIs and finished dosage forms under controlled irradiance.
• Excipient compatibility screening under variable humidity stress (e.g., hygroscopicity mapping).
• Biologics stability evaluation at sub-zero temperatures (–10°C hold capability with optional low-temp kit).
• Environmental stress testing of medical device packaging per ISO 11607-1.
• Accelerated aging studies for shelf-life prediction using Arrhenius modeling inputs.

FAQ

Does the STC 1000 support 21 CFR Part 11 compliance?
Yes — with ALISN Connect™ software and enabled audit trail, electronic signatures, and role-based access controls, the system meets technical and procedural requirements for Part 11 compliance.
Can the illumination spectrum be validated per ICH Q5C Annex 3?
Yes — the D65 lamp array includes spectral irradiance certification reports (300–800 nm) and optional third-party validation kits for in-situ radiometric mapping.
Is remote firmware update supported?
No — firmware updates require physical USB media and administrator-level authentication to prevent unauthorized modification.
What is the maximum allowable load volume without compromising uniformity?
Per validation data, ≤70% chamber volume occupancy maintains ±0.5°C/±2% RH uniformity across all zones (per ISO 16770:2021 Annex B).
Are calibration certificates included with shipment?
Yes — factory-calibrated sensors ship with NIM-traceable certificates (temperature: ±0.05°C; humidity: ±1.0% RH at 25°C/50% RH).
