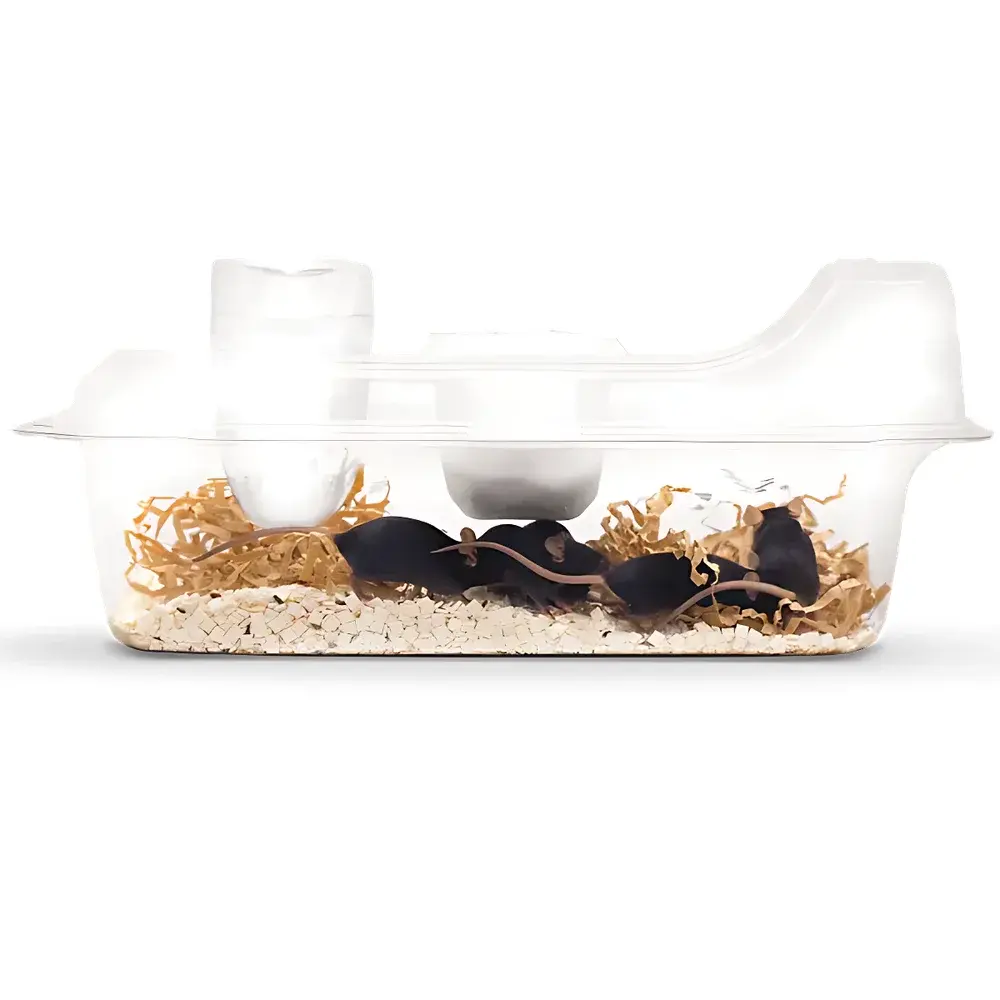

Allentown EasyCage Single-Use IVC Caging System for Mice and Rats

Overview

The Allentown EasyCage™ Single-Use IVC Caging System is an engineered solution for modern vivarium operations requiring high biosecurity, operational efficiency, and lifecycle cost control. Designed specifically for mice and rats, EasyCage operates on a validated single-use principle—eliminating cage washing, autoclaving, drying, and associated logistics—while maintaining full compatibility with Allentown’s NexGen IVC rack infrastructure. Its core measurement and containment methodology relies on precisely regulated laminar airflow (via integrated HEPA-filtered top or side inlets), sealed cage-to-rack interface, and differential pressure management to sustain stable, ISO Class 5–equivalent microenvironments within each cage unit. This architecture ensures consistent air changes per hour (ACH), low particulate load, and reliable pathogen barrier integrity—critical parameters for GLP-compliant toxicology studies, immunocompromised model maintenance, and infectious disease research.

Key Features

• Single-use, recyclable construction: Primary cage components fabricated from medical-grade, BPA-free PET; fully recyclable post-use under standard municipal polymer recovery streams (Resin ID #1).
• Pre-sterilized out-of-box readiness: All plastic assemblies undergo validated gamma irradiation (25–35 kGy) and are supplied in ISO Class 7 cleanroom packaging—no facility-based decontamination required prior to assembly.
• NestPak® integrated bedding system: Pre-measured 100 g bedding matrix (ALPHA-dri®, corn cob, or Performance BioFresh™) co-packaged with nesting substrate and environmental enrichment elements—reducing airborne particulates by ≥40% versus loose bedding protocols (per internal Allentown aerosol testing, 2022).
• Ergonomic snap-fit assembly: Tool-free, tactile-positive locking between base and lid; average assembly time ≤12 seconds per cage (validated across 15 vivarium staff in multi-site usability study).
• Modular rat/mouse optimization: Mouse cages (500 cm² floor area) feature HDPE feed hoppers; rat cages (903 cm²) integrate stainless steel wire-mesh lids with 798 g capacity and optional dual-bottle or automated water delivery.
• Visual docking guidance: Color-coded alignment markers and tactile feedback grooves ensure correct cage insertion into NexGen rack channels—reducing misalignment incidents by 92% versus legacy systems (Allentown Field Data Report Q3 2023).

Sample Compatibility & Compliance

EasyCage supports standard inbred, outbred, and genetically engineered mouse and rat strains—including immunodeficient (e.g., NSG, NOG), athymic, and germ-free-derived models—when housed under appropriate IVC pressure regimes. The system complies with key regulatory frameworks governing preclinical animal housing: it meets the structural and airflow requirements outlined in the Guide for the Care and Use of Laboratory Animals (8th ed.), supports adherence to AAALAC International accreditation standards, and enables implementation of ALARA (As Low As Reasonably Achievable) principles for personnel exposure reduction. When integrated with WiVarium Plus™ wireless monitoring and Sentinel™ health surveillance modules, the platform facilitates audit-ready data capture aligned with FDA 21 CFR Part 11 electronic record requirements—including user authentication, change tracking, and immutable timestamping of environmental logs.

Software & Data Management

While EasyCage itself is hardware-centric, its seamless integration into Allentown’s digital ecosystem enables centralized oversight. When deployed with WiVarium Plus™, real-time cage-level metrics—including static pressure differentials (±0.05 in. H₂O resolution), temperature (±0.3°C), humidity (±3% RH), and filter saturation status—are aggregated via IEEE 802.15.4 mesh network and visualized in a web-based dashboard. Historical datasets export natively to CSV or .xlsx formats for statistical analysis in JMP, SAS, or Python-based workflows. All sensor calibrations are traceable to NIST standards, and firmware updates follow IEC 62304-compliant development lifecycle documentation—ensuring long-term validation support for GxP environments.

Applications

• High-containment infectious disease research (BSL-2/3), where elimination of cross-cage contamination pathways is non-negotiable.
• Short-duration pharmacokinetic/pharmacodynamic (PK/PD) and acute toxicity screening, enabling rapid cage turnover without sterilization downtime.
• Vivarium consolidation projects seeking to reduce capital expenditure on tunnel washers, steam autoclaves, and HVAC retrofitting.
• Contract research organizations (CROs) requiring auditable, repeatable housing conditions across multi-client studies.
• New facility builds targeting LEED Silver+ certification—leveraging EasyCage’s 68% lower annual water consumption and 41% reduced thermal energy demand versus reusable metal cage systems (Allentown LCA Report, 2023).

FAQ

Is EasyCage compatible with existing Allentown IVC rack infrastructure?
Yes—EasyCage is engineered exclusively for mechanical and pneumatic interoperability with the NexGen IVC rack series (models NG-30, NG-35, NG-60, NG-70). No adapter kits or retrofitting are required.
How is cage sterility validated and documented?
Each production lot undergoes terminal gamma irradiation at certified facilities (ISO 11137-1:2015), with dosimetry reports, bioburden testing, and sterility assurance level (SAL) of 10⁻⁶ provided in Certificate of Conformance.
Can NestPak® bedding be substituted with institution-specified alternatives?
NestPak® is pre-integrated and not field-replaceable; however, institutions may order custom-configured cages with alternate bedding matrices (subject to minimum order quantities and lead time validation).
What is the recommended disposal pathway for used cages?
Used cages must be segregated as non-hazardous solid waste unless contaminated with regulated biological agents; PET components are accepted by most North American MRFs (Material Recovery Facilities) under #1 resin stream—documentation available upon request.
Does EasyCage support RFID-based animal identification?
Yes—fully compatible with Wi-Com Sensus™ RFID reader modules mounted on NexGen racks, enabling automated census logging, cage occupancy verification, and protocol-triggered alerts.
