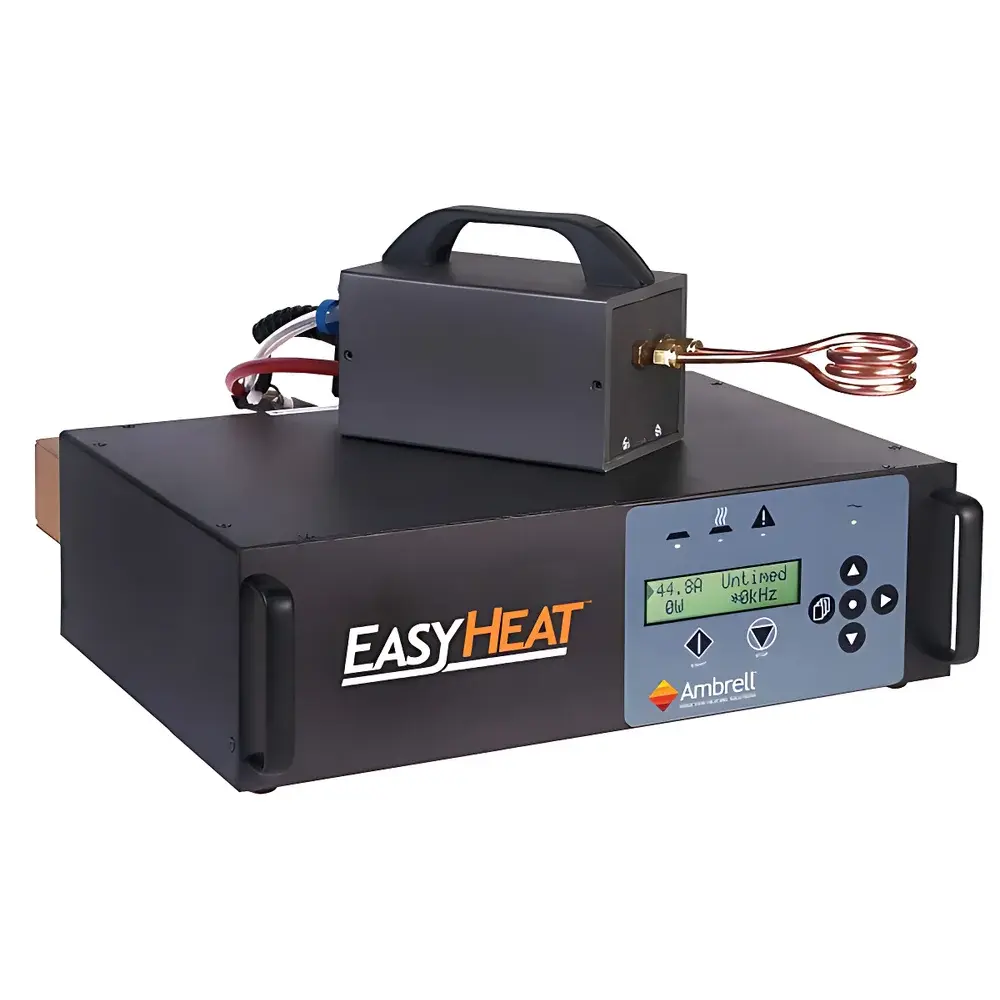

Ambrell Easyheat 1.2/2.4 kW Induction Heating System

Overview

The Ambrell Easyheat 1.2/2.4 kW Induction Heating System is a compact, air-cooled solid-state induction power supply engineered for precision, repeatability, and operational flexibility in industrial and laboratory thermal processing applications. Based on electromagnetic induction principles—where high-frequency alternating current generates eddy currents within electrically conductive materials—the system delivers localized, non-contact, flameless heating without thermal mass transfer or ambient convection losses. Designed and manufactured at Ambrell’s ISO 9001-certified facility in the United States, the Easyheat platform supports both shallow-surface and deep-penetrating heating regimes by dynamically leveraging its 150–400 kHz frequency range. This broad spectral bandwidth enables optimized coupling efficiency across diverse part geometries—from small-diameter wires and fasteners to medium-sized gears and bushings—and material compositions including ferrous alloys, copper, brass, and aluminum. Its modular architecture integrates a separable power supply unit and remotely mounted workhead, enabling placement within constrained workspaces while maintaining electrical isolation and thermal safety.

Key Features

• Two selectable power ratings: 1.2 kW and 2.4 kW continuous output, supporting scalable process development and production validation
• High-resolution power control with 25 W incremental adjustment, ensuring fine-tuned thermal input for sensitive or low-mass components
• Removable workhead with up to 3 m (10 ft) detachable coaxial cable—facilitating ergonomic positioning and integration into automated cells or benchtop fixtures
• Self-tuning resonant circuitry automatically adapts to load impedance variations, maintaining stable power delivery across part-to-part tolerances and coil aging
• Front-panel sealed membrane keypad and backlit multilingual LCD (English, French, Italian, German, Spanish) for intuitive local operation and real-time parameter monitoring
• Built-in programmable digital timer (0.1–999.9 s) and elapsed-time stopwatch, supporting single-cycle or continuous mode without hardware reconfiguration
• Standard analog voltage (0–10 V) and digital contact inputs for PLC synchronization; optional RS-232/RS-485 interface for SCADA integration and remote logging

Sample Compatibility & Compliance

The Easyheat 1.2/2.4 is compatible with standard water-cooled or air-cooled induction coils—including pancake, helical, and channel types—designed for part-specific magnetic field concentration. It accommodates conductive metallic samples ranging from 1 mm diameter wire to ~75 mm diameter cylindrical components, depending on required depth of penetration and dwell time. The system complies with CE marking requirements for electromagnetic compatibility (EMC Directive 2014/30/EU) and low-voltage safety (LVD Directive 2014/35/EU). All firmware and hardware design follow ISO 9001:2015 quality management protocols. While not intrinsically rated for hazardous locations, it may be deployed in Class 1 Div 2 environments when installed per NEC Article 500 guidelines and paired with appropriate enclosure protection (NEMA 4X/IP65-rated optional enclosures available).

Software & Data Management

The Easyheat operates as a standalone embedded system with no host PC dependency. Process parameters—including setpoint power, actual output, operating frequency, elapsed time, and timer status—are continuously displayed and logged internally with timestamped event markers. Optional serial communication enables bidirectional data exchange: real-time telemetry streaming, remote parameter updates, and non-volatile storage of up to 100 user-defined heating recipes. When integrated with third-party supervisory systems, the device supports audit-trail generation compliant with GLP and GMP documentation practices. Firmware updates are performed via secure USB interface using Ambrell-provided configuration utilities, preserving calibration integrity and traceability per ISO/IEC 17025 requirements.

Applications

• Induction brazing of copper-to-brass joints in HVAC components and refrigeration manifolds
• Localized stress-relief annealing of welded seams in stainless steel tubing assemblies
• Preheating of bearing races prior to press-fit assembly in automotive transmission subassemblies
• Surface hardening of gear teeth and cam lobes using contoured single-turn coils
• Rapid thermal cycling validation of solder joint reliability in electronics packaging R&D
• Lab-scale simulation of industrial induction processes for metallurgical process mapping and DOE studies

FAQ

What cooling method does the Easyheat 1.2/2.4 require?
The system is air-cooled as standard; however, an optional integrated heat exchanger or connection to an external recirculating chiller is available for extended-duty cycles or ambient temperatures exceeding 40 °C.
Can the Easyheat operate in a vacuum or inert-gas environment?
No—the power supply and workhead are not sealed or rated for vacuum or purged atmospheres. External coil encapsulation and feedthrough integration must be engineered separately by the end user.
Is factory calibration traceable to NIST standards?
Yes—each unit ships with a certificate of calibration traceable to NIST-accredited laboratories, covering power output, timer accuracy, and frequency stability.
How is maintenance performed on-site?
The system supports field recalibration of power measurement and timer functions using Ambrell-supplied diagnostic tools and documented procedures; no disassembly of sealed modules is required.
Does the Easyheat support closed-loop temperature control?
Not natively—but it is fully compatible with optional optical pyrometers (e.g., Ambrell IR-200 series) that provide analog feedback signals to modulate power output via the 0–10 V input terminal.
