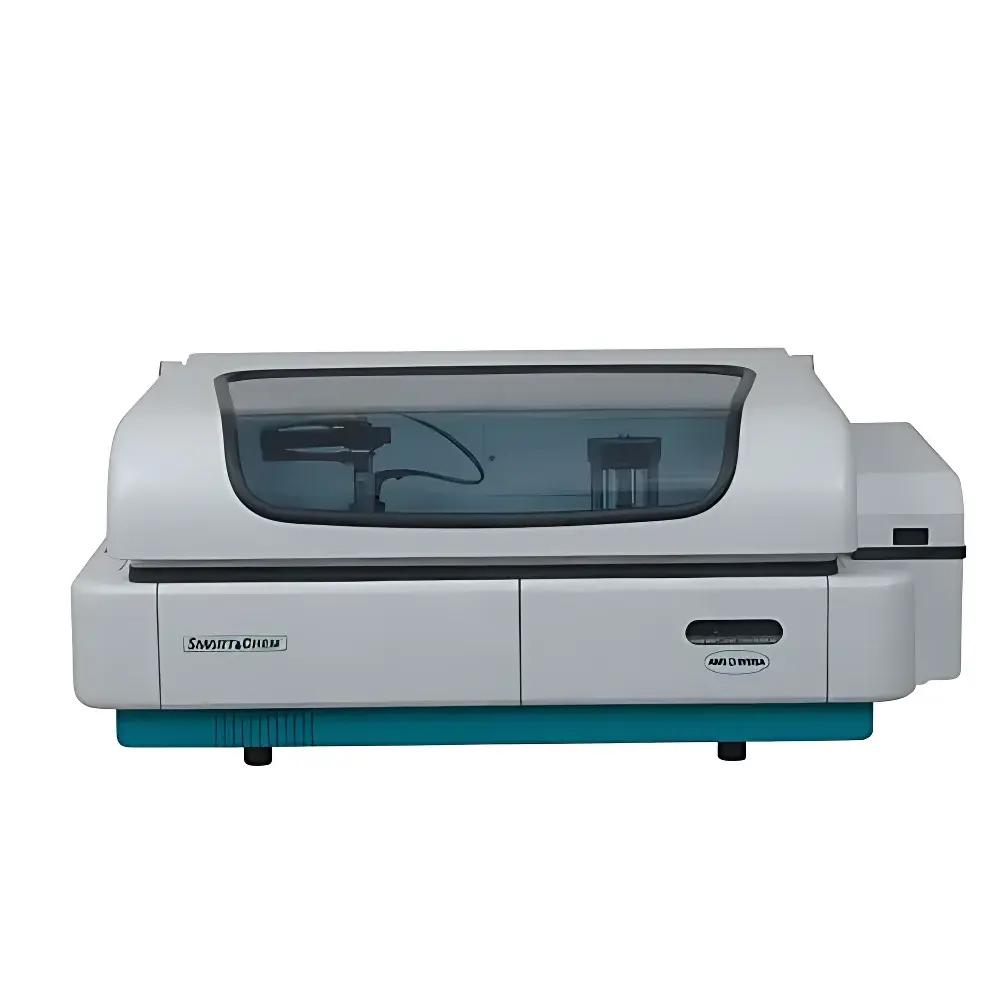

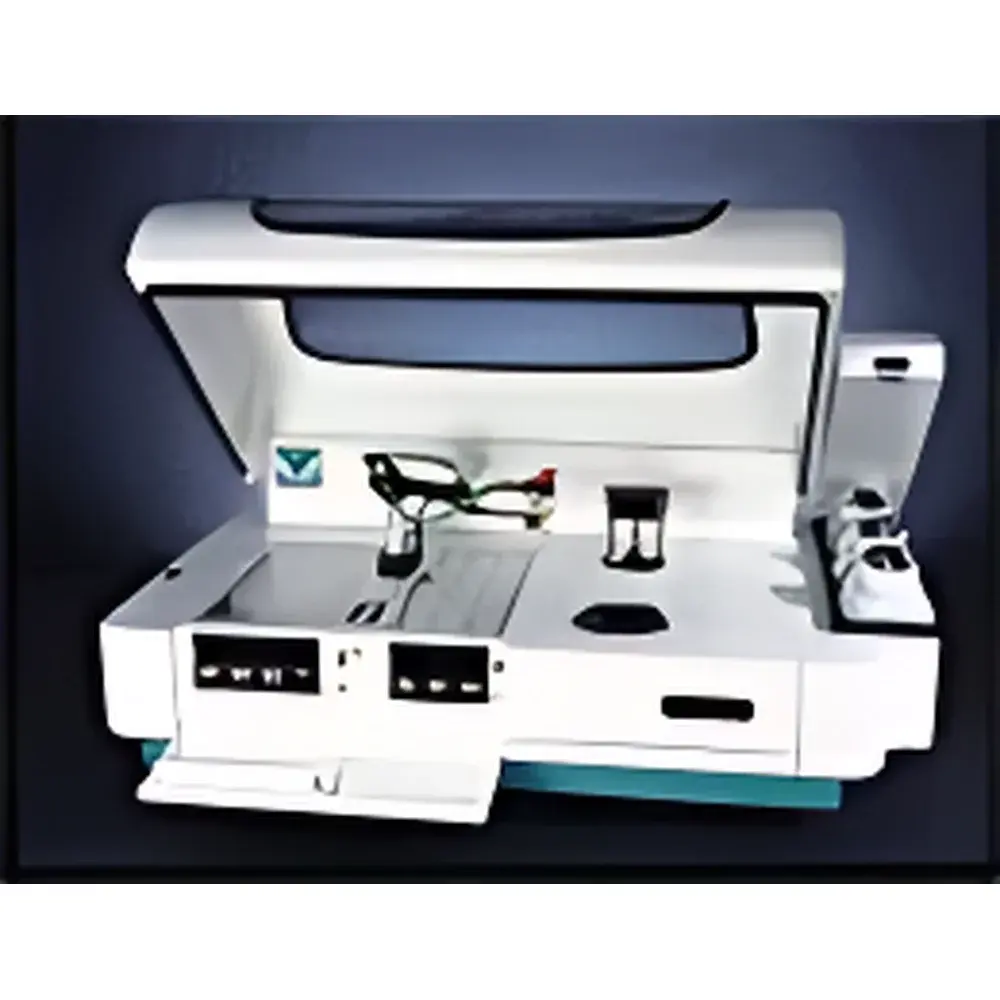

AMS Alliance SmartChem 200 Discrete Chemistry Analyzer
| Brand | AMS Alliance |
|---|---|
| Origin | France |
| Model | SmartChem 200 |
| Product Type | Discrete Flow Analyzer |
| Wavelength Range | 400–900 nm |
| Sample Volume per Test | 300 µL |
| Sample Positions | 126 |
| Reagent Positions | 200 (including refrigerated slots) |
| Cuvette Path Length | 10 mm |
| Light Source | LED and Halogen Tungsten Lamp (6 V / 10 W, 2000 h lifetime) |
Overview
The AMS Alliance SmartChem 200 Discrete Chemistry Analyzer is a fully automated, benchtop discrete photometric analyzer engineered for high-precision, low-volume wet-chemistry analysis in regulated and research laboratory environments. Unlike continuous-flow or flow-injection systems, the SmartChem 200 implements true discrete analysis—each sample and reagent combination is pipetted into an individual, reusable quartz or optical-grade plastic cuvette, where controlled colorimetric or enzymatic reactions occur under programmable temperature conditions (30–45 °C). Absorbance is measured via dual-beam photometry using a 22-bit high-resolution digital detector and a motorized filter wheel with nine fixed wavelengths (420, 480, 510, 520, 550, 570, 630, 660, and 880 nm), plus one blank position. This architecture eliminates cross-contamination inherent in flow-cell-based platforms and ensures compliance with method-specific requirements outlined in ISO 15586, ASTM D3869, USP , and EPA Methods 353.2, 365.4, and 4500-NH₃F. The system operates on Beer–Lambert principle fundamentals, delivering traceable, reproducible quantification across >100 validated parameters without reliance on carrier streams or peristaltic pumping.
Key Features
- Discrete cuvette-based reaction architecture—no flow cells, no pump tubing, no carrier solution required
- Automated cuvette washing station with optical integrity verification prior to each use
- Programmable reaction temperature control (30–45 °C) for kinetic and endpoint assays
- Dual-beam photometer with 0–2.5 AUFS absorbance range and 0.0001 AUFS resolution
- Integrated sample dilution module supporting automatic range extension for out-of-calibration samples
- Refrigerated reagent storage (10 positions at 4 °C) alongside ambient reagent capacity (200 total positions)
- High-throughput operation: up to 180 determinations per hour across up to 9 independent methods simultaneously
- Low reagent consumption: ≤40 mL sufficient for 400–600 analyses; sample volume adjustable from 3–450 µL in 1-µL increments
Sample Compatibility & Compliance
The SmartChem 200 supports diverse matrices including drinking water, wastewater, seawater, soil extracts, plant digests, food homogenates, tobacco leaf preparations, wine musts, and fermentation broths. Its discrete cuvette format enables accurate analysis of turbid, particulate-laden, or viscous samples that would clog or foul flow-through systems. Method validation documentation aligns with GLP and GMP frameworks, and audit-trail functionality satisfies FDA 21 CFR Part 11 requirements when used with compliant LIMS integration. The instrument meets CE marking directives for electromagnetic compatibility (2014/30/EU) and low-voltage safety (2014/35/EU), and its mechanical design conforms to IEC 61010-1:2010 for laboratory equipment safety.
Software & Data Management
The SmartChem Control Suite provides intuitive method development, calibration curve generation (linear, quadratic, spline), and QC monitoring (Levey-Jennings, Westgard rules). All analytical sequences—including standard preparation, spike recovery, blank subtraction, and multi-point dilution—are scriptable and repeatable. Raw absorbance data, method metadata, operator logs, and instrument status timestamps are stored in encrypted SQLite databases with optional export to CSV, PDF, or XML formats. Software supports secure user role assignment (administrator, analyst, reviewer), electronic signatures, and full audit trail retention for ≥10 years. Integration with third-party LIMS via ASTM E1384-compliant HL7 or ODBC interfaces is supported.
Applications
The SmartChem 200 delivers validated performance for environmental monitoring (NH₃-N, NO₃⁻, NO₂⁻, PO₄³⁻, SiO₂, SO₄²⁻, COD, CN⁻, F⁻, Cr⁶⁺), agricultural testing (TKN, total P, urea, nitrate via Cd-reduction module), food & beverage QA/QC (total acidity, free/total SO₂, reducing sugars, tartaric/malic acid, ethanol), and clinical research (urea, creatinine, glucose, uric acid). Its ability to perform true sample blanking—using unreacted matrix as reference—enhances accuracy in complex biological and environmental samples. The platform is widely deployed in ISO/IEC 17025-accredited laboratories performing routine compliance testing under national regulatory frameworks.
FAQ
What distinguishes discrete analysis from flow injection or segmented flow techniques?
Discrete analysis isolates each reaction in a dedicated cuvette, eliminating memory effects and cross-talk between samples—critical for high-accuracy regulatory work.
Can the SmartChem 200 comply with FDA 21 CFR Part 11 requirements?
Yes—when configured with electronic signature modules, audit-trail logging, and role-based access controls, it meets Part 11 technical and procedural criteria.
Is method development possible without vendor support?
Yes—the software includes built-in templates for common EPA, ISO, and ASTM methods, and users may develop custom protocols using absorbance kinetics, multi-reagent sequences, and conditional logic.
How is cuvette cleanliness verified before measurement?
Each cuvette undergoes automated wash-rinse-dry cycles followed by an optical transmission test at two wavelengths; failure triggers rejection and re-wash.
Does the system support cold-chain reagent handling?
Yes—10 dedicated 4 °C refrigerated positions ensure stability for temperature-sensitive enzymes, chromogens, and standards.
