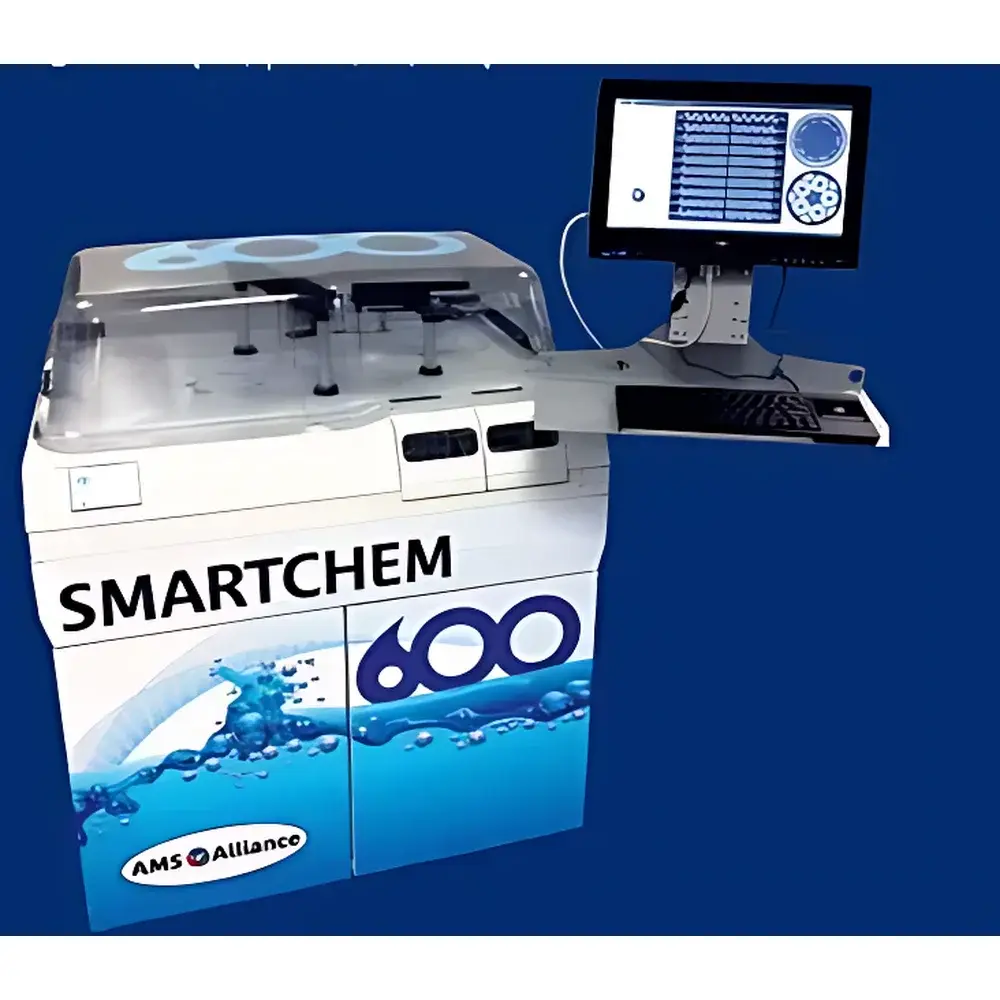

AMS Alliance SmartChem 600 Automated Discrete Analyzer

Overview

The AMS Alliance SmartChem 600 is an advanced automated discrete analyzer engineered for high-throughput, low-maintenance clinical, environmental, and food quality laboratories. Unlike continuous-flow or segmented-flow systems, the SmartChem 600 employs true discrete analysis—where each sample and reagent combination is processed individually in a dedicated cuvette under precisely controlled reaction conditions. This architecture eliminates cross-contamination, enables flexible assay sequencing, and supports endpoint, kinetic, differential, dual-wavelength, and fixed-time measurement modes. Its optical system integrates a stable LED light source with a high-resolution (0.0001 Abs), dual-beam photometer covering 340–880 nm, ensuring trace-level sensitivity and long-term photometric stability without lamp replacement. The instrument operates at a nominal throughput of up to 450 tests/hour (including ISE electrode measurements) and achieves up to 600 colorimetric tests/hour under optimized protocols—making it suitable for routine compliance monitoring in regulated environments.

Key Features

• Second-generation direct-read cuvette technology with integrated cleaning station, minimizing carryover and extending cuvette lifetime
• Automated calibration, startup, and shutdown sequences enabling unattended overnight operation
• Barcode recognition for both samples and reagents—ensuring full traceability and reducing manual entry errors
• Modular design supporting optional add-ons: Cd-reduction column for nitrate/nitrite analysis, direct-read ISE module (Na⁺, K⁺, Cl⁻, Li⁺; 140 samples/hour), and pH/conductivity/redox electrodes
• Low-resource operation: water consumption <7 L/hour; minimal waste generation via on-board waste segregation and reprocessing
• Touchscreen PC interface with intuitive workflow-driven software; configurable method templates and user-defined test scheduling
• Thermostatically controlled reaction chamber (37 °C ±0.3 °C) for temperature-sensitive assays

Sample Compatibility & Compliance

The SmartChem 600 accommodates liquid matrices across environmental, food, agricultural, and public health domains—including drinking water, wastewater, seawater, soil extracts, plant digests, wine, beer, dairy, tobacco, and biological fluids. It complies with standard methods referenced in ISO 15681 (phosphorus, nitrogen species), ASTM D3867 (cyanide), EPA Method 353.2 (nitrate/nitrite), and AOAC Official Methods (e.g., 973.42 for chloride). Its hardware architecture and software logging capabilities support GLP and GMP environments: audit trails record operator actions, method changes, calibration events, and instrument status; data integrity is reinforced by electronic signatures and time-stamped raw absorbance files. Optional LIMS integration adheres to ASTM E1578 and ISO/IEC 17025 data exchange requirements.

Software & Data Management

The embedded software provides full method development, validation, and execution control—including dynamic dilution, multi-point calibration curves, blank subtraction, and outlier rejection algorithms. All measurements are stored as structured .csv and .xml files compliant with ASTM E2500-07. Raw photometric data (absorbance vs. time) is retained for retrospective kinetic analysis. The system supports 21 CFR Part 11-compliant user access levels (admin, analyst, reviewer), electronic signatures, and immutable audit logs. Export functions include PDF reports with embedded metadata (sample ID, reagent lot, calibration date, instrument serial number), and direct upload to enterprise LIMS via HL7 or TCP/IP protocols.

Applications

• Water & Wastewater: Ammonia-N, total phosphorus, orthophosphate, nitrate/Nitrite-N, cyanide, phenol, sulfide, sulfate, urea, anions (Cl⁻, F⁻, NO₃⁻)
• Foods & Beverages: Total/reducing sugars, nitrate/nitrite, SO₂, vitamin C, protein (Kjeldahl digestate analysis), volatile acidity, COD, glucose/fructose/sucrose profiles
• Agriculture & Soils: NH₄⁺-N, NO₃⁻/NO₂⁻-N, total Kjeldahl nitrogen, silicate, boron, carbonate, conductivity, Cu/Fe/Zn/K in acid digests
• Tobacco & Regulatory Labs: Nicotine, chlorides, alkaloids, tar constituents—routinely deployed by national tobacco institutes, CDC reference labs, and customs inspection agencies

FAQ

What distinguishes discrete analysis from flow injection or segmented flow techniques?
Discrete analysis isolates each reaction in a dedicated cuvette, eliminating dispersion, band broadening, and memory effects inherent in flow-based systems—resulting in superior precision for complex matrices and mixed-parameter batches.
Can the SmartChem 600 perform kinetic assays?
Yes—it supports real-time absorbance monitoring over user-defined time intervals (e.g., 0–300 seconds), enabling enzyme activity, oxidation-reduction, and slow-reacting chromogenic assays.
Is method validation support included?
The software includes built-in tools for linearity assessment (R² ≥0.999), LOD/LOQ calculation per ICH Q2(R2), repeatability testing (n≥10), and recovery spike evaluation—fully documented in the validation report generator.
How is reagent stability managed during extended runs?
All 100 reagent positions can be refrigerated (4–10 °C) via optional Peltier cooling; temperature logs are recorded alongside each assay run for QC review.
Does the system meet regulatory requirements for environmental testing labs?
Yes—the platform is validated against ISO/IEC 17025:2017 clause 7.2.2 (method validation) and supports accredited labs in maintaining technical records per EN ISO/IEC 17025 Annex A.2.
