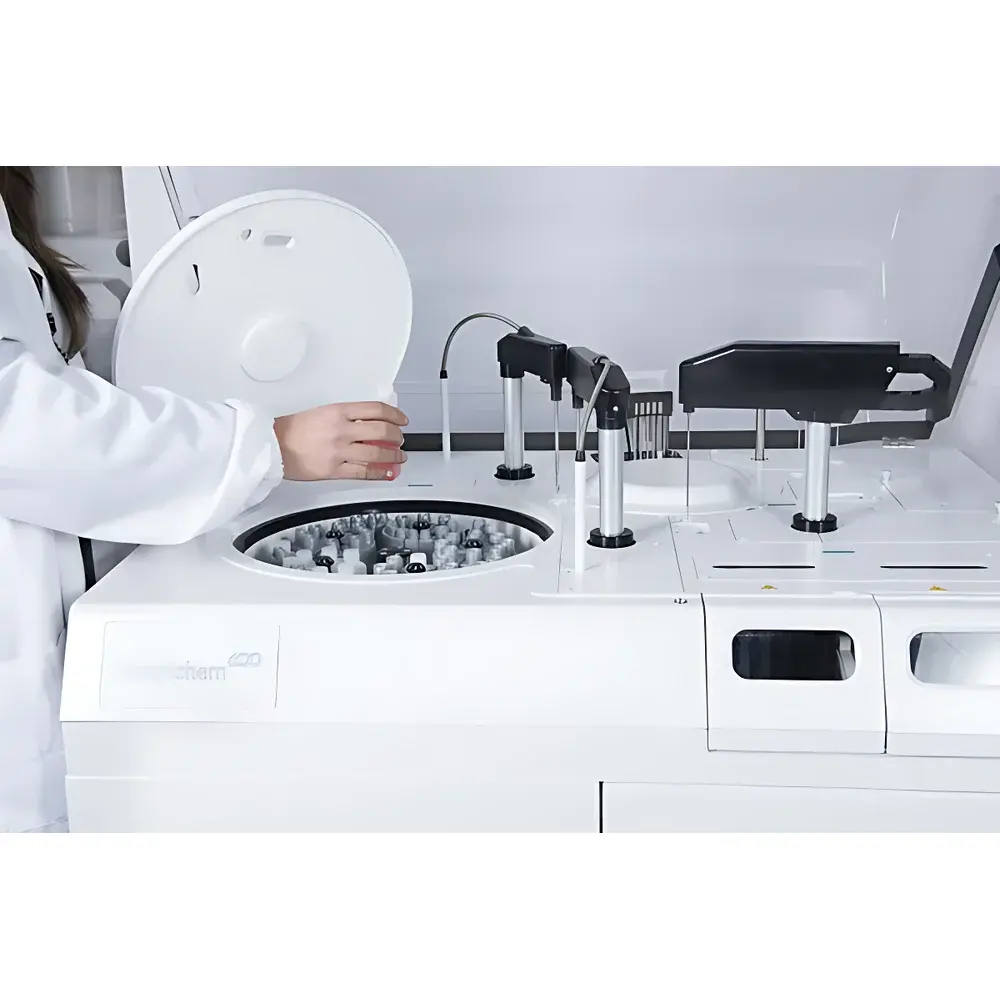

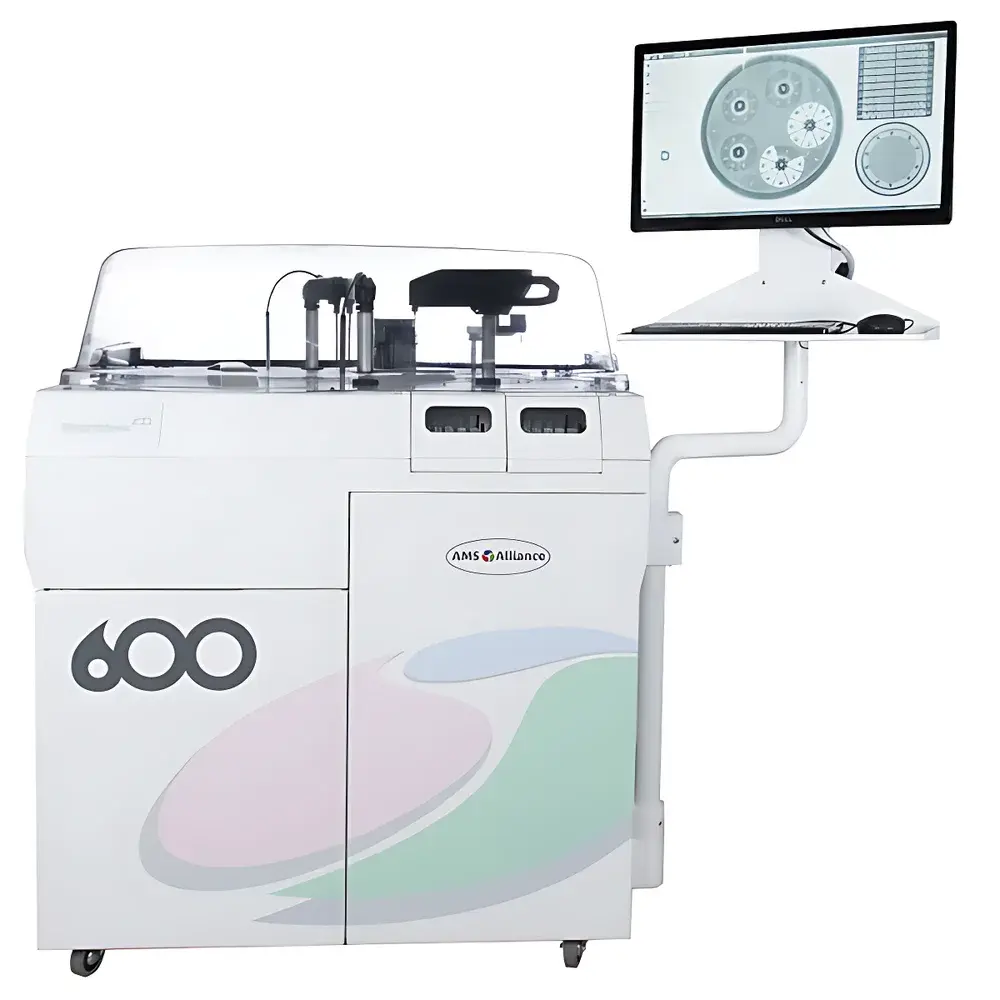

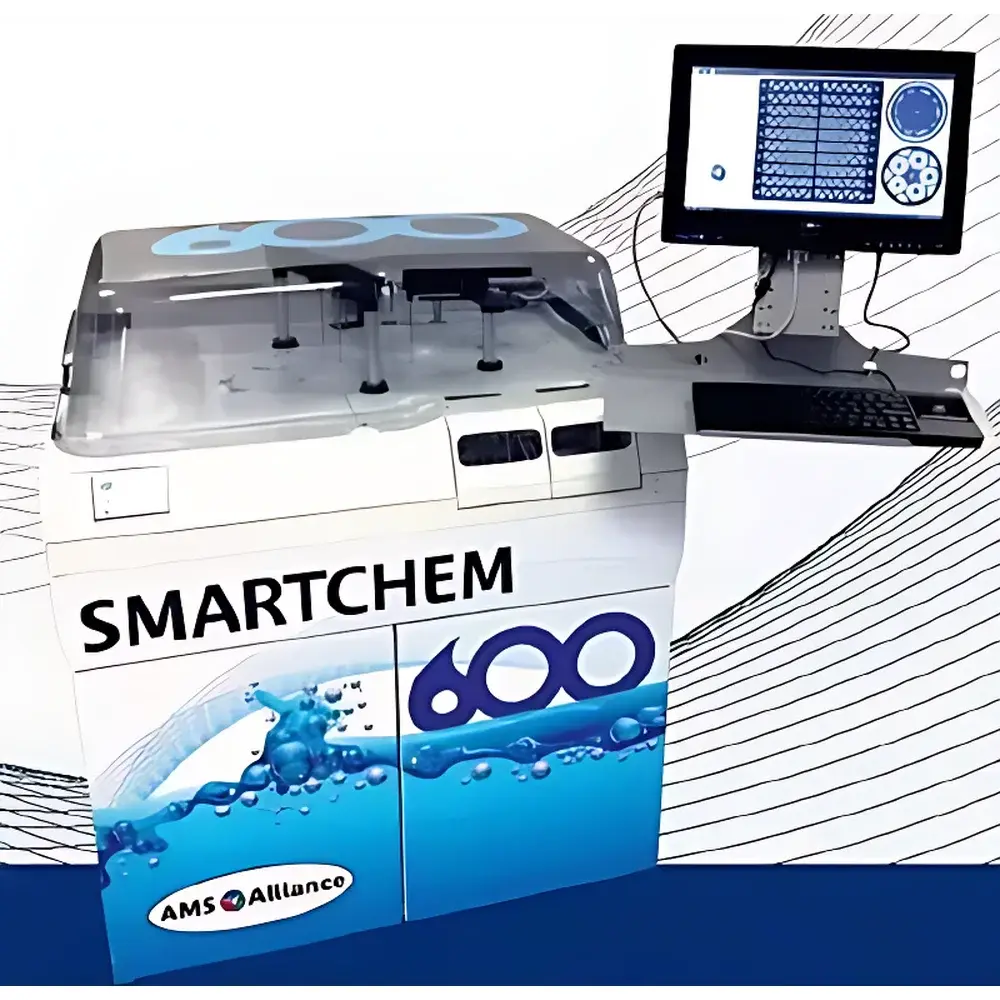

AMS Alliance Smartchem 600 Discrete Chemistry Analyzer

Overview

The AMS Alliance Smartchem 600 is a fully automated, benchtop discrete chemistry analyzer engineered for high-throughput clinical, environmental, and industrial laboratories requiring precision, regulatory compliance, and operational continuity. Unlike continuous-flow or flow injection systems, the Smartchem 600 employs true discrete analysis—each sample and reagent pair is processed in an individual, optically calibrated cuvette under controlled thermal and timing conditions. This architecture eliminates cross-contamination, enables flexible assay scheduling (random access), and supports endpoint, kinetic, differential, and dual-wavelength methodologies across up to 999 programmable tests. The system operates on a modular platform with three independent sampling arms, integrated photometric detection (dual-beam reference channel), and precise reaction temperature control at 37 °C ± 0.3 °C—ensuring reproducibility aligned with CLIA, ISO 15197, and ASTM E2935 requirements for quantitative colorimetric and enzymatic assays.

Key Features

• Fully automated discrete analysis with random-access sample and reagent handling—no fixed sequence required
• Throughput of up to 600 determinations per hour, including simultaneous ISE measurements (pH, conductivity, redox)

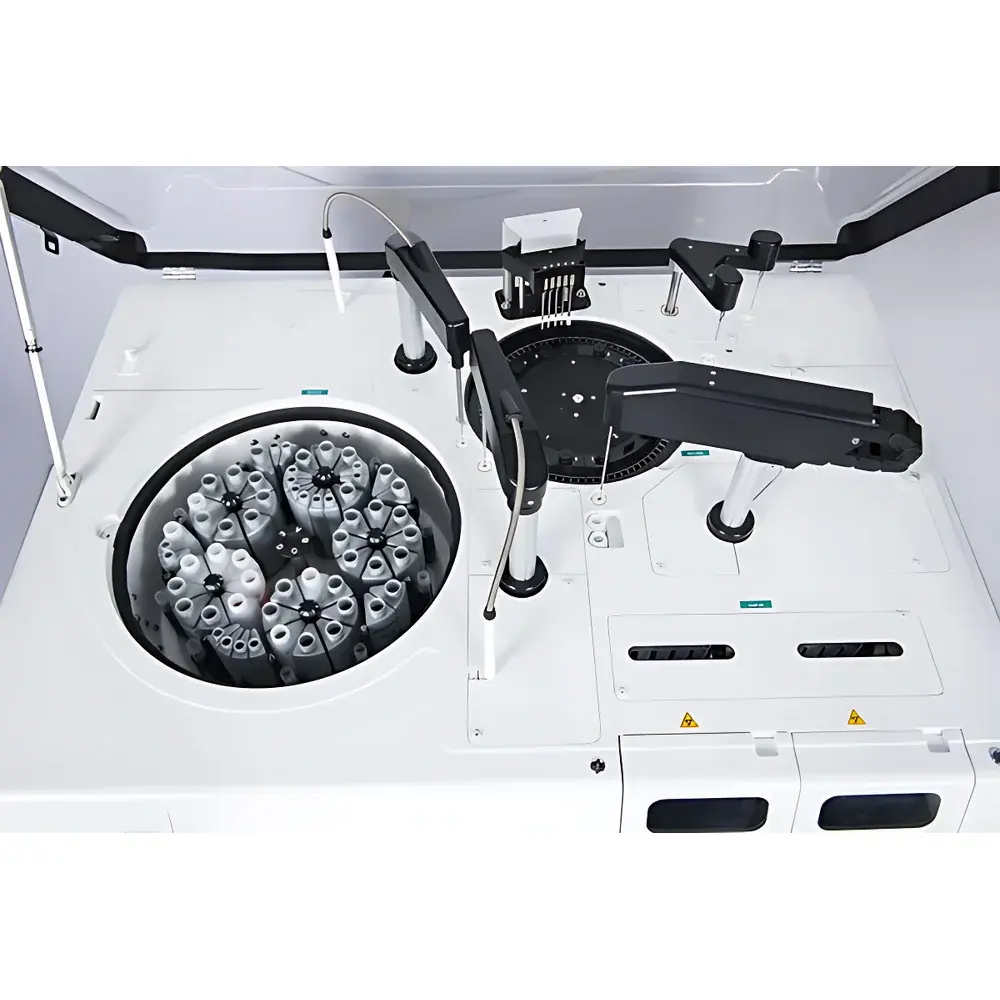

• Three independently actuated sampling probes with capacitive liquid level sensing, vibration monitoring, and real-time occlusion detection
• Dual-temperature-controlled reagent compartment: 600 total reagent positions distributed across five movable racks (8 primary slots each) plus five synchronized multi-volume dispensers (100/50/25/5 mL)
• Sample handling: two rotating carousels accommodating 20 racks (10 positions each), supporting tubes 10–13 mm in diameter and up to 100 mm tall; optional barcode readers for both samples and reagents
• 85 durable, reusable quartz-glass cuvettes organized in five removable trays; each undergoes automated washing, optical integrity verification, and thermal equilibration prior to use
• Low water consumption (<7 L/hour) and segregated hazardous waste lines compliant with ISO 14001 lab waste management protocols
• Integrated touchscreen interface with bidirectional LIS/LIMS connectivity via ASTM E1384 and HL7 v2.5.1 standards

Sample Compatibility & Compliance

The Smartchem 600 accepts standard 10–13 mm diameter sample tubes (up to 100 mm height), including capped tubes for light-sensitive or volatile analytes. Its 300 µL per-test volume minimizes sample consumption while maintaining robust signal-to-noise ratios across the 400–900 nm spectral range. All photometric measurements are traceable to NIST-certified absorbance standards, with linearity validated from 0.001 to 4.200 Abs using dual-beam referencing. The system meets essential regulatory frameworks for routine laboratory operation—including FDA 21 CFR Part 11 (with audit trail, electronic signature, and role-based access enabled), ISO/IEC 17025 (for accredited testing labs), and EU IVDR Annex II performance evaluation requirements for in vitro diagnostic assays.

Software & Data Management

The Smartchem Control Suite is a Windows-based application featuring intuitive drag-and-drop assay programming, dynamic calibration curve generation (linear, log-log, 4-/5-parameter logistic), and real-time QC charting (Levey-Jennings, Westgard rules). Raw absorbance data, temperature logs, probe movement timestamps, and wash cycle records are stored with immutable metadata. All user actions—including method edits, result overrides, and maintenance entries—are captured in a timestamped, encrypted audit trail compliant with GLP and GMP documentation standards. Export options include CSV, PDF reports, and structured XML for seamless integration into enterprise LIMS platforms. Remote diagnostics and firmware updates are supported via secure TLS 1.2–encrypted connections.

Applications

The Smartchem 600 delivers validated performance in diverse analytical domains: clinical chemistry (e.g., creatinine, uric acid, AST/ALT via enzymatic or colorimetric methods); environmental testing (nitrate, phosphate, silica in wastewater per EPA Method 353.2 and ISO 11923); food safety (sulfite, nitrite, free SO₂ in beverages); and industrial process control (metal ion quantification in plating baths, glycol concentration in coolant fluids). Its ability to execute multi-step protocols—including delayed reagent addition, incubation pauses, and post-reaction dilution—makes it suitable for complex immunoassays and low-abundance analyte detection where kinetic profiling adds discriminatory power.

FAQ

Does the Smartchem 600 support FDA 21 CFR Part 11 compliance?

Yes—the system includes electronic signature capability, configurable user roles, full audit trail logging, and data integrity safeguards required for regulated environments.
Can the instrument perform kinetic assays with variable time-point acquisition?

Yes—it supports user-defined kinetic measurement windows (e.g., 0–180 seconds at 2-second intervals) with automatic slope calculation and rate determination.
What is the minimum sample volume required per test?

The standard protocol uses 300 µL per cuvette; however, method optimization may reduce this to 150 µL depending on assay sensitivity and pipetting precision.
Are cuvettes cleaned in situ or replaced after each run?

All 85 cuvettes are automatically washed between runs using a validated multi-stage rinse-dry cycle; no manual replacement is needed during normal operation.
Is remote software update and technical support available?

Yes—AMS Alliance provides secure over-the-air firmware updates and remote desktop-assisted troubleshooting through authorized service channels.
