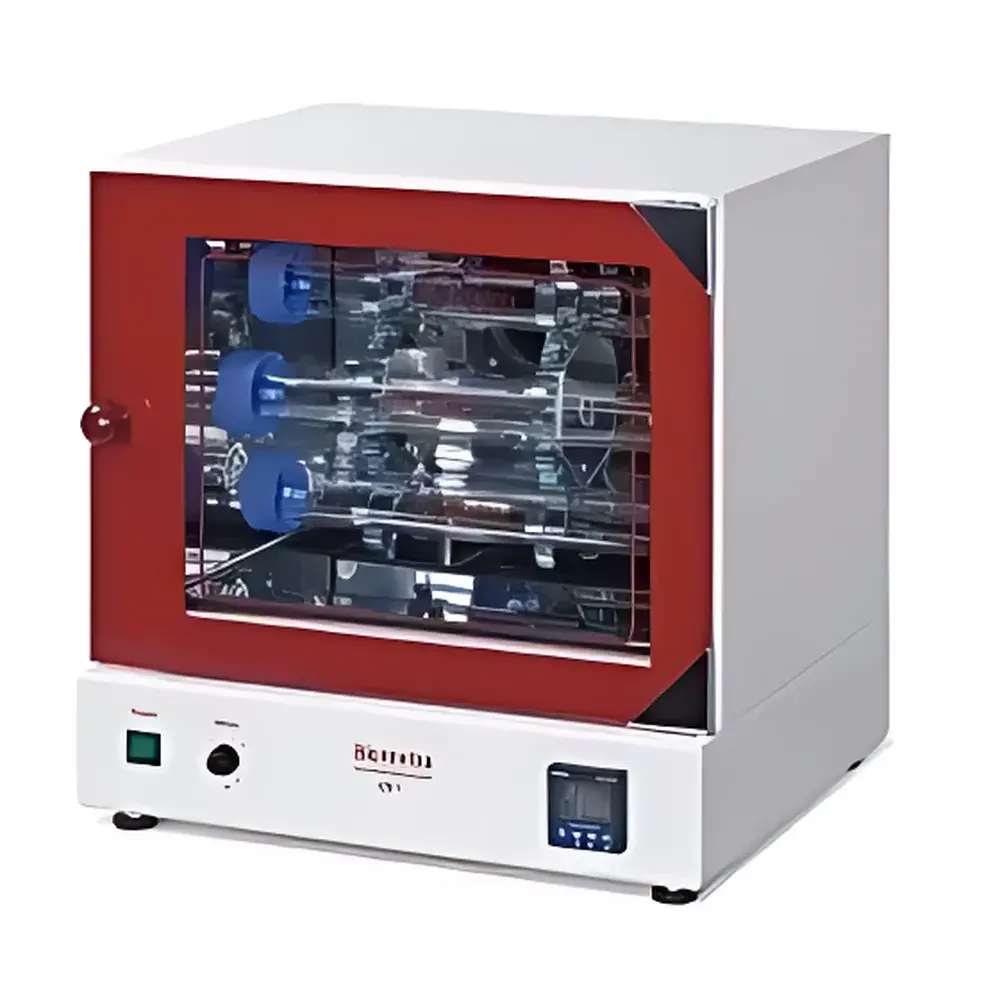

Analytik Jena Biometra OV Series Hybridization Oven

Overview

The Analytik Jena Biometra OV Series Hybridization Ovens are precision-engineered instruments designed for controlled nucleic acid and protein hybridization in molecular biology laboratories. Based on the legacy Biometra platform, these ovens implement a thermally stable, convection-driven incubation environment combined with a patented bottle-angling fluid delivery system. Unlike conventional hybridization systems relying on passive diffusion or high-volume buffer submersion, the OV series employs geometrically optimized rotation of uniform-diameter hybridization bottles to ensure laminar, continuous buffer flow across the entire surface of immobilized membranes. This design minimizes buffer consumption by up to 40% compared to standard roller-based or water-bath systems while maintaining uniform probe–target interaction kinetics and eliminating air bubble entrapment at the membrane–buffer interface. Temperature control is achieved via PID-regulated heating elements with ±0.3 °C stability across the operational range (room temperature +5 °C to 80 °C), verified per IEC 61010-1 thermal safety standards.

Key Features

• Engineered bottle-angling geometry ensures consistent, low-shear buffer distribution across nitrocellulose, nylon, and PVDF membranes without manual repositioning.
• Standardized bottle diameter simplifies membrane loading/unloading and enables reproducible orientation across all OV models.
• Integrated nylon mesh support structure allows simultaneous hybridization of up to four membranes per bottle while preventing physical contact and cross-contamination.
• OV3 and OV5 models feature a reinforced double-glazed vacuum-insulated glass door with embedded metal framing—certified to attenuate >99.9% of β-radiation (e.g., from ³²P-labeled probes) in compliance with DIN 6812 and IAEA SSG-46 radiation safety guidelines.
• Oscillating platform (OV3/OV5) offers adjustable amplitude (±5 mm) and frequency (2–20 rpm), compatible with standard hybridization cassettes, roller bottles, and strip-based formats.
• OV5 model supports dual-zone operation: one chamber functions as a static incubator (OV1 mode), while the oscillating platform operates independently—enabling side-by-side comparative hybridizations under differing stringency conditions (e.g., high-stringency vs. low-stringency washes).

Sample Compatibility & Compliance

The OV series accommodates standard hybridization formats including mini-blots (7 × 10 cm), full-size western/northern blots (20 × 20 cm), and high-throughput strip arrays. All wetted components—including bottle interiors, mesh inserts, and gasket materials—are certified non-pyrogenic and compliant with USP Class VI biological reactivity testing. The instrument meets EN 61326-1 (EMC for laboratory equipment) and EN 61010-1 (safety requirements for electrical equipment). For regulated environments, audit trails, user access levels, and parameter change logging can be enabled via optional firmware extension aligned with FDA 21 CFR Part 11 principles—supporting GLP/GMP-aligned validation documentation packages.

Software & Data Management

While the OV1 operates via analog controls, OV3 and OV5 integrate a microprocessor-based controller with digital display and programmable ramp/soak profiles (up to 99 steps). Optional USB data-logging module records real-time temperature, agitation speed, and elapsed time with timestamped CSV export. No proprietary software installation is required; raw logs are compatible with common LIMS platforms (e.g., LabVantage, Thermo Fisher SampleManager) and statistical analysis tools (R, Python pandas). Firmware updates are delivered via FAT32-formatted USB stick following ISO/IEC 17025 traceable calibration verification procedures.

Applications

• High-efficiency Southern, Northern, and dot blot hybridizations using radioisotopic (³²P, ³⁵S) or chemiluminescent detection systems.
• Antibody-based epitope mapping and protein–protein interaction screening under controlled denaturation/renaturation gradients.
• MicroRNA profiling workflows requiring low-volume, high-stringency hybridization with minimal background.
• Validation studies for diagnostic assay development where buffer economy, reproducibility, and operator radiation exposure must be rigorously documented.
• Teaching laboratories requiring robust, low-maintenance instrumentation with intuitive mechanical operation and clear visual process monitoring.

FAQ

What is the maximum operating temperature and accuracy specification?
The OV series maintains ±0.3 °C temperature stability across its full range (RT+5 °C to 80 °C), calibrated per ISO/IEC 17025-accredited procedures using NIST-traceable PT100 sensors.
Can the OV5 perform two hybridizations with different temperatures simultaneously?
No—the OV5 shares a single thermal chamber; however, it enables concurrent static and agitated hybridizations at identical temperature but differing agitation parameters, supporting experimental replication or condition comparison.
Are replacement bottles and nylon mesh inserts available as consumables?
Yes—Analytik Jena supplies OEM-certified polypropylene hybridization bottles (catalog #BJ-OVB-100) and autoclavable nylon mesh inserts (BJ-NMI-4) with lot-specific biocompatibility certification.
Does the oscillating platform support third-party hybridization cassettes?
Yes—the platform features standardized 12-mm T-slot rails and adjustable clamping brackets compatible with common formats including Corning HYBRI-STRIP™, GE Hybond™, and Millipore Immobilon™ cassettes.
Is service and calibration support available outside the EU?
Global field service is provided through Analytik Jena’s authorized distributor network, with annual calibration services traceable to DAkkS (German Accreditation Body) or equivalent national metrology institutes.
