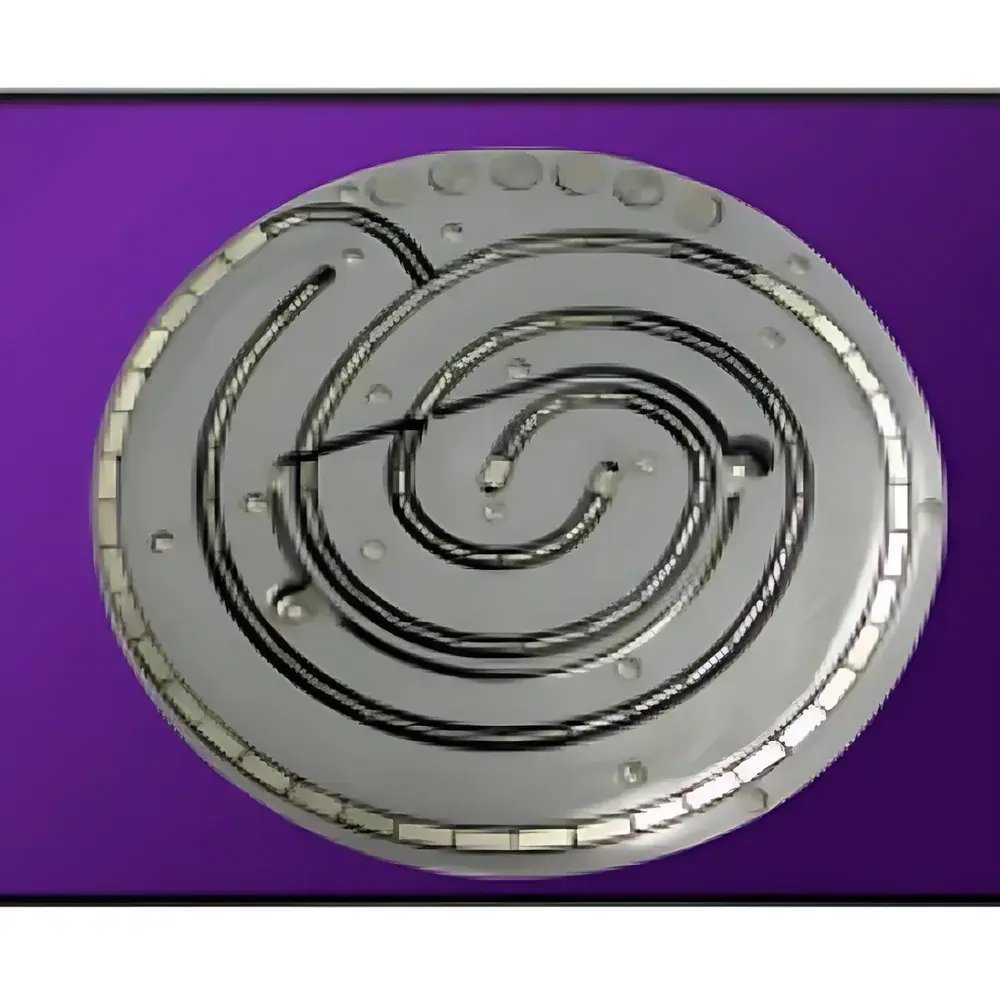

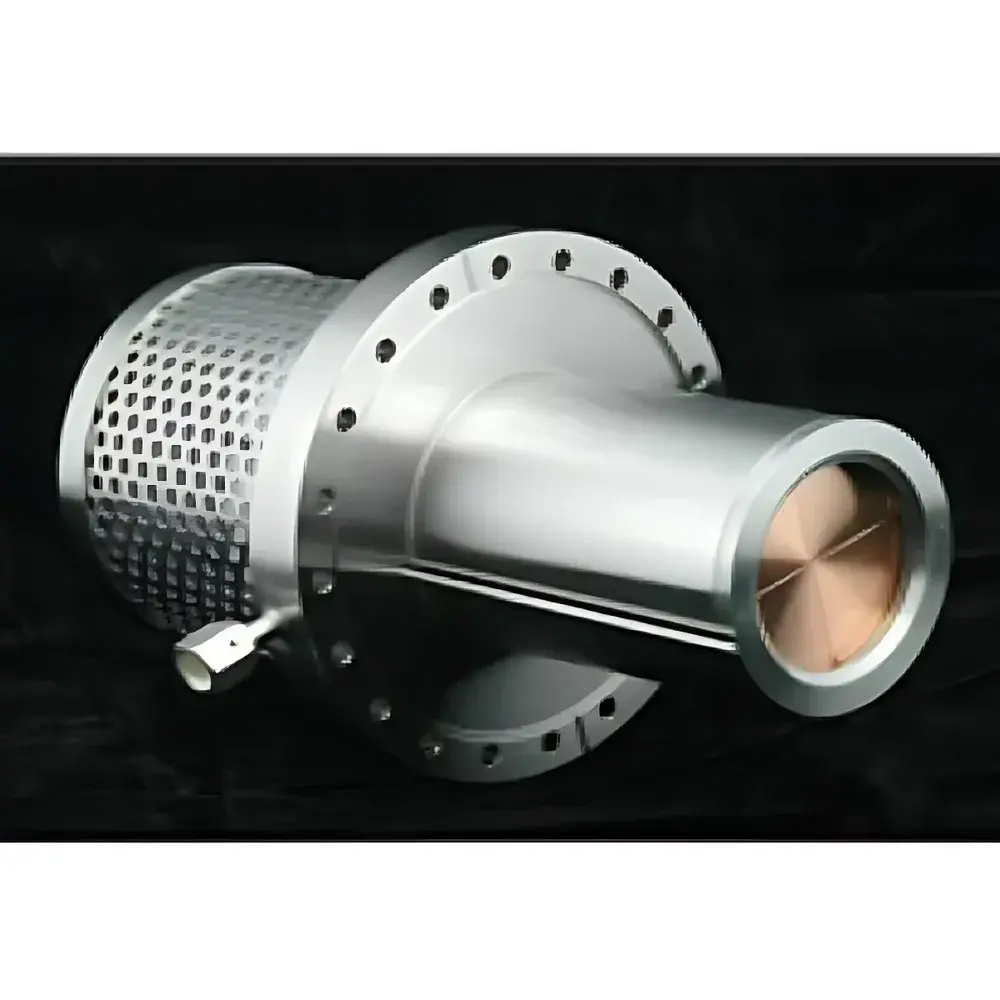

Angstrom Sciences ONYX-Φlux Flux-Controlled Magnetron Sputtering Target System

Overview

The Angstrom Sciences ONYX-Φlux is a precision-engineered flux-controlled magnetron sputtering target system designed to dynamically regulate plasma distribution across planar and cylindrical cathode surfaces. Unlike conventional fixed-magnet arrays, the ONYX-Φlux employs programmable electromagnetic field modulation to control the spatial residence time of the plasma discharge—enabling real-time adjustment of erosion profile, film uniformity, and target material utilization. The system operates on the principle of controlled magnetic flux steering: by synchronizing time-varying magnetic field gradients with RF or DC power delivery, it directs the plasma confinement zone along user-defined trajectories across the target surface. This approach decouples uniformity optimization from geometric constraints, making it especially valuable for high-value, low-yield materials (e.g., ITO, NiCr, TiAlSiN) where >60% utilization directly translates into reduced cost-of-ownership and extended process uptime.

Key Features

• Programmable flux steering: Dynamic magnetic field control enables precise localization and dwell-time modulation of the plasma racetrack on target surfaces up to 35 mm thick.
• Dual-mode operation: Supports both uniformity-optimized mode (for <±2% thickness variation over 200 mm substrates) and utilization-optimized mode (achieving up to 65% target material consumption in planar configurations).
• Three operational modes: Run (automated recipe execution), Edit (parameter mapping via touchscreen interface), and Manual (real-time field vector adjustment for process diagnostics).
• Integrated electromagnetic actuation: No moving mechanical parts—field modulation is achieved via solid-state current drivers synchronized with power supply timing signals.
• Scalable architecture: Compatible with standard 2-inch to 18-inch planar magnetrons and select rotary cathodes; supports integration into cluster tools with SECS/GEM protocol compliance.

Sample Compatibility & Compliance

The ONYX-Φlux system is compatible with all standard sputter target materials—including metals (Al, Cu, Ta), alloys (NiCr, CoCr), oxides (SiO₂, Al₂O₃, ITO), nitrides (TiN, Si₃N₄), and complex multicomponent ceramics—without requiring substrate-specific recalibration. It conforms to SEMI E10-0219 (Specification for Definition and Measurement of Equipment Reliability) and supports GLP-compliant process documentation when paired with validated data acquisition firmware. All electromagnetic components meet IEC 61000-4-3 (radiated immunity) and UL 61010-1 safety standards. While not a standalone analytical instrument, its output parameters (e.g., flux dwell map, field sweep rate, utilization coefficient) are traceable to NIST-traceable current and time references.

Software & Data Management

The ONYX-Φlux Control Software is a Windows-based application built on a deterministic real-time kernel (RTX64), ensuring sub-millisecond synchronization between magnetic field commands and power supply triggers. It provides full audit trail functionality compliant with FDA 21 CFR Part 11 requirements—including electronic signatures, change history logging, and role-based access control (Operator, Engineer, Administrator). Process recipes store complete field trajectory definitions (X-Y-Z coordinates + dwell duration + field strength), enabling repeatable transfer across toolsets. Raw telemetry data (coil current waveforms, voltage feedback, thermal sensor readings) is exported in HDF5 format for offline analysis using MATLAB, Python (h5py), or JMP. Optional OPC UA server module enables seamless integration into MES platforms (e.g., Siemens Opcenter, Rockwell FactoryTalk).

Applications

• High-uniformity optical coatings: AR/HR filters, beam splitters, and photomask blanks requiring <0.3 nm RMS thickness variation over 300 mm wafers.
• Advanced semiconductor metallization: Low-resistivity Cu barrier layers (Ta/TaN) with controlled stoichiometry and minimized interfacial roughness.
• Flexible electronics manufacturing: Large-area ITO deposition on PET substrates at roll-to-roll speeds ≥5 m/min without edge-thinning artifacts.
• R&D thin-film development: Rapid screening of novel alloy compositions (e.g., HEA targets) with minimal material waste due to programmable erosion zoning.
• Medical device coating: Biocompatible DLC and hydroxyapatite films where consistent stoichiometric ratio and low defect density are critical per ISO 13485 requirements.

FAQ

Does the ONYX-Φlux require modification of existing magnetron hardware?

No—ONYX-Φlux integrates externally via standard flange-mounted electromagnetic coils and controller units; no cathode redesign or vacuum chamber penetration is needed.

Can it be retrofitted to legacy sputter systems?

Yes—compatibility has been verified with major OEM platforms including AJA International, Denton Vacuum, and PVD Products, provided analog I/O or digital communication interfaces (RS-485, Ethernet/IP) are available.

What level of training is required for operators?

Basic operation requires ≤2 hours of instruction; advanced trajectory programming and failure diagnostics are covered in the optional 16-hour certified engineer course accredited by Angstrom Sciences’ Technical Training Center.

Is remote diagnostics supported?

Yes—optional Secure Remote Access Module (SRAM) enables encrypted VNC-based troubleshooting with TLS 1.3 encryption and configurable firewall rules per ITAR/EAR guidelines.

How does flux control impact film stress and microstructure?

By stabilizing plasma residence time and ion energy distribution at each surface location, ONYX-Φlux reduces localized overheating and non-stoichiometric re-sputtering—resulting in lower intrinsic stress (<100 MPa for Ti films) and improved columnar grain alignment as confirmed by in situ XRD and TEM cross-section analysis.
