Anton Paar Abbemat 5001/5101/5201 High-Performance Automated Refractometer

Overview

The Anton Paar Abbemat 5001/5101/5201 series represents a class of high-precision, fully automated benchtop refractometers engineered for routine and regulated laboratory environments. These instruments operate on the principle of total internal reflection at the sample-prism interface, utilizing a high-resolution CCD detector array to precisely determine the critical angle—directly correlated to the sample’s refractive index (n_D). Designed for GxP-compliant workflows, the Abbemat series delivers traceable, temperature-compensated measurements in accordance with ISO 17025, ASTM D1218, and USP <831>. Each unit features an integrated Peltier-controlled thermostatic system ensuring stable prism surface temperature within ±0.02 °C—critical for minimizing thermal drift and achieving metrological reliability across diverse sample matrices.

Key Features

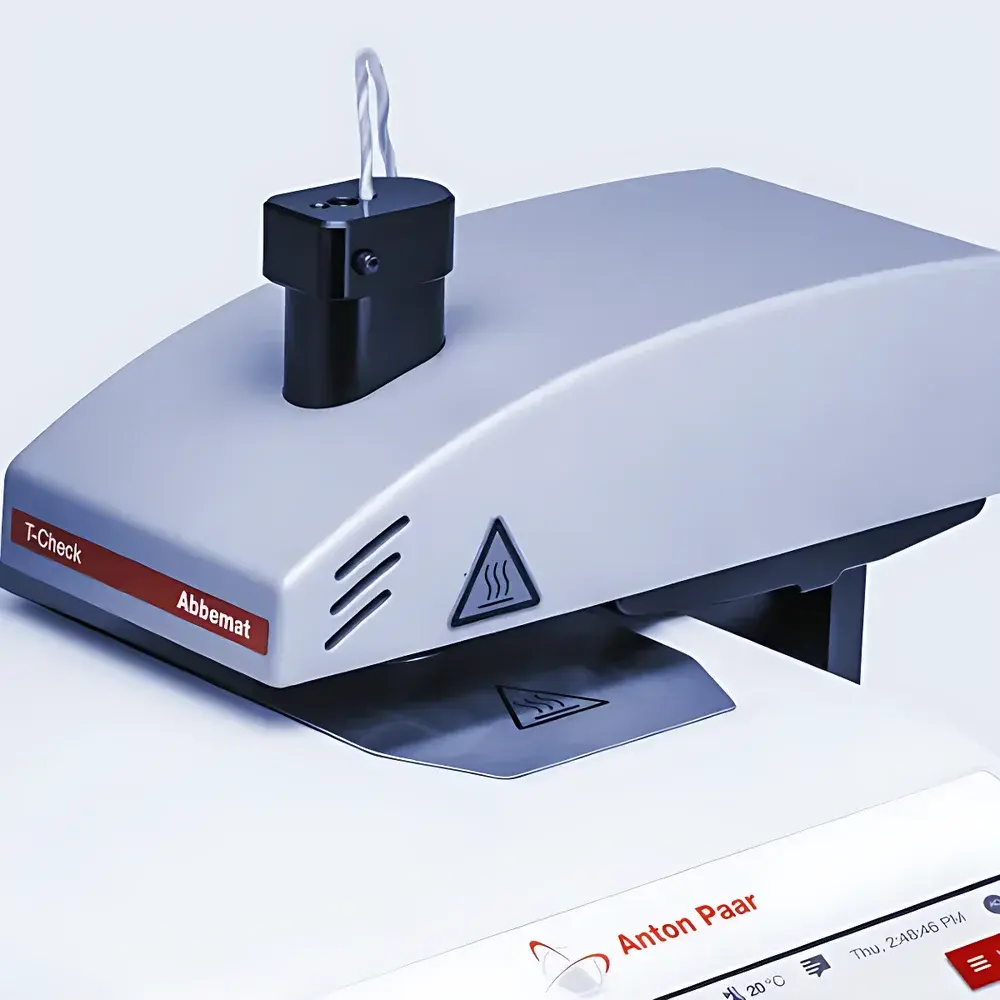

• Patented T-Check temperature verification system: enables on-site, traceable calibration of prism surface temperature using NIST-traceable reference standards; generates audit-ready certificates for GLP/GMP validation.
• Scratch-resistant sapphire measuring prism (Mohs hardness 9): optically polished for long-term stability, chemical inertness, and resistance to mechanical abrasion—eliminates need for aggressive cleaning tools.
• Sub-second measurement cycle (as fast as 10 seconds per sample) with automatic endpoint detection and real-time refractive index calculation.
• User permission management with role-based access control (RBAC): restricts configuration changes, method editing, and calibration functions to authorized personnel only.

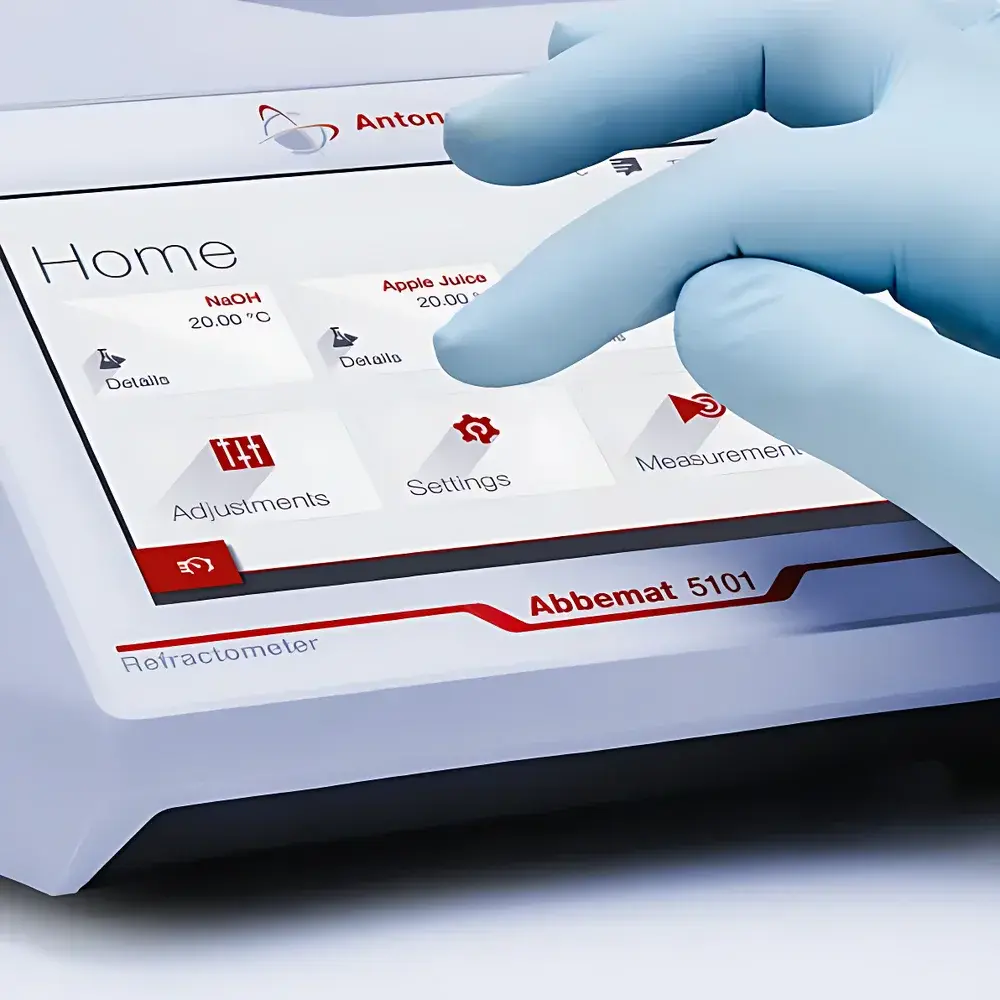

• Configurable touchscreen interface: supports SOP-driven workflows with locked parameter sets, pass/fail criteria, and configurable retest intervals for system suitability testing.
• Integrated Peltier temperature control (range: 4 °C to 85 °C, resolution: 0.01 °C) with active thermal stabilization of both prism and sample interface.

Sample Compatibility & Compliance

The Abbemat 5001/5101/5201 accommodates liquid, semi-liquid, and low-viscosity suspensions—including aqueous solutions, organic solvents, syrups, essential oils, pharmaceutical formulations, and food-grade liquids. Optional accessories extend functionality to continuous-flow applications (e.g., flow cells for inline QC) and high-throughput batch analysis (e.g., 48-position automated sample changers). All models comply with IEC 61000-4 electromagnetic compatibility standards and meet CE marking requirements for laboratory instrumentation. Data integrity safeguards align with FDA 21 CFR Part 11: electronic signatures, audit trails, and immutable data storage are enforced via AP Connect software integration.

Software & Data Management

AP Connect serves as the central laboratory execution platform for the Abbemat series, enabling secure, centralized data handling across single or multi-instrument networks. It supports direct export to network folders, automated backup to MS-SQL databases, and structured metadata tagging (sample ID, operator, timestamp, instrument ID, method version). The software provides full ALCOA+ compliance—ensuring data is Attributable, Legible, Contemporaneous, Original, Accurate, Complete, Consistent, Enduring, and Available. Validation packages—including IQ/OQ documentation, test scripts, and UAT reports—are available upon request for regulated industries.

Applications

• Pharmaceutical quality control: excipient concentration verification, API purity assessment, and solvent composition monitoring per USP and EP monographs.
• Food & beverage analysis: Brix determination in juices, sugar content in syrups, alcohol content estimation in spirits, and adulteration screening.
• Chemical manufacturing: raw material identity confirmation, reaction mixture monitoring, and final product specification release testing.
• Academic and R&D laboratories: thermodynamic property studies, polymer solution characterization, and formulation development requiring high-resolution n_D tracking.
• Regulatory submissions: generation of validated, auditable refractive index datasets supporting dossier filings under EMA, PMDA, and Health Canada requirements.

FAQ

What temperature accuracy does the T-Check system verify?
T-Check validates the actual temperature at the prism–sample interface with an uncertainty of ±0.01 °C, referenced to NIST-traceable thermistors.
Can the Abbemat be integrated into a LIMS environment?
Yes—via AP Connect’s RESTful API or direct SQL database access, enabling bidirectional data exchange with major LIMS platforms including LabWare, STARLIMS, and Thermo Fisher SampleManager.
Is method validation support included out-of-the-box?
The instrument ships with over 200 pre-validated concentration methods (e.g., sucrose, sodium chloride, ethanol), each accompanied by documented uncertainty budgets and linearity ranges.
How is data integrity ensured during power interruption?
All measurements are written to non-volatile memory before display; AP Connect enforces transactional logging to prevent partial or corrupted record writes.
Does the sapphire prism require special cleaning protocols?
No—routine cleaning with lint-free wipes and spectroscopic-grade isopropanol is sufficient; abrasive tools or ultrasonic baths are strictly discouraged to preserve optical flatness.
