Anton Paar DMA 502 Compact Digital Density Meter

Overview

The Anton Paar DMA 502 Compact Digital Density Meter is a high-precision benchtop instrument engineered for accurate, reproducible density determination of liquid samples based on the oscillating U-tube principle. This method relies on the precise measurement of the natural frequency of vibration of a hermetically sealed, sample-filled glass tube—where density is inversely proportional to the square of the oscillation period. The DMA 502 applies rigorous temperature control (Peltier-based, ±0.1 °C stability) and real-time environmental compensation—including atmospheric pressure, altitude, and relative humidity—to ensure metrological integrity across variable laboratory conditions. Designed for routine QC/QA labs in food & beverage, chemical, pharmaceutical, petrochemical, and academic research environments, it delivers three-digit density resolution (0.0001 g/cm³) with traceable accuracy compliant with ISO 5725, ASTM D4052 (for petroleum products), and ASTM D5002 (for crude oil). Its compact footprint (375 × 280 × 180 mm) and robust borosilicate glass/PTFE/ETFE wetted path support safe handling of corrosive, volatile, or mildly hazardous liquids without ventilation requirements.

Key Features

• U-View optical visualization system: Real-time, scalable live imaging of the oscillation cell enables immediate detection of bubbles, particulates, or incomplete filling—critical for method validation and troubleshooting.
• FillingCheck algorithm: Quantifies microbubble presence within seconds using harmonic distortion analysis of the oscillation signal, eliminating subjective visual inspection.
• One-touch measurement workflow: Guided touchscreen interface reduces operator training time and minimizes procedural variability—ideal for multi-shift or GLP-regulated environments.

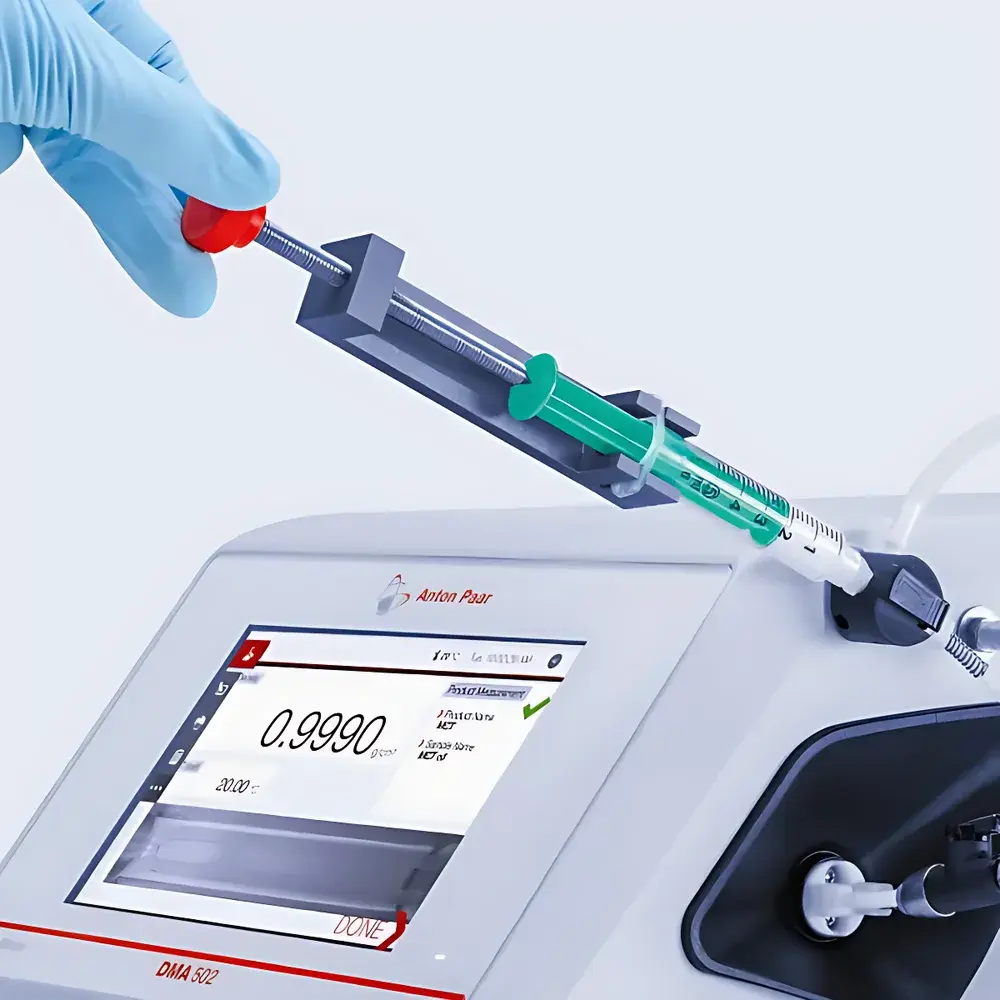

• Multi-modal sample introduction: Supports manual syringe filling, gravity-fed funnel loading, automated Xsample 200 peristaltic pump integration, and dedicated paste/suspension kits (including integrated syringe holder for bubble-free viscous sample transfer).
• Onboard environmental monitoring: Integrated barometric pressure and humidity sensors feed real-time corrections into density calculations—essential for high-altitude or non-climate-controlled facilities.
• Full-range viscosity correction: Automatically compensates for damping effects in samples up to ~200 mPa·s, extending usability beyond low-viscosity solvents into light oils and aqueous formulations.

Sample Compatibility & Compliance

The DMA 502 accommodates liquids and low-viscosity suspensions with densities from 0 to 3 g/cm³ and minimum volumes of just 1 mL. Its chemically inert fluid path—constructed from borosilicate glass, PTFE, and ETFE—ensures compatibility with organic solvents, strong acids (e.g., H₂SO₄, HNO₃), alkalis, alcohols, and hydrocarbon mixtures. It meets critical regulatory requirements including USP for pharmaceutical density testing, European Pharmacopoeia Chapter 2.2.39, and Japanese Pharmacopoeia General Test 6.02. When paired with AP Connect software, full 21 CFR Part 11 compliance is achieved—including electronic signatures, audit trails, role-based access control, and secure data archiving. All factory calibrations are traceable to NIST and PTB standards; optional ISO/IEC 17025-accredited calibration certificates are available.

Software & Data Management

The DMA 502 operates standalone via its intuitive 7-inch capacitive touchscreen or integrates seamlessly into digital lab ecosystems. Internal storage retains 5000 measurement records with timestamps, operator IDs, method parameters, and raw oscillation data. The embedded method library includes 400 pre-configured protocols—covering alcoholometry (OIML R 22), saccharimetry (ICUMSA), acid concentration (H₂SO₄, HCl, HNO₃), and API gravity—and supports user-defined equations via the built-in formula editor. For enterprise deployment, AP Connect provides centralized instrument management, remote monitoring, automated report generation (PDF/CSV), and bidirectional LIMS integration via ASTM E1384 or HL7 interfaces. Data export complies with ALCOA+ principles (Attributable, Legible, Contemporaneous, Original, Accurate) and supports GxP audit readiness.

Applications

• Quality control of beverages (soft drinks, wine, spirits, dairy alternatives) for alcohol content, extract concentration, and formulation consistency.
• Raw material verification and batch release testing in fine chemicals and active pharmaceutical ingredient (API) manufacturing.
• Density-based concentration monitoring of process streams in pilot-scale chemical synthesis and electroplating baths.
• Research applications requiring high-reproducibility density-temperature profiling (e.g., thermal expansion coefficient derivation, mixture thermodynamics).
• Field-deployable density verification in mobile labs or production line environments—enabled by its fanless design, wide input voltage range (100–240 V AC), and tolerance to ambient fluctuations (5–35 °C operating range).

FAQ

What is the difference between repeatability and accuracy for the DMA 502?
Repeatability (±0.0002 g/cm³) reflects short-term precision under identical conditions; accuracy (±0.001 g/cm³) denotes agreement with certified reference materials traceable to primary standards.
Can the DMA 502 measure slurries or highly viscous samples?
It is optimized for liquids and low-viscosity suspensions (<200 mPa·s); for pastes or gels, the optional paste kit with syringe-assisted filling and viscosity correction is required.
Is external temperature control necessary?
No—the integrated Peltier element maintains cell temperature between 15–40 °C with ±0.1 °C stability; no chiller or bath is needed.
How does FillingCheck validate sample integrity?
It analyzes higher-order harmonics of the oscillation signal: deviations indicate trapped air or heterogeneous filling, triggering an alert before calculation proceeds.
Does the instrument support GLP-compliant data handling out-of-the-box?
Standalone operation provides basic traceability; full GLP/GMP compliance—including electronic signatures and audit trails—requires AP Connect software and appropriate user configuration.
