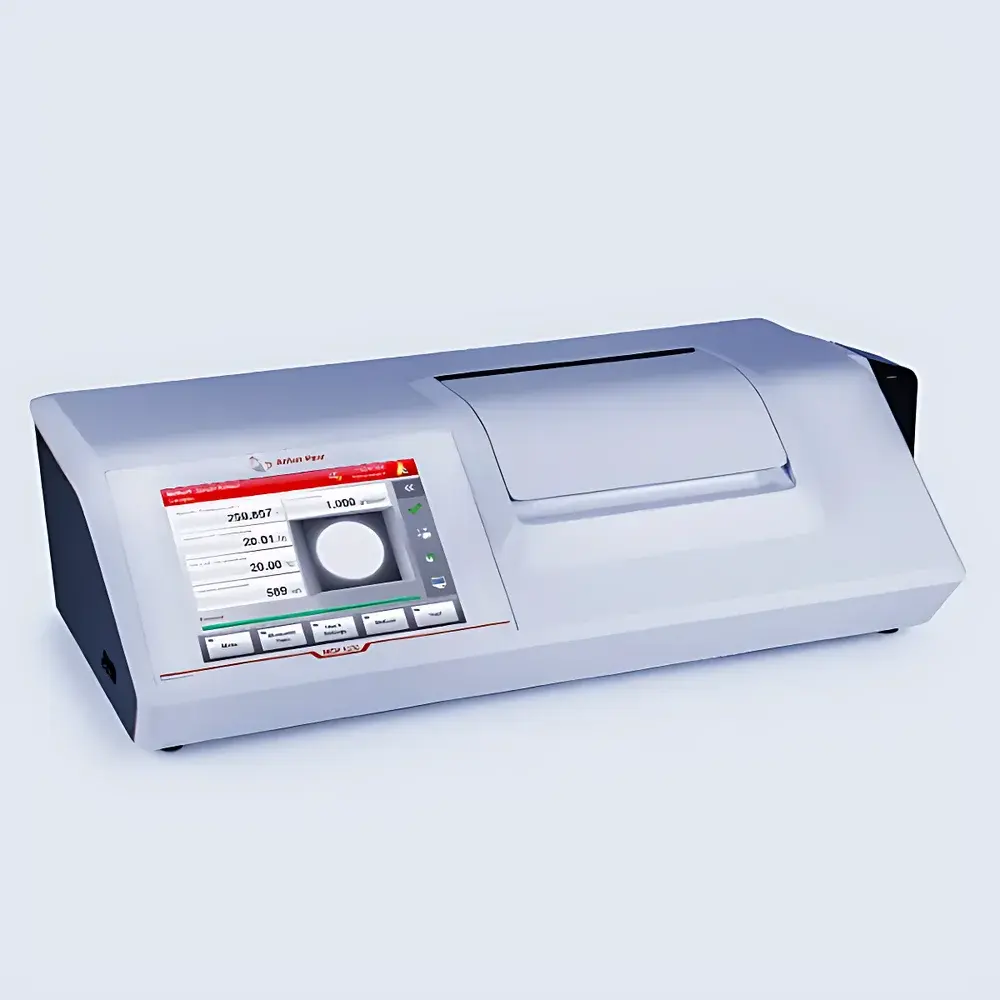

Anton Paar MCP 4100/5100/5500 High-Precision Digital Polarimeter

Overview

The Anton Paar MCP 4100/5100/5500 series represents the current benchmark in high-precision digital polarimetry for regulated laboratory environments. These instruments operate on the fundamental principle of optical rotation measurement—quantifying the angular deviation of plane-polarized light as it passes through an optically active sample. Engineered for reproducibility and traceability, the MCP platform delivers measurements with resolution down to 0.0001° optical rotation (OR) and accuracy certified to <±0.002° OR (MCP 5500), validated across the full ±89.9° measurement range. The system employs a stable, drift-free LED light source covering the UV–VIS–NIR spectrum (325–880 nm), eliminating mercury lamp hazards and enabling multi-wavelength compliance with pharmacopoeial methods—including USP , Ph. Eur. 2.2.7, and ChP IV. All models integrate Peltier-based temperature control (10–45 °C), ensuring thermal stability critical for concentration-dependent optical activity quantification.

Key Features

• Toolmaster™ Intelligent Cell Recognition: Wireless RFID technology automatically identifies and validates sample cells and quartz calibration standards upon insertion—eliminating manual entry errors and supporting audit-ready documentation.
• FillingCheck™ Visual Monitoring (MCP 5100/5500): Integrated high-resolution camera captures real-time images of sample filling, detecting air bubbles, meniscus position, and cell alignment to prevent measurement artifacts.
• Multi-Wavelength Flexibility: Up to eight factory-calibrated wavelengths (365, 405, 436, 546, 578, 633, 880 nm + standard 589 nm) ensure seamless method transfer between pharmacopoeial requirements and research-grade spectral analysis.
• Precision Thermal Management: Fast-response Peltier modules achieve ±0.03 °C temperature stability (MCP 5500) with ≤30 s thermal equilibration after a 2 °C sample temperature shift—critical for sucrose, glucose, or chiral API assays.
• Self-Cleaning Air Pump (MCP 5500 standard, MCP 5100 optional): Integrated compressed-air system purges residual sample from cells and dries internal optics post-measurement, reducing carryover and extending cell lifetime.
• LED Light Source Lifetime: Rated for >100,000 hours of continuous operation—ensuring long-term photometric stability without recalibration cycles or lamp replacement downtime.

Sample Compatibility & Compliance

The MCP series supports standard and custom sample cells up to 200 mm length, accommodating aqueous, alcoholic, and viscous solutions across pharmaceutical, food, flavor & fragrance, and fine chemical applications. All instruments are preconfigured for compliance with international regulatory frameworks: FDA 21 CFR Part 11 (electronic records/signatures), EU Annex 11, ISO/IEC 17025, and GxP-aligned data integrity principles. Built-in audit trail logs all user actions—including method changes, calibration events, and result modifications—with immutable timestamps and operator ID linkage. Full traceability is maintained via encrypted data export (CSV, PDF, XML) and integration with LIMS or ELN systems through AP Connect software. The platform meets OIML R 167 metrological requirements and supports ICUMSA sugar analysis (GS4/3-12), ASTM E1254 (sucrose purity), and USP (optical rotation testing of chiral compounds).

Software & Data Management

Control and data handling are managed via SOP-driven desktop software (optional for MCP 4100; standard for MCP 5100/5500) featuring role-based access control, password-protected user groups (Administrator, Analyst, Reviewer), and configurable electronic signatures. Each measurement session generates a tamper-evident digital report containing raw OR values, temperature logs, cell ID, wavelength, and environmental metadata. AP Connect enables centralized management of multiple MCP units, remote diagnostics, and automated backup to network drives or cloud repositories. All software modules undergo periodic validation support per IQ/OQ/PQ protocols and include built-in electronic signature workflows compliant with ALCOA+ principles (Attributable, Legible, Contemporaneous, Original, Accurate, Complete, Consistent, Enduring, Available).

Applications

• Pharmaceutical QC/QA: Enantiomeric purity assessment of APIs (e.g., ibuprofen, levodopa), excipient verification, and stability-indicating assays per ICH Q5C.
• Food & Beverage: Sucrose, glucose, and fructose concentration determination in syrups, juices, and honey per ICUMSA and AOAC methods.
• Flavor & Fragrance: Quantification of natural essential oils (e.g., limonene, menthol) and synthetic chiral intermediates.
• Academic & Industrial Research: Kinetic studies of enzymatic hydrolysis, chiral catalyst screening, and polymer optical activity characterization.
• Regulatory Submission Support: Generation of 21 CFR Part 11-compliant datasets for ANDA, NDA, and MA submissions to FDA, EMA, and NMPA.

FAQ

What distinguishes the MCP 4100, 5100, and 5500 models?
The MCP 4100 serves as the entry-level platform with core polarimetric functionality and 21 CFR Part 11 readiness. The MCP 5100 adds FillingCheck™, Toolmaster™, and optional air purge. The MCP 5500 integrates all features as standard—including highest accuracy (<±0.002° OR), superior temperature control (±0.03 °C), and full AP Connect compatibility.
Can the MCP series measure samples outside the standard 589 nm sodium D-line?
Yes. All models support up to eight factory-validated wavelengths from 365 nm (UV) to 880 nm (NIR), enabling method-specific compliance (e.g., 546 nm for sucrose per ICUMSA, 365 nm for UV-transparent chiral analytes).
Is temperature calibration traceable to national standards?
Yes. Peltier modules are calibrated against NIST-traceable reference thermometers, and temperature accuracy is verified during factory IQ/OQ. Certificates of calibration and uncertainty statements are provided with each instrument.
How does Toolmaster™ enhance data integrity?
Toolmaster™ eliminates manual cell identification by wirelessly reading embedded RFID tags—recording cell serial number, nominal path length, and last calibration date directly into the measurement record, satisfying ALCOA+ “Attributable” and “Complete” criteria.
Does the system support automated reporting for regulatory audits?
Yes. Reports are generated in PDF/A-1b format with embedded digital signatures, audit trail summaries, and cryptographic hash verification—designed for direct submission during FDA pre-approval inspections or EMA GMP audits.
