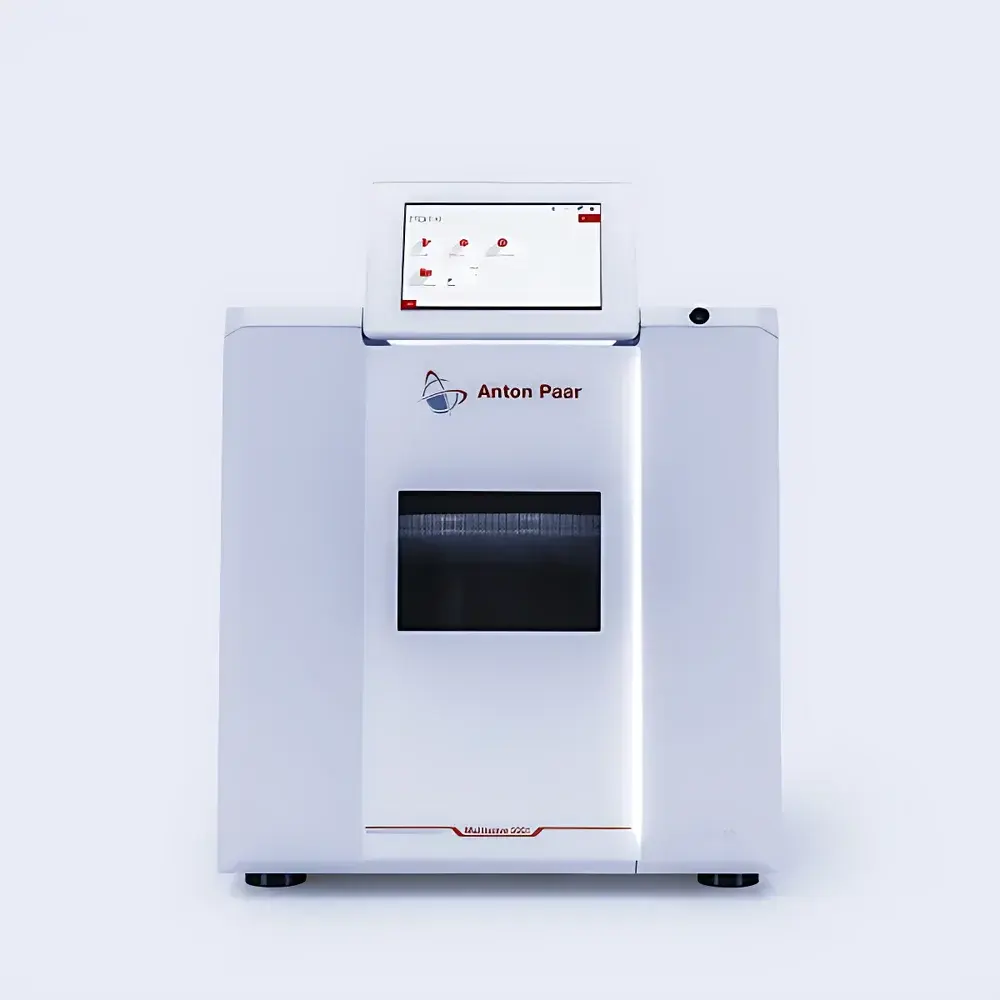

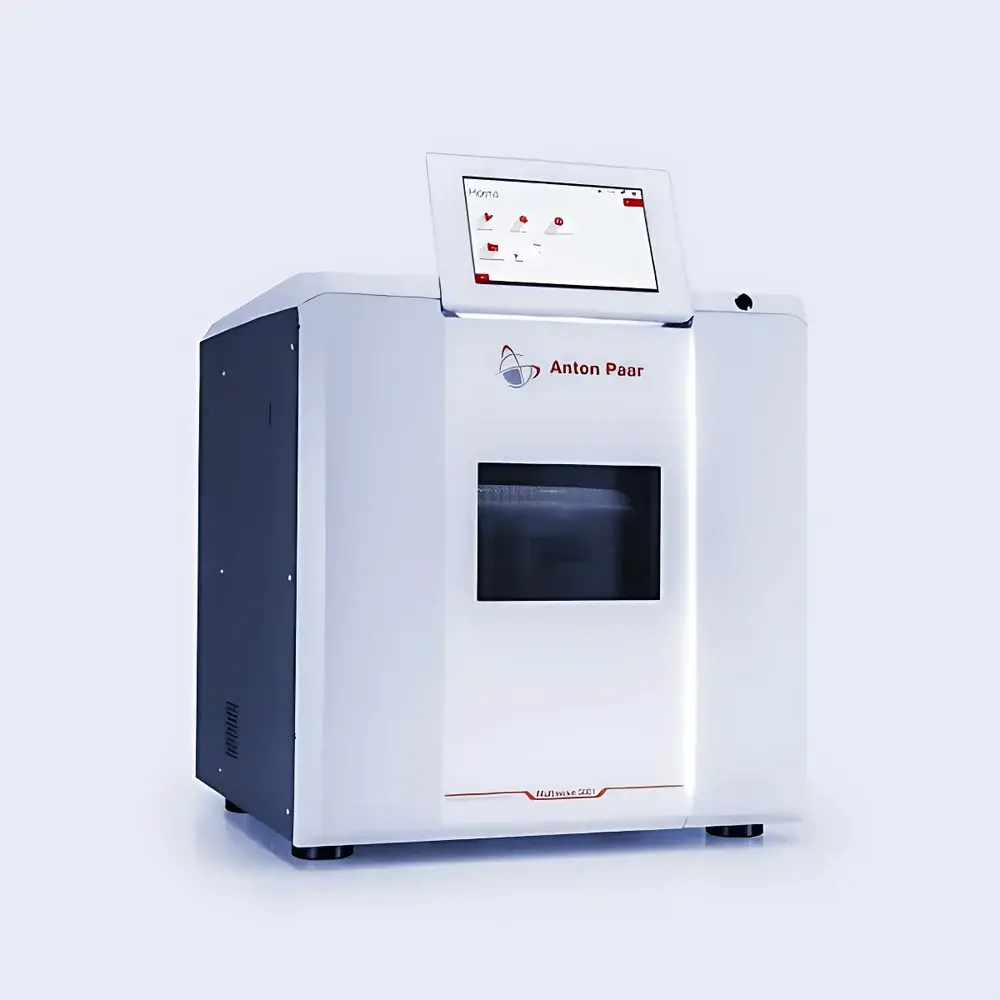

Anton Paar Multiwave 5001 CN High-Performance Microwave Digestion System

Overview

The Anton Paar Multiwave 5001 CN is an industrial-grade, high-throughput microwave digestion system engineered for precision, reproducibility, and operational safety in modern analytical laboratories. Designed and manufactured in Shanghai under strict Anton Paar global quality standards, it integrates over 45 years of expertise in sample preparation—including the world’s first automated wet digestion system introduced by Anton Paar in 1973. The system operates on the principle of controlled microwave energy absorption by polar molecules and ionic species within sealed reaction vessels, enabling rapid, uniform, and repeatable thermal decomposition of organic and inorganic matrices. Its dual-magnetron architecture delivers stable, symmetrical power distribution across the cavity—critical for achieving consistent temperature and pressure profiles during high-pressure digestion protocols up to 100 bar and 300 °C. As a fully integrated platform, the Multiwave 5001 CN supports not only closed-vessel microwave-assisted acid digestion but also evaporation, microwave-assisted extraction, drying, and optional configurations for UV-assisted digestion and oxygen combustion—all compliant with ISO 17025, ASTM D5191/D7087, and USP <231> requirements for elemental analysis sample preparation.

Key Features

• Industrial-class cavity with reinforced stainless-steel construction and electromagnetic shielding, certified to both North American ETL and European GS safety standards
• Dual independent magnetrons (2 × 1000 W nominal output) with real-time power modulation for optimal energy coupling and load adaptability
• SmartVent™ reaction vessels with integrated pressure-relief mechanisms and NO_x-sensing vent detection for corrosion-resistant, fail-safe overpressure management
• SmartTemp™ non-contact internal temperature sensing: each vessel monitored individually via patented IR-optical technology, eliminating probe contamination and enabling true in-vessel thermal feedback
• Automated door actuation with ergonomic push-to-open mechanism and integrated high-efficiency air-cooling system (patented airflow path, US5435066), reducing post-digestion cooling time to under 10 minutes

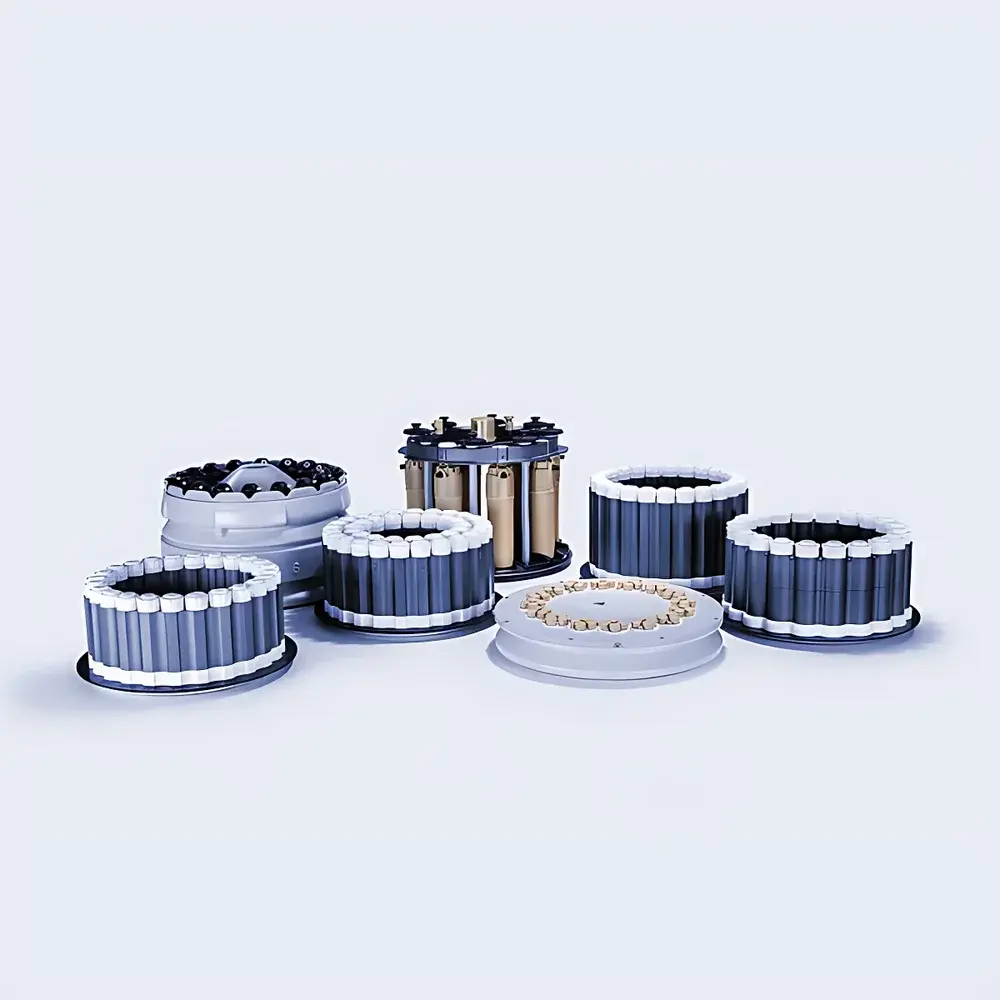

• Modular rotor compatibility supporting 8–96 positions, including specialized rotors for food, pharmaceuticals, polymers, graphite, and refractory materials

Sample Compatibility & Compliance

The Multiwave 5001 CN accommodates diverse sample types—from routine environmental soils and biological tissues to challenging matrices such as carbon-based materials, halogen-rich plastics, and high-silica geological samples. All digestion protocols are validated against international reference materials (e.g., NIST SRM 1573a, BCR-679) and support trace-metal analysis workflows compliant with EPA Method 3052, ISO 15587-1, and EN 13656. Vessel chemistries include high-purity quartz, PTFE-TFM™, and reinforced PFA liners, all rated for sustained operation at 300 °C and 100 bar. The system’s hardware and firmware meet GLP/GMP documentation requirements, including full audit trail logging, user access control, and electronic signature capability aligned with FDA 21 CFR Part 11 readiness.

Software & Data Management

Controlled via the intuitive Multiwave Touch™ interface, the system supports method-driven operation with customizable home screens—allowing users to define quick-access shortcuts to frequently used methods, video SOPs, or contextual help modules. All parameters (temperature, pressure, power, ramp/hold steps) are stored with timestamps, operator ID, and instrument serial number. Raw sensor data and processed curves are exportable in CSV and XML formats for LIMS integration. Firmware updates are delivered via secure USB or network connection, with version-controlled change logs traceable per ISO/IEC 17025 clause 5.9.2.

Applications

• Preparation of samples for ICP-OES, ICP-MS, AAS, and HG-AFS analysis in environmental monitoring, clinical toxicology, and food safety testing
• Routine digestion of pharmaceutical excipients and active ingredients per USP <231> and Ph. Eur. 2.4.14
• High-temperature digestion of carbon nanomaterials and polymer composites for nanotoxicology studies
• Multi-step sequential digestion protocols for complex ores and catalysts requiring staged acid addition and pressure ramping
• Method development and validation for regulatory submissions under ICH Q5C and OECD TG 431

FAQ

Is the Multiwave 5001 CN compliant with FDA 21 CFR Part 11 for electronic records and signatures?

Yes—the system includes configurable audit trails, role-based user authentication, and electronic signature support for critical operations.
Can the system digest silica-rich or fluoride-containing samples safely?

Yes, when using quartz rotors and HF-compatible vessel liners, following validated protocols with appropriate acid mixtures and pressure ramping strategies.
What safety certifications does the Multiwave 5001 CN hold?

It carries both ETL (UL 61010-1) and GS (EN 61010-1) marks, confirming compliance with North American and EU electrical safety and electromagnetic compatibility directives.
Does the SmartTemp™ sensor require calibration or maintenance?

No—it is factory-calibrated and drift-free; no user intervention or periodic recalibration is required during normal operation.
How is method transfer ensured between Multiwave 5001 CN and other Anton Paar systems?

All methods are stored in a vendor-neutral XML format compatible across the Multiwave platform, enabling seamless import/export between models including Multiwave PRO and Multiwave GO.
