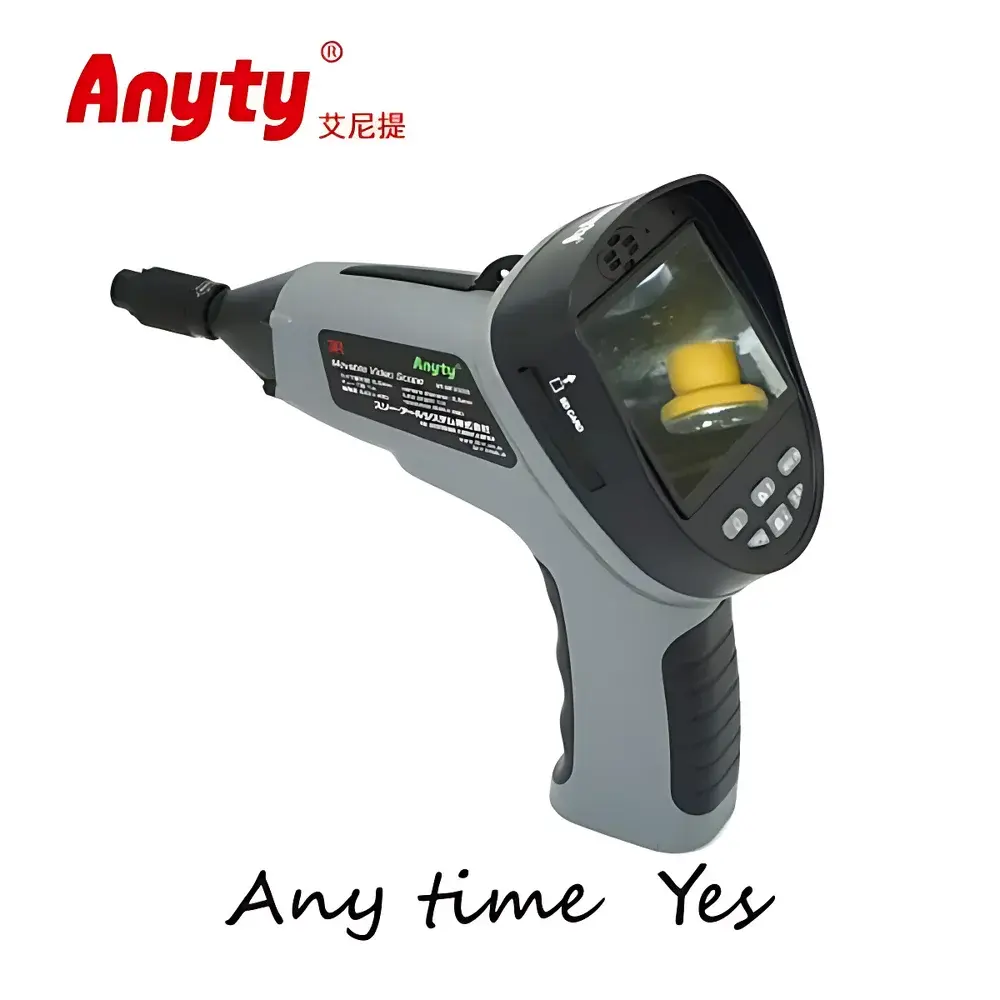

Anyty 3R-MFXS55 Articulating Industrial Video Endoscope
| Brand | Anyty |
|---|---|
| Origin | Beijing, China |
| Manufacturer Type | Direct Manufacturer |
| Country of Origin | China |
| Model | 3R-MFXS55 |
| Pricing | Available Upon Request |
Overview
The Anyty 3R-MFXS55 is a high-performance articulating industrial video endoscope engineered for non-destructive visual inspection in confined, inaccessible, or hazardous environments. Utilizing a precision-motorized articulation mechanism, the distal tip delivers ±160° bidirectional deflection—enabling comprehensive multi-angle visualization without repositioning the probe shaft. Designed for rigorous field and facility-based use, the system integrates a high-resolution CMOS imaging sensor, adjustable LED illumination, and a ruggedized stainless-steel insertion tube rated for mechanical durability and chemical resistance. Its optical architecture supports real-time HD video capture and still image acquisition, making it suitable for condition monitoring, preventive maintenance, and root-cause analysis across regulated and non-regulated industrial settings.
Key Features

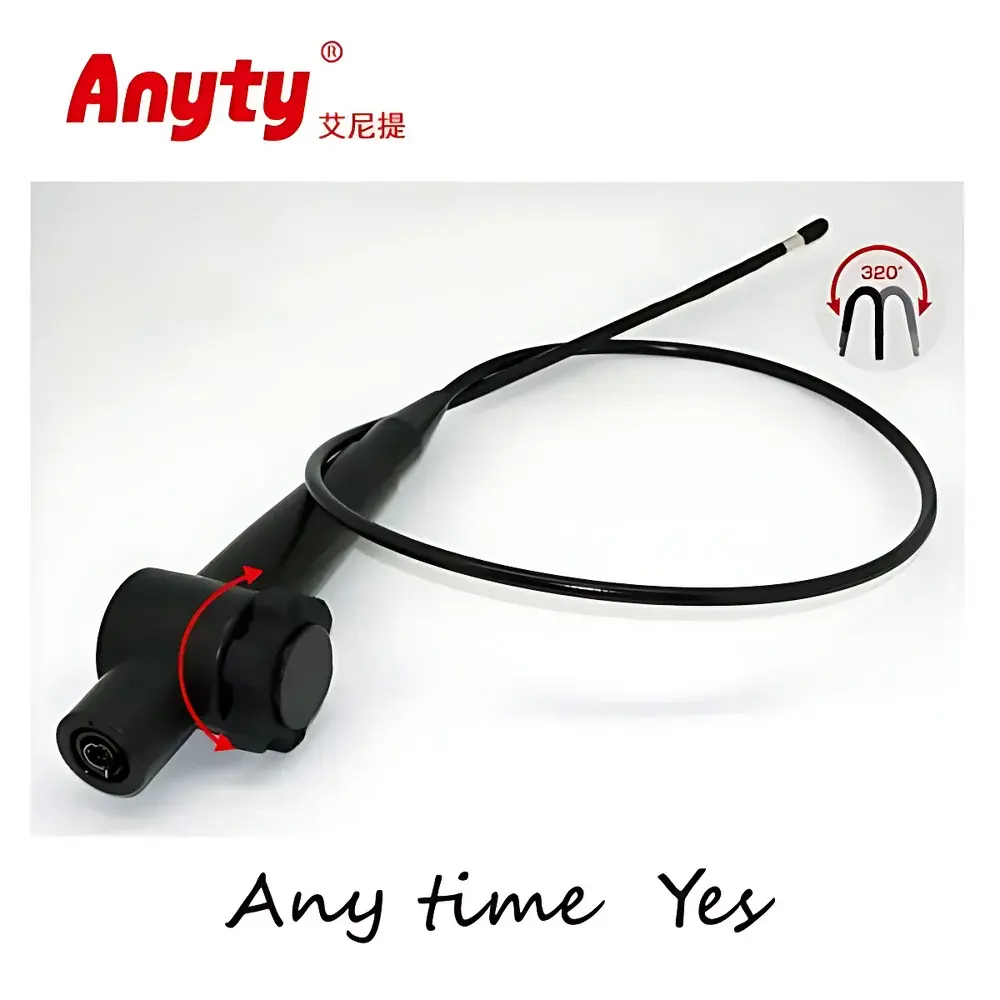

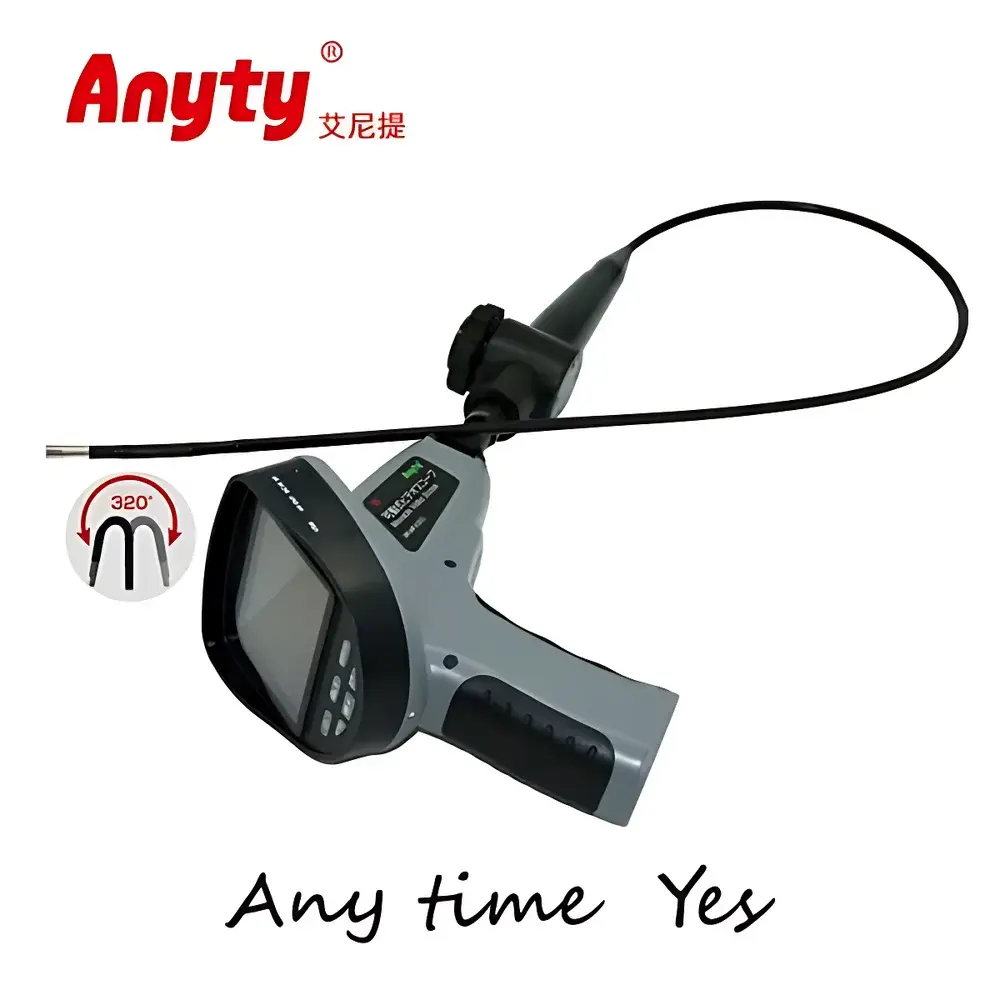

- Motorized articulation with ±160° tip deflection in both horizontal and vertical planes, controlled via ergonomic handheld controller with tactile feedback
- Optical zoom capability from 1× to 6× digital magnification, preserving image clarity through interpolation algorithms optimized for industrial edge detection
- Real-time image mirroring function for intuitive spatial orientation during reverse-path inspections (e.g., upstream pipe segments or mirrored cavity access)
- One-touch freeze-frame capture with timestamped metadata (date, time, articulation angle, illumination level) embedded in EXIF headers
- IP67-rated probe head and flexible insertion tube (4 mm diameter, 1 m standard length; optional extensions up to 3 m available)
- Integrated 8-LED adjustable white-light array with independent brightness control to accommodate varying reflectivity and ambient light conditions
- Rechargeable lithium-ion battery providing ≥3.5 hours of continuous operation under nominal illumination and recording load
Sample Compatibility & Compliance
The 3R-MFXS55 is compatible with a broad range of industrial infrastructure geometries—including metallic and non-metallic pipelines (diameters ≥6 mm), engine blocks, heat exchanger tubes, HVAC ductwork, and cast or machined component housings. While not certified to ISO 17025 for metrological traceability, the device adheres to IEC 60529 for ingress protection (IP67), and its electronic subsystems comply with CE marking requirements under EMC Directive 2014/30/EU and RoHS 2011/65/EU. For regulated industries, image capture logs support basic audit readiness; however, full FDA 21 CFR Part 11 compliance (e.g., electronic signatures, audit trails) requires integration with validated third-party documentation software.
Software & Data Management
The endoscope connects via USB-C to Windows/macOS systems and is supported by Anyty’s proprietary PC application, which enables video playback, frame extraction, annotation (distance markers, scale overlays), and batch export in JPEG, PNG, and MP4 formats. Metadata—including articulation position, exposure settings, and user-defined inspection tags—is retained in exported files. The software does not include cloud synchronization or role-based access control; all data remains locally stored unless manually transferred. For enterprise deployment, the device supports integration into existing CMMS or EAM platforms via standardized file ingestion protocols (e.g., folder watch directories, CSV metadata mapping).
Applications
- Preventive and predictive maintenance of industrial piping networks, including weld seam assessment, corrosion mapping, and foreign object debris (FOD) identification
- Automotive and aerospace powertrain inspection—valve train clearance verification, combustion chamber deposits, turbocharger turbine blade integrity
- Manufacturing QA/QC of machined parts, castings, and assemblies where internal geometry or surface finish must be verified prior to final assembly
- Facility infrastructure auditing—including sewer lines, ventilation shafts, and structural conduit—supporting ISO 55001 asset management frameworks
- Field service diagnostics for energy, water, and transportation sectors where rapid visual triage reduces downtime and avoids unnecessary disassembly
FAQ
What is the minimum bend radius for the 3R-MFXS55 insertion tube?
The standard 4 mm-diameter probe has a minimum static bend radius of 35 mm; dynamic articulation maintains structural integrity within this limit when operated per manufacturer guidelines.
Can the device be calibrated for dimensional measurement?
No—this model does not include integrated calibration targets or photogrammetric measurement tools. Quantitative sizing requires post-capture reference object placement and third-party metrology software.
Is the LED illumination intensity adjustable during video recording?
Yes—brightness is controllable in six discrete steps via the controller interface, and settings are preserved per recording session.
Does the system support external storage expansion?
Yes—microSD card slot (up to 128 GB, Class 10/UHS-I) enables on-device video and image buffering independent of host connection.
Are replacement probe tips available as spare parts?
Yes—standard and wear-resistant tungsten-carbide-tipped variants are stocked and shipped globally with documented compatibility matrices.
