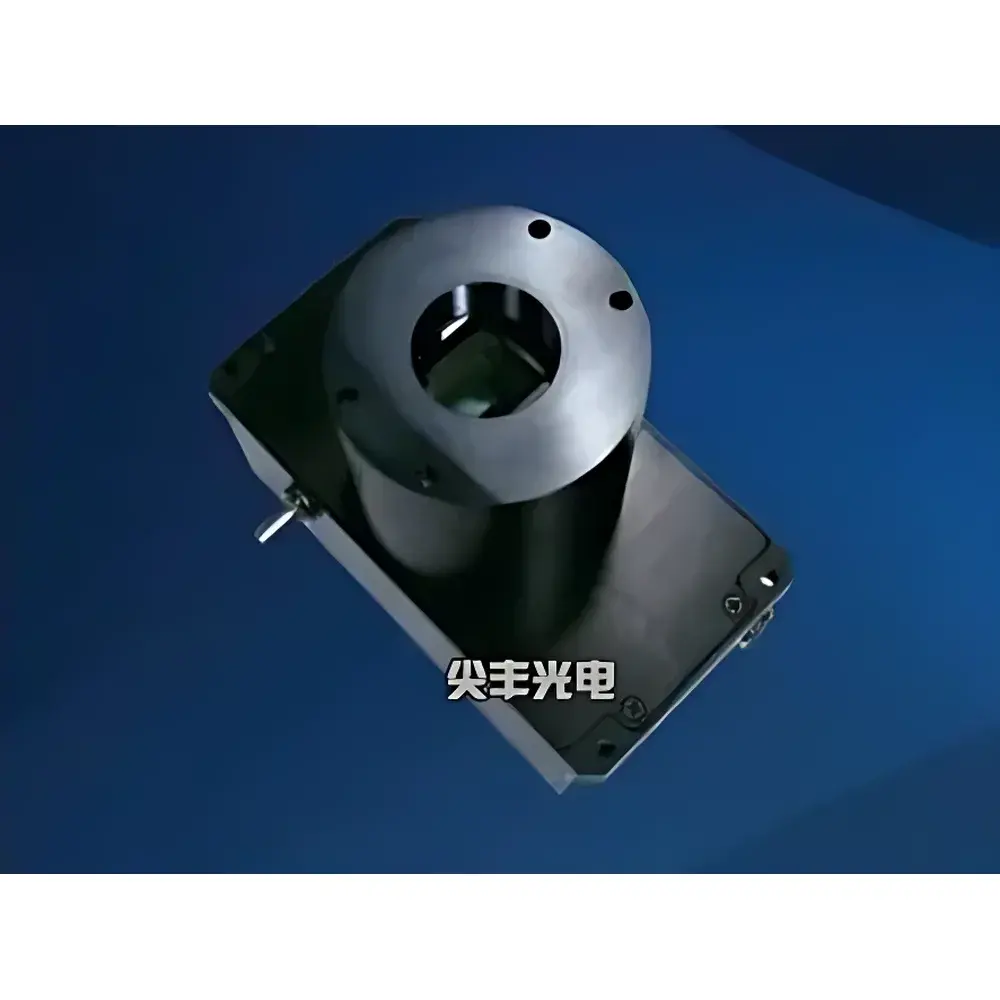

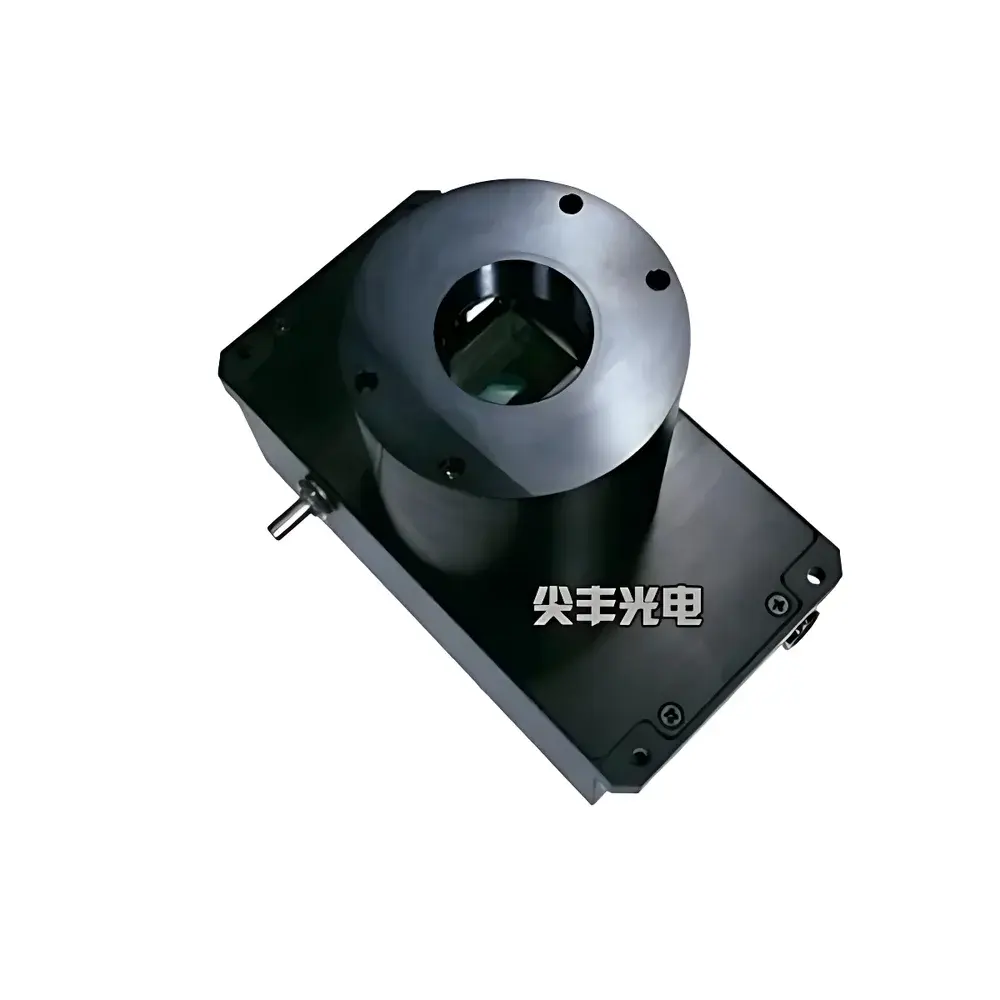

AOE Tech RSLM-HD70-A/P Reflective Liquid Crystal on Silicon (LCoS) Spatial Light Modulator
| Brand | AOE Tech |
|---|---|
| Origin | Shanghai, China |
| Model | RSLM-HD70-A/P |
| Modulation Type | Amplitude & Phase |
| LCD Technology | Reflective LCoS |
| Resolution | 1920 × 1080 pixels |
| Pixel Pitch | 8.0 µm |
| Active Area | 15.36 mm × 8.64 mm |
| Grayscale Depth | 8-bit (256 levels) |
| Phase Range | ≥2π @ 632 nm |
| Contrast Ratio | >2000:1 |
| Fill Factor | >87% |
| Diffraction Efficiency | 75% @ 550 nm |
| Frame Rate | 60–480 Hz (configurable) |
| Spectral Range | 420–1100 nm |
| Interface | DVI |
| Operating Temperature | −5 °C to +55 °C |
| Max Incident Power Density | 2 W/cm² |
| Drive Voltage | DC +4.5 V to +5.5 V / 2 A |
Overview
The AOE Tech RSLM-HD70-A/P is a high-performance reflective spatial light modulator (SLM) based on liquid crystal on silicon (LCoS) technology. Engineered for precision wavefront control in advanced optical systems, it leverages monolithic integration of liquid crystal layers onto CMOS backplanes—enabling pixel-level phase and amplitude modulation with exceptional optical fidelity. Unlike transmissive SLMs, the reflective architecture eliminates substrate-induced birefringence and minimizes thermal lensing, making it especially suitable for high-power laser applications, adaptive optics, holographic beam shaping, and quantum optics experiments. Each device undergoes interferometric calibration to ensure sub-wavelength wavefront uniformity across the active aperture, supporting applications requiring stringent phase stability and repeatability under laboratory or industrial environmental conditions.
Key Features
- Simultaneous amplitude and phase modulation capability with ≥2π phase range at 632 nm, enabling full complex field synthesis
- High optical efficiency: 75% diffraction efficiency at 550 nm, optimized for visible and near-infrared wavelengths
- High fill factor (>87%) and contrast ratio (>2000:1), minimizing zero-order leakage and stray light in interferometric setups
- Configurable frame rates from 60 Hz up to 480 Hz, supporting real-time closed-loop adaptive optics and dynamic holography
- Robust all-solid-state construction with low-voltage DC operation (4.5–5.5 V), ensuring electromagnetic compatibility and operational safety
- Plug-and-play integration via standard DVI interface; compatible with Windows XP/2000-based control software and third-party APIs (e.g., MATLAB, Python via DLL)
- Thermally stable design rated for continuous operation between −5 °C and +55 °C, validated for long-term reliability in vibration-sensitive optical benches
Sample Compatibility & Compliance
The RSLM-HD70-A/P is designed for use with collimated laser beams in free-space optical configurations. Its 420–1100 nm spectral response covers major laser lines including 405 nm (violet), 488/532 nm (argon/diode-pumped solid-state), 633 nm (HeNe), 780 nm (Ti:sapphire), and 1064 nm (Nd:YAG). The device complies with IEC 61000-6-2 (immunity) and IEC 61000-6-3 (emission) standards for industrial environments. While not certified for medical or aerospace use out-of-the-box, its firmware architecture supports audit-ready logging when integrated into GLP/GMP-compliant workflows using externally validated software platforms. No hazardous substances are used per RoHS Directive 2011/65/EU.
Software & Data Management
The included Windows-native control suite provides intuitive GUI-based pattern generation, gamma correction, and temporal sequence programming. Users may define custom phase masks—including Zernike polynomials, kinoforms, and binary diffractive optical elements—with real-time preview and hardware-synchronized triggering. All pattern uploads are timestamped and logged locally; optional external database integration supports traceability requirements under FDA 21 CFR Part 11 when deployed in regulated R&D settings. Software libraries (C/C++, .NET, Python bindings) allow direct integration into LabVIEW, MATLAB, or custom acquisition pipelines. Firmware updates are delivered via signed binaries with SHA-256 verification.
Applications
- Adaptive Optics: Real-time aberration correction in microscopy (e.g., two-photon, STED) and astronomical telescopes
- Holographic Optical Trapping: Multi-point manipulation of microspheres, cells, or nanoparticles using computer-generated holograms
- Structured Illumination Microscopy (SIM): High-speed pattern projection for super-resolution imaging
- Laser Beam Shaping: Generation of Bessel, Airy, or vortex beams for materials processing and nonlinear optics
- Quantum Information Processing: Programmable mode sorting and state preparation in photonic qubit circuits
- Optical Metrology: Dynamic calibration of interferometers and wavefront sensors using programmable reference wavefronts
FAQ
What is the maximum safe incident power density?
The device is rated for continuous-wave illumination up to 2 W/cm² across its specified spectral range (420–1100 nm), provided beam homogeneity exceeds 85% and thermal management meets datasheet guidelines.
Can this SLM be used in vacuum or inert-gas environments?
Yes—the hermetically sealed LCoS chip and passive thermal design support operation in dry nitrogen or vacuum chambers (down to 10⁻³ mbar); however, outgassing characterization of the housing must be performed per user-specific cleanroom protocols.
Is phase calibration data provided with each unit?
Yes—each RSLM-HD70-A/P ships with an individual interferometric wavefront map (Zernike coefficients up to order 15) and pixel-wise phase-response lookup table, traceable to NIST-traceable interferometry.
Does the controller support external trigger synchronization?
Yes—the driver accepts TTL-level start/stop and frame-sync signals with ≤10 ns jitter, enabling precise coordination with pulsed lasers, cameras, or scanning galvanometers.
How is firmware updated, and is rollback supported?
Firmware updates are performed via USB-connected host PC using AOE Tech’s authenticated utility; version history and signed rollback images are retained for compliance-driven validation cycles.
