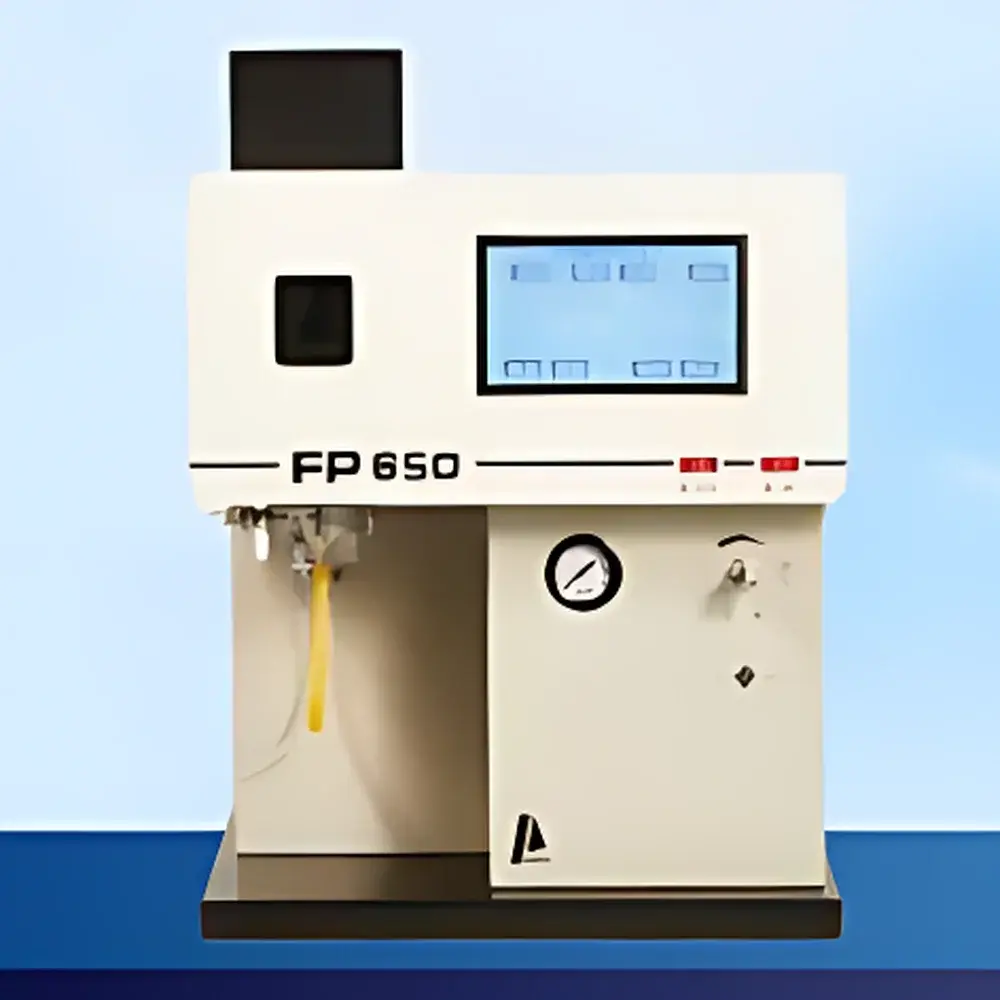

AOPU FP650 Cement-Industry-Specific Flame Photometer

Overview

The AOPU FP650 Cement-Industry-Specific Flame Photometer is a dedicated atomic emission spectrometer engineered for rapid, reliable quantification of potassium (K) and sodium (Na) in cementitious materials, clinker, raw meals, and supplementary cementitious materials (SCMs). It operates on the principle of flame atomic emission spectroscopy (FAES): liquid samples are nebulized into a premixed air–fuel flame (LPG, propane, or butane), where alkali metal ions are thermally excited and emit characteristic wavelengths—766.5 nm for potassium and 589.0 nm for sodium. Emitted radiation is isolated via interference filter-based monochromatization and detected by a silicon photovoltaic cell. The FP650 is optimized for routine QC/QA workflows in cement production laboratories, where precise control of alkali content is critical to mitigate alkali–silica reaction (ASR) risks and ensure compliance with ASTM C150, EN 197-1, and GB/T 176–2017.

Key Features

• Dual-channel simultaneous K/Na measurement with independent optical paths and real-time ratio calculation—eliminates sequential analysis delays and cross-channel drift.
• Dedicated ignition system with integrated flame-ionization detection and automatic gas cutoff: if flame extinction is detected by the electrode sensor, fuel supply is terminated within 1 second and an audible/visual alarm activates after 8 s; one-button restart resets the system without manual valve adjustment.
• 7-inch high-resolution color capacitive touchscreen interface with intuitive navigation, preloaded cement-specific calibration curves (e.g., ASTM C114 Annex A), and user-definable method templates.
• Robust mechanical architecture: compact footprint (400 × 250 × 500 mm), shock-damped optical bench, and sealed optical chamber to minimize thermal drift and ambient light interference.
• Optimized nebulization system delivering stable aerosol generation at ≤6 mL/min uptake rate—compatible with low-volume sample introduction (as little as 2 mL per analysis) and minimizing reagent consumption.
• Thermal and electronic stability engineering: ≤3% relative standard deviation over 15 s continuous standard injection; ≤15% maximum variation across six 1-minute consecutive measurements under ambient conditions (10–35 °C, RH ≤85%).

Sample Compatibility & Compliance

The FP650 accepts aqueous digests prepared per ASTM C114 Section 7 (HCl/HNO₃ hotplate digestion) or ISO 29581-2:2010 for cement and slag analysis. It accommodates filtered, clarified solutions with total dissolved solids (TDS) ≤1%. No organic solvent compatibility—samples must be free of ethanol, acetone, or chlorinated hydrocarbons. The instrument meets electromagnetic compatibility requirements per IEC 61326-1 and safety standards per IEC 61010-1. While not 21 CFR Part 11–certified out-of-the-box, audit trails (user login, method changes, calibration logs) are timestamped and exportable in CSV format for GLP/GMP-aligned documentation. Calibration verification follows ISO/IEC 17025–recommended frequency (daily bracketing with certified reference materials such as NIST SRM 2710a).

Software & Data Management

Embedded firmware supports direct calibration curve generation (linear, quadratic, or forced-zero intercept), multi-point standardization, and QC check sample evaluation against user-defined acceptance criteria (e.g., recovery 95–105%, RSD ≤2.5%). All measurement data—including raw intensity values, concentration results, timestamps, operator ID, and method parameters—are stored internally (≥10,000 records) and exportable via USB 2.0 to CSV or Excel-compatible formats. No proprietary software installation is required; reports comply with ISO 17025 clause 7.8.2 for result reporting clarity and traceability. Firmware updates are delivered via encrypted USB key with version-controlled release notes.

Applications

• Quantitative determination of soluble alkalis (Na₂Oₑq, K₂Oₑq) in Portland cement, blended cements (CEM II–V), and limestone fillers per GB/T 176–2017 Clause 12.
• Routine monitoring of raw meal homogeneity during kiln feed preparation to prevent kiln ring formation linked to alkali volatility.
• Verification of alkali leaching behavior in fly ash, silica fume, and slag used in low-alkali concrete formulations.
• Supporting ASTM C311/C618 conformance testing for pozzolan reactivity assessment.
• Research-grade screening of alternative fuels and raw materials for alkali loading impact on clinker mineralogy.

FAQ

What fuel gases are compatible with the FP650?
Liquefied petroleum gas (LPG), propane, or butane—must be free of sulfur compounds and particulates; minimum purity grade: commercial grade with ≤5 ppm H₂S.
Is external air compression required?
Yes—the system includes a built-in oil-free diaphragm air compressor (0.3 MPa, 12 L/min) meeting ISO 8573-1 Class 3 for particle/moisture content; no external shop air needed.
Can the FP650 measure lithium (Li) for psychiatric pharmaceutical QC?
No—the optical path is fixed to K (766.5 nm) and Na (589.0 nm) interference filters; Li (670.8 nm) requires separate hardware configuration and is outside the scope of the cement-optimized FP650 model.
What maintenance intervals are recommended?
Nebulizer capillary cleaning every 200 analyses; burner head descaling with 10% HNO₃ weekly; annual photodetector sensitivity verification using NIST-traceable neutral density filters.
Does the instrument support automated dilution or auto-sampler integration?
Not natively—the FP650 is a manual aspiration system; however, its analog voltage output (0–5 V) and RS-232 interface enable third-party autosampler synchronization via TTL-triggered start/stop signals.
