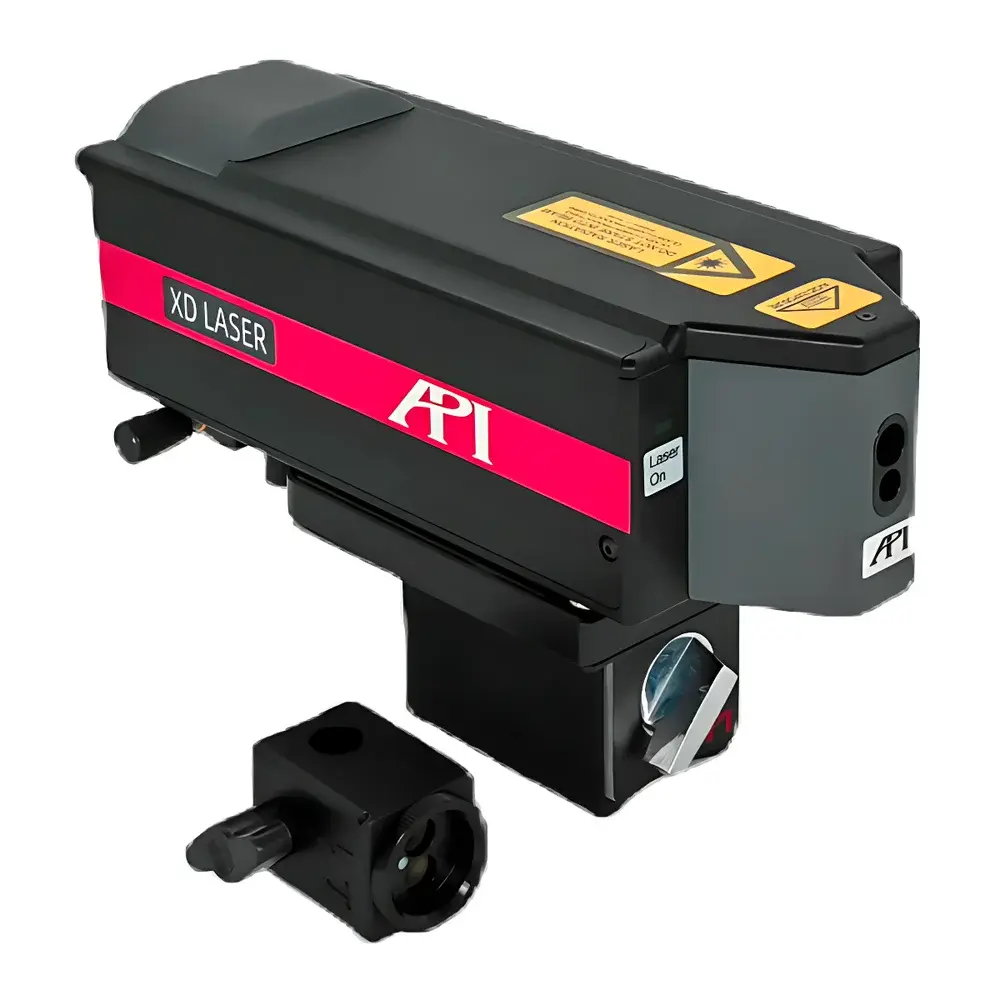

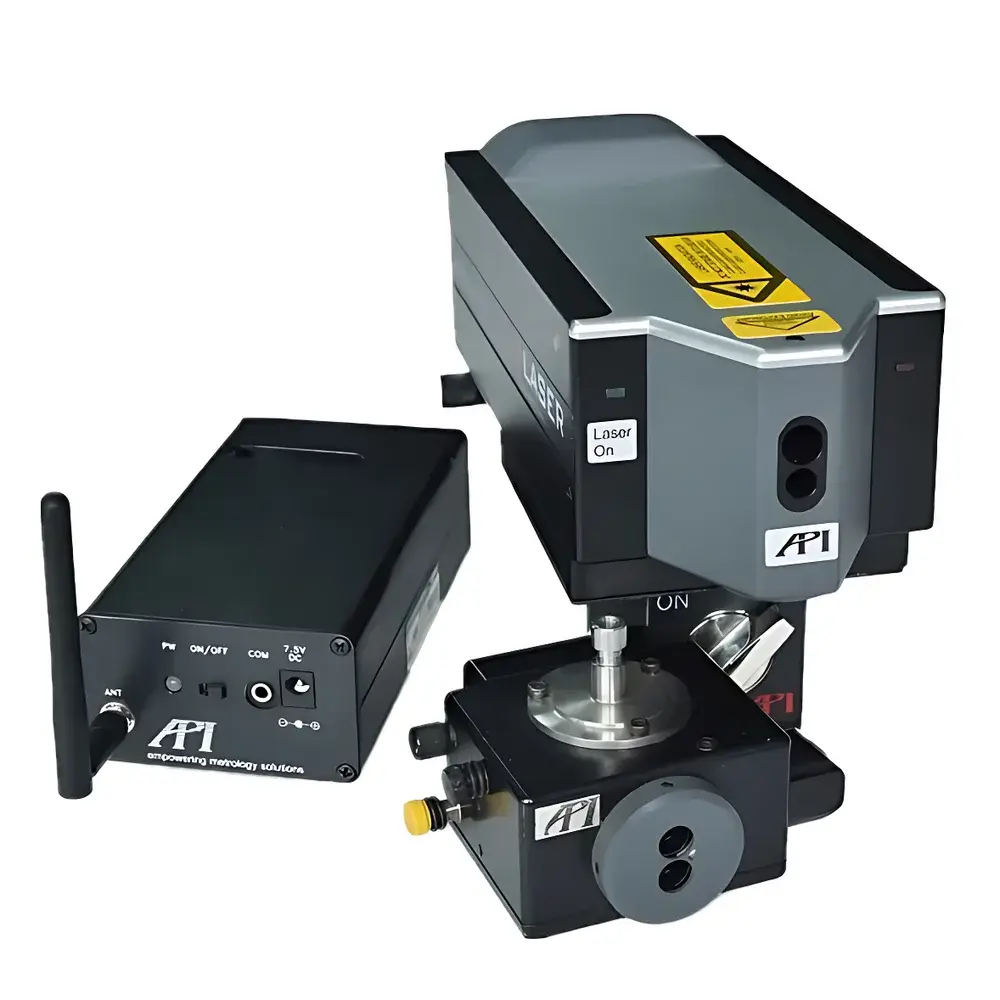

API XD Laser Interferometer

Overview

The API XD Laser Interferometer is a high-precision, compact 6-degree-of-freedom (6D) metrology system engineered for geometric error mapping of machine tools, coordinate measuring machines (CMMs), and precision motion platforms. Based on the fundamental principle of single-frequency heterodyne laser interferometry, it measures displacement along a linear axis while simultaneously capturing orthogonal straightness deviations and three rotational angular errors—pitch, yaw, and roll—using integrated beam-splitting optics and position-sensitive detectors (PSDs). Unlike conventional 1D or 3D interferometers requiring sequential reconfigurations, the XD system acquires all six geometric error components in a single setup, eliminating cumulative alignment uncertainty and reducing measurement traceability chain length. Its monolithic optical head integrates the laser source, reference and measurement interferometers, and environmental sensors into a rigid, thermally stable housing—enabling direct mounting onto machine tool ways without tripods or external alignment fixtures.

Key Features

• Single-setup 6D error measurement: captures positional deviation, bi-directional horizontal/vertical straightness, pitch, yaw, and roll in one acquisition cycle
• Integrated environmental compensation: real-time correction for air temperature, barometric pressure, and relative humidity per ISO 230-6 and ISO 5725 standards
• Direct rail-mount architecture: eliminates tripod-induced instability and mechanical hysteresis; optimized for CNC machine calibration under operational thermal conditions
• Dynamic performance analysis: supports time-resolved velocity, acceleration, and vibration spectral data acquisition up to 10 kHz sampling rate
• Multi-stage digital filtering: adaptive FIR and IIR filters suppress noise from air turbulence, thermal gradients, and mechanical resonance
• Compact form factor: optical head dimensions ≤ 120 × 85 × 65 mm; mass < 1.2 kg for minimal inertial loading on moving axes

Sample Compatibility & Compliance

The XD Laser Interferometer is compatible with all standard machine tool configurations including vertical/horizontal machining centers, gantry mills, lathes, and bridge-type CMMs equipped with linear guideways (roller, hydrostatic, or aerostatic). It interfaces with industry-standard retroreflectors (e.g., corner-cube or plane mirrors) and supports both fixed and dynamic target mounting. The system complies with ISO 230-2 (determining positioning accuracy), ISO 230-6 (diagonal measurement), and ANSI B5.54 (machine tool performance evaluation). Environmental compensation algorithms conform to the Edlén equation implementation per ISO 10360-2 and NIST SP 958. Data integrity meets FDA 21 CFR Part 11 requirements when used with API’s certified software suite, supporting audit trails, electronic signatures, and secure user access control.

Software & Data Management

The system operates exclusively with API’s Metrology Software Suite (v5.2+), a Windows-based application certified for GLP/GMP environments. It provides automated test sequencing per ISO 230 protocols, real-time error vector visualization, and export of ASME B5.54-compliant reports in PDF, CSV, and XML formats. Raw interferometric data is stored in HDF5 format with embedded metadata (timestamp, sensor readings, configuration parameters). The software includes built-in statistical process control (SPC) modules for trend analysis of volumetric error evolution across maintenance cycles. All calibration certificates are digitally signed and traceable to NIST SRM 1920a (stabilized HeNe wavelength standard).

Applications

• Volumetric error mapping of multi-axis CNC systems for ISO 10791-6 compliance
• Pre- and post-compensation validation of CNC controller look-up tables (e.g., ball-screw pitch error compensation)
• Thermal drift characterization during warm-up cycles using synchronized temperature logging
• Dynamic stiffness assessment via forced-vibration response analysis at critical frequencies
• Acceptance testing of high-accuracy CMMs per ISO 10360-2 and VDI/VDE 2617-19
• Research-grade motion platform characterization in semiconductor lithography and aerospace assembly cells

FAQ

What is the maximum unambiguous measurement range, and how is linearity maintained over 80 meters?
The system achieves 80 m range using phase-stabilized single-frequency interferometry with active wavelength stabilization; linearity error remains within ±0.1 ppm over full range per manufacturer calibration certificate.
Does the XD support real-time feedback to CNC controllers?
No—the XD is a metrology instrument for offline calibration; it does not provide real-time closed-loop signals but generates compensation files compatible with Fanuc, Siemens, and Heidenhain controllers.
How is angular measurement resolution defined, and what limits its accuracy?
Pitch/yaw resolution is 0.01 arcsec; roll resolution is 0.05 arcsec—limited primarily by PSD pixel density and beam centroid stability under air turbulence.
Can the system operate in non-laboratory industrial environments?
Yes—it is rated IP52, features shock-mounted optics, and maintains specification performance in ambient temperatures from 10 °C to 40 °C with rapid environmental adaptation (<60 s settling time).
