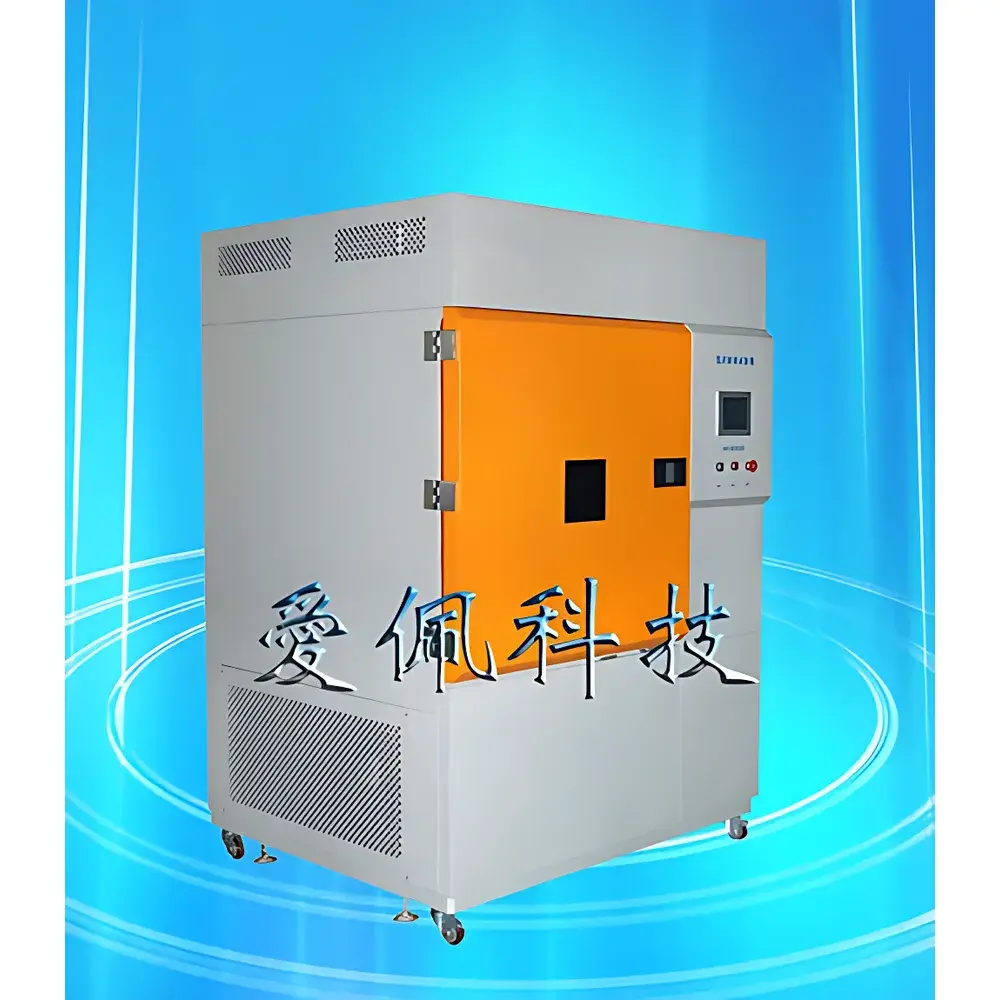

APKJ AP-KF-3.5m Water-Cooled Xenon Arc Weathering Test Chamber

Overview

The APKJ AP-KF-3.5m Water-Cooled Xenon Arc Weathering Test Chamber is an engineered solution for accelerated outdoor weathering simulation under controlled laboratory conditions. It utilizes a high-intensity, water-cooled 4.5 kW xenon arc lamp as the light source, spectrally filtered to replicate the full solar spectrum (290–800 nm), including critical UV, visible, and near-infrared regions. Unlike air-cooled systems, the water-cooled architecture enables stable, high-irradiance operation at sustained power levels—essential for reproducible long-term exposure testing of polymeric, coated, and composite materials. The chamber integrates precise black panel temperature control (65°C ±3°C or 100°C ±3°C), programmable humidity regulation (65–98% RH), calibrated spray cycles (18 min wet / 102 min dry, adjustable), and configurable dark cycles with condensation capability—enabling faithful emulation of diurnal environmental stressors: UV photodegradation, thermal cycling, moisture absorption, hydrolytic attack, and dew formation.

Key Features

• Water-cooled 4.5 kW xenon lamp system with ≥2000 h service life and spectral output compliant with ISO 4892-2 and ASTM G155 requirements
• Mirror-finish SUS304 stainless steel interior chamber (950×950×850 mm) resistant to corrosion, UV degradation, and chemical exposure

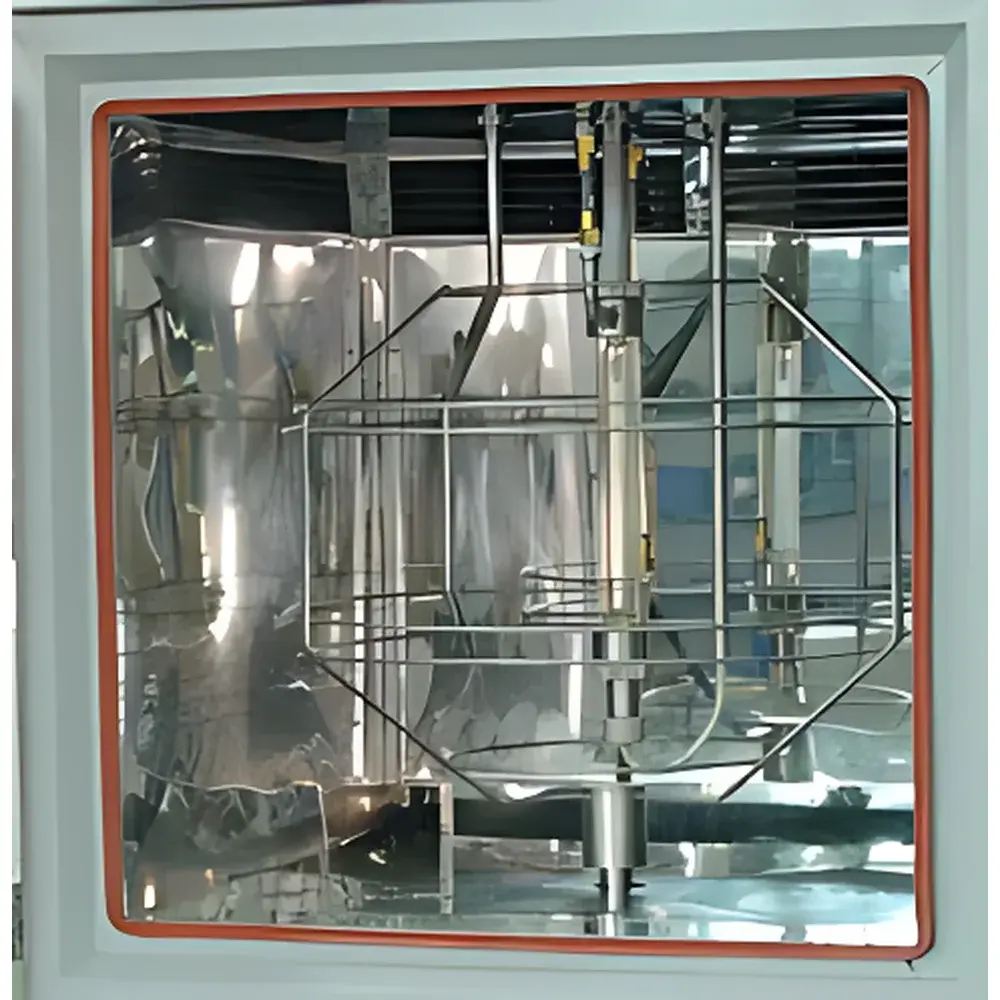

• Rotating drum sample holder (≤3 rpm ±1 rpm) ensuring uniform irradiance distribution across 6500 cm² effective exposure area
• Imported American optical filter sets (inner and outer) for precise spectral matching to terrestrial sunlight (CIE No. 85, Daylight Filter)
• Integrated black panel temperature sensor with dual-setpoint capability (65°C or 100°C), continuously monitored and actively regulated
• Programmable spray system with adjustable duration (0–9999 min) and interval (0–240 min), supporting ASTM D4329 and ISO 4892-2 wet/dry cycles
• Touchscreen HMI with real-time parameter display, multi-step profile programming, and event-triggered data logging
• Comprehensive safety architecture: door interlock, overtemperature cutoff, phase sequence monitoring, earth leakage protection, and overload circuit breakers

Sample Compatibility & Compliance

The AP-KF-3.5m accommodates rigid and flexible specimens—including coated metal panels, automotive trim, architectural cladding (e.g., aluminum composite panels), aerospace composites, exterior paints, elastomers, textiles, and glazing materials—mounted on its rotating drum or optional flat-frame fixtures. Its operational envelope satisfies the physical and metrological requirements of internationally recognized weathering standards: ASTM C1442 (for sealants), ASTM D4459 (for indoor plastics), AATCC TM16 (textile colorfastness), ISO 4892-2 (plastics—xenon arc exposure), and GB/T 16422.3 (Chinese national standard for plastics). The system supports GLP-compliant test execution when paired with APKJ’s optional audit-trail-enabled software, meeting traceability prerequisites for regulatory submissions under FDA 21 CFR Part 11 and ISO/IEC 17025-accredited laboratories.

Software & Data Management

Control firmware includes embedded data logging with timestamped records of irradiance, black panel temperature, chamber humidity, spray status, and alarm events. Exportable CSV files facilitate post-test statistical analysis in third-party platforms (e.g., JMP, Minitab). For advanced compliance workflows, APKJ offers optional PC-based software with user-level access control, electronic signature support, and 21 CFR Part 11–compliant audit trails—including immutable logs of method changes, calibration entries, and operator actions. All measurement transducers are NIST-traceable upon factory calibration; recalibration intervals align with ISO/IEC 17025 recommendations (typically annually or per 1000 h lamp operation).

Applications

This chamber serves as a core tool in R&D labs and quality assurance departments for predictive durability assessment. It enables comparative ranking of pigment stability in automotive topcoats, evaluation of UV stabilizer efficacy in polyolefin compounds, validation of adhesion retention in architectural sealants after cyclic UV/moisture exposure, and qualification of photovoltaic encapsulant yellowing resistance. In automotive OEM supply chains, it supports PPAP documentation per SAE J2527 and GMW14124. In construction material certification, it fulfills performance verification against EN 927-6 and ASTM D4798. The ability to decouple and recombine stressors (e.g., high-humidity dark cycles without UV) further supports mechanistic failure analysis—distinguishing photo-oxidative degradation from purely hydrolytic pathways.

FAQ

What distinguishes water-cooled xenon systems from air-cooled alternatives?
Water cooling enables higher sustained irradiance output (≥550 W/m² across 290–800 nm) with superior thermal stability, minimizing lamp spectral drift and extending operational lifetime—critical for multi-week continuous exposures required by ASTM D4459 and ISO 4892-2.

Can the AP-KF-3.5m replicate condensation during dark cycles?
Yes. The chamber supports programmable dark phases with elevated humidity and controlled cooling, inducing surface condensation that mimics nocturnal dew formation—a key driver of coating blistering and substrate corrosion.

Is black panel temperature measured continuously during spray interruptions?
Yes. Per ISO 4892-2 Clause 7.3.2, black panel temperature monitoring remains active throughout all cycle phases—including non-irradiated periods—to ensure thermal history integrity in final report generation.

Are optical filters included, and what is their certification basis?
The system ships with dual-stage American-imported filters (inner quartz and outer borosilicate) certified to meet CIE Publication 85 spectral requirements for daylight simulation, with annual replacement recommended to maintain spectral fidelity.

Does APKJ provide installation, validation, and IQ/OQ documentation?
Yes. APKJ delivers site commissioning, Factory Acceptance Testing (FAT), and optional User Requirement Specification (URS)-driven Installation Qualification (IQ) and Operational Qualification (OQ) packages aligned with ISO 14644 and ASTM E2500 guidelines.
