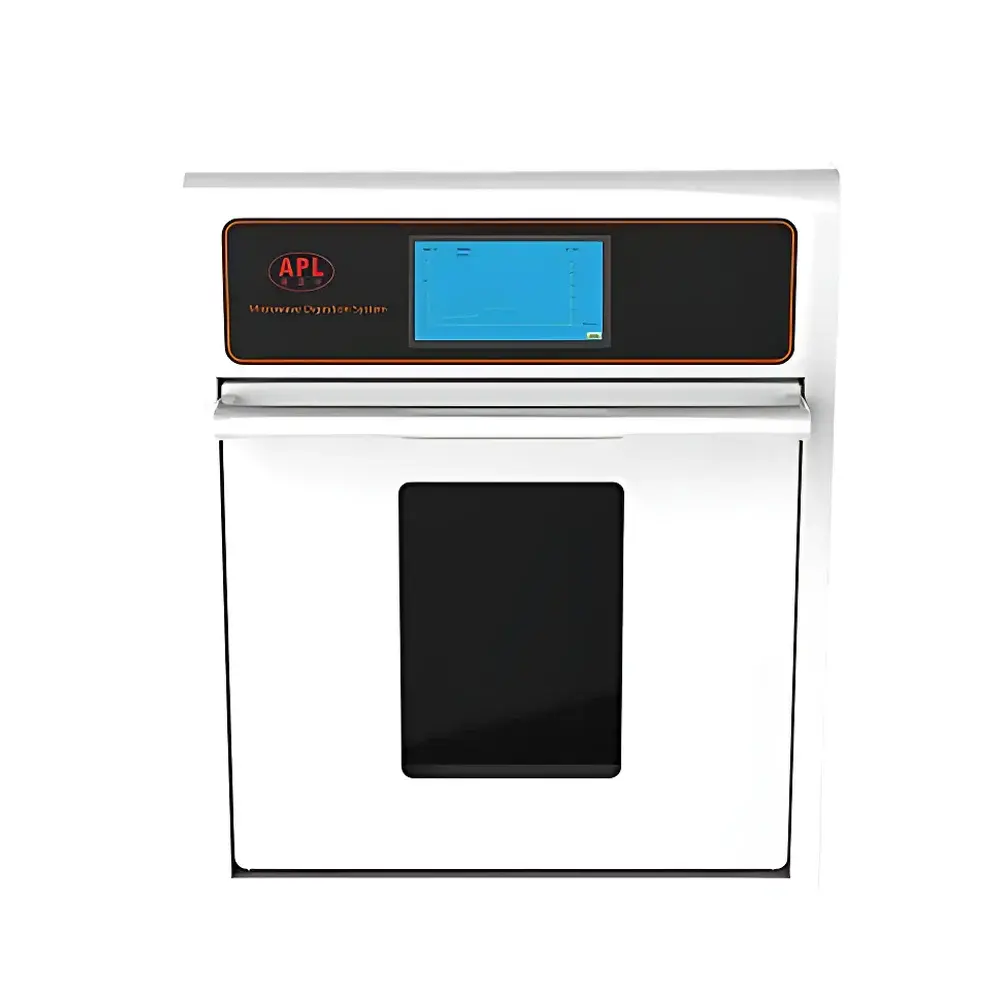

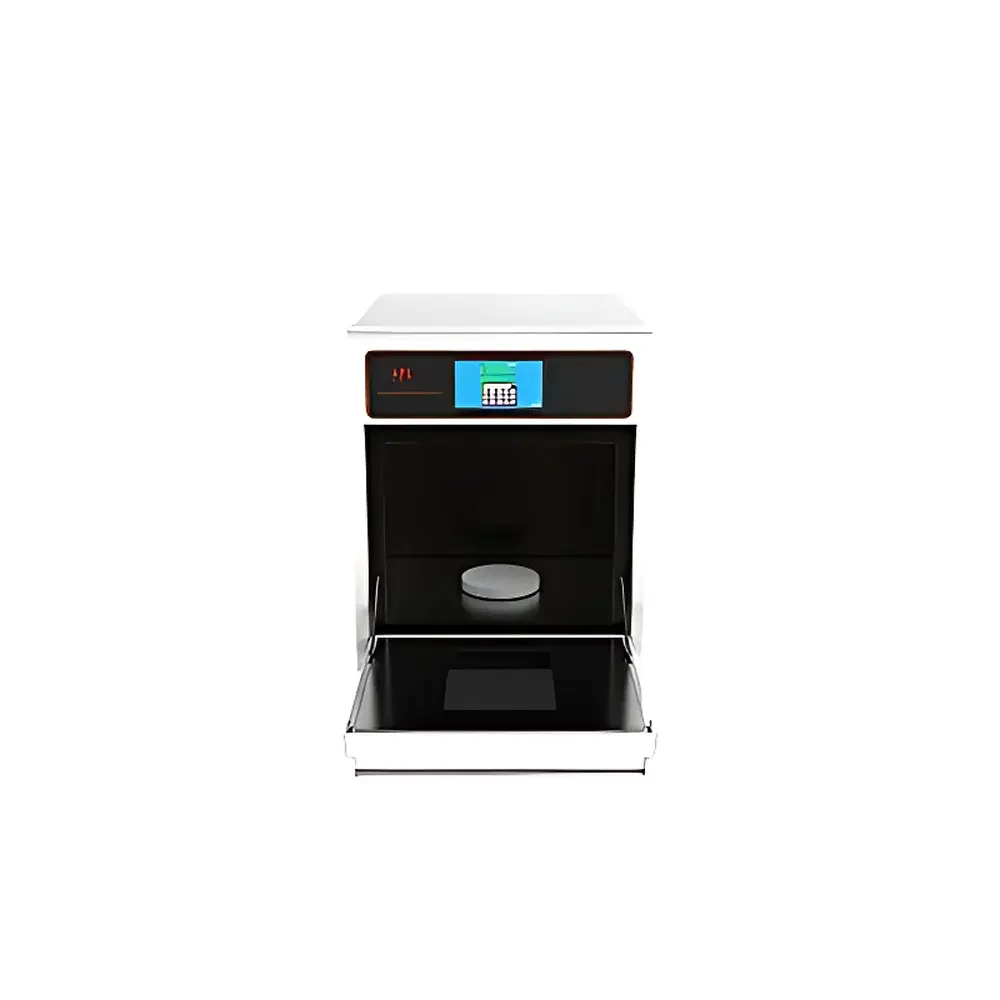

APL M24 24-Position High-Throughput Microwave Digestion and Extraction System
| Brand | APL |
|---|---|
| Origin | Sichuan, China |
| Manufacturer Type | Direct Manufacturer |
| Origin Category | Domestic (China) |
| Model | M24 |
| Price Range | USD 17,000 – 28,000 |
| Cavity Class | Industrial-Grade |
| Sample Capacity | 24 vessels |
| Microwave Source | High-Power Industrial Magnetron |
| Max Temperature | 310 °C |
| Temp Measurement Accuracy | ±0.1 °C |
| Temp Control Stability | ±1 °C |
| Temp Uniformity Across Cavity | ±1 °C |
| Max Operating Pressure | 2250 psi |
Overview
The APL M24 is an industrial-grade, 24-position high-throughput microwave digestion and extraction system engineered for rigorous inorganic and environmental sample preparation in regulated laboratory environments. It operates on the principle of controlled microwave energy absorption by polar solvents and ionic matrices—enabling rapid, uniform thermal decomposition of complex solid and semi-solid samples under sealed-vessel conditions. Designed for reproducible acid digestion (e.g., HNO₃, HCl, HF, H₂O₂ mixtures), the system supports quantitative elemental analysis by ICP-OES, ICP-MS, and AAS. Its cavity architecture integrates forced-air cooling, pressure-relief safety interlocks, and real-time dual-parameter monitoring (temperature and pressure) per vessel—ensuring compliance with ASTM D5686, ISO 11885, and EPA Methods 3050B, 3051A, and 3052.
Key Features
- Industrial-class magnetron delivering stable 1600–2000 W microwave output, optimized for rapid ramp-to-target heating and precise hold-phase control
- 24-position rotor accommodating standardized 55 mL or 100 mL high-pressure quartz or composite fiber-reinforced PTFE-TFM vessels
- Independent fiber-optic temperature sensing with ±0.1 °C accuracy and closed-loop PID regulation maintaining ±1 °C stability during 30+ minute digestion cycles
- Multi-point pressure transduction system with full-range monitoring up to 2250 psi (155 bar), featuring automatic power modulation upon threshold detection
- Robust stainless-steel cavity with corrosion-resistant coating, integrated fume exhaust interface, and electromagnetic shielding meeting IEC 61000-4-3 standards
- Dual-stage safety architecture: hardware-based pressure burst discs plus software-enforced over-temperature/over-pressure shutdown protocols
Sample Compatibility & Compliance
The M24 accommodates a broad spectrum of sample matrices—including soils, sediments, biological tissues, foodstuffs, polymers, ores, and pharmaceutical excipients—without requiring manual pre-dilution or homogenization. Vessel configurations support both open-vessel reflux and closed-vessel pressurized digestion modes. The system complies with GLP documentation requirements through audit-trail-enabled method storage, user-access logging, and electronic signature support. All digestion methods are validated against ISO/IEC 17025:2017 clause 7.2.2 (method validation) and align with FDA 21 CFR Part 11 data integrity provisions when paired with optional LIMS integration modules.
Software & Data Management
Controlled via APL Digisoft v4.2—a Windows-based application supporting multi-user role assignment (Admin, Operator, Reviewer). The software enables method library management, real-time graphing of T/P profiles per vessel, automated report generation (PDF/CSV), and export of raw time-series datasets for statistical process control (SPC) analysis. All method parameters, run logs, calibration records, and alarm events are timestamped and cryptographically hashed to ensure non-repudiation. Optional OPC UA server module allows seamless integration into centralized laboratory automation platforms (e.g., Thermo Fisher SampleManager, LabVantage).
Applications
- Environmental laboratories: heavy metal quantification in EPA SW-846 compliant digests (soils, sludges, air filters)
- Food safety testing: lead, cadmium, and arsenic determination per EU Commission Regulation (EC) No 1881/2006
- Clinical and public health labs: trace element profiling in whole blood, urine, and tissue biopsies per CLIA and CAP guidelines
- Geochemical research: rare earth element (REE) recovery from silicate rocks using HF-containing protocols
- Materials science: dissolution of catalysts, battery cathode materials, and ceramic composites prior to elemental mapping
- Regulatory quality control: routine batch verification for ISO 9001-certified manufacturing sites producing dietary supplements and nutraceuticals
FAQ
What vessel types are compatible with the M24 rotor?
Standardized 55 mL and 100 mL high-pressure digestion vessels made from quartz, PTFE-TFM, or carbon-fiber-reinforced composites—certified to 2250 psi at 310 °C.
Does the system support method validation per ISO/IEC 17025?
Yes—built-in calibration traceability (NIST-traceable temperature sensors), version-controlled method files, and electronic audit trails satisfy clauses 7.2.2 and 7.7 of ISO/IEC 17025:2017.
Can the M24 be integrated into an existing LIMS environment?
Via optional OPC UA or RESTful API interface; supports HL7 and ASTM E1384 message formatting for bidirectional sample ID and result transfer.
Is remote monitoring supported?
Yes—web-enabled status dashboard accessible via secure TLS 1.2 connection; requires local network configuration and optional APL RemoteGuard license.
What maintenance intervals are recommended for industrial operation?
Magnetron performance verification every 1,000 operating hours; cavity seal inspection and pressure sensor recalibration annually or after 500 digestion cycles—whichever occurs first.
