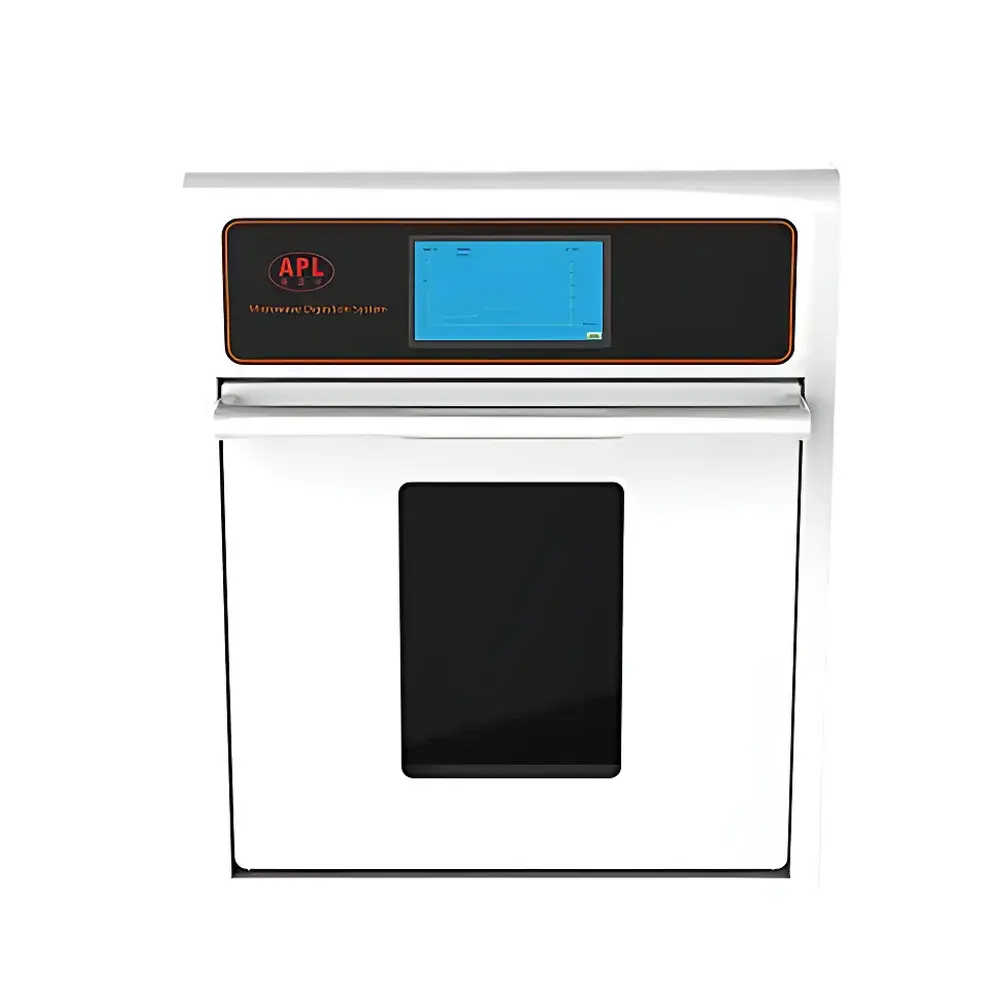

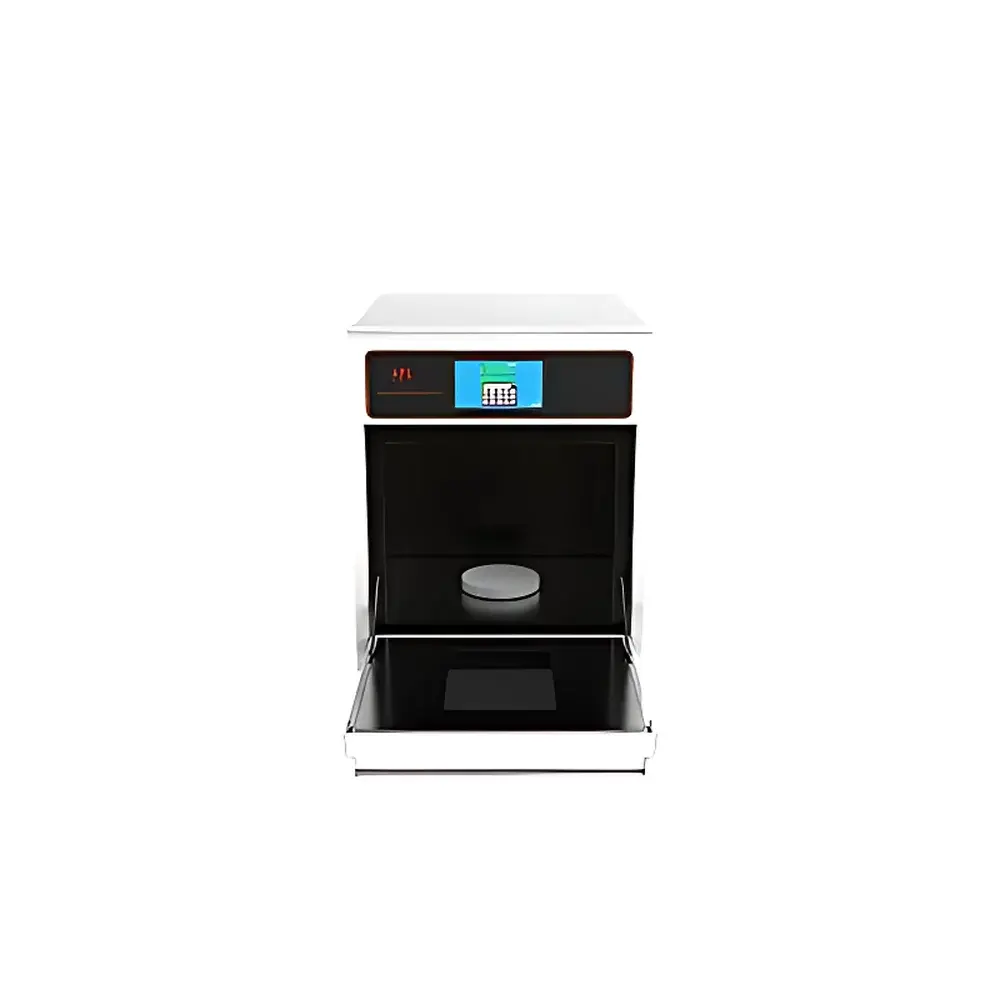

APL Optimum Touchwin4.0 High-Throughput Microwave Digestion System
| Brand | APL Optimum |
|---|---|
| Origin | Sichuan, China |
| Manufacturer Type | Direct Manufacturer |
| Country of Origin | China |
| Model | Touchwin4.0 |
| Cavity Class | Industrial-Grade |
| Sample Capacity | 40 samples/batch |
| Microwave Source | Dual Magnetron |
| Max Temperature | 310 °C |
| Temp Measurement Accuracy | ±0.1 °C |
| Temp Control Stability | ±0.1 °C |
| Temp Uniformity | ±0.1 °C |
| Max Pressure | 22,000 psi |
Overview
The APL Optimum Touchwin4.0 High-Throughput Microwave Digestion System is an industrial-grade microwave platform engineered for precision-controlled, high-pressure closed-vessel sample preparation in analytical laboratories. Based on seventh-generation microwave chemistry architecture, it employs dual magnetron excitation with harmonic cavity resonance to deliver uniform, non-pulsed microwave energy distribution across a 66 L reinforced stainless-steel cavity. The system operates on the principle of dielectric heating—where polar molecules (e.g., HNO₃, HCl, HF) absorb microwave energy and convert it into thermal energy—enabling rapid, reproducible decomposition of organic matrices and refractory inorganic compounds. Designed for compliance with ISO/IEC 17025-accredited workflows, it supports trace metal analysis (e.g., ICP-MS, ICP-OES), environmental monitoring (EPA Methods 3050B, 3051A, 3052), and regulatory testing under GLP/GMP frameworks.
Key Features
- Industrial-strength cavity constructed from thickened, enhanced special-grade stainless steel with five-layer PFA (perfluoroalkoxy alkane) internal coating—resistant to prolonged exposure to concentrated hydrofluoric, nitric, and hydrochloric acids.
- Dual magnetrons arranged in offset resonant configuration ensure spatially uniform microwave field distribution—critical for consistent thermal profiles across all 40 positions.
- Full-vessel infrared temperature monitoring and real-time pressure surveillance for every individual vessel—patented technology eliminating wired thermocouples and enabling true wireless, contactless thermal validation.
- High-fidelity closed-loop microwave power control with <100 ms feedback response time, maintaining temperature stability within ±0.1 °C during dynamic ramp-and-hold sequences.
- Integrated 10.1-inch capacitive touchscreen interface running Touchwin4.0 OS, supporting preloaded method libraries compliant with ASTM D5191, USP <231>, and EPA SW-846 methods.
- Maximum operating envelope: 310 °C and 22,000 psi—validated for ultra-high-pressure digestion of geological, biological, and polymer samples requiring complete matrix dissolution.
Sample Compatibility & Compliance
The Touchwin4.0 accommodates a broad range of rotor configurations—including 40-position high-throughput quartz, TFM, and XP1500+ vessels—and is compatible with both single-use and reusable digestion tube formats. All vessel materials meet USP Class VI biocompatibility standards and are certified for use with aggressive reagent mixtures (e.g., 9:1 HNO₃:H₂O₂, 3:1 HNO₃:HF). The system complies with IEC 61000-6-3 (EMC), IEC 61000-6-4 (industrial emission), and conforms to CE safety directives. Audit-ready electronic records—including timestamps, parameter logs, and method execution history—support FDA 21 CFR Part 11 requirements when paired with optional secure network integration.
Software & Data Management
Touchwin4.0 OS provides intuitive method development, real-time graphing of temperature/power/time curves, and automatic generation of PDF-formatted run reports. Optional PC connectivity via Ethernet or USB enables remote method deployment, centralized fleet management, and raw data export in CSV or XML format. Wireless iPad/iPhone monitoring (via optional Wi-Fi module) delivers live video feed and telemetry overlay without compromising RF shielding integrity. All software modules adhere to ALCOA+ principles (Attributable, Legible, Contemporaneous, Original, Accurate, Complete, Consistent, Enduring, Available) for regulated environments.
Applications
- Ultra-high-pressure microwave-assisted acid digestion of soils, sediments, sludges, and ores prior to multi-element ICP-MS quantification.
- High-throughput digestion of clinical tissues (liver, bone, hair) and food products for heavy metal screening per EU Commission Regulation (EC) No 1881/2006.
- Closed-vessel microwave extraction of PAHs, PCBs, and organochlorine pesticides from environmental solid matrices using EPA Method 3546.
- Controlled microwave synthesis of coordination polymers and metal–organic frameworks (MOFs) requiring precise thermal ramping and pressure hold profiles.
- Accelerated leaching procedures (e.g., TCLP, SPLP) with integrated temperature/pressure validation for waste characterization.
FAQ
Is the Touchwin4.0 compatible with third-party digestion vessels?
Yes—it accepts standard 16 mm and 20 mm outer-diameter vessels from major suppliers, provided they meet maximum pressure/temperature ratings and fit mechanically within the 40-position rotor.
Does the system support automated method validation per ISO 17025?
Yes—built-in calibration traceability, full audit trail logging, and configurable user access levels enable full compliance with ISO/IEC 17025:2017 clause 7.7 on method validation and verification.
What safety certifications does the cavity structure carry?
The cavity meets EN 61000-6-2 (immunity) and EN 61000-6-4 (emission), and has undergone independent RF leakage testing per IEC 62233 at <1 mW/cm² at 5 cm distance.
Can temperature uniformity be verified independently?
Yes—users may deploy NIST-traceable IR reference standards or calibrated fiber-optic probes during qualification runs; cavity mapping protocols are documented in the IQ/OQ manual.
Is remote diagnostics supported out-of-the-box?
Remote firmware updates and diagnostic session initiation require activation of the optional SecureLink module and adherence to corporate IT security policies.
