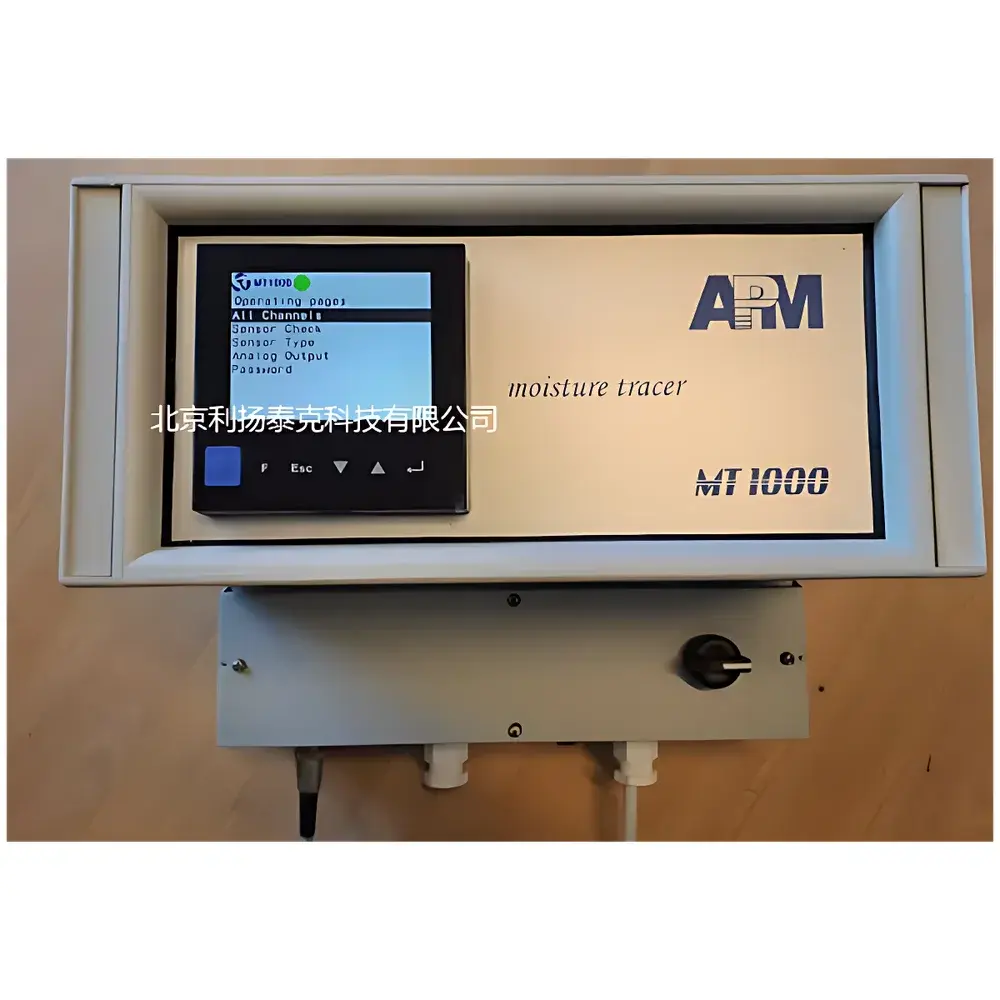

APM MT 1000 Trace Moisture Analyzer (P₂O₅ Electrolytic Principle)

Overview

The APM MT 1000 Trace Moisture Analyzer is an industrial-grade, online electrolytic moisture analyzer engineered for continuous, high-precision measurement of trace water vapor in aggressive and ultra-pure process gases. It operates on the well-established phosphorus pentoxide (P₂O₅) electrolytic principle: water molecules in the sample gas are quantitatively decomposed into hydrogen and oxygen at a P₂O₅-coated platinum electrode pair housed within a sealed glass cell. The resulting electrolytic current is directly proportional to the absolute water concentration—enabling true absolute measurement without reliance on calibration drift or reference standards. This fundamental electrochemical equilibrium ensures long-term stability, minimal zero drift, and intrinsic traceability to SI units. Designed specifically for demanding applications in chlorine, hydrogen chloride, sulfur dioxide, and hydrogen sulfide service—gases that rapidly degrade conventional capacitive or chilled-mirror sensors—the MT 1000 delivers robust performance where conventional analyzers fail. Its non-consumable P₂O₅ sensor membrane is regenerable in situ by the user, eliminating routine sensor replacement and associated downtime.

Key Features

• True absolute measurement principle—no periodic recalibration required under stable operating conditions
• Regenerable P₂O₅ sensor membrane; regeneration performed manually by operator without tools or service intervention
• Triple-channel capability: single analyzer chassis supports up to three independent measurement streams via optional multi-probe configuration
• Real-time response time <1 second—critical for fast-loop process control and alarm triggering
• High-resolution display: full-color touchscreen with intuitive menu navigation and local keypad for standalone operation
• Configurable 4–20 mA analog output with user-defined scaling, compliant with standard DCS/PLC integration protocols
• Programmable relay outputs (NO/NC) for high/low alarms, fault signaling, or maintenance alerts across full 0–2000 ppm range
• Gas-compatible wetted materials: PVDF sensor body, 316 stainless steel fittings, and platinum electrodes ensure chemical resistance to corrosive and oxidizing media

Sample Compatibility & Compliance

The MT 1000 is validated for use with over 25 industrial gases including Cl₂, HCl, SO₂, H₂S, Xe, Ar, Kr, He, D₂, F₂, N₂, H₂, O₂, O₃, HBr, PH₃, SF₆, CFCs (Freon), C₂H₂, CO₂, CH₄, and natural gas. Compatibility excludes only those gases known to react chemically with phosphoric acid (e.g., strong alkaline vapors or ammonia). Sample temperature must remain between +5 °C and +65 °C at the sensor inlet; pressure at the measurement cell is limited to ≤200 mbar (gauge) to maintain laminar flow and avoid membrane stress. The analyzer meets CE marking requirements per EU Directive 2014/30/EU (EMC) and 2014/35/EU (LVD). While not intrinsically safe, it may be deployed in Zone 2 classified areas when installed per IEC 60079-14 guidelines. Data integrity features—including timestamped event logs and parameter change history—support alignment with GLP and GMP documentation practices.

Software & Data Management

The MT 1000 operates autonomously via embedded firmware with no external PC dependency. All configuration, diagnostics, and historical data are accessible through the onboard interface. Event logs record sensor regeneration cycles, alarm activations, power interruptions, and analog output saturation events—with timestamps retained for ≥30 days. Optional RS-485 Modbus RTU communication enables integration into centralized SCADA systems for remote monitoring and batch reporting. Though not FDA 21 CFR Part 11–certified out-of-the-box, audit-trail functionality (including user login tracking and write-protected configuration archives) can be enabled to support regulated environments upon validation. Exportable CSV log files facilitate trend analysis in third-party platforms such as LabVIEW or MATLAB.

Applications

• Chlor-alkali production: real-time monitoring of moisture in liquefied chlorine and HCl synthesis gas to prevent corrosion in compressors and storage vessels
• Electronic-grade gas purification: verification of sub-1 ppm H₂O in bulk Ar, N₂, and H₂ used in semiconductor CVD and etch processes
• Poly-silicon manufacturing: moisture control in SiH₄ and HCl feedstocks to avoid oxide inclusion defects
• Pharmaceutical inerting: validation of dry nitrogen blankets in lyophilization and reactor purging
• Natural gas transmission: dew point verification prior to pipeline injection to meet ISO 8503-2 specifications
• Heat treatment atmospheres: monitoring residual moisture in endothermic or dissociated ammonia carrier gases

FAQ

Is the P₂O₅ sensor truly non-consumable?
Yes—the P₂O₅ film is electrochemically regenerated during normal operation and can be fully restored via manual regeneration cycles. No consumable parts require scheduled replacement.
Can the MT 1000 measure moisture in hot, pressurized gas lines?
It requires conditioned sample gas: temperature must be +5 °C to +65 °C at the sensor inlet, and pressure at the cell must not exceed 200 mbar. External pressure reduction and cooling are mandatory for upstream high-pressure or high-temperature streams.
What maintenance intervals are recommended?
Routine verification every 6 months using certified NIST-traceable moisture standards is advised for critical applications; sensor regeneration is performed only when signal baseline shifts or response slows—typically every 6–24 months depending on gas matrix and exposure history.
Does the analyzer support automatic zero/span checks?
It features automated self-diagnostics but does not perform automatic span calibration. Zero verification is possible using ultra-dry nitrogen (<0.1 ppm H₂O); span validation requires certified gas standards.
Is remote firmware update supported?
Firmware updates are performed locally via USB flash drive—no cloud connectivity or remote access capabilities are implemented, ensuring air-gapped security in sensitive installations.
