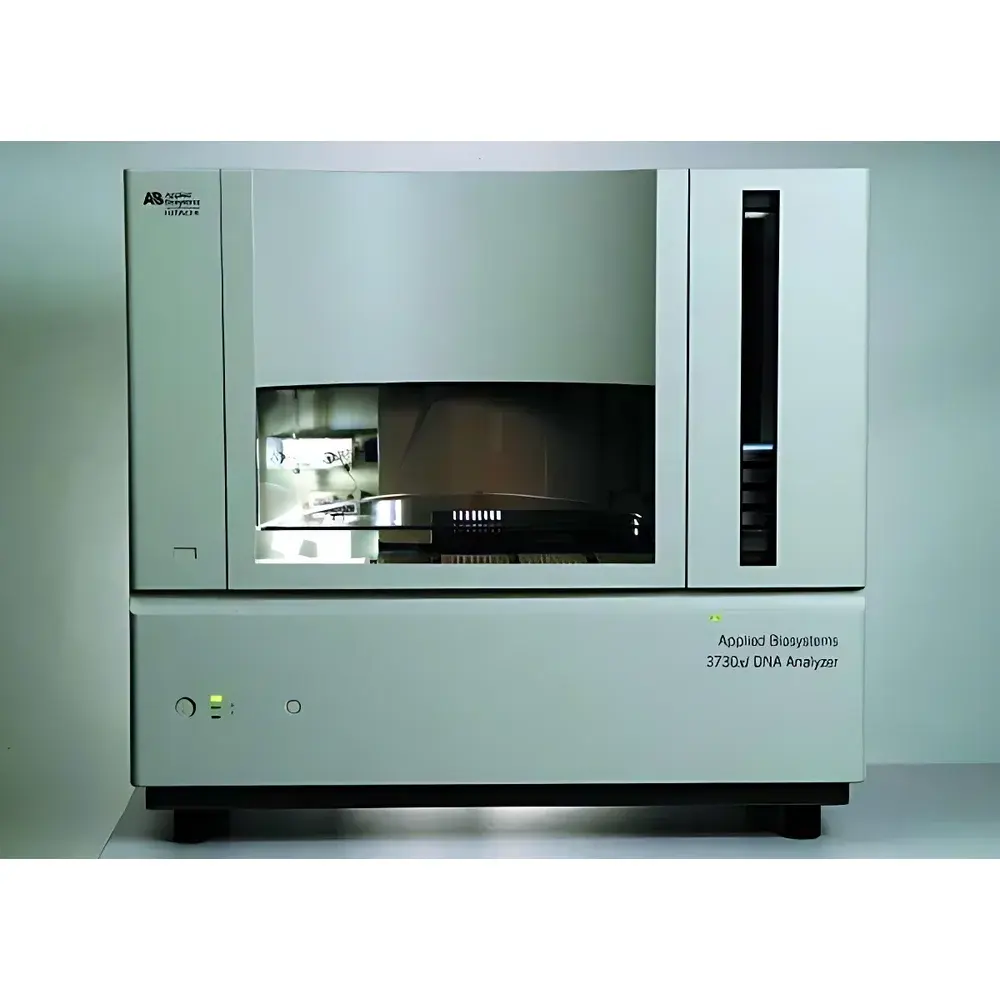

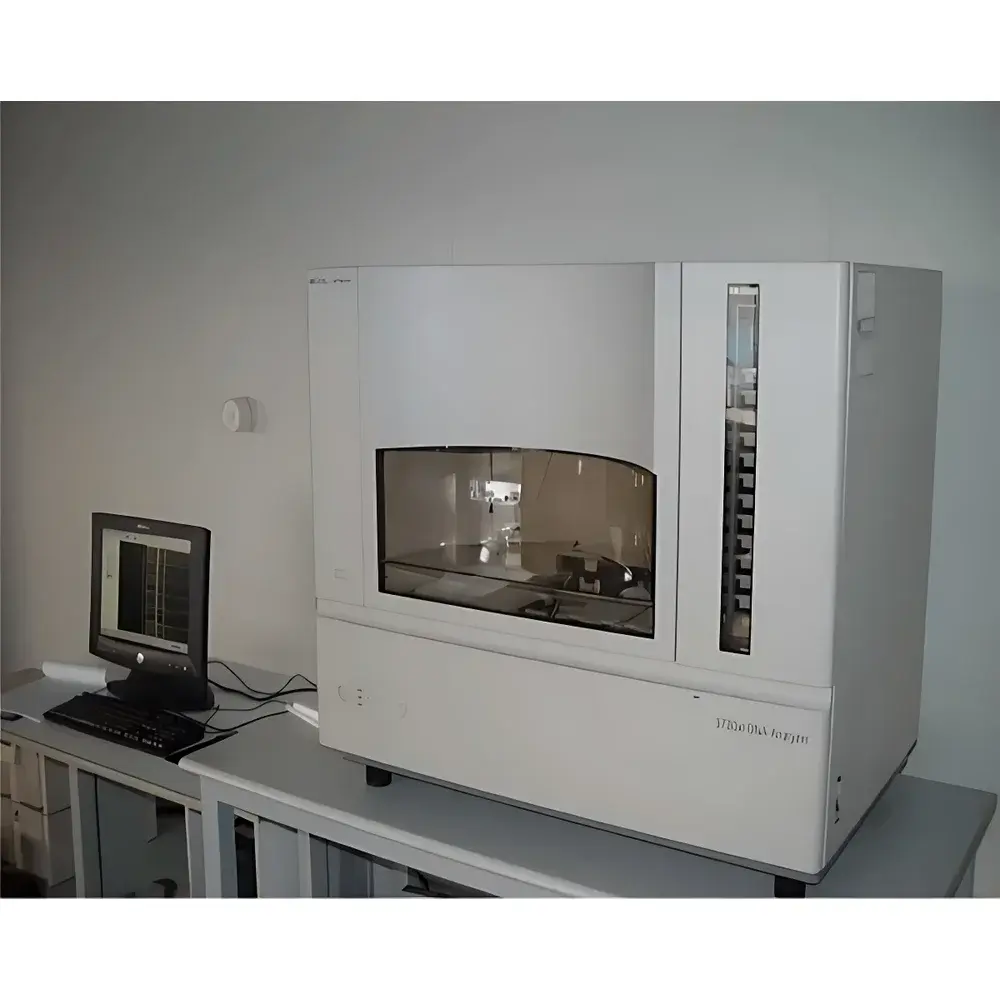

Applied Biosystems ABI3730 Capillary Electrophoresis DNA Sequencer (Refurbished)

Overview

The Applied Biosystems ABI3730 is a high-performance, 96-capillary array capillary electrophoresis DNA sequencer engineered for automated Sanger sequencing. Based on the gold-standard dideoxy chain-termination method, the system separates fluorescently labeled DNA fragments by size using polymer-filled capillaries under high-voltage electric fields, followed by real-time laser-induced fluorescence detection. As a first-generation sequencing platform, the ABI3730 delivers base-calling accuracy exceeding 99.99% per read and supports robust, reproducible sequencing of plasmid, PCR, and BAC templates in core genomics, molecular diagnostics, and academic research laboratories. Though superseded by NGS platforms for large-scale projects, the ABI3730 remains operationally indispensable for targeted validation, clone verification, SNP confirmation, and low-to-medium throughput applications requiring unambiguous consensus sequences.

Key Features

• 96-capillary array enabling parallel processing of up to 96 samples per run
• Integrated thermal cycler for on-instrument template preparation (optional)
• High-sensitivity CCD-based optical detection system with four-color excitation (488 nm, 514 nm, 532 nm, 633 nm) and spectral deconvolution
• Automated capillary array loading, polymer replenishment, and electrode cleaning via onboard fluidics
• Real-time run monitoring and dynamic baseline correction during electrophoresis
• Robust architecture designed for >10,000 hours of cumulative runtime; refurbished units undergo full electrical calibration, optical alignment verification, and capillary performance mapping
• Compatible with standard ABI BigDye Terminator v3.1 chemistry and third-party Sanger reagents meeting ANSI/CLSI EP12-A2 specifications

Sample Compatibility & Compliance

The ABI3730 accepts purified double-stranded or single-stranded DNA templates ranging from 100 bp to 1,000 bp, with optimal read lengths between 700–1,000 bases under standard run conditions. Sample input requirements are 2–10 ng per reaction, accommodating both manual and robotic liquid handling workflows. The instrument complies with foundational regulatory expectations for sequence data integrity: raw .ab1 trace files are generated with embedded run metadata (date/time, operator ID, chemistry version, polymer lot), supporting audit trails required under FDA 21 CFR Part 11 when deployed within validated laboratory environments. While not certified for IVD use, it meets ISO/IEC 17025 technical competence criteria for testing laboratories performing nucleic acid characterization.

Software & Data Management

Data acquisition and base calling are performed using Sequence Analysis Software v5.4 or later, which implements PHRED-based quality scoring and vector trimming algorithms. Output formats include standard .ab1 chromatogram files, .seq FASTA exports, and .scf alignment-ready traces—fully compatible with downstream tools such as FinchTV, CodonCode Aligner, and Lasergene Suite. All refurbished units ship with licensed software media and activation keys. Instrument control logs, calibration records, and maintenance history are stored locally and exportable in CSV format for integration into LIMS or ELN systems. Audit trail functionality enables tracking of user actions, parameter changes, and file modifications—critical for GLP-compliant documentation.

Applications

• Verification of CRISPR edits and site-directed mutagenesis constructs
• Validation of NGS variant calls (orthogonal confirmation of SNVs, indels, and small CNVs)
• Routine plasmid sequencing in synthetic biology and protein expression workflows
• Microbial strain typing and 16S rRNA gene sequencing in clinical microbiology
• Forensic short tandem repeat (STR) allele sizing and mitochondrial DNA analysis
• Quality control of oligonucleotide synthesis and primer pools
• Teaching laboratories requiring hands-on exposure to electrophoretic separation principles and fluorescence detection physics

FAQ

Is the ABI3730 compatible with current reagent kits and consumables?
Yes — all major BigDye Terminator kits (v1.1 through v3.1), POP-7 polymer, and 96-capillary arrays remain commercially available through authorized distributors and third-party suppliers meeting ASTM D6980-20 purity specifications.
What validation documentation is provided with a refurbished unit?
Each system includes a Certificate of Reconditioning, capillary performance report (including resolution, signal-to-noise ratio, and migration time CV%), optical alignment verification log, and full electrical safety test record.
Can the ABI3730 be integrated into modern networked lab infrastructure?
Yes — the instrument features Ethernet connectivity and supports standard TCP/IP communication protocols. It can be remotely monitored via SSH and scheduled through Windows Task Scheduler or third-party job management systems.
Does the system support dual-base calling or mixed-template analysis?
No — the ABI3730 performs single-template, unidirectional base calling. Mixed-template interpretation requires post-acquisition manual review or external software such as PolyPhred or Mutation Surveyor.
What is the expected operational lifespan after refurbishment?
When maintained per Applied Biosystems Service Manual Rev. G (2012), refurbished units typically sustain ≥5 years of routine operation at ≤10 runs/week, with capillary arrays replaced every 1,200–1,500 hours of cumulative run time.
