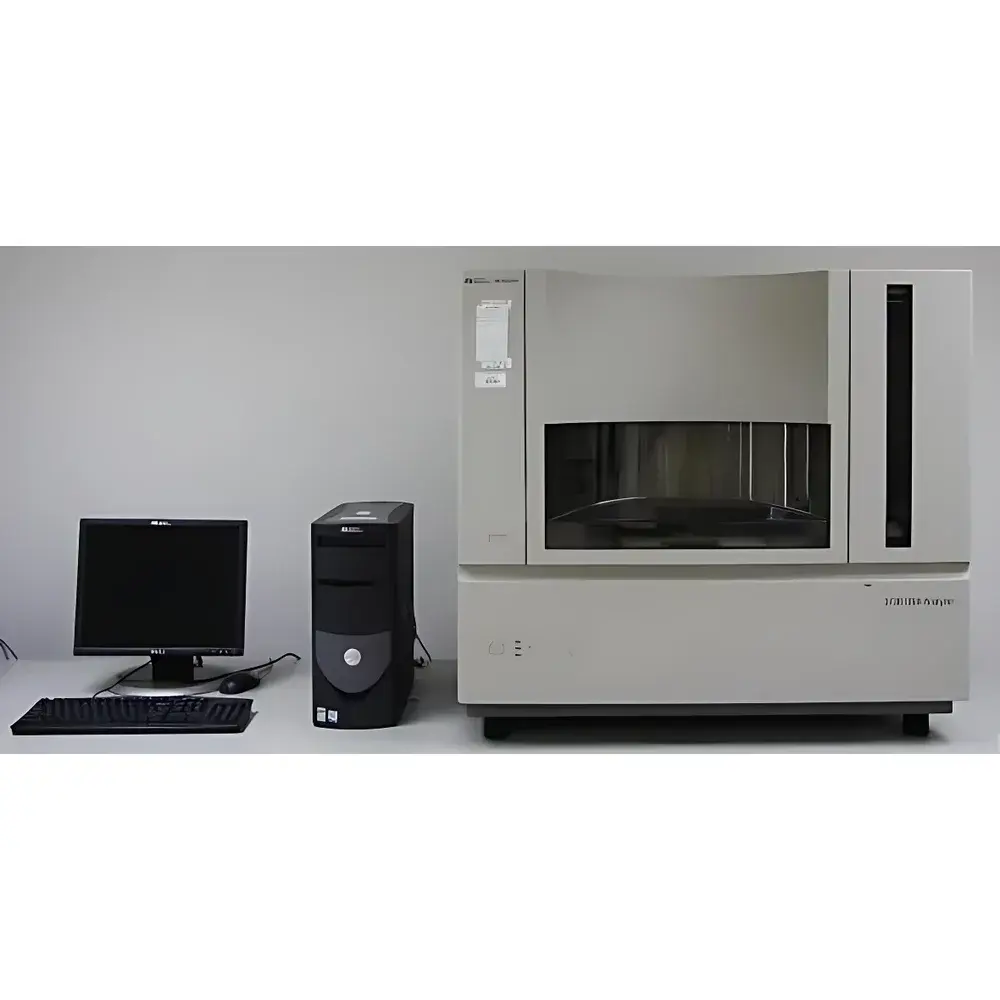

Applied Biosystems ABI3730XL Capillary Electrophoresis DNA Sequencer (Refurbished)
| Brand | Applied Biosystems |
|---|---|
| Origin | USA |
| Model | ABI3730XL |
| Category | Imported Instrument |
| Condition | Refurbished Unit |
| Sample Throughput | 96-capillary array |
| Read Length | Up to 1,000 bases (typical under standard POP-7 polymer and BigDye Terminator v3.1 chemistry) |
| Data Output Format | AB1 (.ab1), SCF, FASTA, QUAL |
| Base Calling Accuracy | ≥99.99% (Q40+ for >80% of bases in high-quality templates) |
| Run Time | ~2.5 hours per 96-well plate (standard sequencing protocol) |
| Detection System | CCD-based fluorescence detection with four-color laser excitation (488 nm, 532 nm, 595 nm, 635 nm) |
| Capillary Array | 96 × 50 cm fused-silica capillaries with polymer matrix (POP-7 or POP-6) |
Overview
The Applied Biosystems ABI3730XL is a high-performance, 96-capillary array capillary electrophoresis DNA sequencer engineered for precision Sanger sequencing applications. Utilizing automated capillary electrophoresis with real-time four-color fluorescence detection, the system separates DNA fragments by size with high resolution and reproducibility. Its core architecture integrates a high-stability laser excitation source, thermally regulated capillary cartridge, and sensitive CCD imaging—enabling robust base calling across diverse template types including plasmids, PCR products, and BAC clones. Designed for laboratory environments requiring regulatory-compliant data integrity, the ABI3730XL supports audit-ready operation when paired with appropriate software configurations and instrument maintenance records.
Key Features
- 96-capillary parallel detection architecture delivering up to 96 reads per run with consistent migration time calibration
- Integrated thermal control system maintaining ±0.1 °C stability across the capillary array during electrophoresis
- Four-laser excitation (488/532/595/635 nm) enabling simultaneous detection of BigDye Terminator dyes with minimal spectral bleed-through
- Automated sample loading via 96-well plate handling with programmable injection voltage and duration
- On-board polymer replenishment and capillary conditioning protocols minimizing manual intervention between runs
- Factory-refurbished units undergo full electrical calibration, optical alignment verification, and capillary performance validation per Applied Biosystems service specifications
Sample Compatibility & Compliance
The ABI3730XL accommodates standard 96-well plates containing sequencing reactions prepared with BigDye Terminator v1.1–v3.1 chemistries, as well as custom-labeled oligonucleotides compatible with four-color detection. It supports common template types—including double-stranded plasmid DNA, PCR amplicons, and single-stranded M13 templates—provided they meet minimum purity and concentration requirements (≥20 ng/μL, A260/A280 ≥1.8). The platform complies with foundational analytical standards referenced in ISO/IEC 17025:2017 for testing laboratories and supports documentation practices aligned with GLP and GMP environments when operated with validated SOPs and instrument logbooks. While not FDA 21 CFR Part 11–certified out-of-the-box, its data output formats (AB1, SCF) are fully compatible with third-party Part 11–compliant sequence analysis suites.
Software & Data Management
Data acquisition and base calling are performed using Sequencing Analysis Software v5.4 or later, which includes quality-score–based trimming, vector masking, and consensus assembly tools. Raw electropherograms are stored in vendor-standard AB1 binary format, ensuring interoperability with open-source tools such as Phred/Phrap, Consed, and commercial platforms like Geneious Prime and CLC Genomics Workbench. Instrument control, run scheduling, and calibration history are managed through Data Collection Software v3.0+, supporting export of metadata in XML and CSV formats for LIMS integration. Refurbished units ship with licensed software media and activation keys; perpetual licenses remain valid upon transfer provided original entitlement documentation is retained.
Applications
The ABI3730XL remains widely deployed in core sequencing facilities for high-fidelity de novo sequencing, clone verification, SNP validation, and amplicon resequencing where read-length reliability and per-base accuracy outweigh throughput demands. Its proven performance in large-scale genotyping projects—such as those supporting HapMap and early ENCODE initiatives—demonstrates suitability for reference-grade applications requiring Q40+ accuracy over extended read lengths. In academic and contract research settings, the platform serves as a benchmark for method development in primer walking, methylation analysis (via bisulfite conversion followed by Sanger), and low-complexity variant confirmation where NGS short-read ambiguity necessitates orthogonal validation.
FAQ
Is the ABI3730XL compatible with current versions of macOS or Windows 10/11?
Yes—when used with Sequencing Analysis Software v5.4 SP2 or later, the system supports Windows 10 (64-bit) and Windows Server 2016+. Native macOS support is not available; virtualized Windows environments require hardware-assisted virtualization and USB 2.0 passthrough for instrument communication.
What maintenance is required prior to commissioning a refurbished unit?
All refurbished ABI3730XL systems undergo capillary replacement, polymer reservoir refill, optical path cleaning, high-voltage power supply verification, and full electrophoretic performance qualification using GS500-LIZ size standard. A comprehensive service report detailing test results and component lot numbers is provided with each unit.
Can the instrument be integrated into an automated liquid handling workflow?
While the ABI3730XL lacks native robotic interface ports, it accepts standard 96-well plates conforming to ANSI/SLAS footprint specifications. Integration with third-party deck-based automation (e.g., Tecan Freedom EVO, Hamilton STAR) requires custom plate-handling scripts and timing synchronization via TTL triggers or network polling.
Does the system support long-read sequencing beyond 1,000 bases?
Under optimized conditions—including POP-7 polymer, reduced electric field strength, and high-quality templates—the ABI3730XL routinely achieves >900-base reads with Q30 quality scores exceeding 90%. Extension beyond 1,000 bases is possible but exhibits diminishing returns in base-call confidence and is not recommended for routine production use.
Are consumables still commercially available?
Yes—Applied Biosystems continues to supply capillary arrays (e.g., 36-cm and 50-cm kits), POP-6 and POP-7 polymers, GS500-LIZ size standards, and BigDye Terminator kits through authorized distributors. Third-party alternatives meeting ABI performance specifications are also available from qualified vendors.
