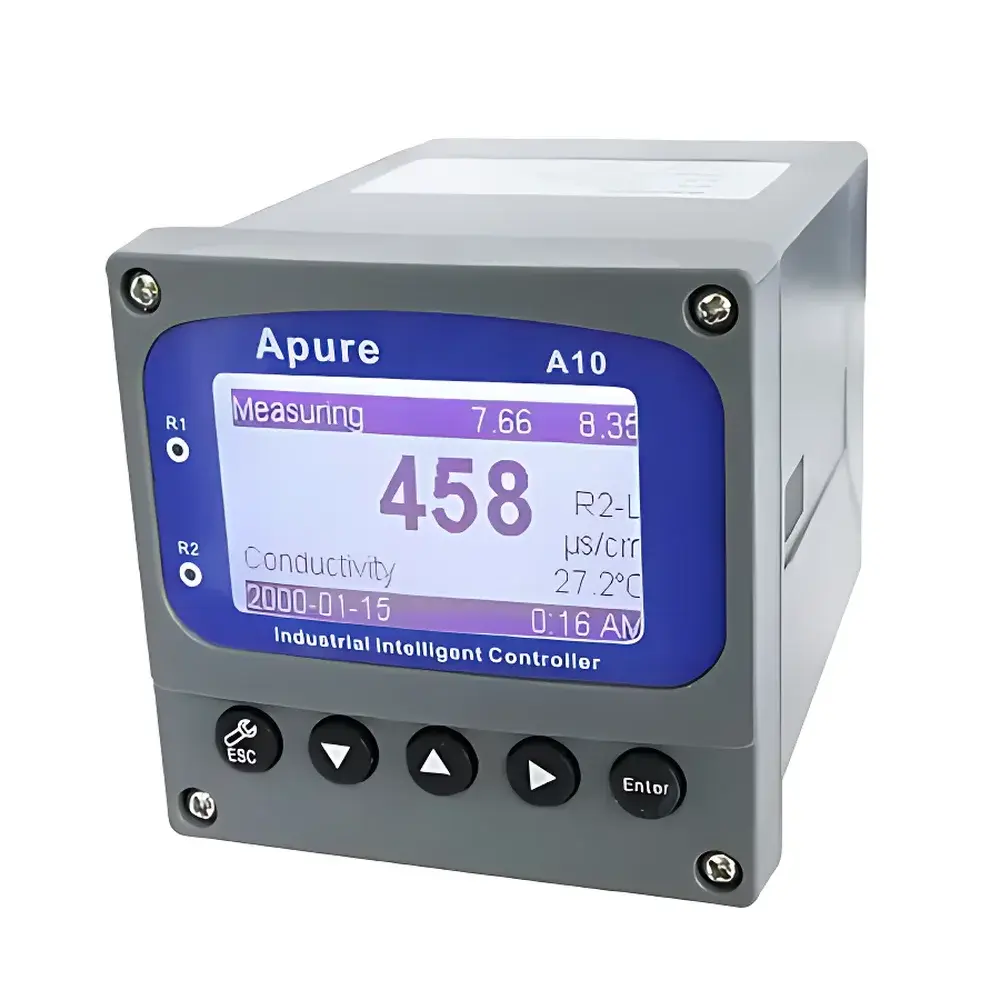

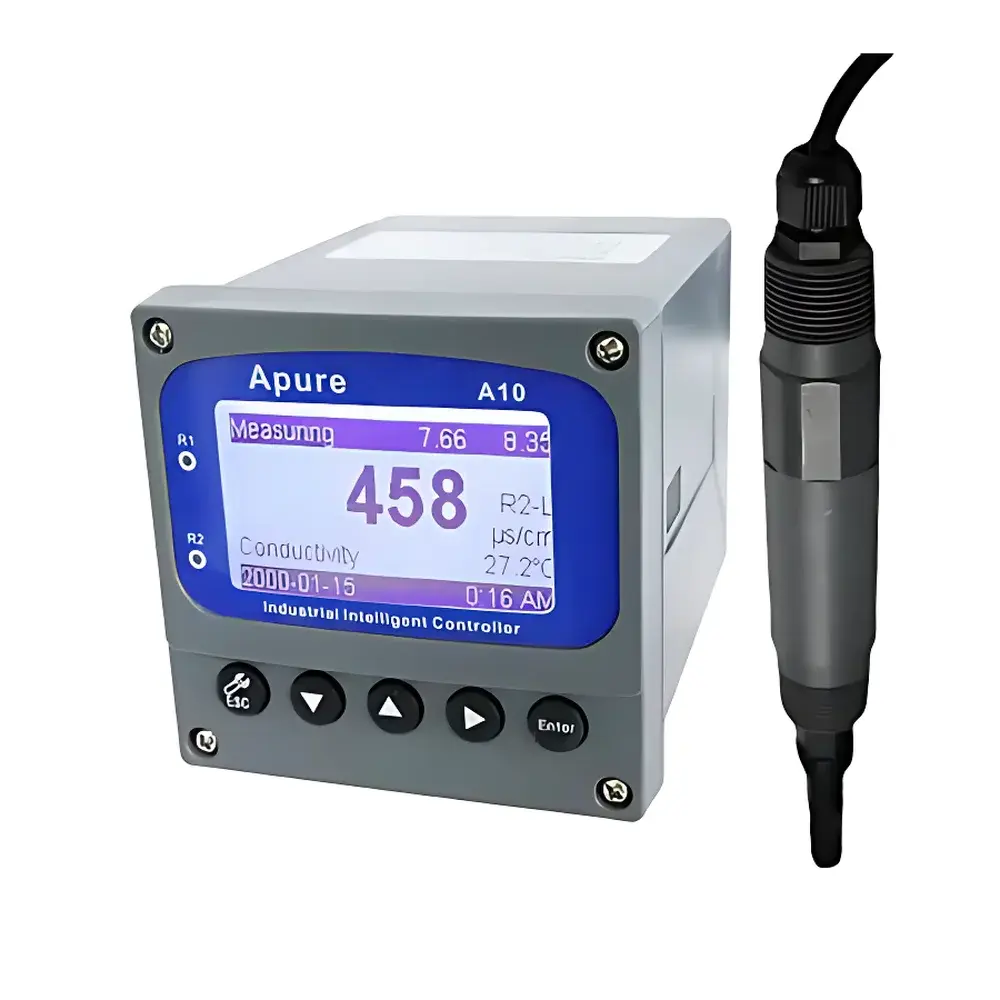

APURE A10CD-AA1 Online Conductivity & Resistivity Controller

Overview

The APURE A10CD-AA1 is an industrial-grade online conductivity and resistivity controller engineered for continuous, high-stability monitoring in demanding process environments. Based on two-electrode or four-electrode conductivity measurement principles—compatible with standard conductivity cells—the instrument delivers precise, temperature-compensated readings across a wide dynamic range spanning ultrapure water (up to 20.00 MΩ·cm) to highly conductive industrial effluents (200 mS/cm). Its dual-parameter capability enables simultaneous real-time acquisition of both conductivity/resistivity and temperature, eliminating the need for separate instrumentation in critical water quality and process control applications. Designed for wall or panel mounting in control cabinets, chemical dosing skids, or inline purification loops, the A10CD-AA1 complies with fundamental electromagnetic compatibility (EMC) requirements per IEC 61326-1 and meets safety standards aligned with IEC 61010-1 for industrial measurement equipment.

Key Features

• True dual-parameter operation: Simultaneous measurement and display of conductivity/resistivity and temperature on a single backlit LCD interface.
• Flexible temperature compensation: Supports manual input, PT1000 platinum RTD, or NTC10K thermistor inputs—enabling accurate linear or non-linear (e.g., NaCl, KCl, or custom curve) compensation per ASTM D1125 and ISO 7888.
• Dual isolated 4–20 mA analog outputs: Electrically separated current loops for conductivity/resistivity and temperature signals, each with configurable scaling and load capacity up to 500 Ω—designed to interface reliably with PLCs, DCS systems, and SCADA networks.
• Two fully configurable relay outputs: Programmable as high/low alarms or control setpoints; hysteresis adjustment prevents chattering during threshold transitions—critical for pump interlocks or chemical feed activation in closed-loop systems.
• Multi-language UI with secure access: Factory-default Chinese interface with optional English language mode; password-protected configuration menus (three-tier access: operator, engineer, administrator) ensure procedural integrity in regulated environments.
• Rugged industrial enclosure: Front-panel IP65 rating protects against dust and low-pressure water jets; compact 96×96 mm DIN form factor enables seamless integration into existing control panels.

Sample Compatibility & Compliance

The A10CD-AA1 is optimized for aqueous solutions encountered in municipal and industrial water treatment, semiconductor ultrapure water (UPW) distribution, pharmaceutical water-for-injection (WFI) systems, boiler feedwater monitoring, and chemical process streams. It supports standard conductivity sensors with cell constants from 0.01 cm⁻¹ (for high-resistivity applications) to 10.0 cm⁻¹ (for high-conductivity media), ensuring metrological traceability when paired with NIST-traceable calibration standards. While not certified to FDA 21 CFR Part 11 out-of-the-box, its audit-ready configuration log (with timestamped parameter changes and user ID tagging) supports GLP/GMP-aligned documentation practices. Device firmware adheres to RoHS Directive 2011/65/EU and REACH Regulation (EC) No. 1907/2006.

Software & Data Management

The controller operates autonomously without external software dependency. All configuration—including measurement units (µS/cm, mS/cm, MΩ·cm), temperature compensation algorithms, relay logic, and output scaling—is performed locally via intuitive menu navigation with contextual on-screen prompts. Configuration history is retained in non-volatile memory and survives power loss. For integration into centralized data infrastructure, the isolated 4–20 mA outputs provide direct analog connectivity to historians such as OSIsoft PI or Emerson DeltaV. Optional Modbus RTU (RS-485) communication module (sold separately) enables digital interrogation of real-time values, alarm status, and diagnostic flags—supporting predictive maintenance workflows and automated calibration logging.

Applications

• Municipal wastewater treatment: Monitoring influent/effluent conductivity for salinity assessment and membrane fouling early detection.
• Power plant demineralized water loops: Ensuring feedwater purity compliance with ASTM D4582 and EPRI guidelines.
• Pharmaceutical purified water (PW) and WFI systems: Supporting USP <645> verification of conductivity limits at specified temperatures.
• Chemical manufacturing: Controlling rinse bath concentration in electroplating lines or acid/base neutralization endpoints.
• Food & beverage CIP validation: Verifying detergent residue removal through post-rinse conductivity decay profiling.
• Reverse osmosis (RO) and EDI system monitoring: Tracking rejection efficiency and detecting membrane breaches via real-time resistivity trends.

FAQ

What temperature sensors are supported?
The A10CD-AA1 accepts PT1000 (IEC 60751 Class B) and NTC10K (β = 3950 K) probes, or allows manual temperature entry for offline calibration verification.
Can the 4–20 mA outputs be assigned to different parameters?
Yes—Output 1 is factory-configured for conductivity/resistivity; Output 2 defaults to temperature, but either can be reassigned independently via the setup menu.
Is the device suitable for explosive atmospheres?
No—the A10CD-AA1 is rated for general-purpose industrial use only (non-hazardous area classification); intrinsic safety barriers or explosion-proof enclosures must be added externally if required.
How is calibration performed?
Calibration is conducted using certified standard solutions (e.g., 1413 µS/cm KCl) via the dedicated calibration mode; cell constant and zero offset are adjustable, with automatic temperature compensation applied during verification.
Does it support automatic temperature compensation curves other than NaCl?
The unit includes built-in NaCl and KCl algorithms per ISO 7888; custom polynomial coefficients can be entered manually to match proprietary electrolyte models.
