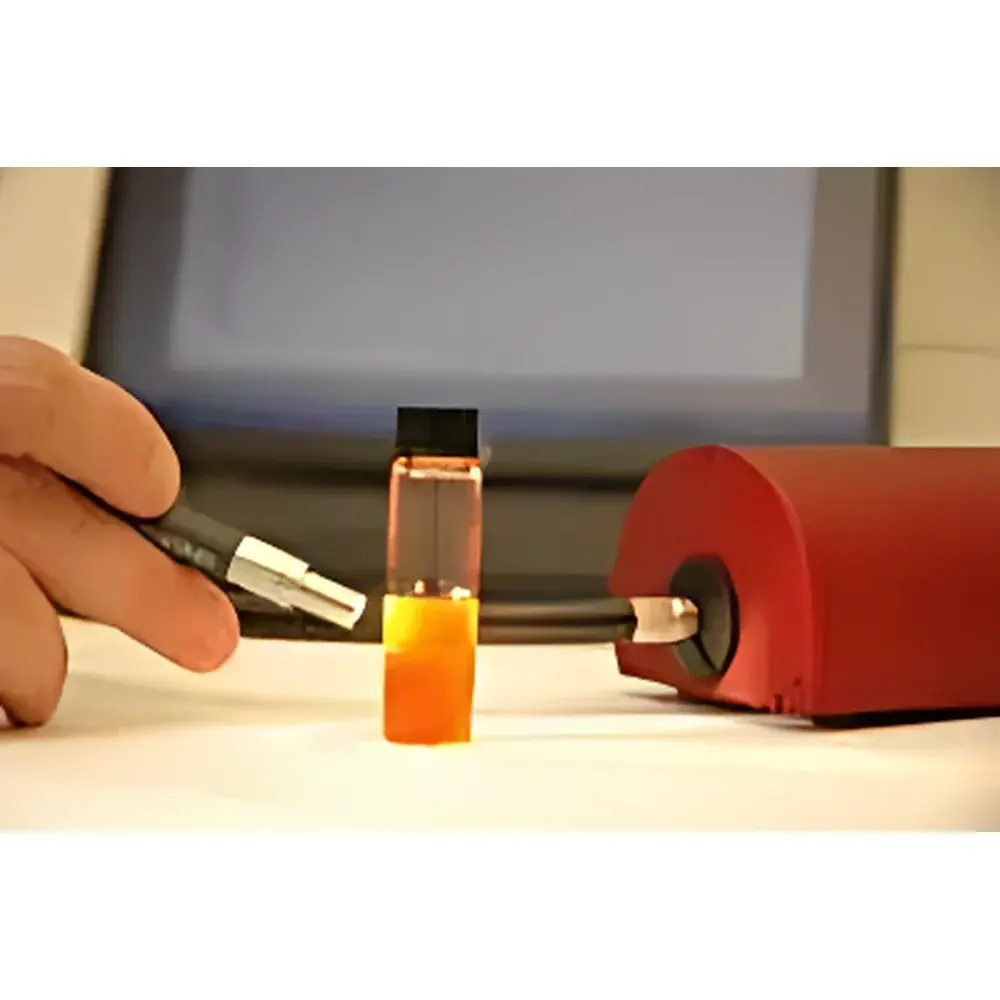

Arcspectro HT High-Throughput Fourier Transform Spectrometer with Diffuse Reflectance Capability

Overview

The Arcspectro HT is a high-throughput, research-grade Fourier Transform Spectrometer (FTS) engineered for precise diffuse reflectance measurements across the ultraviolet–visible–near-infrared (UV–Vis–NIR) spectral range. Based on Michelson interferometry, it employs a thermally stabilized, permanently aligned optical bench with a high-efficiency KBr or CaF₂ beam splitter (depending on spectral coverage), a precision-machined moving mirror actuated by voice-coil motor, and a dynamically balanced retroreflector system to ensure long-term phase stability and minimal wobble-induced spectral distortion. Its core architecture delivers superior radiometric throughput—up to 3× higher than conventional FTS platforms of comparable resolution—enabling rapid acquisition of low-signal samples such as powdered pharmaceuticals, matte-painted surfaces, biological tissues, and heterogeneous geological specimens without signal averaging compromises. The instrument is optimized for operation in ambient laboratory environments, featuring active humidity compensation and vibration-insensitive mounting interfaces compatible with standard optical tables.

Key Features

• High optical throughput design: Optimized interferometer geometry and low-loss coatings maximize radiant flux at the detector, critical for weakly scattering or highly absorbing samples.
• Diffuse reflectance–ready configuration: Pre-aligned integration with industry-standard integrating spheres (e.g., Labsphere RSA-PE-10 or equivalent), including fiber-coupled illumination paths and calibrated reference standards (e.g., Spectralon® 99% reflectance tile).
• Modular source compatibility: Supports interchangeable broadband sources—including quartz-halogen (350–2500 nm), deuterium (190–400 nm), and optional NIR-enhanced tungsten lamps—each with integrated power stabilization and shutter control.
• Thermally stable optics platform: All critical optical components mounted on low-expansion Invar baseplate; temperature drift < ±0.02 °C over 8 h ensures reproducible wavenumber calibration (±0.05 cm⁻¹ typical over 24 h).
• Real-time alignment monitoring: Built-in He–Ne laser reference channel provides continuous path-length feedback for automatic zero-path-difference (ZPD) tracking during acquisition.
• Robust mechanical architecture: Dual-bearing linear translation stage with sub-nanometer positional repeatability and >10⁸ cycle lifetime under continuous scanning duty.

Sample Compatibility & Compliance

The Arcspectro HT accommodates solid, powder, paste, and thin-film samples via standardized sample holders compatible with ASTM E1421 (Standard Practice for Describing and Measuring Performance of Fourier Transform Mid-Infrared (FT-MIR) Spectrometers) and ISO 13702 (Petroleum products — Determination of hydrocarbon types in middle distillates — High-performance liquid chromatography method). Diffuse reflectance measurements adhere to ASTM E275 (Standard Practice for Calibration of Diffuse Reflectance Spectrophotometers) and USP (Spectrophotometry and Light-Scattering). The system supports GLP-compliant workflows through audit-trail–enabled software (see Software & Data Management), and its optical design conforms to IEC 61000-4-3 (EMC immunity) and IEC 61010-1 (safety requirements for electrical equipment for measurement).

Software & Data Management

Controlled via SpectraSuite HT v4.x (Windows 10/11 64-bit), the software provides full instrument parameterization—including scan speed (0.1–20 kHz mirror velocity), resolution (0.25–16 cm⁻¹ selectable in 0.01 cm⁻¹ increments), apodization functions (Happ-Genzel, Blackman-Harris 3-term), and phase correction algorithms (Mertz, Norton-Beer). Raw interferograms are stored in IEEE 754-compliant binary format with embedded metadata (timestamp, environmental sensor readings, source ID, calibration history). Data export supports ASTM E131 (.spa), JCAMP-DX (.jdx), and HDF5 (.h5) formats. For regulated environments, optional 21 CFR Part 11 compliance package includes electronic signatures, role-based access control, and immutable audit trails for all acquisition, processing, and report-generation events.

Applications

• Pharmaceutical solid-state analysis: Quantitative polymorph identification and excipient interaction studies via diffuse reflectance FTIR/NIR.
• Materials science: Characterization of pigment dispersion homogeneity, coating thickness estimation, and oxidation state mapping in transition-metal oxides.
• Agricultural quality assessment: Non-destructive grain protein/starch content prediction using NIR diffuse reflectance spectroscopy.
• Environmental monitoring: Soil organic carbon profiling and heavy metal speciation screening in field-collected sediment samples.
• Academic spectroscopy research: Validation of radiative transfer models (e.g., Kubelka-Munk, Hapke theory) using controlled BRDF measurements.

FAQ

What spectral range does the Arcspectro HT support in diffuse reflectance mode?
Standard configuration covers 4000–400 cm⁻¹ (2.5–25 µm) in mid-IR using DTGS detector, or 11000–4000 cm⁻¹ (0.9–2.5 µm) in NIR with InGaAs array. UV–Vis extension (200–1100 nm) requires optional Si photodiode module.
Is the system compatible with vacuum or purged operation?
Yes—the optical bench features dual purge ports (N₂ or dry air) and optional vacuum flange (KF40) for moisture-sensitive measurements below 1200 cm⁻¹.
Can I integrate my own integrating sphere or custom sample stage?
Absolutely—the instrument provides standardized SMA905 and FC/PC fiber interfaces, mechanical mounting holes per ISO 10110-1, and TTL-triggered shutter synchronization for third-party hardware.
Does the Arcspectro HT include NIST-traceable calibration standards?
A factory-installed polystyrene film standard (for wavenumber verification) and certified Spectralon® reflectance tile are included; optional NIST SRM 2036 (reflectance) and SRM 1921b (wavenumber) kits available upon request.
