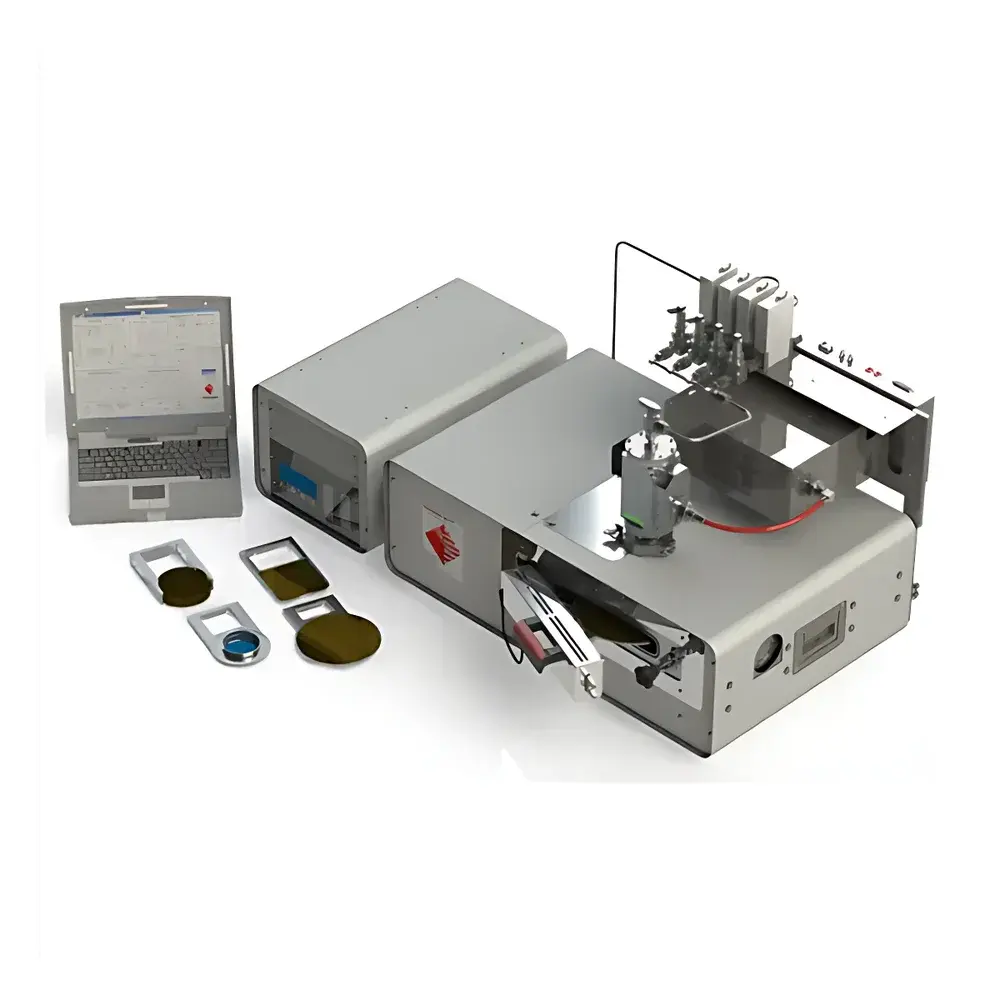

Arradiance GEMStar-8 XT Atomic Layer Deposition System
| Brand | Arradiance |
|---|---|
| Origin | USA |
| Model | GEMStar-8 XT |
| Substrate Size | 8-inch (200 mm) |
| Process Temperature | Up to 500 °C |
| Precursor Channels | 8 |
| System Weight | 150 kg |
| Thickness Uniformity | ≤1.5% (across 8-inch wafer) |
| Dimensions | 78 × 56 × 28 cm |
| Thermal Wall | 300 °C aluminum heated chamber |
| Precursor Bottle Temp | up to 175 °C |
| Transport Line Temp | up to 200 °C |
| Plasma Option | ICP-based, 13.56 MHz, 300 W, air-cooled |
| MFC-Controlled Gas Lines | 4 (3 process gases + 1 carrier) |
| Vacuum Interface | Standard CF-40 flanges |
| Compatible Add-ons | In-situ ellipsometry, powder deposition module, load lock, QCM thickness monitor, ozone generator, heated sample stage (500 °C) |
Overview
The Arradiance GEMStar-8 XT is a benchtop atomic layer deposition (ALD) system engineered for precision thin-film synthesis on 8-inch (200 mm) substrates. It implements the self-limiting surface reaction mechanism inherent to ALD—where gaseous precursors are sequentially pulsed into a reaction chamber, chemisorbing in a saturated monolayer and reacting with surface functional groups to yield atomically controlled film growth. This deterministic, layer-by-layer process enables sub-nanometer thickness control, exceptional conformality (>99% step coverage), and uniformity across high-aspect-ratio 3D structures—including trenches, nanopores, and porous powders. The GEMStar-8 XT integrates thermal wall heating (300 °C), heated precursor delivery (up to 175 °C), temperature-stabilized transport lines (200 °C), and a lateral showerhead design to achieve thermal uniformity of ≥99.9% and suppress convective perturbations (<0.03% temperature fluctuation from gas flow). These features support reproducible ALD processing on planar wafers, thick 3D scaffolds, and irregularly shaped substrates—validated for uniform coating within microstructures exhibiting aspect ratios up to 1500:1.
Key Features
- Benchtop footprint (78 × 56 × 28 cm) with full ALD functionality—including dual-branch precursor delivery, 8 independent precursor ports, and CF-40 vacuum interface compatibility
- Thermally isolated aluminum hot-wall chamber (300 °C) with forced-convection temperature regulation for spatial stability and minimal thermal gradient
- Heated precursor handling: 150 mL bottles (175 °C), stainless-steel transport lines (200 °C), and thermally optimized lateral injection manifold
- Support for 8-inch wafers (200 mm) with optional multi-wafer stacking—up to nine 8-inch substrates simultaneously processed
- Expandable architecture: factory-ready upgrade path to plasma-enhanced ALD (PE-ALD) via integrated 13.56 MHz ICP source (300 W, air-cooled)
- Four mass flow controllers (MFCs): three dedicated to reactive plasma gases (e.g., O2, N2, H2) and one for inert carrier gas—enabling robust deposition of oxides, nitrides, and metallic films
- Modular accessory integration: in-situ quartz crystal microbalance (QCM), load-lock vacuum transfer, ozone generator, heated sample stage (500 °C), and custom powder deposition trays
Sample Compatibility & Compliance
The GEMStar-8 XT accommodates diverse substrate geometries beyond standard silicon wafers—including porous ceramics, metal foams, electrospun fibers, catalyst beads, and micron-scale powders. Its low-pressure, laminar-flow reactor design ensures uniform precursor exposure even on substrates with >100 µm feature depth or >50% open porosity. The system operates under ISO Class 5 cleanroom-compatible vacuum conditions (base pressure <1×10−6 Torr) and supports GLP-compliant process logging when paired with optional audit-trail-enabled software. All hardware interfaces comply with SEMI S2/S8 safety standards; gas delivery subsystems meet CGA G-1.1 and NFPA 55 requirements for hazardous precursor handling. Optional integration with FDA 21 CFR Part 11–compliant software modules enables electronic signatures, user access control, and immutable process record retention for regulated R&D and pilot-scale manufacturing environments.
Software & Data Management
Control is managed via Arradiance’s proprietary ALD Commander™ software—a Windows-based platform supporting recipe-driven automation, real-time parameter monitoring (temperature, pressure, pulse timing, MFC setpoints), and synchronized data logging at 10 Hz resolution. Each run generates timestamped .csv and .xml files containing full process metadata, enabling traceability per ISO/IEC 17025 and ASTM E2500-22 guidelines. Optional cloud synchronization permits remote diagnostics and cross-lab protocol sharing. For PE-ALD configurations, software includes RF power ramping profiles, impedance matching presets, and plasma ignition diagnostics. All software modules are validated for use in GMP-aligned environments and support third-party integration via TCP/IP and Modbus TCP protocols.
Applications
- Deposition of high-κ dielectrics (Al2O3, HfO2, ZrO2) and gate oxides on advanced logic and memory devices
- Conformal passivation layers for perovskite solar cells and solid-state battery electrodes (LiCoO2, NMC, Si anodes)
- Functional coatings on MOFs, aerogels, and mesoporous silica for catalysis, sensing, and gas separation
- Surface functionalization of biomedical implants (Ti alloys, hydroxyapatite) with antimicrobial or osteoconductive films
- R&D of novel ALD chemistries—including metal nitrides (TiN, TaN), sulfides (ZnS), and chalcogenides—for next-generation optoelectronics
- Process development for semiconductor packaging—underfill encapsulation, redistribution layer (RDL) barriers, and TSV liners
FAQ
What substrate sizes does the GEMStar-8 XT support?
It natively processes 8-inch (200 mm) wafers and is downward-compatible with 6-inch and 4-inch substrates using interchangeable fixtures.
Can the system deposit films on powdered samples?
Yes—via optional powder deposition trays and fluidized bed adapters, enabling uniform ALD on particles ranging from 10 nm to 500 µm in diameter.
Is plasma-enhanced ALD available as a factory option?
Yes—the GEMStar-8 XT-P variant includes a fully integrated 13.56 MHz ICP plasma source (300 W, air-cooled) with MFC-controlled reactive gas lines.
What level of thickness uniformity is achievable on an 8-inch wafer?
Typical root-mean-square (RMS) thickness variation is ≤1.5% across full 200 mm wafers, verified by spectroscopic ellipsometry and XRF mapping.
Does the system support in-situ thickness monitoring?
Standard integration includes QCM-based real-time thickness tracking; optional in-situ ellipsometry and reflectometry modules are available for optical endpoint detection.
Are service and technical support available outside North America?
Arradiance maintains authorized service partners in Europe, Japan, South Korea, and China, with remote diagnostics and on-site calibration support under extended warranty contracts.
