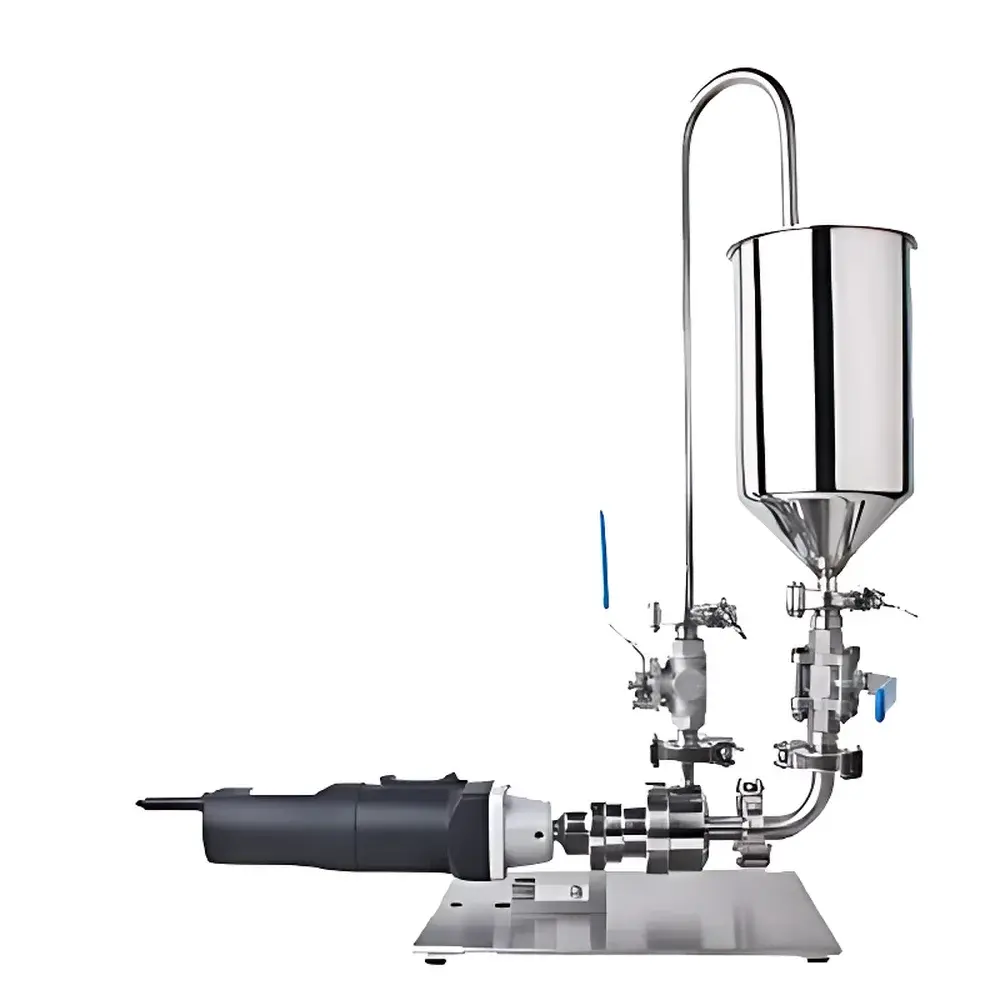

ART DFK Inline Homogenization Chamber System

Overview

The ART DFK Inline Homogenization Chamber System is an engineered solution for continuous, high-shear fluid processing in laboratory and pilot-scale environments. Designed for integration with ART’s MICCRA series high-speed dispersers—specifically the MICCRA D-15, D-9 (for intermittent or short-duration operation), and the high-torque MICCRA D-27 (for sustained circulation and nano-scale dispersion)—the DFK system operates on the principle of rotor-stator mechanical homogenization. In this configuration, sample fluid is drawn through a precisely engineered chamber where intense shear forces, generated by the relative motion between a rotating rotor and fixed stator geometry, induce particle size reduction, emulsification, cell lysis, or deagglomeration. Unlike batch homogenizers, the DFK enables true inline processing, supporting reproducible results under controlled flow conditions and minimizing thermal buildup during extended operation.

Key Features

• Modular inline chamber design compatible with ART MICCRA D-9, D-15, and D-27 drive units—enabling flexible deployment across workflow scales.
• Stainless steel (AISI 316L) wetted components ensure chemical resistance, cleanability, and compliance with pharmaceutical and food-grade hygiene requirements.
• Optimized rotor-stator geometry for high shear rate generation (>10⁶ s⁻¹) and narrow residence time distribution—critical for achieving sub-micron and nanoscale dispersions.
• Pressure-rated construction suitable for closed-loop recirculation systems; supports flow rates up to 12 L/min depending on viscosity and drive unit configuration.
• Quick-release clamp interface enables rapid chamber exchange and cleaning-in-place (CIP) compatibility without tools.
• No internal seals or bearings—eliminates contamination risk and simplifies maintenance in GMP-aligned environments.

Sample Compatibility & Compliance

The DFK system accommodates aqueous, organic, and viscous media—including suspensions, emulsions, colloidal dispersions, and biological lysates—with viscosities ranging from <1 mPa·s to 5,000 mPa·s (at 25°C). It is routinely employed in applications requiring adherence to ISO 20988 (good practice for bioprocessing equipment), ASTM D2794 (coating dispersion stability), and USP (light scattering assessment of lipid injectables). When operated with validated MICCRA drive units and documented SOPs, the system supports GLP and GMP workflows, including audit-ready process parameter logging when paired with compatible data acquisition modules.

Software & Data Management

While the DFK chamber itself is hardware-only, its performance is fully controllable and monitorable via the ART MICCRA digital control interface. The MICCRA D-27, for instance, provides real-time display of rotational speed (0–27,000 rpm), torque (0–2.7 N·m), elapsed runtime, and overload status. Optional RS-485 or analog 0–10 V output enables integration into SCADA or LIMS platforms. All operational parameters are timestamped and exportable as CSV files—supporting traceability per FDA 21 CFR Part 11 requirements when deployed with appropriate electronic signature and audit trail configurations.

Applications

• Nanoparticle formulation development (e.g., polymeric nanoparticles, liposomes, solid lipid nanoparticles).
• Preparation of stable oil-in-water and water-in-oil emulsions for cosmetics and pharmaceuticals.
• Cell disruption for intracellular protein extraction in microbiology and biotechnology labs.
• Deagglomeration of nanocellulose, carbon nanotubes, and ceramic precursors prior to rheological or spectroscopic analysis.
• Scale-down modeling of industrial rotor-stator homogenization processes for tech transfer and QbD initiatives.

FAQ

Can the DFK chamber be sterilized using autoclaving?
Yes—the entire chamber assembly (excluding O-rings) is autoclavable at 121°C for 20 minutes. Fluoroelastomer (FKM) sealing elements must be replaced post-autoclave cycle.
Is the DFK compatible with non-ART drive units?
No. Mechanical and dimensional interfaces are proprietary to ART MICCRA systems; integration requires original ART mounting flanges and torque coupling specifications.
What is the minimum recommended sample volume for continuous operation?
For stable flow dynamics and thermal management, a minimum system volume of 500 mL is advised when operating in closed-loop recirculation mode.
Does ART provide IQ/OQ documentation for the DFK system?
Yes—validated installation and operational qualification protocols are available upon request for regulated environments, aligned with Annex 15 and ASTM E2500-13 guidelines.
