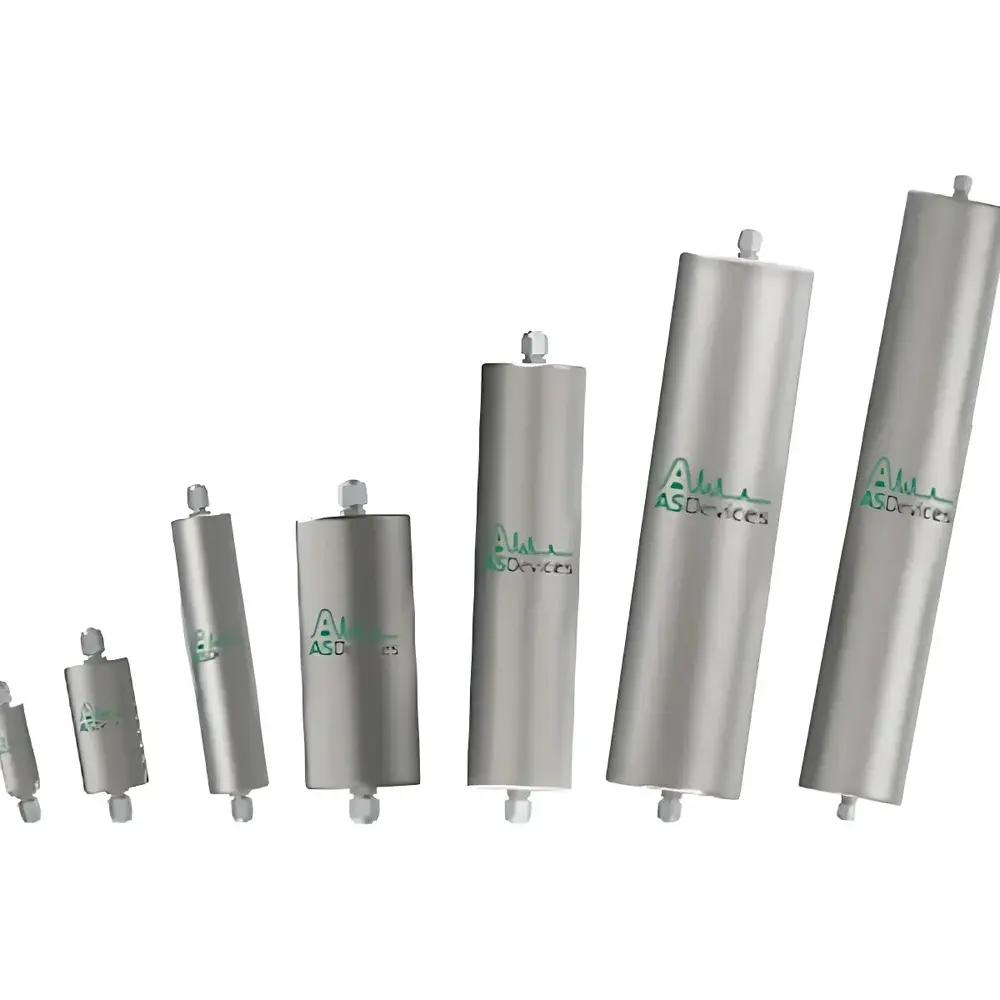

ASD ASDPure-POU Point-of-Use High-Purity Specialty Gas Purifier

Overview

The ASD ASDPure-POU is a point-of-use (POU) high-purity specialty gas purifier engineered for critical applications requiring ultra-trace impurity removal from inert, reactive, and process gases. It operates on two complementary purification architectures—catalytic conversion and ambient-temperature selective adsorption via hollow-fiber membrane modules—enabling application-specific optimization without thermal cycling or pressure swing regeneration. Unlike bulk central purification systems, the ASDPure-POU delivers localized, real-time gas conditioning directly at the instrument inlet or process manifold, minimizing dead volume, adsorption losses, and recontamination risks inherent in long distribution lines. Its design adheres to the physical principles of surface-catalyzed redox reactions (for H₂, O₂, CO, CO₂, H₂O) and molecular-sieving selectivity (for hydrocarbons, fluorocarbons, acidic/basic species, and metal vapors), ensuring reproducible sub-part-per-quadrillion (ppqv) residual impurity levels under continuous flow conditions.

Key Features

• Modular dual-technology platform: Selectable catalytic beds (Pd/CuO-based) for reactive impurity conversion and regenerable hollow-fiber adsorbent cartridges for non-reactive, thermally labile, or low-concentration contaminants.
• Zero-heating operation: All purification stages function at ambient temperature—eliminating outgassing, thermal degradation of sensitive analytes, and energy consumption associated with heated traps.
• Trace-level performance validated per ISO 8573-1 Class 1 (solid particles), Class 2 (water), and Class 1 (oil aerosol); certified for compliance with ASTM D7607 (trace moisture in high-purity gases) and SEMI F57 (ultra-high-purity process gases).
• Regenerable core modules: Cartridges support off-site factory regeneration or on-site regeneration using optional ASD RegenStation™ (sold separately), extending service life beyond 12,000 operational hours.
• Integrated real-time monitoring interface: Optional analog 4–20 mA or digital Modbus RTU output for integration into facility SCADA or GLP/GMP audit trails.
• Material compatibility: All-wetted surfaces constructed from electropolished 316L stainless steel with VCR® or Swagelok® fittings; oxygen-cleaned and helium-leak tested (<1 × 10⁻⁹ mbar·L/s).

Sample Compatibility & Compliance

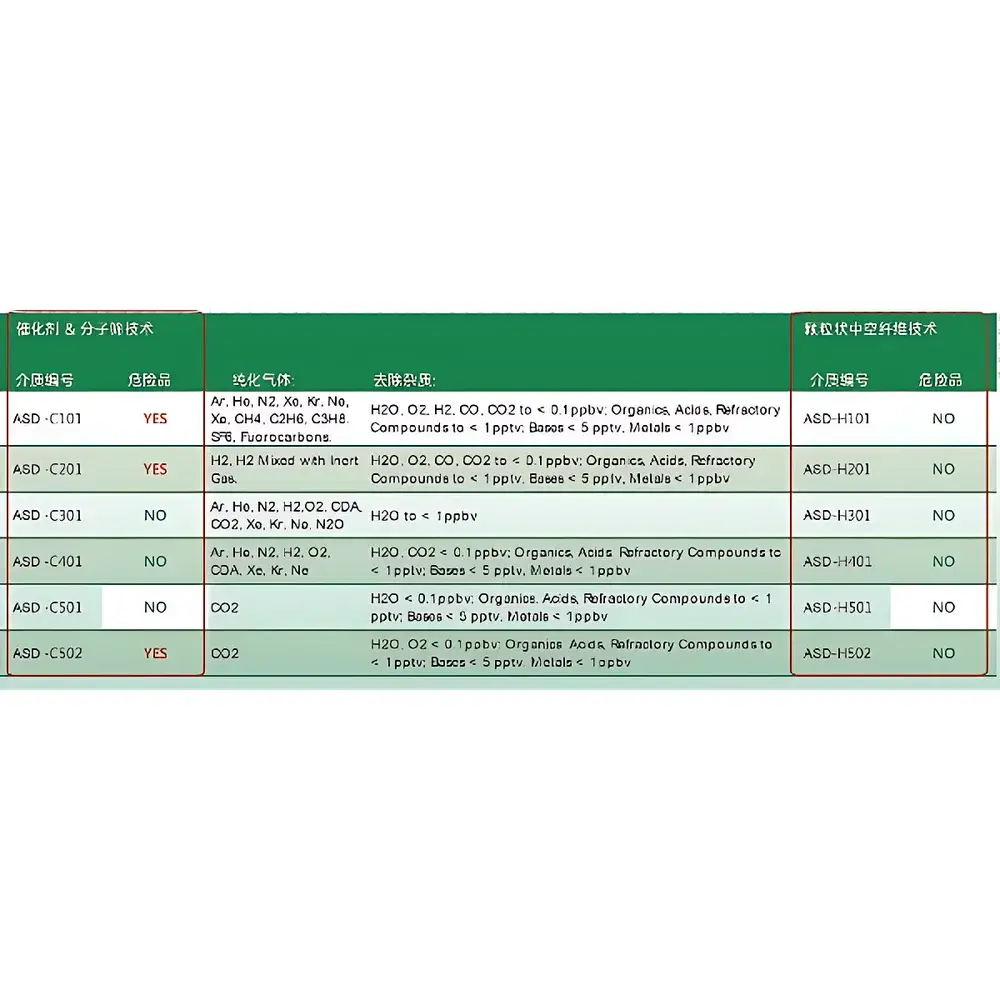

The ASDPure-POU supports a broad spectrum of industrial and analytical gases including Ar, He, N₂, H₂, O₂, CO, CO₂, CH₄, C₂H₆, C₃H₈, SF₆, NF₃, CF₄, C₂F₆, and synthetic air. It meets stringent purity requirements for semiconductor front-end fabrication (SEMI F63), photovoltaic deposition processes, fiber optic preform manufacturing, and metrology-grade calibration gas generation. The system complies with FDA 21 CFR Part 11 when paired with ASD’s TraceLog™ software (optional), enabling electronic signatures, audit trail logging, and data integrity controls required for regulated QC/QA environments. All units are CE-marked and conform to IEC 61000-6-2/6-4 for electromagnetic compatibility.

Software & Data Management

While the base ASDPure-POU operates as a standalone hardware purifier, optional TraceLog™ software provides full lifecycle management: cartridge usage tracking, regeneration scheduling, impurity breakthrough curve modeling, and exportable CSV reports compliant with ISO/IEC 17025 documentation standards. When integrated with facility-wide gas monitoring networks, TraceLog™ supports automated alarm escalation (email/SMS) upon detected flow deviation or predicted end-of-service. All firmware updates are delivered via secure HTTPS and digitally signed to maintain integrity across GxP-regulated deployments.

Applications

• Carrier and zero-gas conditioning for GC, GC-MS, ICP-MS, and PTR-TOFMS systems.
• Process gas polishing for MOCVD, ALD, and PECVD reactors in LED, laser diode, and power semiconductor manufacturing.
• Purification of purge gases for FTIR, Raman, and cavity ring-down spectroscopy (CRDS) platforms.
• Final-stage filtration in ultra-high-purity specialty gas delivery systems (e.g., for EUV lithography tools).
• On-line cleaning of gas distribution manifolds during commissioning or maintenance cycles (e.g., pipeline blowdown support).
• Research-grade gas synthesis where stoichiometric purity affects reaction kinetics or thin-film nucleation uniformity.

FAQ

What is the expected service life of an ASDPure-POU cartridge under typical operating conditions?

Cartridge lifetime depends on inlet impurity load and flow rate; typical service intervals range from 6 to 18 months at ≤500 SLPM with <1 ppmv inlet O₂/H₂O. Lifetime is tracked via TraceLog™ and validated by periodic GC-TCD verification.
Can the ASDPure-POU be used upstream of a mass spectrometer without introducing memory effects?

Yes—its all-metal, low-surface-area architecture and absence of polymer-based adsorbents eliminate carryover. Independent testing confirms <0.5% cross-contamination between sequential CH₄ and SF₆ challenges at 100 SLPM.
Is third-party certification available for pharmaceutical-grade nitrogen purification?

ASD provides IQ/OQ documentation packages and supports user-led validation against USP , EP 2.5.27, and ISO 8573-1:2010 Annex C for compressed air and nitrogen systems.
Does the unit require external power for operation?

No—passive operation only. Optional sensors and TraceLog™ interface require 24 VDC, but core purification functions remain fully operational without power.
How is regeneration verified post-service?

Each regenerated cartridge undergoes helium leak testing, blank gas analysis (via ASD-certified GC-FID/ECD), and certificate-of-analysis issuance traceable to NIST SRM 1692a (trace moisture) and NIST SRM 2692a (hydrocarbon mixtures).
