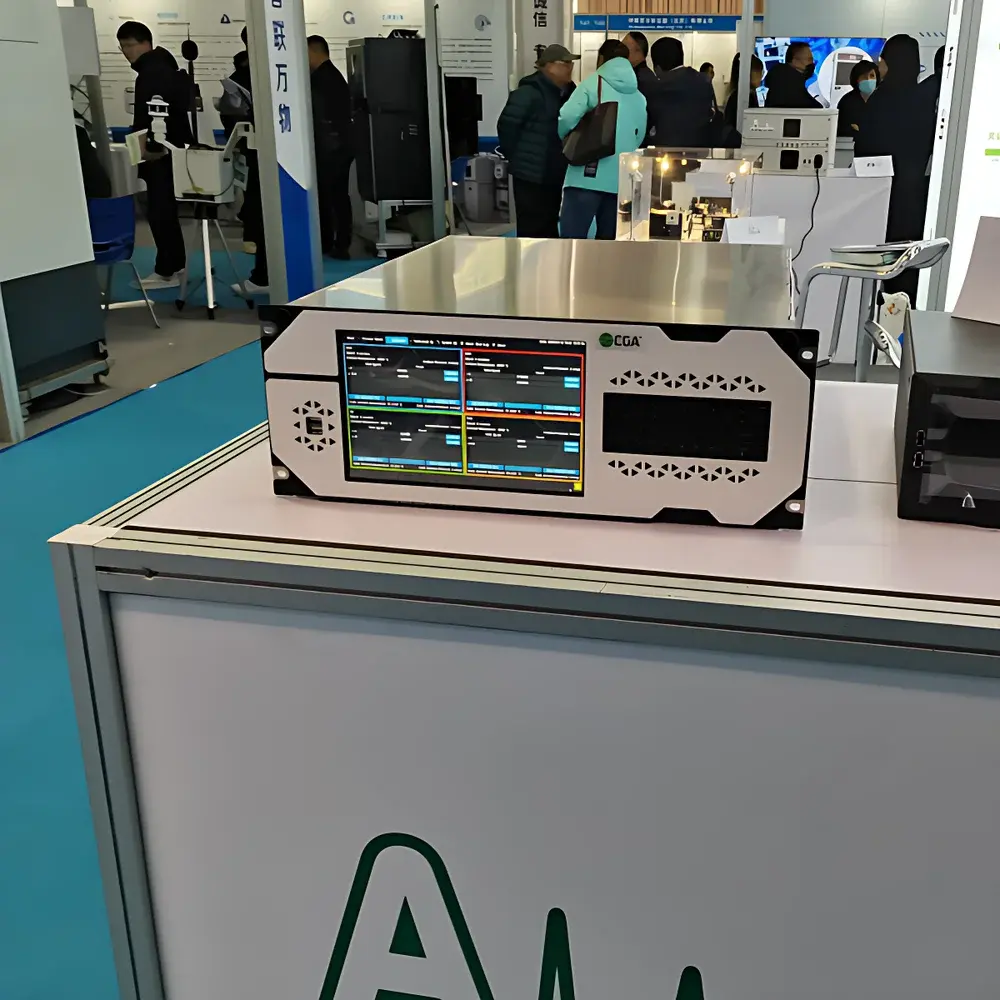

ASD KA0211 Total Hydrocarbon Analyzer
| Brand | ASD |
|---|---|
| Origin | Canada |
| Model | KA0211 |
| Repeatability | ±1% FS |
| Detection Limit | 0.03 ppm |
| Detector Type | TCD (Thermal Conductivity Detector) |
| Column Oven Temperature Range | 5 °C to 45 °C |
| Carrier Gas Purity Requirement | 5N (99.999%) |
| Compliance | Designed for continuous online operation in industrial process environments |
| Configuration | Modular sensor architecture with field-replaceable sensing modules |
Overview

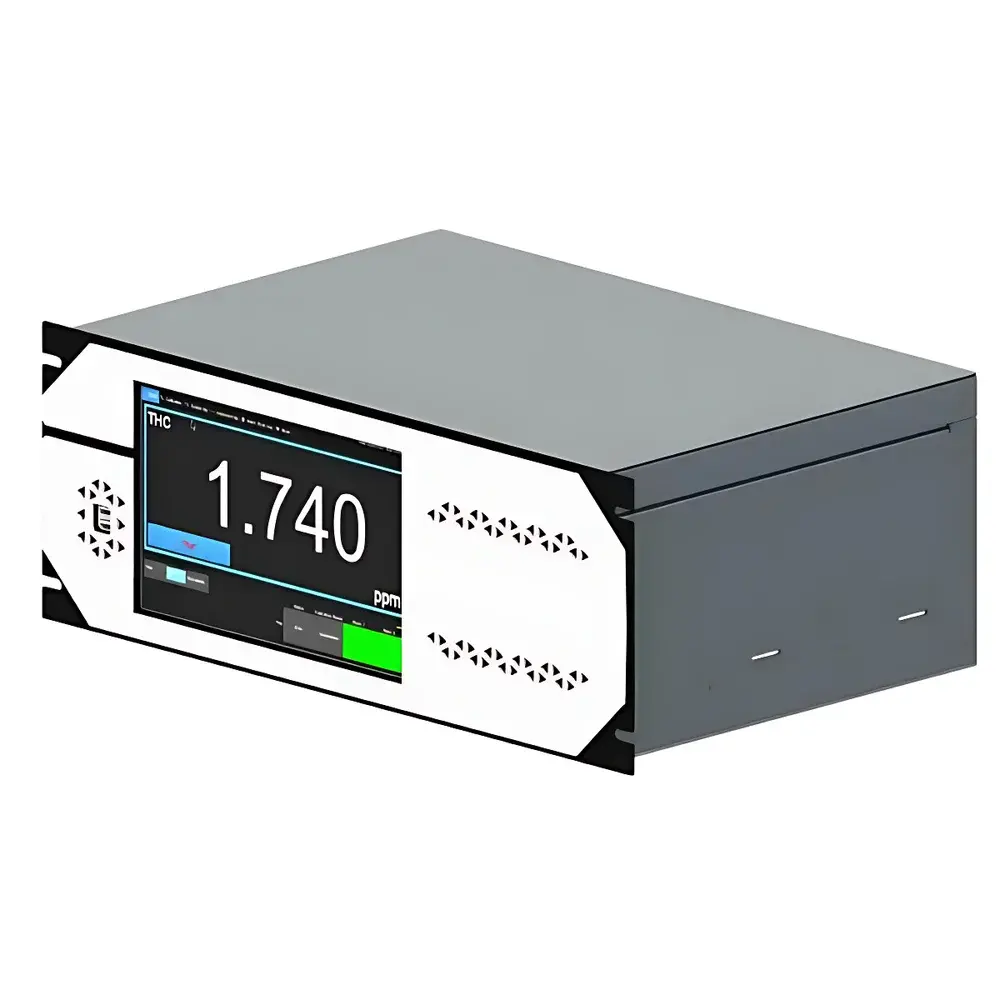

The ASD KA0211 Total Hydrocarbon Analyzer is an online gas chromatograph engineered for continuous, real-time measurement of total hydrocarbon (THC) concentration in industrial process streams. Unlike laboratory-based GC systems, the KA0211 integrates a robust thermal conductivity detector (TCD) with precision-controlled column oven temperature regulation (5–45 °C), enabling stable baseline performance under fluctuating ambient conditions. Its core analytical principle relies on selective separation of hydrocarbon species—primarily C1–C6 aliphatics and aromatics—on a packed or capillary column, followed by quantitative detection via thermal conductivity differential measurement. The instrument is purpose-built for integration into air separation units (ASUs), cryogenic distillation plants, and high-purity gas filling stations where trace-level hydrocarbon contamination poses critical risks to product integrity, catalyst life, or safety compliance. Designed to operate unattended for extended periods, it meets the reliability and uptime requirements of ISO 8573-1 Class 2 compressed air monitoring and ASTM D1946-compliant process gas analysis.
Key Features
- Modular sensing architecture: Field-replaceable “Sense Module” units allow hot-swap maintenance without system shutdown or removal from the analyzer rack.
- Integrated pressure and temperature compensation: Ensures measurement stability across variable line pressure (1–10 bar(g)) and ambient temperature gradients (−20 °C to +50 °C).
- Advanced calibration flexibility: Supports both manual and automated zero/span calibration; configurable calendar-based calibration scheduler with audit-trail logging per FDA 21 CFR Part 11 requirements.

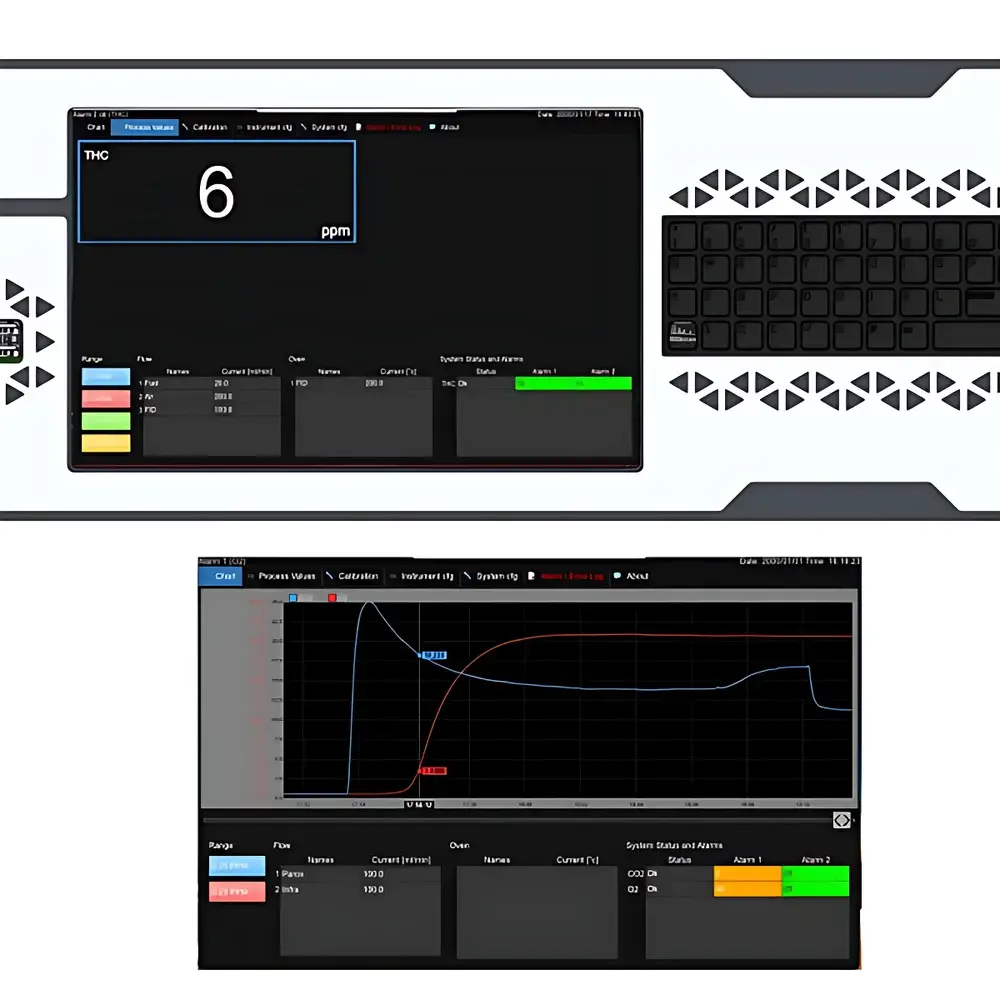

- Real-time data acquisition and visualization: Embedded software provides live chromatogram display, trend plotting, alarm thresholds, and event-triggered data capture.
- Low-maintenance electronics: Digitally optimized analog front-end with auto-zeroing circuitry minimizes drift; no consumables beyond carrier gas (5N purity required).
- Robust mechanical design: IP65-rated enclosure, stainless-steel fluidic path, and vibration-damped column oven ensure operational resilience in industrial control rooms and skid-mounted installations.
Sample Compatibility & Compliance
The KA0211 accepts gaseous samples within a flow range of 20–100 mL/min at standard temperature and pressure (STP). It is validated for use with nitrogen, argon, oxygen, and helium carrier gases meeting ISO 8573-1 Class 1 purity specifications. Sample matrices include ASU waste streams, liquid oxygen boil-off gas, instrument air, and cylinder-filling purge lines. The analyzer complies with IEC 61508 SIL 2 functional safety principles for process safety applications and supports GLP/GMP documentation workflows through timestamped calibration logs, user-access controls, and electronic signature capability. All firmware and configuration changes are recorded in a tamper-evident audit trail.
Software & Data Management
The embedded HCSenss software platform provides full local control via a 7-inch capacitive touchscreen interface and remote access via Ethernet (Modbus TCP, OPC UA optional). Key capabilities include multi-point calibration curve generation (up to 8 points), automatic baseline correction, peak integration using derivative threshold algorithms, and export of raw chromatographic data in CSV and .CDF formats. Data retention supports ≥30 days of continuous 1-second interval logging. Cybersecurity features include TLS 1.2 encrypted communications, role-based user authentication (admin/operator/auditor), and secure firmware update signing. Calibration reports conform to ISO/IEC 17025 documentation templates for accredited laboratories.
Applications
- Air separation unit (ASU) product purity monitoring: Continuous THC verification in high-purity oxygen, nitrogen, and argon streams prior to liquefaction or distribution.
- Process control in cryogenic distillation columns: Early detection of hydrocarbon accumulation to prevent acetylene condensation hazards.
- Bulk gas cylinder filling stations: Final QC verification before pressurization to meet CGA G-4.1 and ISO 8573-5 purity standards.
- Hydrogen purification loops: Monitoring for methane and higher hydrocarbons in PEM electrolyzer off-gas recirculation paths.
- Pharmaceutical inert gas supply systems: Ensuring compliance with USP and EP 2.2.47 for nitrogen used in sterile processing environments.
FAQ
What detection technology does the KA0211 employ?
It uses a high-stability thermal conductivity detector (TCD), optimized for non-destructive, linear-response quantification of total hydrocarbons in permanent gas matrices.
Is the KA0211 suitable for explosive atmospheres?
No—standard configuration is rated for non-hazardous locations (Class I, Division 2 not certified); ATEX/IECEx variants require factory customization and separate certification documentation.
Can the analyzer be integrated into a DCS or PLC network?
Yes—native Modbus TCP support enables direct integration with Emerson DeltaV, Honeywell Experion, Siemens PCS7, and Rockwell Automation ControlLogix systems.
What maintenance intervals are recommended?
Sensor module replacement every 24 months; column oven calibration verification annually; carrier gas filter replacement every 6 months under continuous operation.
Does the system support remote diagnostics?
Yes—embedded web server allows secure remote login for firmware updates, log retrieval, and real-time diagnostic status (column temperature, detector voltage, flow rate, alarm history).
