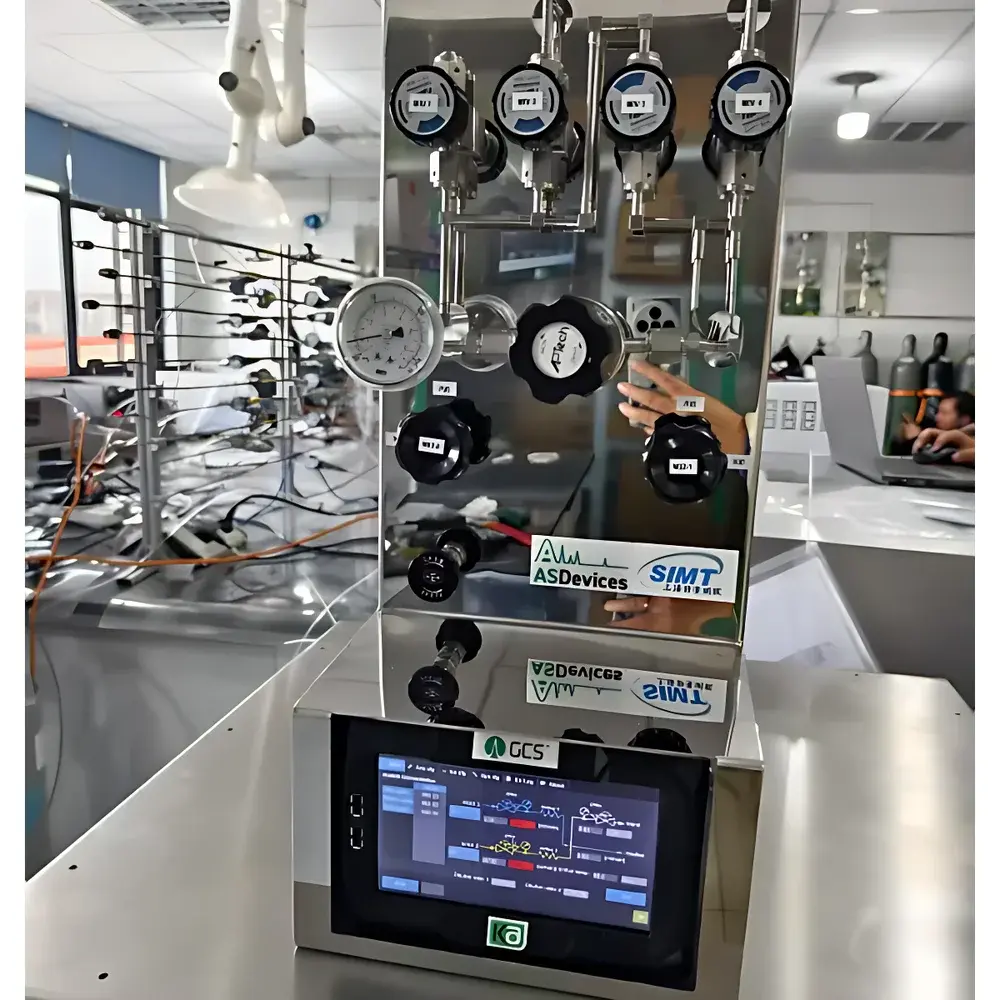

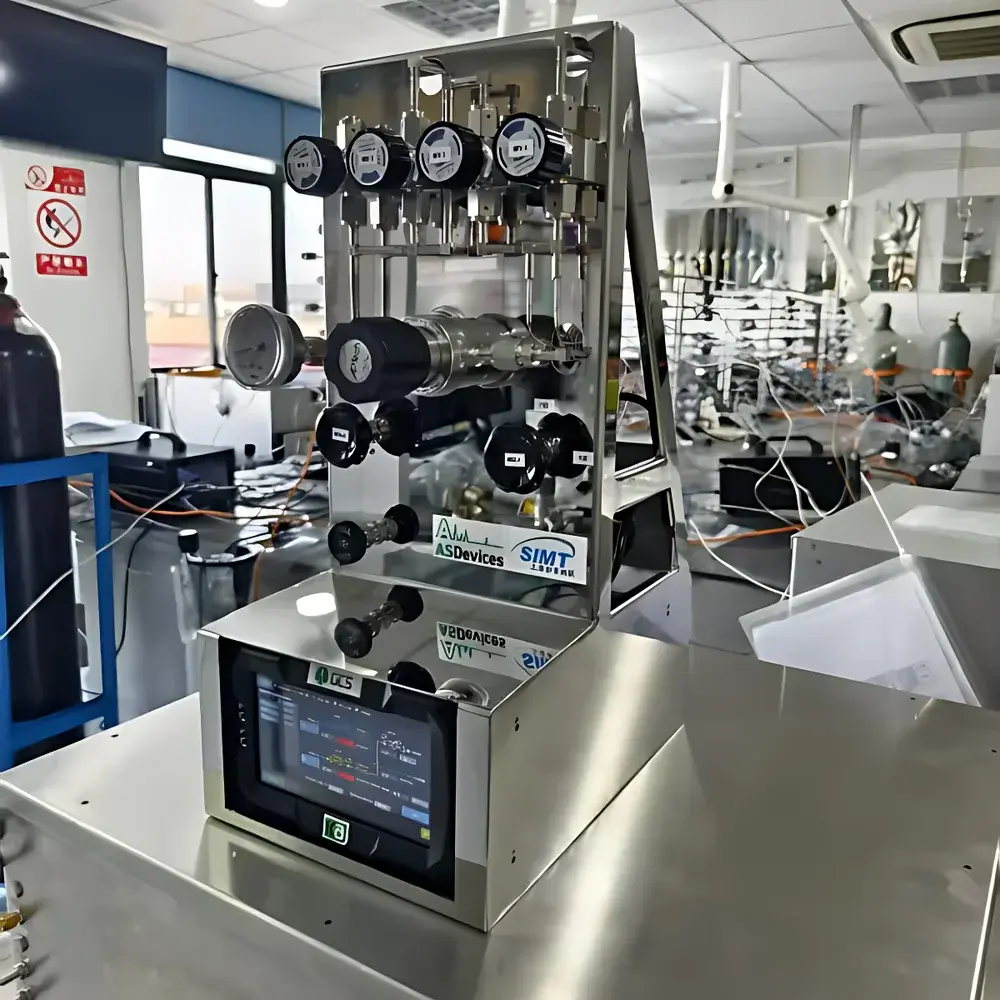

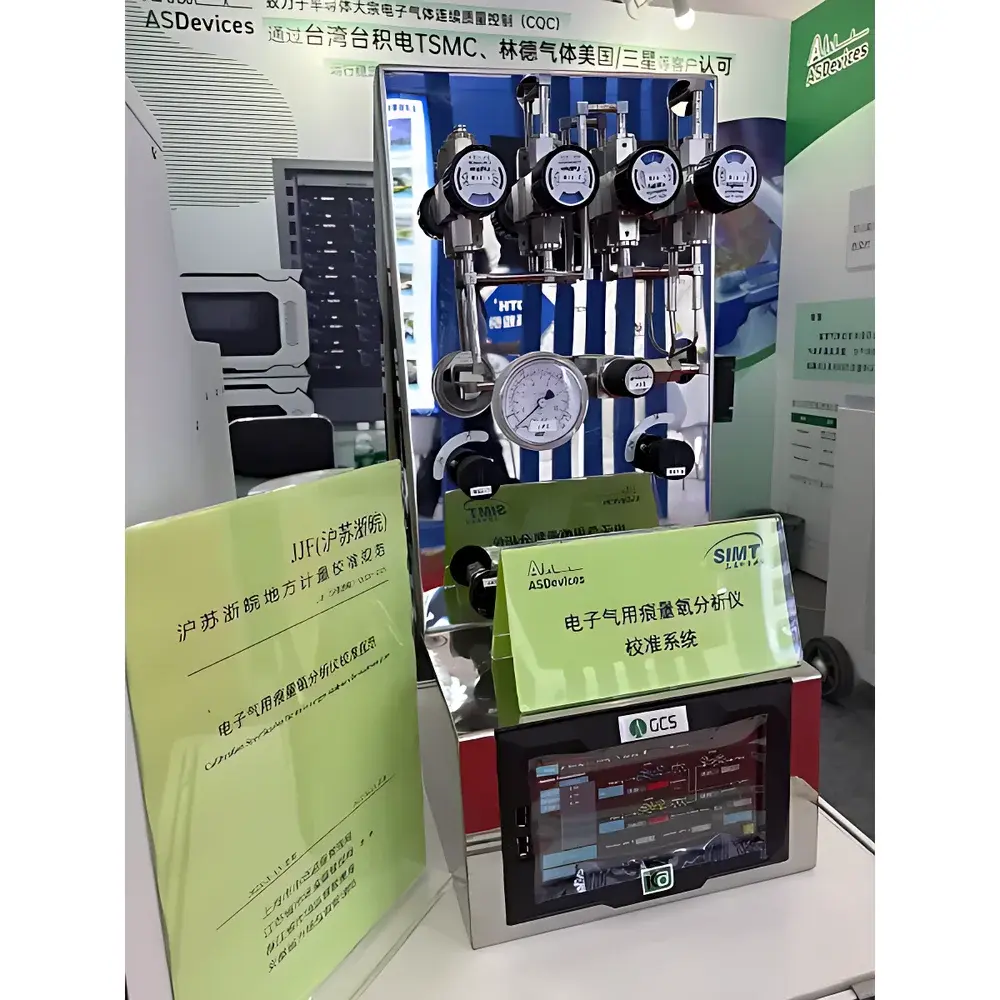

ASDevices CYPPB-01 ppb-Level Oxygen Analyzer Calibration System

Overview

The ASDevices CYPPB-01 ppb-Level Oxygen Analyzer Calibration System is a precision-engineered dynamic gas dilution platform designed to generate certified ultra-trace oxygen standards in the sub-part-per-trillion (ppt) to low-parts-per-trillion (ppb) range. Unlike static cylinder-based calibration methods, the CYPPB-01 employs critical-orifice sonic nozzle technology operating under choked-flow conditions—ensuring mass flow rates independent of downstream pressure fluctuations and highly repeatable dilution ratios across wide operating ranges. This physical principle enables metrologically robust generation of calibration standards for trace oxygen analyzers used in high-purity industrial gas production (e.g., electronic-grade nitrogen, argon, helium), semiconductor fab ambient monitoring, cryogenic liquid analysis, and environmental air quality laboratories. The system integrates seamlessly with online gas chromatographs (GCs) and laser-based optical analyzers requiring rigorous method validation under ASTM D6866, ISO 8573-7, and USP guidelines.

Key Features

• Ultra-high dilution capability: factory-calibrated from 1:2 to 1:3500; optional nozzle configurations extend ratio range to 1:10,000 with documented uncertainty budgets.
• NIST-traceable calibration certificate provided for each delivered standard gas mixture, supporting ISO/IEC 17025 accreditation requirements for reference material producers.
• iGCSASDPure integrated purification module removes reactive impurities (H₂O, CO, CO₂, hydrocarbons) down to <10 ppt levels prior to dilution—critical for maintaining integrity of O₂ standards in reactive matrices.
• Temperature-stabilized stainless steel flow path (up to 200 °C) minimizes adsorption losses and condensation artifacts common with polar or reactive analytes such as SO₂, NH₃, or H₂S.
• Dual electronic pressure controllers (EPCs) with real-time temperature compensation ensure <±0.1% setpoint stability over ambient variations, directly contributing to <0.5% relative accuracy in final diluted concentration.
• User-configurable sonic nozzle array allows on-site adaptation to different target analytes and concentration ranges without recalibration—reducing downtime during multi-gas validation protocols.

Sample Compatibility & Compliance

The CYPPB-01 supports calibration of oxygen sensors and GC detectors (TCD, PDHID, PDD) across diverse gas matrices including Ar, He, N₂, H₂, and synthetic air. Its all-welded 316L stainless steel construction and electropolished internal surfaces meet ASTM E2654 requirements for ultra-high-purity gas handling systems. The instrument complies with ISO 6145-7 (gas mixtures by dynamic volumetric mixing) and supports audit-ready documentation for FDA 21 CFR Part 11 compliance when paired with validated LIMS or ELN platforms. It is routinely deployed in facilities undergoing ISO 14644 cleanroom certification and ICH Q5C stability-indicating method validation.

Software & Data Management

The system operates via ASDevices’ iGCS Control Suite—a Windows-based application enabling full parameter logging (pressure, temperature, flow rate, dilution ratio), automated sequence execution, and digital signature-enabled report generation. Audit trails record all user actions, configuration changes, and calibration events with timestamp and operator ID. Export formats include CSV, PDF, and XML for integration into enterprise quality management systems (QMS). Optional OPC UA connectivity allows real-time data exchange with DCS or MES platforms in continuous manufacturing environments.

Applications

• Performance verification of ppb-level paramagnetic, electrochemical, and zirconia-based oxygen analyzers per ISO 10723 Annex C.
• Calibration of GC-TCD systems analyzing residual O₂ in high-purity process gases per SEMI F57 standards.
• Generation of multi-component trace standards (O₂/CH₄/CO/CO₂) for method development in environmental emission testing (EPA Method 25A, EN 14792).
• Reference material production for accredited calibration laboratories seeking ISO/IEC 17034 recognition.
• Stability testing of sensor drift under accelerated aging protocols per IEC 60751 Class A tolerances.

FAQ

What metrological standards does the CYPPB-01 comply with?

The system adheres to ISO 6145-7 for dynamic dilution, ISO/IEC 17025 for calibration laboratory competence, and supports traceability chains aligned with NIST SRM 2626a and BIPM key comparison CCM.K3.
Can the CYPPB-01 be used for reactive gas calibration (e.g., Cl₂, NO_x)?

Yes—when configured with heated flow paths (up to 200 °C) and the iGCSASDPure purifier, it maintains analyte stability for moderately reactive species; compatibility must be verified case-by-case per ASTM D5502 guidelines.
Is remote operation supported?

Remote access is enabled via secure RDP or VNC over corporate VLAN; however, full audit trail integrity requires local operator authentication per 21 CFR Part 11 Subpart B.
How often does the sonic nozzle require recalibration?

No routine recalibration is required—sonic nozzles are geometry-defined primary standards; annual verification against reference flow meters per ISO 10723 is recommended for accredited use.
Does the system support automated multi-point calibration sequences?

Yes—the iGCS Control Suite includes scriptable sequence templates for linear/nonlinear multi-point calibrations with auto-generated uncertainty propagation reports.
