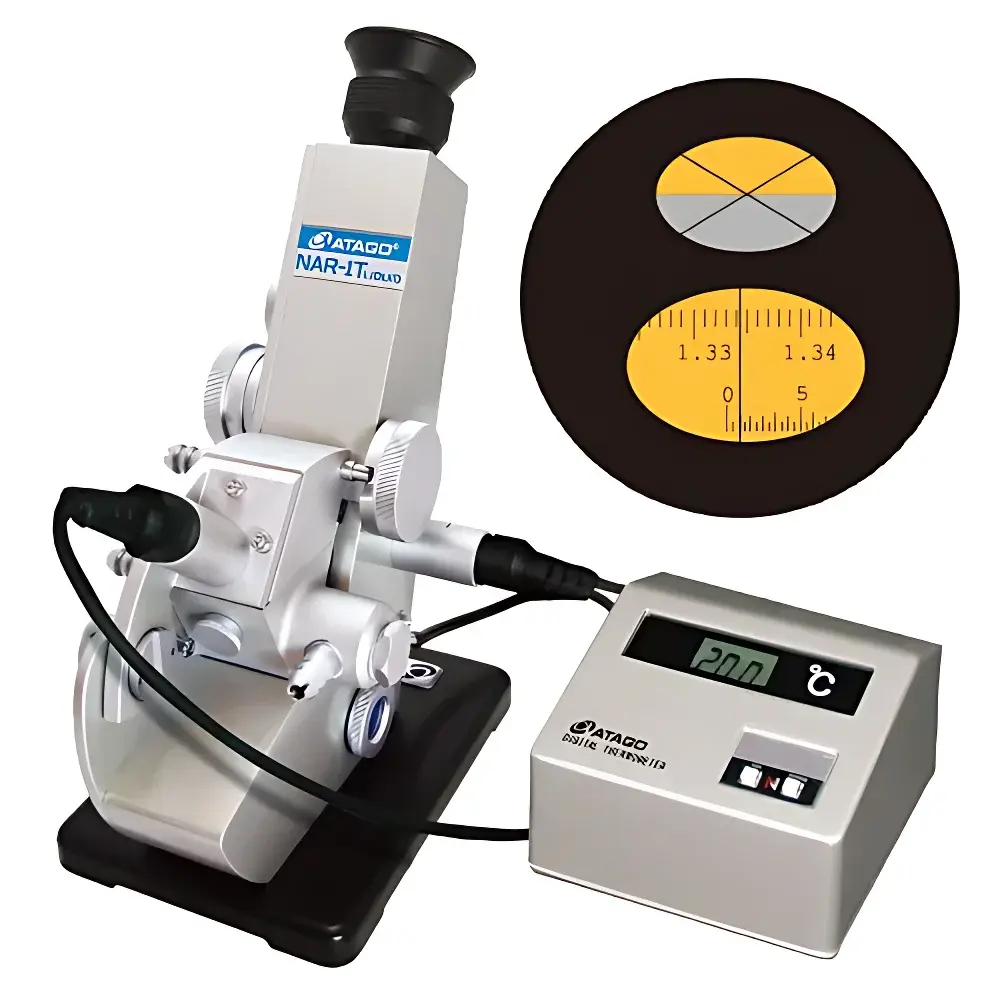

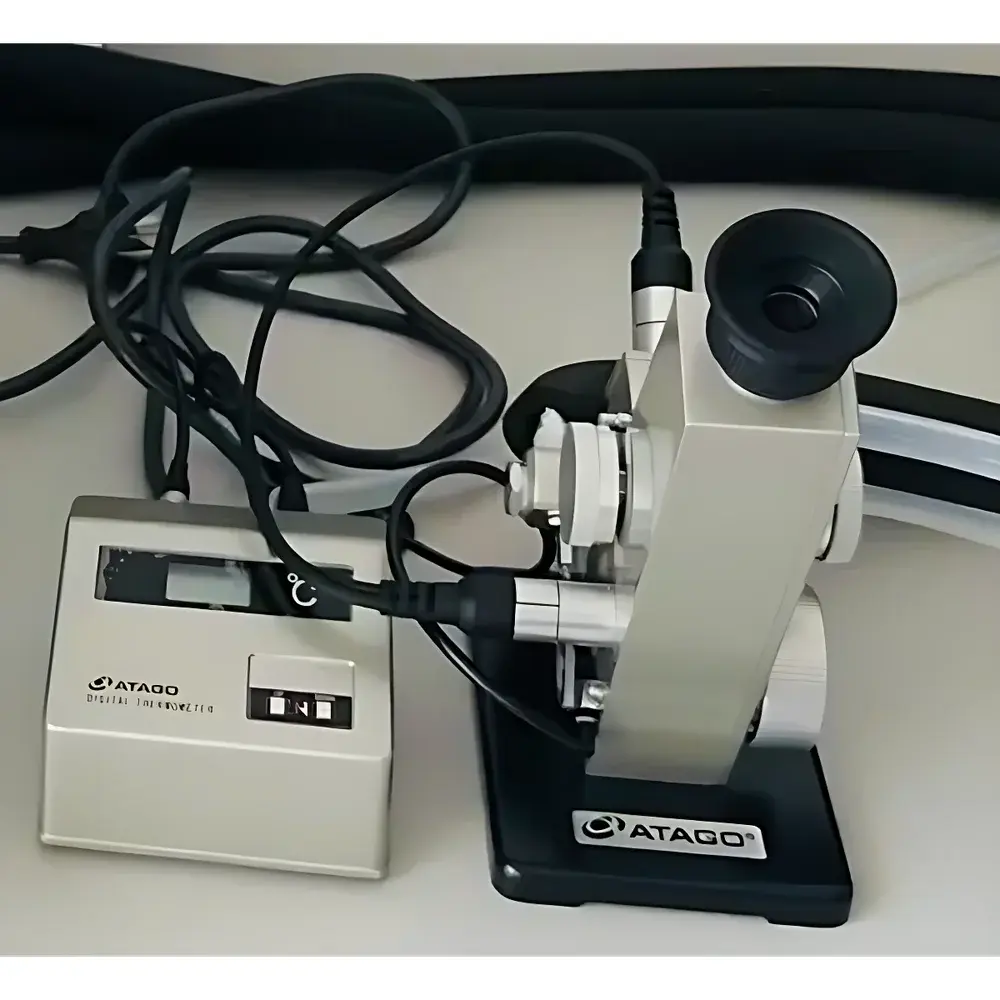

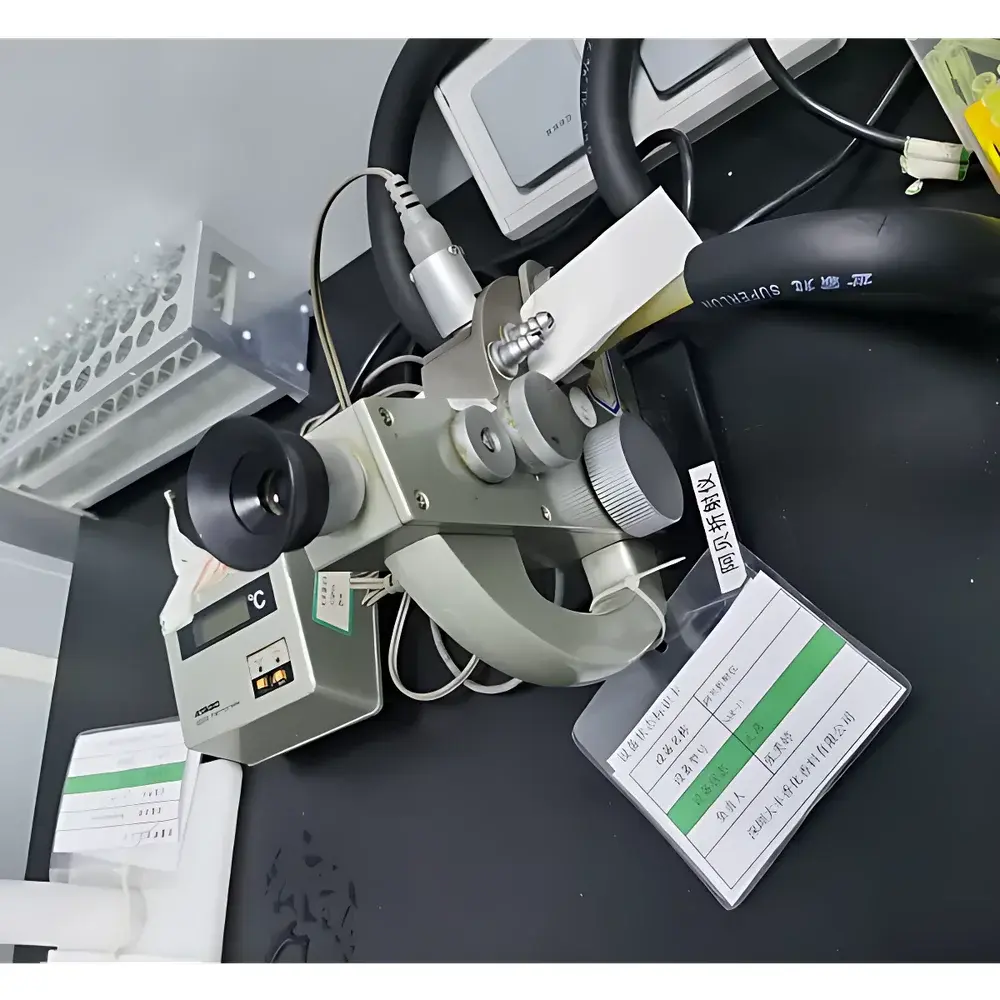

ATAGO NAR-1T LIQUID Abbe Refractometer

Overview

The ATAGO NAR-1T LIQUID Abbe Refractometer is a precision benchtop optical instrument engineered for accurate and repeatable measurement of refractive index (n_D) in transparent and semi-transparent liquid samples. Based on the classical Abbe principle—utilizing total internal reflection at the interface between a high-refractive-index glass prism and the sample—the instrument determines n_D by locating the critical angle of refraction under monochromatic sodium-D line (589.3 nm) equivalent illumination. Its optical path incorporates a built-in white-light LED with interference filter to emulate the spectral output of a sodium lamp, ensuring metrological consistency without lamp replacement or warm-up delays. Designed specifically for volatile, temperature-sensitive formulations such as essential oils, flavor compounds, and fragrance dilutions, the NAR-1T LIQUID integrates a Peltier-controlled prism stage that maintains sample temperature within ±0.1 °C across the operational range (10–40 °C), eliminating manual water-bath dependency and minimizing evaporation-induced drift.

Key Features

• Precision Abbe optical architecture with double-prism design for enhanced angular resolution and reduced chromatic aberration
• Integrated Peltier temperature regulation system with digital setpoint control and real-time display (range: 10–40 °C, stability: ±0.1 °C)
• High-resolution 4-digit LCD readout displaying n_D values directly to 0.0001 resolution, with ±0.0002 accuracy traceable to NIST-traceable standards
• Automatic zero-point verification via internal reference glass block; no external calibration tools required
• Ergonomic sample stage with micro-adjustable clamping mechanism accommodating standard 1–2 mm thick cover slips or direct drop application
• Compliance-ready firmware supporting audit trail logging (when connected to optional PC interface), meeting GLP documentation requirements

Sample Compatibility & Compliance

The NAR-1T LIQUID is validated for use with low-viscosity, non-corrosive, optically homogeneous liquids—including citrus oils, terpene fractions, ethanol-based extracts, glycerin solutions, and aqueous flavor emulsions. It is not suitable for suspensions, opaque colloids, or highly viscous resins (>500 mPa·s). All optical components are constructed from hardened borosilicate glass resistant to organic solvents common in fragrance laboratories. The instrument conforms to international refractometry standards including ISO 21748 (accuracy verification procedures), ASTM D1218 (petroleum product testing), and JIS K0061 (Japanese Industrial Standard for optical constants). Its design supports routine qualification per USP and pharmacopeial refractive index monographs used in excipient and active ingredient identity testing.

Software & Data Management

While operating as a standalone unit, the NAR-1T LIQUID supports optional RS-232 or USB-to-serial connectivity for data export to LIMS or laboratory informatics platforms. The bundled ATAGO DataLink software enables time-stamped acquisition, batch ID assignment, statistical process control (SPC) charting, and automated report generation compliant with FDA 21 CFR Part 11 when configured with user authentication and electronic signature modules. Audit trails record operator ID, measurement timestamp, temperature setpoint, calibration status, and raw n_D output—fully retrievable and exportable in CSV or PDF format.

Applications

This refractometer serves as a primary QC tool in essential oil authentication workflows—detecting adulteration via deviation from botanical-species-specific n_D baselines (e.g., lavender oil n_D = 1.460–1.470; bergamot oil n_D = 1.472–1.482). It is routinely deployed in R&D labs for monitoring distillation endpoints, assessing esterification progress in synthetic fragrance intermediates, verifying dilution ratios in aroma compound stock solutions, and validating purity grades prior to GC-MS analysis. In academic settings, it supports undergraduate physical chemistry experiments on Lorentz-Lorenz relationships and graduate-level studies correlating n_D with molecular polarizability and hydrogen-bonding density.

FAQ

What sample volume is required for a valid measurement?
Approximately 0.1 mL is sufficient—enough to form a continuous film over the prism surface (~20 × 10 mm area). Excess sample is contained by the integrated overflow channel.
Can the instrument measure samples below 10 °C or above 40 °C?
No. The Peltier module is rated for 10–40 °C operation. Measurements outside this range require external thermostatted stages and are not supported by factory calibration.
Is cleaning solvent compatibility documented?
Yes. Prism surfaces tolerate ethanol, isopropanol, acetone, and hexane. Chlorinated solvents (e.g., chloroform) and strong acids/bases must be avoided to prevent coating degradation.
Does the NAR-1T LIQUID support Brix or concentration scale conversion?
No—it outputs only n_D. Concentration correlations must be established independently using certified reference materials and validated calibration curves.
How often does the instrument require recalibration?
Annual verification against certified refractive index standards (e.g., ATAGO RG-1, n_D = 1.47662 at 20 °C) is recommended. Daily zero-check with the included reference glass is advised before critical measurements.
