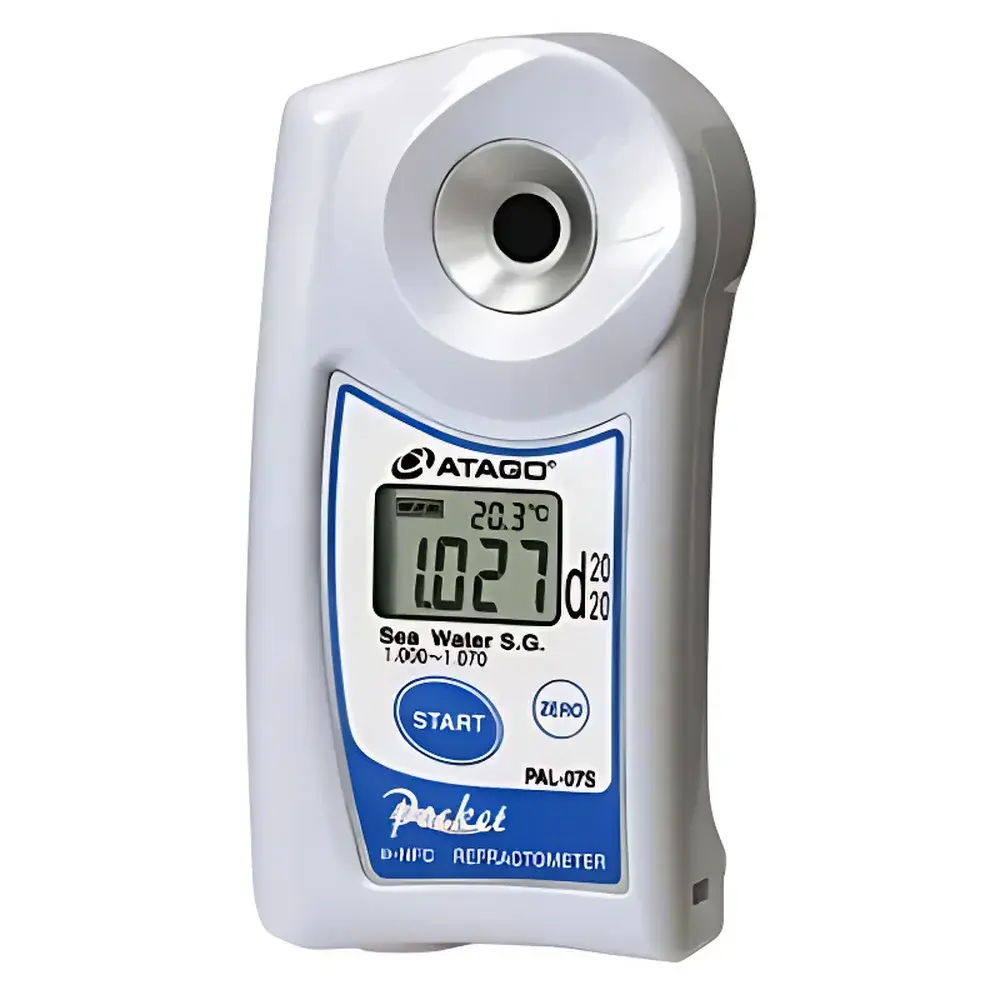

ATAGO PAL-07S Digital Seawater Specific Gravity Refractometer

Overview

The ATAGO PAL-07S Digital Seawater Specific Gravity Refractometer is a compact, field-deployable optical instrument engineered for rapid, on-site determination of specific gravity (SG) in aqueous saline solutions. Based on the principle of critical-angle refractometry, the device measures the refractive index of a sample and converts it—via pre-calibrated algorithms—to specific gravity values traceable to standardized NaCl solution references. Unlike hydrometers or densitometers, the PAL-07S eliminates parallax error and temperature-induced drift through built-in Automatic Temperature Compensation (ATC), operating reliably across an ambient range of 10–40°C. Its optical path is sealed and optimized for seawater matrixes, minimizing interference from suspended particulates or minor organic contaminants commonly encountered in marine, aquaculture, and industrial brine environments. Designed for routine quality verification—not laboratory-grade metrology—the instrument delivers repeatable readings within ±0.002 SG under controlled handling conditions.

Key Features

• Digital LCD display with 0.001 SG resolution for unambiguous visual readout
• ATC-corrected optical system ensuring measurement stability without external thermostating
• IP65-rated enclosure providing dust-tightness and resistance to low-pressure water jets—suitable for deck, dockside, or greenhouse use
• Compact ergonomic form factor (5.5 × 3.1 × 10.9 cm; 100 g) enabling one-handed operation and portability in confined spaces
• Low-power design powered by two standard AAA batteries, supporting >5,000 measurements per set under typical usage
• Optimized prism surface geometry and anti-reflective coating for high signal-to-noise ratio across the 1.000–1.070 SG range

Sample Compatibility & Compliance

The PAL-07S is validated for homogeneous, non-viscous aqueous NaCl solutions—including natural seawater, artificial seawater preparations, de-icing brines, and food-grade salt solutions. It is not intended for use with emulsions, highly turbid suspensions, or solvents with refractive indices outside the calibration domain. While not certified to ISO/IEC 17025, the instrument conforms to ATAGO’s internal manufacturing specifications aligned with JIS Z 8014 (Japanese Industrial Standard for refractometers) and supports traceability via factory calibration reports. For regulated environments (e.g., aquaculture health monitoring per FAO guidelines or marine facility maintenance logs), users may document instrument ID, calibration date, and operator signature manually or via external LIMS integration.

Software & Data Management

The PAL-07S operates as a standalone, embedded-system device with no Bluetooth, USB, or data logging capability. All measurement data remain local to the user’s visual interpretation; no firmware updates or software drivers are required. This architecture ensures operational continuity in electromagnetically noisy or network-restricted settings (e.g., shipboard labs, remote hatcheries). For auditability, laboratories may pair the unit with standardized SOPs specifying cleaning protocol (distilled water rinse + lens tissue wipe), environmental acclimation time (>30 sec after removal from temperature extremes), and minimum sample volume (0.3 mL). Though lacking FDA 21 CFR Part 11-compliant electronic records, its simplicity supports GLP-aligned manual entry into paper-based or validated electronic lab notebooks.

Applications

• Marine aquarium management: real-time verification of salinity during water changes or top-off procedures
• Aquaculture hatchery operations: monitoring larval rearing tanks and broodstock conditioning systems
• De-icing material quality control: field validation of calcium chloride or sodium chloride brine concentration prior to application
• Food processing: rapid checks of brine strength in pickling, curing, and fermentation processes
• Environmental field studies: preliminary assessment of estuarine salinity gradients during tidal surveys
• Educational laboratories: demonstration of refractive index–density relationships in physical chemistry curricula

FAQ

Does the PAL-07S require periodic recalibration?
Yes—ATAGO recommends verification against a certified reference standard (e.g., distilled water at 20°C yielding 1.000 SG) before each daily use sequence. Full recalibration by an authorized service center is advised annually or after mechanical shock.
Can the instrument measure specific gravity of non-NaCl solutions?
No—the PAL-07S calibration curve is optimized exclusively for sodium chloride–water systems. Use of other solutes (e.g., MgSO₄, KCl) introduces systematic bias due to differential refractive index–concentration behavior.
Is the prism surface scratch-resistant?
The sapphire-coated prism provides high abrasion resistance but remains susceptible to damage from coarse particulates or improper cleaning tools; only lens-grade tissues and soft, lint-free cloths should be used.
What does IP65 rating mean for field deployment?
It certifies full protection against dust ingress and resistance to water projected from a nozzle at 12.5 L/min from any direction at 30 kPa pressure—sufficient for rain exposure or washdown in non-sterile environments.
Why is temperature compensation limited to 10–40°C?
The ATC algorithm relies on a thermistor-integrated optical block calibrated within this range; measurements outside this interval exceed the linear compensation model’s validity and require manual correction using published NaCl density–temperature tables.
