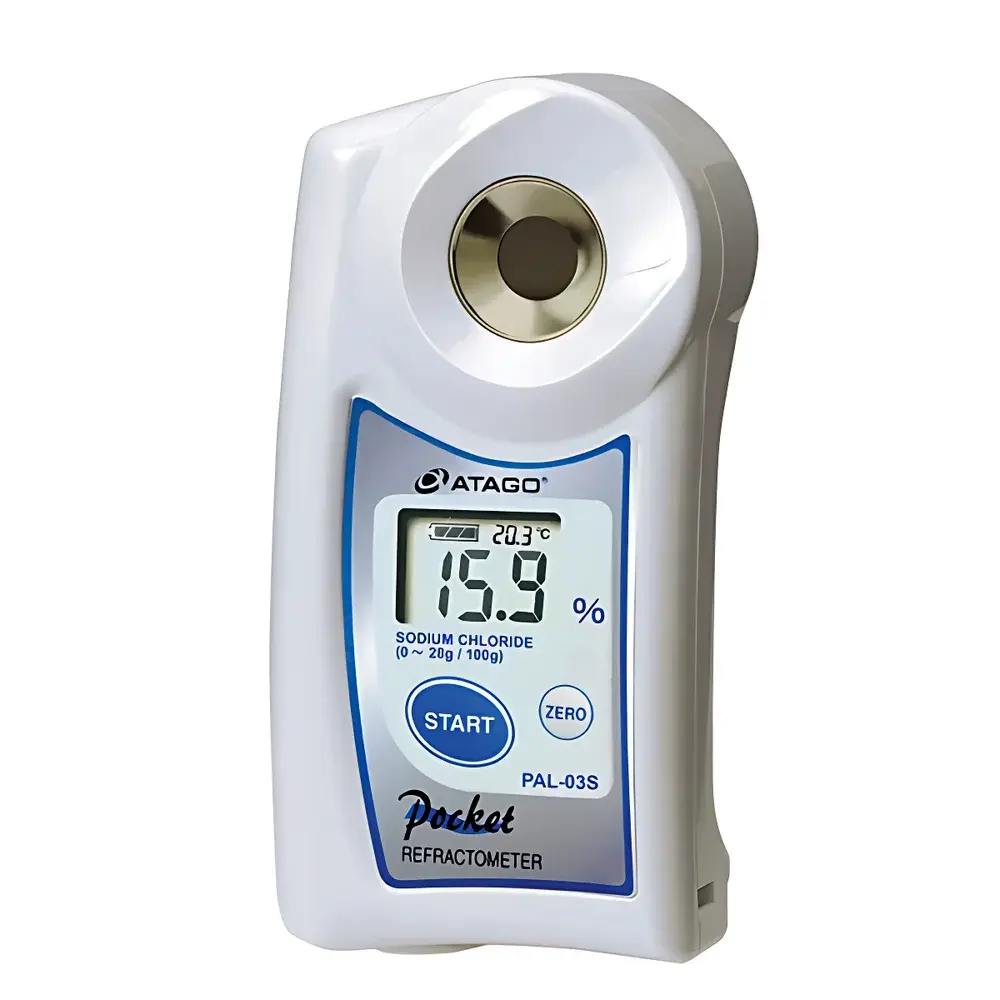

ATAGO PAL Series Portable Digital Refractometer for Metalworking Fluids
| Brand | ATAGO |
|---|---|
| Origin | Japan |
| Model | PAL Series (Metalworking-Specific) |
| Type | Handheld Refractometer |
| Measurement Range | 0.0–45.0% (w/w, soluble oil concentration) |
| Accuracy | ±0.4% |
| Digital Display | Yes |
| Temperature Compensation | Automatic (ATC, 10–40°C) |
| Compliance | ISO 21748, JIS K 0063, ASTM D1152 |
Overview
The ATAGO PAL Series Portable Digital Refractometer for Metalworking Fluids is an industrial-grade handheld optical instrument engineered to quantify the concentration of water-miscible cutting fluids, emulsions, and semi-synthetic coolants in real time on the shop floor. Based on the principle of total internal reflection at the prism–sample interface, the device measures refractive index (nD) and converts it—via factory-calibrated polynomial algorithms—into percent concentration (% w/w) of soluble oil or coolant additive. Unlike general-purpose sugar refractometers, this variant features a dedicated scale optimized for the refractive behavior of typical metalworking fluid formulations (e.g., mineral oil–water emulsions, polyalkylene glycol blends), ensuring linearity and repeatability across the critical operational range of 0.0–45.0%. Its compact form factor (130 × 65 × 40 mm), ergonomic grip, and single-hand operation enable rapid in-situ verification without requiring sample transfer or laboratory infrastructure.
Key Features
- Industrial-grade sapphire-coated measuring prism with high abrasion resistance, suitable for repeated contact with oily, particulate-laden coolants
- Automatic temperature compensation (ATC) across 10–40°C using integrated thermistor, eliminating manual correction and minimizing thermal drift
- High-contrast LCD with backlight for legibility under low-light machining environments or outdoor daylight conditions
- IP65-rated enclosure certified for dust ingress protection and resistance to water jets—compatible with wet shop-floor use near CNC machines and grinding stations
- Zero-point calibration via distilled water or air (START ZERO function), verified against NIST-traceable reference standards
- Battery life exceeding 10,000 measurements per set of two AAA alkaline cells; auto-power-off after 3 minutes of inactivity
Sample Compatibility & Compliance
The PAL Series refractometer is validated for direct measurement of aqueous metalworking fluids—including straight oils (emulsifiable), soluble oils, synthetic coolants, and semi-synthetics—without dilution or filtration. It tolerates trace levels of tramp oil (<5% v/v) and suspended fines typical in recirculated systems. The instrument conforms to ISO 21748 (Reference materials for refractometry), JIS K 0063 (Methods for determination of refractive index), and ASTM D1152 (Standard Test Method for Refractive Index of Industrial Aromatic Hydrocarbons). Its measurement traceability supports compliance with ISO 9001 quality management requirements and internal coolant monitoring protocols aligned with OEM machine tool specifications (e.g., Fanuc, DMG MORI, Makino).
Software & Data Management
While the PAL Series operates as a standalone field instrument, optional USB data logging adapters (ATAGO RS-232/USB Interface Kit) enable export of timestamped measurement records to CSV files for integration into CMMS or SPC platforms. All stored readings retain embedded ATC-corrected values and ambient temperature metadata. Firmware updates are performed via PC utility software compliant with FDA 21 CFR Part 11 requirements when used in regulated manufacturing environments—supporting electronic signatures, audit trails, and user access control for GLP/GMP-aligned coolant management workflows.
Applications
- Routine verification of coolant concentration prior to machine startup or shift handover
- Troubleshooting poor surface finish, excessive tool wear, or microbial growth linked to out-of-spec concentration
- Validation of mixing accuracy during coolant replenishment or tank refills
- Supporting predictive maintenance programs by correlating refractive index trends with fluid degradation indicators (e.g., pH, conductivity, nitrite accumulation)
- On-site qualification of incoming coolant batches against supplier certificates of analysis
FAQ
Does this refractometer require calibration with certified reference standards?
Yes—initial calibration should be performed using ATAGO-certified standard solutions (e.g., 5.0%, 15.0%, and 30.0% w/w glycol standards) traceable to NMIJ/AIST. Field zeroing with distilled water is acceptable for daily checks but does not replace periodic full-scale verification.
Can it measure neat oils or non-aqueous coolants?
No—the PAL Series is designed exclusively for water-miscible fluids. Neat oils, kerosene-based cutting fluids, or pure synthetics fall outside its optical calibration range and will yield inaccurate results.
Is the prism resistant to corrosion from chlorine-containing coolants?
The sapphire-coated prism exhibits excellent chemical inertness against common halogenated biocides and amine-based corrosion inhibitors used in modern coolant formulations, though prolonged exposure to concentrated acidic or caustic cleaners should be avoided.
How often should the instrument be recalibrated in a high-volume production environment?
ATAGO recommends full recalibration every 3 months or after 500 measurements—whichever occurs first—under continuous use. Daily zero-point verification is mandatory before each shift.
Does the device meet explosion-proof or ATEX requirements?
No—it is not rated for hazardous locations. Use only in general industrial areas where flammable vapor concentrations remain below LEL thresholds.
