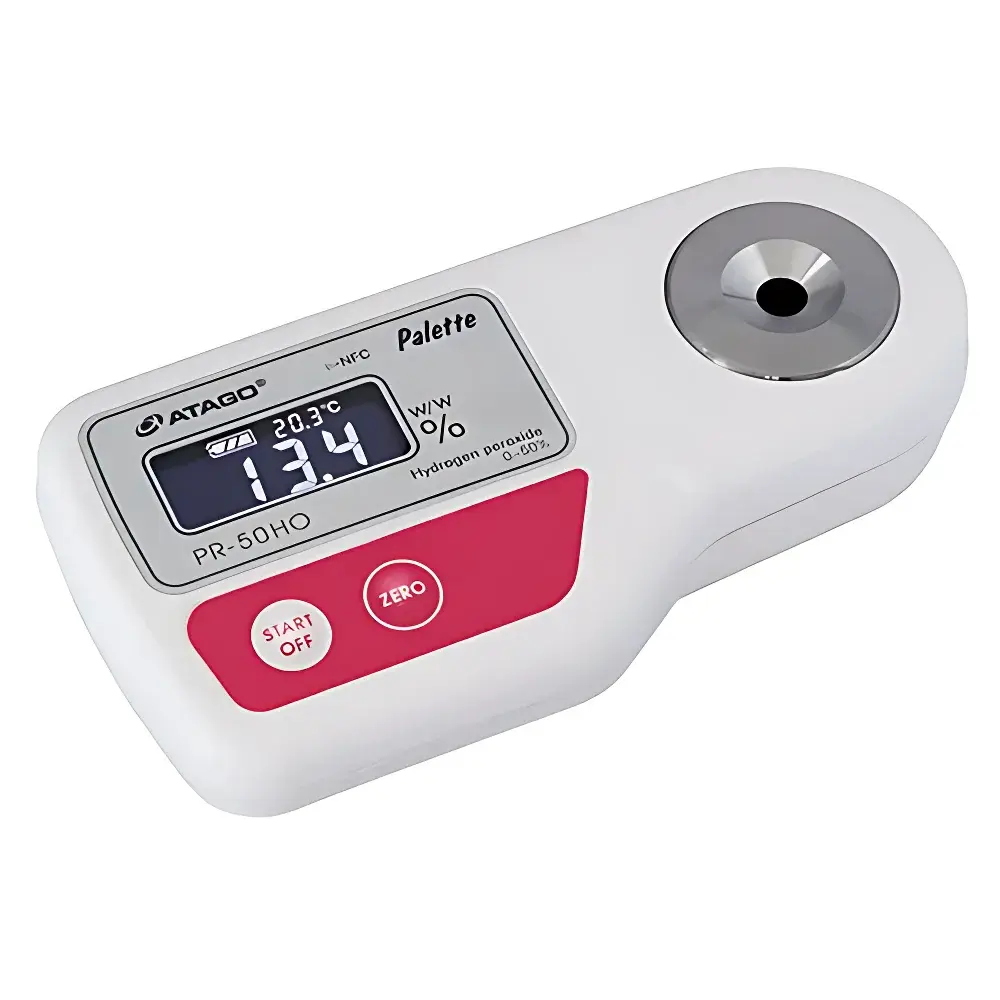

ATAGO PR-50HO Handheld Hydrogen Peroxide Refractometer

Overview

The ATAGO PR-50HO is a precision handheld refractometer engineered specifically for rapid, on-site quantification of hydrogen peroxide (H₂O₂) concentration in aqueous solutions. It operates on the principle of critical-angle refractometry: incident light undergoes total internal reflection at the prism–sample interface, with the resulting shadowline position directly correlated to the solution’s refractive index. Since H₂O₂ exhibits a well-characterized, monotonic relationship between refractive index and mass percent concentration at 20.3°C, the instrument converts measured optical deviation into a calibrated % w/w readout. Designed for routine quality control in disinfection validation, pharmaceutical manufacturing, medical device sterilization, and industrial cleaning processes, the PR-50HO delivers field-deployable measurement without reliance on reagents, consumables, or external power sources. Its compact, ergonomic housing—constructed from durable aluminum alloy—ensures mechanical stability under laboratory, cleanroom, or production floor conditions.

Key Features

• Optimized optical path with high-precision Abbe-type prism (BK7 glass) for consistent light transmission and minimal chromatic aberration.
• Dual-scale analog scale viewfinder supplemented by a large, backlit LCD digital display for unambiguous reading under variable ambient lighting.
• Factory-calibrated using NIST-traceable H₂O₂ reference standards across the full 0.0–50.0% range; calibration verification is performed via distilled water (0.0%) and certified 25.0% w/w H₂O₂ standard.
• No temperature control mechanism; however, built-in automatic temperature compensation (ATC) is omitted intentionally to preserve measurement integrity—users must record ambient sample temperature and apply correction per ATAGO’s published temperature–refractive index coefficient table (−0.00025/°C for H₂O₂ solutions).
• IP65-rated enclosure provides protection against dust ingress and low-pressure water jets, supporting use in humid or splash-prone environments.

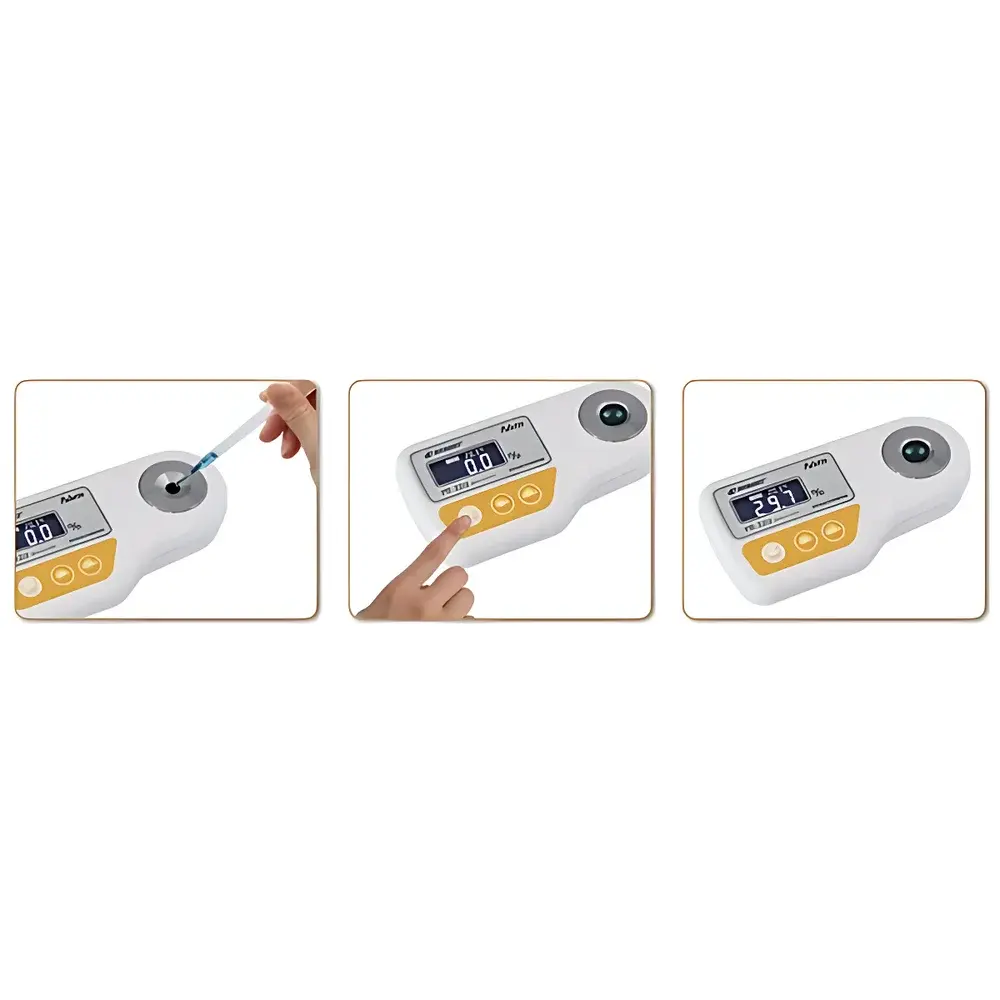

• Zero-adjustment function (“START OFF ZERO”) enables quick baseline reset prior to each measurement cycle, minimizing drift-induced error.

Sample Compatibility & Compliance

The PR-50HO is validated exclusively for clear, non-turbid, homogeneous aqueous hydrogen peroxide solutions containing no suspended solids, emulsifiers, or high-molecular-weight additives that alter refractive behavior. It is not suitable for stabilized or surfactant-containing formulations (e.g., food-grade H₂O₂ with phosphoric acid stabilizers) unless empirically revalidated. The instrument conforms to ISO 21748:2017 guidelines for refractometric measurement uncertainty estimation and supports traceability to national metrology institutes via ATAGO’s Certificate of Calibration (available upon request). While not inherently compliant with FDA 21 CFR Part 11, its documented calibration history, operator log entries, and manual audit trail meet GLP-aligned documentation requirements for non-automated analytical instruments in regulated environments.

Software & Data Management

As a standalone optical instrument, the PR-50HO does not feature onboard data logging, Bluetooth connectivity, or proprietary software integration. All measurements are recorded manually in laboratory notebooks or LIMS-compatible spreadsheets. For enterprises requiring electronic record retention, users may pair the device with ATAGO’s optional PR-1000 Digital Interface Kit (sold separately), which enables RS-232 output to PCs for real-time capture and CSV export. Audit trails—including date/time stamps, operator ID, and calibration status—are maintained externally per organizational SOPs. No firmware updates or cybersecurity protocols apply, as the device contains no microprocessor-based logic beyond basic display control.

Applications

• Verification of sterilant concentration in vaporized hydrogen peroxide (VHP) generator feed tanks prior to bio-decontamination cycles.
• Routine monitoring of H₂O₂ dilution accuracy in hospital central sterile supply departments (CSSD) and endoscope reprocessing units.
• In-process control during pharmaceutical active ingredient synthesis where H₂O₂ serves as an oxidizing agent (e.g., epoxidation reactions).
• Conformance testing of commercial disinfectants labeled as “3%”, “6%”, or “35%” w/w H₂O₂ per EPA registration specifications.
• Field assessment of wastewater effluent post-H₂O₂ advanced oxidation treatment (AOP) to confirm residual oxidant depletion.

FAQ

Is the PR-50HO suitable for measuring hydrogen peroxide in ethanol-based solutions?

No. The calibration curve is specific to aqueous H₂O₂ systems; ethanol alters refractive index nonlinearly and invalidates the % w/w correlation.
Does this refractometer require periodic recalibration by an accredited lab?

Annual recalibration is recommended for GMP environments; in-house verification using certified standards every 8 hours of operation satisfies most QC protocols.
Can I measure viscous or foaming H₂O₂ solutions?

No. Foaming interferes with prism contact; viscosity >15 cP causes incomplete surface wetting and erroneous readings.
What is the minimum sample volume required?

Approximately 0.3 mL—sufficient to fully cover the prism surface without overflow.
How does ambient temperature affect measurement validity?

Uncorrected deviations exceeding ±2°C from 20.3°C introduce systematic bias greater than ±0.3%; users must apply linear correction per ATAGO Technical Bulletin TB-PR50HO-01.
