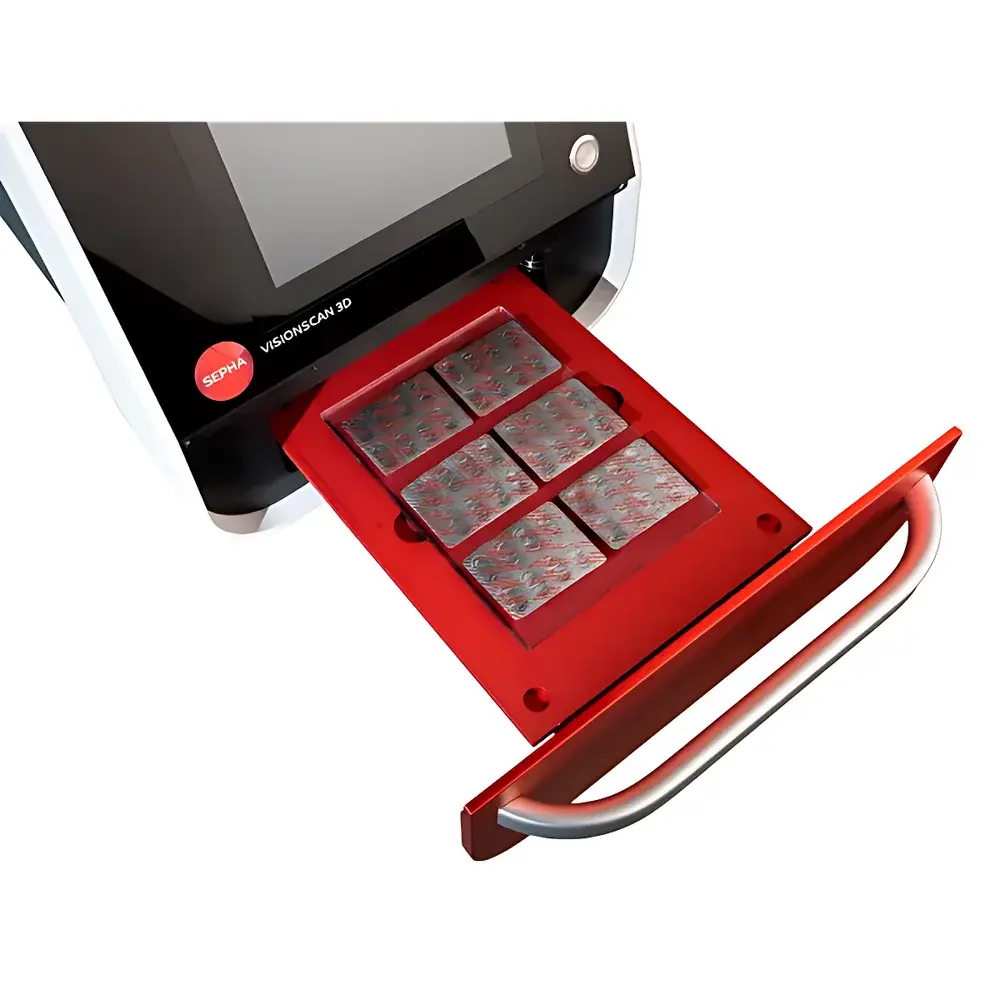

SEPHA VisionScan 3D Non-Destructive Blister Leak Tester

Overview

The SEPHA VisionScan 3D is a CE-marked, FDA-aligned non-destructive blister packaging integrity tester engineered specifically for pharmaceutical and medical device manufacturers requiring high-reliability, quantitative leak detection without compromising package sterility or shelf life. Unlike traditional destructive methods (e.g., dye ingress, bubble emission) or pressure decay systems with limited spatial resolution, the VisionScan 3D employs a proprietary 3D topographic imaging platform combined with controlled differential pressure application to detect and localize leaks across the entire blister cavity surface — including individual blister cavities, inter-cavity channels, and seal perimeter zones. Its core measurement principle integrates structured-light 3D profilometry with real-time volumetric displacement monitoring under vacuum or overpressure conditions (0–600 mbar adjustable range), enabling sub-5 µm leak sensitivity while maintaining full package integrity. Designed for GMP-compliant environments, it supports objective pass/fail criteria based on measurable geometric deviation thresholds rather than subjective visual interpretation.

Key Features

• Patented 3D surface profilometry technology detects leaks as small as 5 µm in diameter across all blister types — including opaque, glossy, matte, multi-layer, and embossed aluminum–PVC/PVDC/COEX laminates
• No tooling or mold changes required: accommodates standard and custom blister formats (e.g., push-through, cold-form, thermoformed) within a single 297 × 210 mm active test area
• High-throughput operation: simultaneous evaluation of multiple blister cards per cycle; typical cycle time ranges from 30 seconds (for gross leaks >50 µm) to 60 seconds (for micro-leaks down to 5 µm)
• 18.5-inch full-HD (1920 × 1080) PCAP capacitive touchscreen interface with intuitive icon-driven workflow navigation and multilingual UI support (English, German, French, Spanish, Chinese)
• Fully compliant with FDA 21 CFR Part 11: includes electronic signature capability, audit trail logging, user role-based access control (admin/operator/auditor), and immutable data archiving
• Integrated network connectivity via Gigabit Ethernet; supports seamless integration with LIMS, MES, and central QA servers using standard TCP/IP protocols
• Robust industrial enclosure constructed from anodized aluminum, acrylic, and polyurethane-coated steel; IP54-rated for cleanroom-compatible operation (ISO Class 7/8)

Sample Compatibility & Compliance

The VisionScan 3D accepts all commercially available blister formats — including unit-dose, multi-cavity, child-resistant, and tamper-evident configurations — irrespective of print varnish, foil finish, or substrate reflectivity. It validates compliance with critical international standards including ISO 11607-2 (Packaging for terminally sterilized medical devices), ASTM F2096 (Bubble emission test reference), and USP (Package Integrity Evaluation – Sterile Products). All test methods are fully documented and verifiable per ICH Q5C and Annex 15 requirements. System qualification (IQ/OQ/PQ) templates and protocol-ready documentation are provided as part of the standard delivery package.

Software & Data Management

The embedded Windows 10 IoT Enterprise OS runs SEPHA’s certified VisionScan Control Suite v4.2, featuring configurable test recipes, dynamic threshold mapping, and automated report generation in PDF/XLSX formats. Each test record captures full 3D surface maps, pressure/time curves, leak localization coordinates, operator ID, timestamp, and environmental metadata (temperature/humidity if external sensors are connected). Data retention is unlimited; historical records are searchable by batch number, product code, operator, or date range. Export functions support CSV, XML, and HL7 messaging for enterprise-level traceability. All software updates undergo rigorous validation per GAMP 5 guidelines.

Applications

• Final release testing of primary pharmaceutical blisters prior to secondary packaging
• In-process verification during high-speed blister line changeovers (e.g., multi-product facilities)
• Stability study packaging integrity monitoring at accelerated and real-time conditions
• Root cause analysis of seal failures during process validation or deviation investigations
• Supplier qualification and incoming inspection of contract-packaged blisters
• Regulatory submission support: provides objective, repeatable evidence for FDA, EMA, PMDA, and Health Canada filings

FAQ

Does VisionScan 3D require calibration with physical leak standards?

No — it uses intrinsic geometric referencing and pressure transducer auto-zeroing; periodic performance verification is conducted using NIST-traceable reference foils (supplied annually with service contract).
Can it distinguish between false positives caused by surface condensation or dust?

Yes — the 3D algorithm applies multi-frame temporal filtering and surface gradient analysis to suppress non-leak anomalies with >99.2% specificity (validated per ISO 13485 internal study report #VS3D-VP-2023-087).
Is remote diagnostics supported?

Yes — optional Secure Remote Access Module enables encrypted technician support via TLS 1.3 tunneling, compliant with corporate IT security policies.
What electrical and utility requirements does it have?

240–100 V AC, single-phase, 220 W max; compressed air supply ≥200 L/min at 0.6 MPa; no water or exhaust connections required.
How is method transfer handled when switching between blister formats?

Pre-loaded format libraries include over 120 common configurations; new formats are added via guided setup wizard with automatic parameter optimization — average configuration time: <4 minutes.
