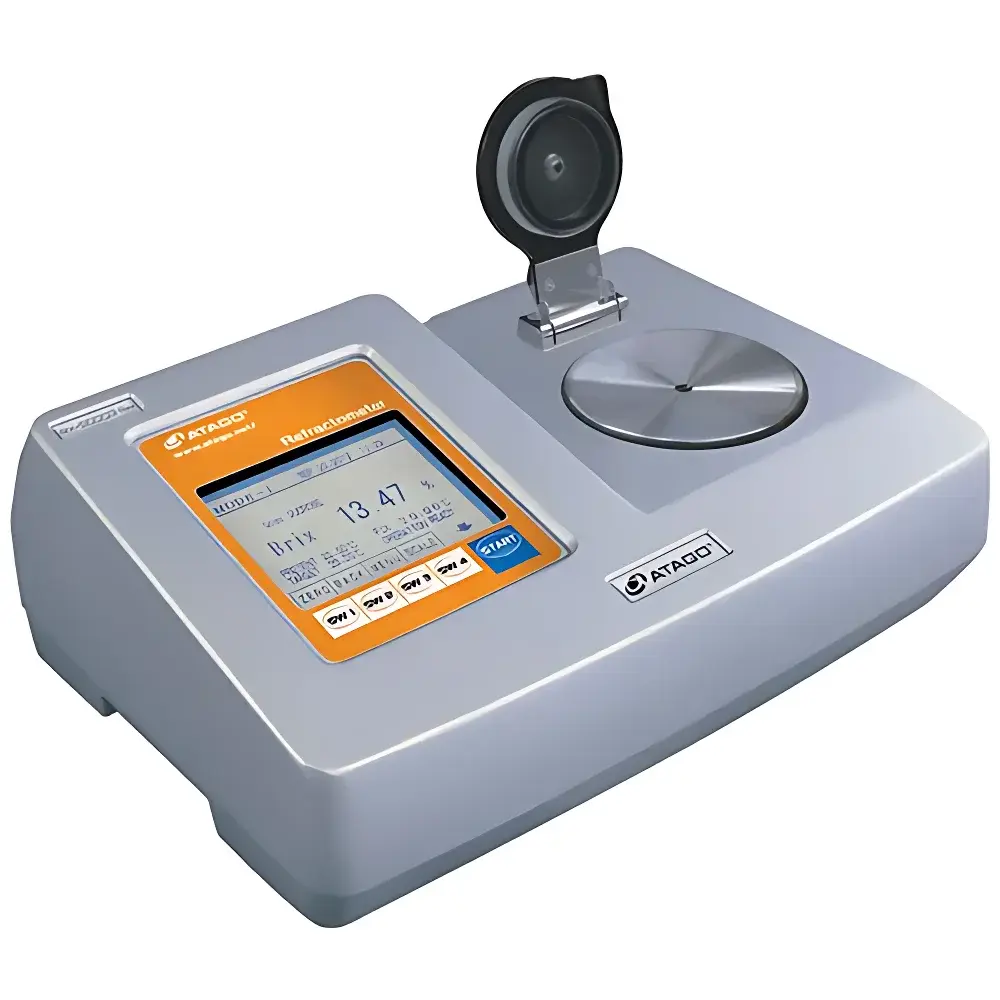

ATAGO RX-5000α-Bev Automated Benchtop Refractometer for Beverage Analysis

Overview

The ATAGO RX-5000α-Bev is a high-precision, fully automated benchtop refractometer engineered specifically for quality control and R&D applications in the beverage industry. It operates on the fundamental optical principle of total internal reflection at the prism–sample interface, where the critical angle of incidence is measured and converted into refractive index (RI) values via Snell’s law. This RI value is then algorithmically correlated to Brix concentration (°Bx) using temperature-compensated calibration curves compliant with ISO 2173 and AOAC Official Method 932.12. The instrument integrates a solid-state Peltier thermoelectric module for rapid, stable, and contactless temperature regulation—eliminating dependency on external water baths and ensuring measurement repeatability under strictly controlled thermal conditions (5.00–60.00 °C). Its dedicated beverage-oriented firmware includes preconfigured measurement modes for carbonated soft drinks, fruit juices, syrups, dairy-based beverages, and low-viscosity functional formulations.

Key Features

• Peltier-driven active temperature control with ±0.05 °C accuracy and 0.01 °C resolution, enabling ISO/IEC 17025-compliant thermal stabilization prior to each measurement cycle
• Optimized sample stage geometry featuring a smooth, chemically resistant sapphire-coated prism surface for effortless cleaning between high-throughput samples—critical for minimizing cross-contamination in multi-product beverage lines
• Four programmable measurement modes: Standard, Auto-Repeat, Continuous Monitoring, and Multi-Point Calibration Verification—supporting both routine QC checks and method validation protocols
• Dual-parameter output: simultaneous real-time display of refractive index (to 5 decimal places) and Brix (% w/w sucrose equivalent), traceable to NIST-traceable sucrose standards
• Integrated RS-232C serial interface compliant with ASTM E1382 data transmission requirements, supporting direct integration into LIMS and MES platforms with configurable ASCII output formats
• Self-diagnostic system with prism contamination detection, temperature drift alert, and calibration status flagging—designed to support GLP/GMP audit readiness

Sample Compatibility & Compliance

The RX-5000α-Bev accommodates aqueous solutions with viscosities up to 100 mPa·s and surface tensions ≥25 mN/m, covering carbonated beverages, clarified fruit juices, isotonic drinks, flavored waters, and non-dairy milk alternatives. Samples requiring degassing (e.g., carbonated soft drinks) are processed using the built-in vacuum-assisted deaeration protocol prior to prism contact. All measurements adhere to temperature-controlled referencing per ISO 2173:2003 (fruit juices) and AOAC 932.12 (general food liquids). The instrument’s optical path design meets IEC 61000-6-3 EMC immunity standards and carries CE marking for laboratory instrumentation. Traceability documentation—including factory calibration certificates with uncertainty budgets (k=2)—is supplied with each unit.

Software & Data Management

Data acquisition and reporting are managed via ATAGO’s proprietary PC software, compatible with Windows 10/11 (64-bit). The software supports FDA 21 CFR Part 11 compliance through user-level access controls, electronic signatures, and immutable audit trails for all measurement events, calibration logs, and parameter modifications. Raw data export is available in CSV, TXT, and PDF formats, with optional integration into LabWare LIMS or Thermo Fisher SampleManager via ODBC drivers. Each measurement record embeds metadata including timestamp, operator ID, ambient temperature/humidity (via optional external sensor), and thermal equilibrium confirmation status—facilitating full analytical traceability required by ISO/IEC 17025 accredited laboratories.

Applications

• Batch release testing of finished beverages against Brix specifications per internal SOPs or customer contracts
• Process monitoring of concentrate dilution ratios in high-speed bottling lines
• Stability assessment of emulsified beverages (e.g., protein-fortified drinks) via time-series RI tracking
• Raw material verification of fruit juice concentrates, sweeteners, and flavor bases
• Supporting formulation development for low-sugar or alternative-sweetener beverages by correlating RI shifts with non-sucrose solute profiles
• Participating in interlaboratory proficiency testing schemes administered by AOAC or ILAC-accredited reference labs

FAQ

Does the RX-5000α-Bev require external cooling water or chiller units?

No—the integrated Peltier module provides full-range temperature control (5–60 °C) without auxiliary fluid systems.
Can the instrument measure samples containing suspended solids or pulp?

It is designed for clear, filtered liquids; turbid or particulate-laden samples must be centrifuged or filtered (≤5 µm pore size) prior to analysis.
Is calibration traceable to national metrology institutes?

Yes—each unit ships with a factory calibration certificate referencing NIST-traceable sucrose standards, with measurement uncertainty reported at k=2.
What maintenance is required beyond daily prism cleaning?

Annual verification by an ATAGO-authorized service center is recommended; no consumables or routine optical alignment are required during normal operation.
How does the instrument handle temperature fluctuations during long-term monitoring?

The closed-loop Peltier control continuously adjusts power output to maintain setpoint within ±0.05 °C, with thermal stability confirmed every 3 seconds during active measurement mode.
