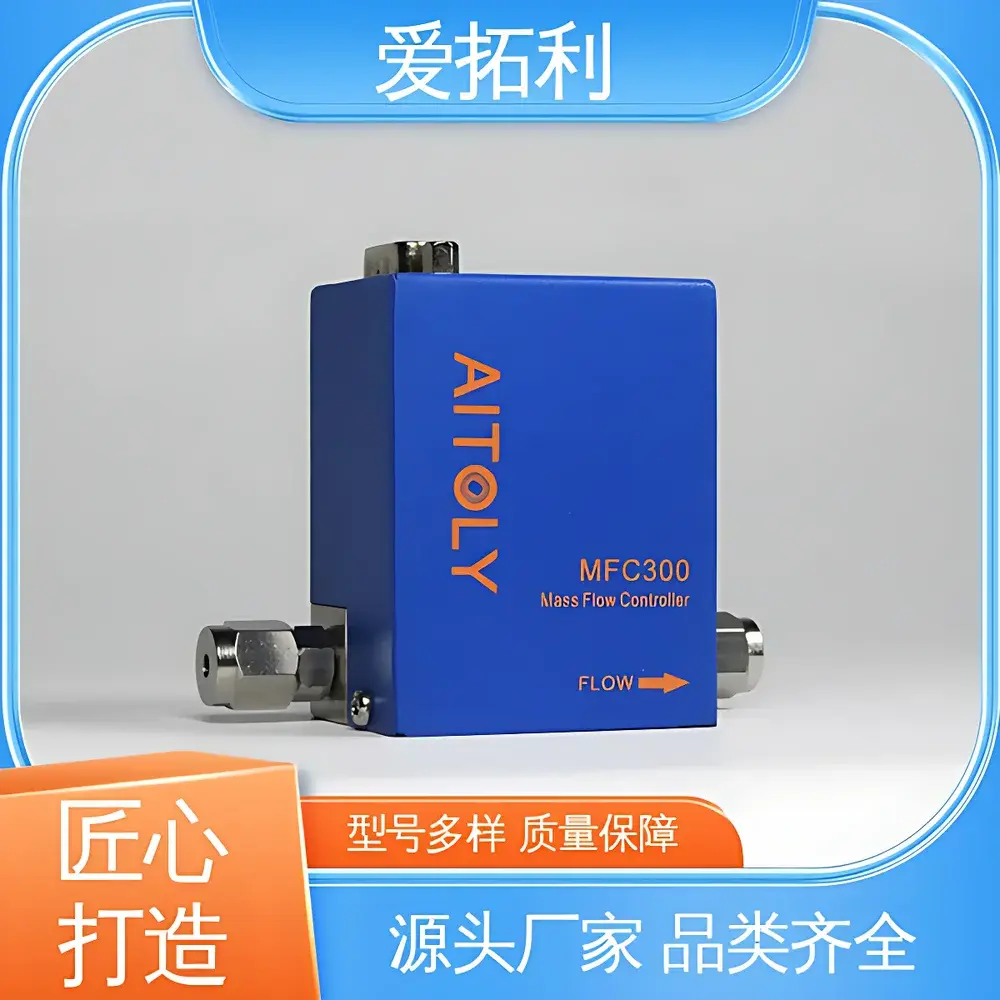

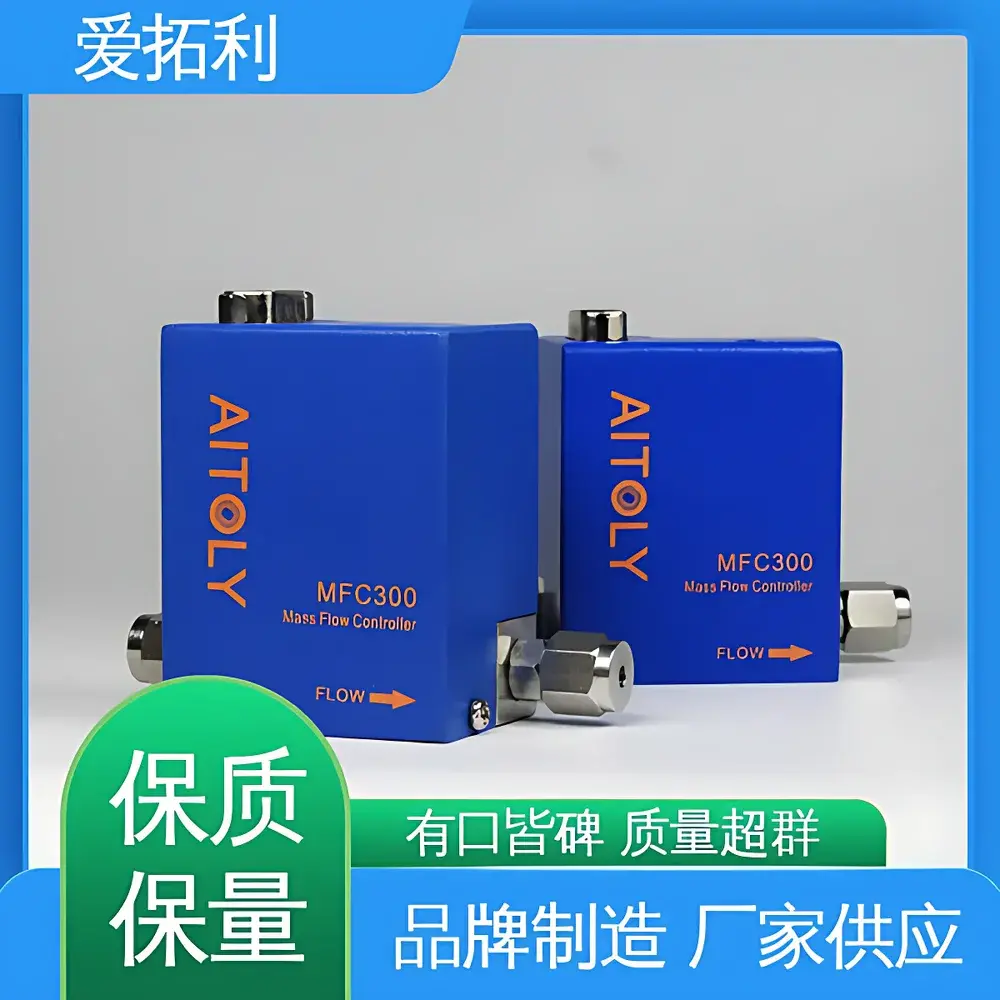

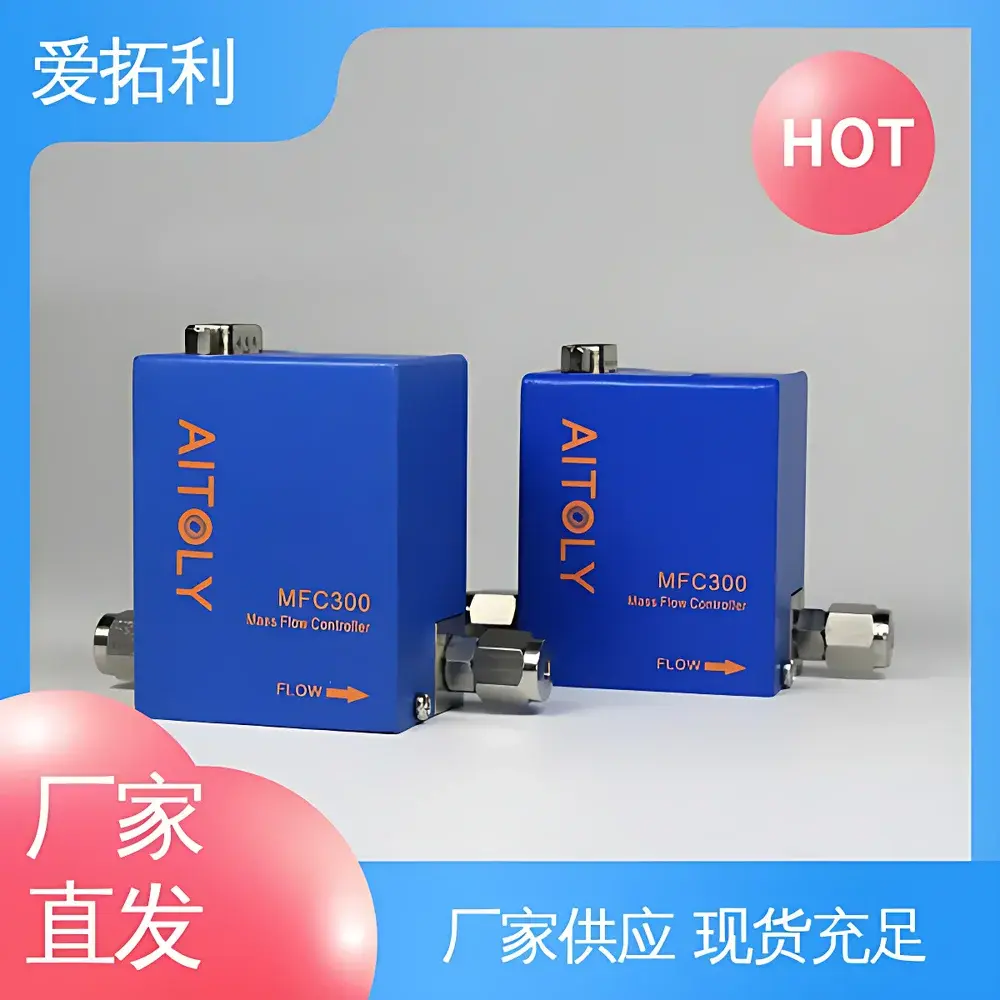

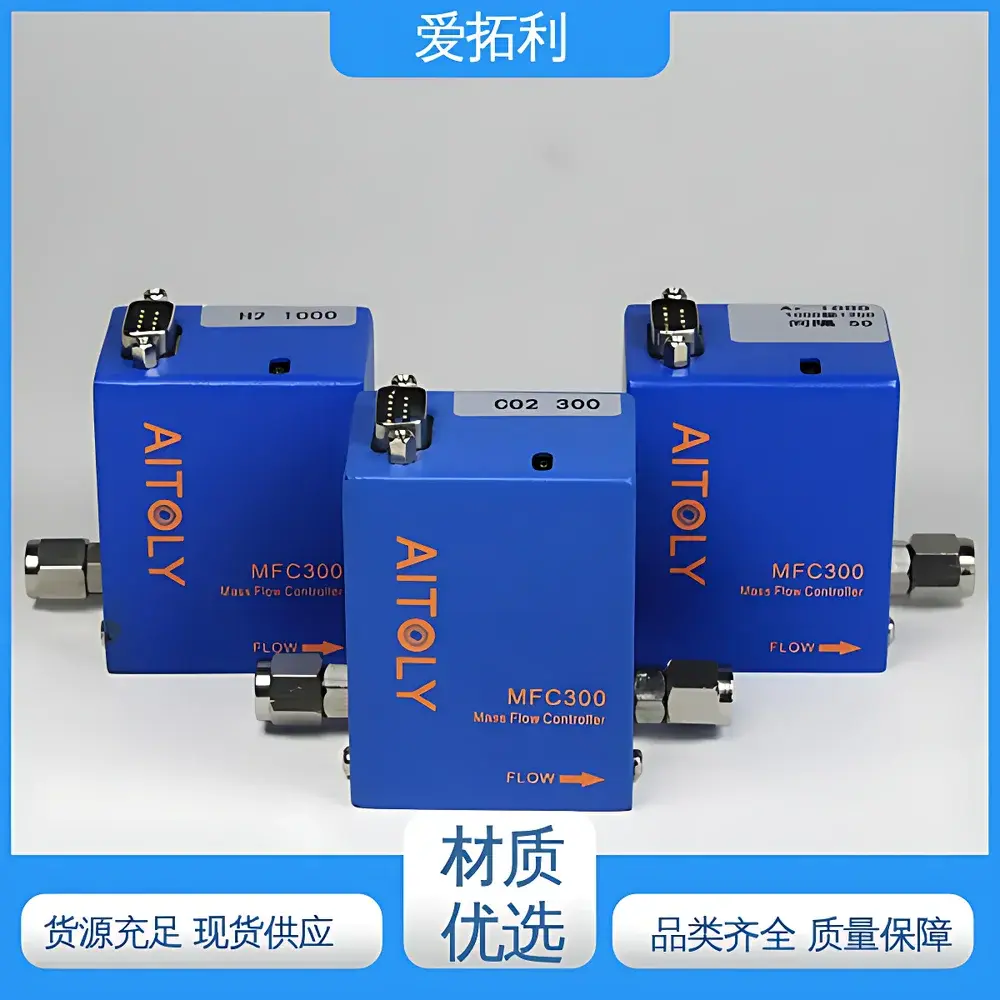

Atotech MFC300_RS485 Thermal Mass Flow Controller

Overview

The Atotech MFC300_RS485 is a high-performance thermal mass flow controller engineered for precise, real-time regulation and measurement of gas mass flow rates in industrial process control, laboratory automation, and analytical instrumentation systems. Utilizing constant-temperature anemometry (CTA) principle, the device measures heat transfer between a heated sensor element and the flowing gas stream—enabling direct mass flow determination independent of pressure and temperature fluctuations within specified operating ranges. Unlike volumetric flow devices, thermal mass flow controllers inherently compensate for gas density variations, making them ideal for applications requiring consistent stoichiometric control across mixed or variable gas compositions. The MFC300_RS485 operates without mechanical moving parts, eliminating wear-related drift and ensuring long-term stability under continuous duty cycles. Its compact design, wide dynamic range (up to 100:1 turndown), and fast response time (<1 s) support demanding applications in semiconductor fabrication, fuel cell testing, catalytic reactor feed control, and environmental emission monitoring.

Key Features

• Thermal sensing architecture with no moving parts—ensures maintenance-free operation and high reliability over extended service life
• Multi-gas calibration capability for Air, He, Ar, N₂, and CO₂—enabling flexible deployment across diverse process gases without hardware modification
• Galvanically isolated digital communication interfaces (RS232, RS422, RS485, CAN) compliant with industrial EMI/EMC standards (IEC 61000-4 series)
• Analog output (0–5 VDC or 4–20 mA) and bidirectional digital command support for closed-loop integration with PLCs, DAQ systems, or custom SCADA platforms
• Low zero drift performance—validated per ASTM F2781-10 for baseline stability under thermal soak conditions
• Wide input voltage range (15–40 VDC) compatible with standard industrial power supplies and redundant DC bus architectures
• Configurable setpoint ramping, flow hold, and auto-zero functions accessible via serial command protocol

Sample Compatibility & Compliance

The MFC300_RS485 is validated for use with non-corrosive, non-condensing gases including ambient air, helium, argon, nitrogen, and carbon dioxide. It complies with ISO 9001 manufacturing quality requirements and meets CE marking directives for electromagnetic compatibility (2014/30/EU) and low-voltage safety (2014/35/EU). While not certified to ATEX or IECEx for hazardous area installation, the unit may be deployed in Zone 2 environments when installed upstream of explosion-proof barriers per IEC 60079-14 guidelines. For regulated industries, firmware supports audit-trail–capable configuration logging (when used with MCL300 controller), aligning with basic GLP data integrity expectations. Calibration certificates traceable to NIM (National Institute of Metrology, China) are available upon request.

Software & Data Management

The MFC300_RS485 supports ASCII-based serial command sets compatible with common terminal emulators (e.g., Tera Term, PuTTY) and programmable environments (Python pySerial, LabVIEW VISA, MATLAB Serial). All parameters—including full-scale range, gas selection, PID tuning coefficients, and analog output scaling—are configurable via digital interface. When paired with the optional MCL300 master controller, up to 16 MFC300 units can be daisy-chained on a single RS485 bus, enabling synchronized multi-channel flow management with timestamped cumulative flow logging (resolution: 0.001 sccm·h). MCL300 firmware implements local data buffering and USB export functionality, generating CSV-formatted reports suitable for trending analysis in Excel or statistical process control (SPC) software. No proprietary drivers or cloud dependencies are required—ensuring full operational autonomy in air-gapped or classified network environments.

Applications

• Precise gas dosing in plasma etch and CVD reactors for semiconductor wafer processing
• Calibration reference standard for portable gas analyzers and emissions monitors (per EPA Method 205)
• Controlled purge and carrier gas delivery in GC and GC-MS sample introduction systems
• Fuel and oxidizer ratio management in laboratory-scale combustion test benches
• Gas blending and dilution systems for calibration gas generators (ISO 6142)
• Leak testing instrumentation requiring stable, repeatable flow sources
• Bioreactor sparging control where O₂/N₂/CO₂ mixture ratios impact cell culture viability

FAQ

Does the MFC300_RS485 require periodic recalibration?
Yes—recommended annually under normal operating conditions, or after exposure to contamination, pressure surges exceeding 1.1 MPa, or ambient temperatures beyond 0–65 °C. Recalibration must be performed using certified gas standards traceable to national metrology institutes.

Can the device measure wet or corrosive gases?
No. The sensor is incompatible with condensable vapors, aerosols, or chemically aggressive gases (e.g., Cl₂, NH₃, H₂S). Installation upstream of filters and dryers is mandatory for humidified or particulate-laden streams.

Is firmware upgrade supported in-field?
Yes—via RS232 or USB-to-serial adapter using Atotech’s documented bootloader protocol. Version history and release notes are published in the technical documentation package.

What is the maximum allowable pressure drop across the device?
The unit is rated for differential pressures up to 1 MPa. Exceeding this limit may compromise sensor accuracy and mechanical integrity of internal flow channels.

How is gas-specific calibration handled?
Each unit ships pre-calibrated for one primary gas (user-specified at order). Multi-gas operation relies on built-in correction factors derived from molecular weight and specific heat capacity—accuracy remains within ±1.5% FS for listed gases when operated within calibrated range.
