AUCMA Cold Chain Temperature & Humidity Monitoring System (AKMS-03 / AKMB-03D Series Data Logger)

Overview

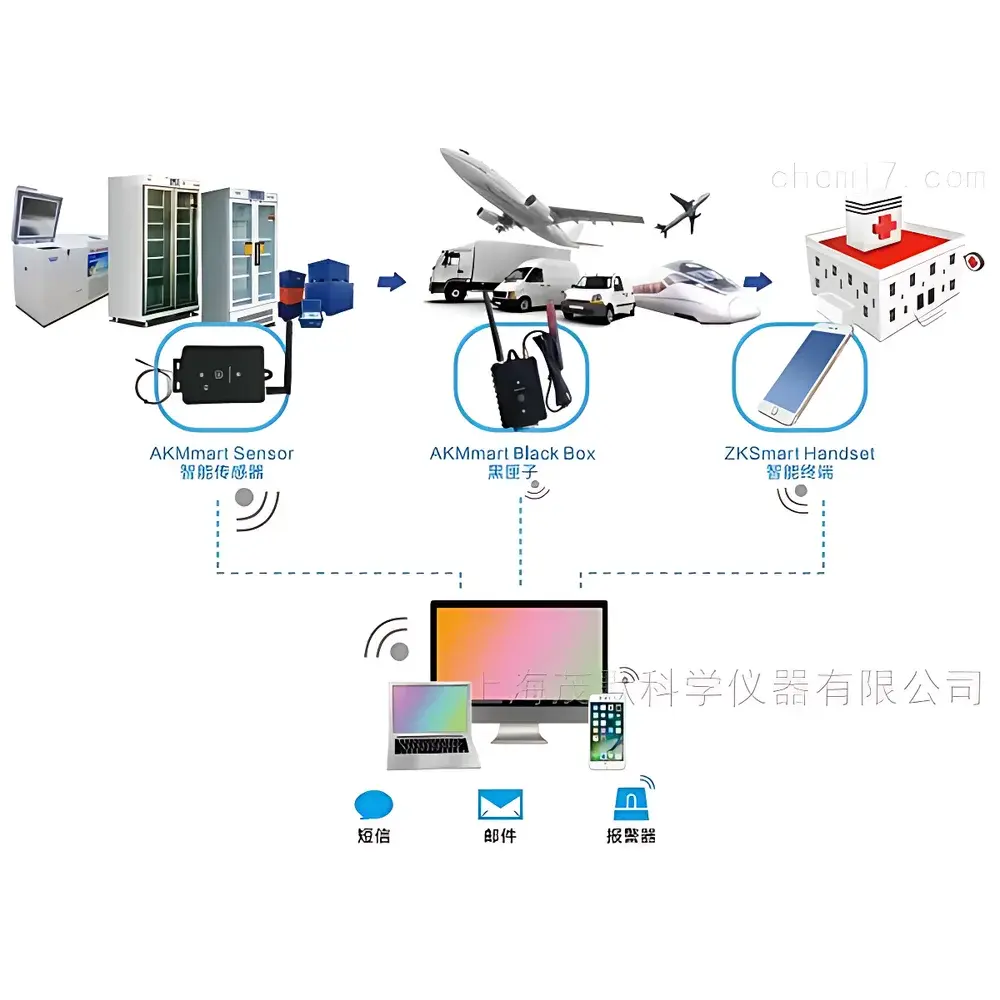

The AUCMA Cold Chain Temperature & Humidity Monitoring System is a purpose-engineered, multi-channel IoT-based environmental surveillance platform designed for continuous, audit-ready monitoring of temperature-sensitive logistics and storage environments. Built on AUCMA’s second-generation interBow® low-power wide-area wireless communication architecture, the system integrates three core components: the AKMS-03 intelligent data logger (for ambient and refrigerated conditions), the AKMB-03D cryogenic sensor module (for ultra-low-temperature applications down to –200 °C), and the AKMB wireless gateway (for edge-level data aggregation and cellular backhaul). Unlike legacy standalone loggers, this system operates as a unified telemetry network—enabling real-time acquisition, local buffering, encrypted over-the-air transmission, and centralized cloud logging. It complies with foundational requirements for cold chain integrity in pharmaceutical distribution, biobanking, clinical trial sample transport, and food safety management—supporting traceability frameworks aligned with WHO GDP, EU Annex 15, and ISO 14644-1 environmental classification principles.

Key Features

• Multi-tier sensing architecture: Combines high-accuracy ambient (AKMS-03) and deep-cryogenic (AKMB-03D) measurement modules within a single interoperable ecosystem
• Robust physical design: AKMS-03 rated IP67 (dust-tight and submersible up to 1 m for 30 min); AKMB-03D and AKMB rated IP54 (dust-protected and splash-resistant)
• Long-duration autonomous operation: AKMS-03 achieves 2–5 years of field deployment on two CR2450 coin cells (sampling interval dependent); AKMB-03D and AKMB utilize rechargeable 18650 Li-ion batteries with integrated charge management
• Industrial-grade temperature performance: AKMB-03D delivers ±(0.3 + 0.005t) °C accuracy across –200 °C to +150 °C, with 0.1 °C resolution—validated per IEC 60751 Class A tolerances for Pt100-equivalent response
• Secure, standards-aligned connectivity: interBow® protocol ensures deterministic latency and coexistence in dense RF environments; GPRS/2G uplink supports mobile network redundancy (China Mobile & China Unicom)
• On-device memory + cloud synchronization: Local 4 Mbit flash storage (AKMS-03) and ≥100,000-record buffer (AKMB) ensure zero data loss during transient network outages

Sample Compatibility & Compliance

The system is validated for use across fixed and dynamic cold chain environments—including medical refrigerators (2–8 °C), ultra-low freezers (–80 °C), cryogenic dewars (–196 °C), refrigerated transport vehicles, insulated shipping containers, and warehouse cold rooms. All hardware modules undergo EMC testing per GB/T 17626 series (IEC 61000-4 equivalents) and operate within FCC Part 15 Subpart C and SRRC regulatory limits for unlicensed ISM-band devices. While not pre-certified to FDA 21 CFR Part 11 or EU Annex 11, the architecture supports implementation of electronic audit trails, user access controls, and data immutability protocols required for GLP/GMP-aligned validation. Raw sensor data export formats (CSV, JSON) are compatible with third-party LIMS and QMS platforms.

Software & Data Management

Data from all nodes is ingested into AUCMA’s secure cloud platform via TLS 1.2–encrypted RESTful APIs. The web interface provides real-time dashboards, configurable alarm thresholds (SMS/email/push), historical trend visualization, and automated PDF report generation (including time-stamped calibration metadata). Role-based access control (RBAC) enforces separation of duties between operators, reviewers, and administrators. All data modifications are logged with immutable timestamps and user identifiers—meeting minimum ALCOA+ (Attributable, Legible, Contemporaneous, Original, Accurate, Complete, Consistent, Enduring, Available) principles. Exported datasets retain embedded cryptographic hashes for forensic verification of data integrity.

Applications

• Pharmaceutical cold chain validation: Monitoring vaccine stability during distribution (e.g., mRNA formulations requiring –70 °C transport)
• Clinical trial logistics: Ensuring specimen integrity for central lab shipments under ISO 20387 biobanking requirements
• Food safety compliance: Continuous verification of HACCP critical control points in frozen seafood or dairy transport
• Research infrastructure: Environmental qualification of cryo-storage facilities for stem cell repositories or genomic biobanks
• Regulatory submission support: Generating auditable temperature excursions logs compliant with MHRA, PMDA, and Health Canada guidance documents

FAQ

What is the maximum operational distance between an AKMS-03 logger and the AKMB gateway?
Under open-field line-of-sight conditions, the interBow® 433 MHz link supports ≥650 meters; typical indoor or vehicle-mounted deployments achieve 50–200 meters depending on structural attenuation.
Can the AKMB-03D module be used independently without the AKMB gateway?
No—it is designed exclusively as a slave node in the interBow® mesh; it requires the AKMB gateway for power management, time synchronization, and upstream data routing.
Does the system support calibration certificate traceability to national standards?
Yes—AUCMA provides optional NIST-traceable calibration reports (ISO/IEC 17025 accredited labs) upon request, covering both temperature and relative humidity channels.
Is firmware update capability available over-the-air (OTA)?
Yes—secure OTA updates are supported for all device classes via signed binary packages delivered through the cloud platform.
How is data retention handled during extended network outages?
All loggers and gateways implement circular-buffer local storage; data is retained until successfully transmitted and acknowledged by the cloud server—ensuring no loss even during multi-day connectivity failures.
