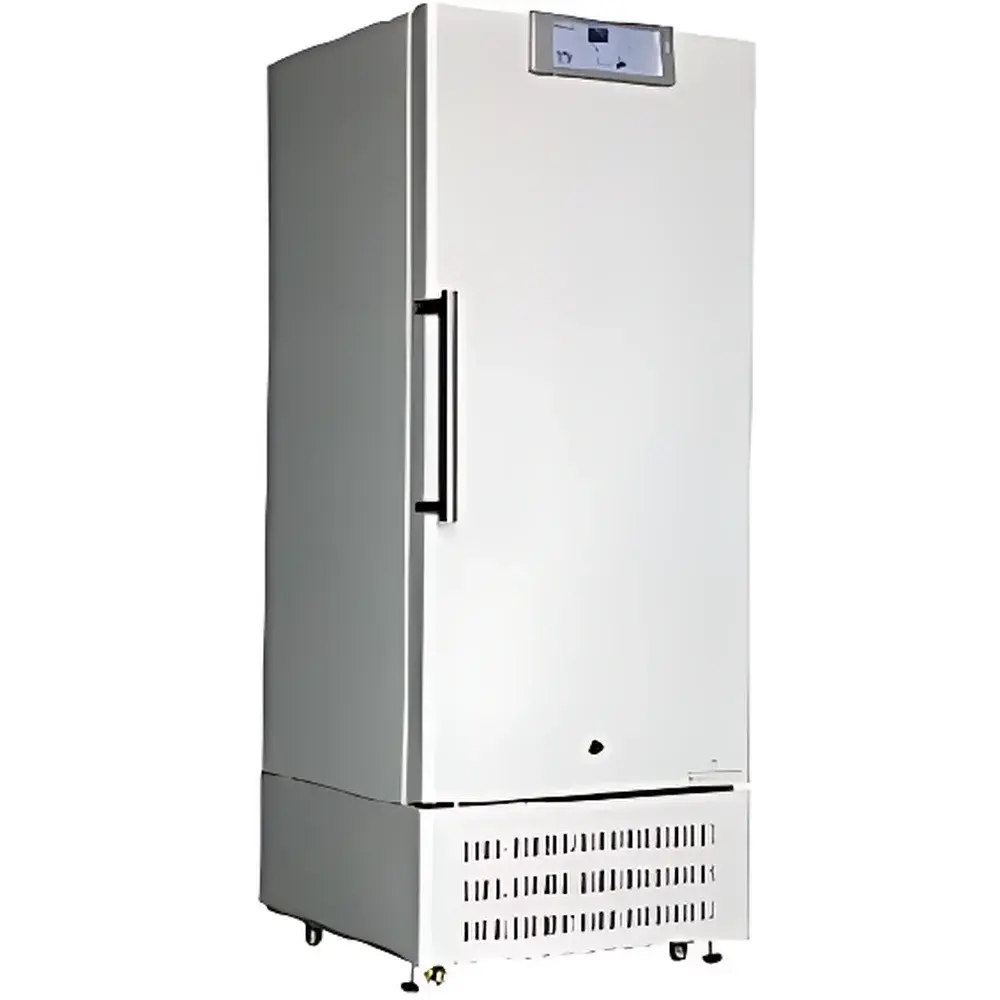

AUCMA DW-40L206 -40°C Ultra-Low Temperature Laboratory Freezer

Overview

The AUCMA DW-40L206 is a purpose-engineered upright ultra-low temperature laboratory freezer designed for stable, long-term storage of biologics, plasma, vaccines, cryopreserved cell lines, and temperature-sensitive reagents at controlled conditions between –10 °C and –40 °C. Unlike deep-cold cryogenic freezers operating below –80 °C, this unit occupies a critical niche in the cold chain infrastructure where consistent sub-zero stability—without excessive energy demand or mechanical complexity—is essential. Its thermodynamic architecture employs a cascade-free single-stage refrigeration cycle optimized for reliability and thermal uniformity across the 206 L internal volume. The system complies with fundamental design principles outlined in ISO 14644-1 (cleanroom-compatible air handling), IEC 61000-6-3 (EMC emission standards), and supports adherence to GLP and GMP environmental monitoring requirements when integrated into validated laboratory workflows.

Key Features

• Precision microprocessor-based temperature control with ±0.5 °C stability across the full operating range (–10 °C to –40 °C), displayed via front-panel LED interface.
• Dual-stage gasketed door seal and 90 mm thick high-density polyurethane insulation with microcellular foaming technology ensure low heat ingress and energy-efficient operation.
• Imported high-torque rotary compressor paired with EBM brushless AC condenser fans enables rapid cooldown (≤3 hours from 25 °C ambient to –40 °C setpoint) and sustained thermal recovery after door openings.
• Comprehensive safety architecture: configurable high/low temperature alarms (audible + visual), keypad lockout, compressor time-delay restart, and over-temperature cut-off.
• Ergonomic upright configuration with five-tier pull-out wire baskets (included), adjustable leveling feet with locking casters, and wide-climate-band operation (10 °C to 32 °C ambient).
• Environmentally compliant refrigeration: uses zero-ozone-depletion-potential (ODP) refrigerant and non-CFC/HCFC blowing agents in insulation foam.

Sample Compatibility & Compliance

The DW-40L206 maintains thermal homogeneity suitable for storage of primary human plasma units (per AABB standards), lyophilized vaccines (aligned with WHO cold chain guidance), RNA/DNA extracts, monoclonal antibody intermediates, and polymer-based electronic substrates requiring low-thermal-expansion environments. Its interior chamber—constructed from electropolished stainless steel—resists corrosion from repeated ethanol wipe-downs and meets ISO 10993-5 cytotoxicity screening thresholds for indirect contact. While not certified to UL 471 or NSF/ANSI 456 for clinical blood banking, the unit satisfies baseline requirements for research-grade biospecimen storage under CLSI GP44-A4 and NIH BTRIS guidelines. Documentation packages support IQ/OQ validation protocols and include factory calibration certificates traceable to NIST standards.

Software & Data Management

This model operates as a standalone instrument without embedded data logging; however, its analog alarm outputs (dry contact and 0–10 V signals) are compatible with third-party building management systems (BMS) and centralized lab monitoring platforms such as Siemens Desigo CC or Emerson DeltaV. Optional external USB-enabled temperature loggers (e.g., Onset HOBO UX100 series) can be deployed inside the chamber for continuous 21 CFR Part 11-compliant recording when paired with validated software. All firmware updates and parameter adjustments are performed locally via the front-panel interface—no cloud connectivity or proprietary software installation required. Audit trails are maintained through manual logbook entries or integration with LIMS via RS-485 Modbus RTU (available upon request with optional communication module).

Applications

• Long-term archival storage of human serum, platelet-rich plasma (PRP), and cord blood derivatives in hospital transfusion services and biobanks.
• Stabilization of thermolabile diagnostic reagents—including ELISA kits, PCR master mixes, and enzyme conjugates—in QC/QA laboratories.
• Pre-conditioning and intermediate-temperature hold stages for materials testing per ASTM D618 and IEC 60068-2-1 (cold storage phase).
• Backup cold storage for vaccine distribution hubs operating within the WHO PQS cold chain framework.
• Controlled environment for semiconductor wafer handling and low-temperature coefficient resistor aging studies in electronics R&D labs.

FAQ

What is the recommended ambient temperature range for optimal performance?
The unit is rated for continuous operation in ambient environments from 10 °C to 32 °C, with humidity ≤70% RH non-condensing. Performance validation was conducted per ISO 16741 at 25 °C/60% RH.
Does the DW-40L206 support 21 CFR Part 11 compliance out of the box?
No. It lacks built-in electronic audit trail functionality. Full Part 11 compliance requires integration with validated external data loggers and procedural controls.
Can this freezer be used for storing live cell cultures?
It is suitable for short-term holding (≤72 h) of cryopreserved vials prior to liquid nitrogen transfer but not intended for active cell culture incubation or thawing protocols.
Is the interior lighting explosion-proof or intrinsically safe?
No. The LED illumination is standard Class I, Division 2 rated—not suitable for flammable vapor environments per NEC Article 500.
What maintenance intervals are specified for the refrigeration system?
Compressor oil and refrigerant charge require verification every 24 months by authorized AUCMA service technicians using calibrated manifold gauges and leak detection equipment.
