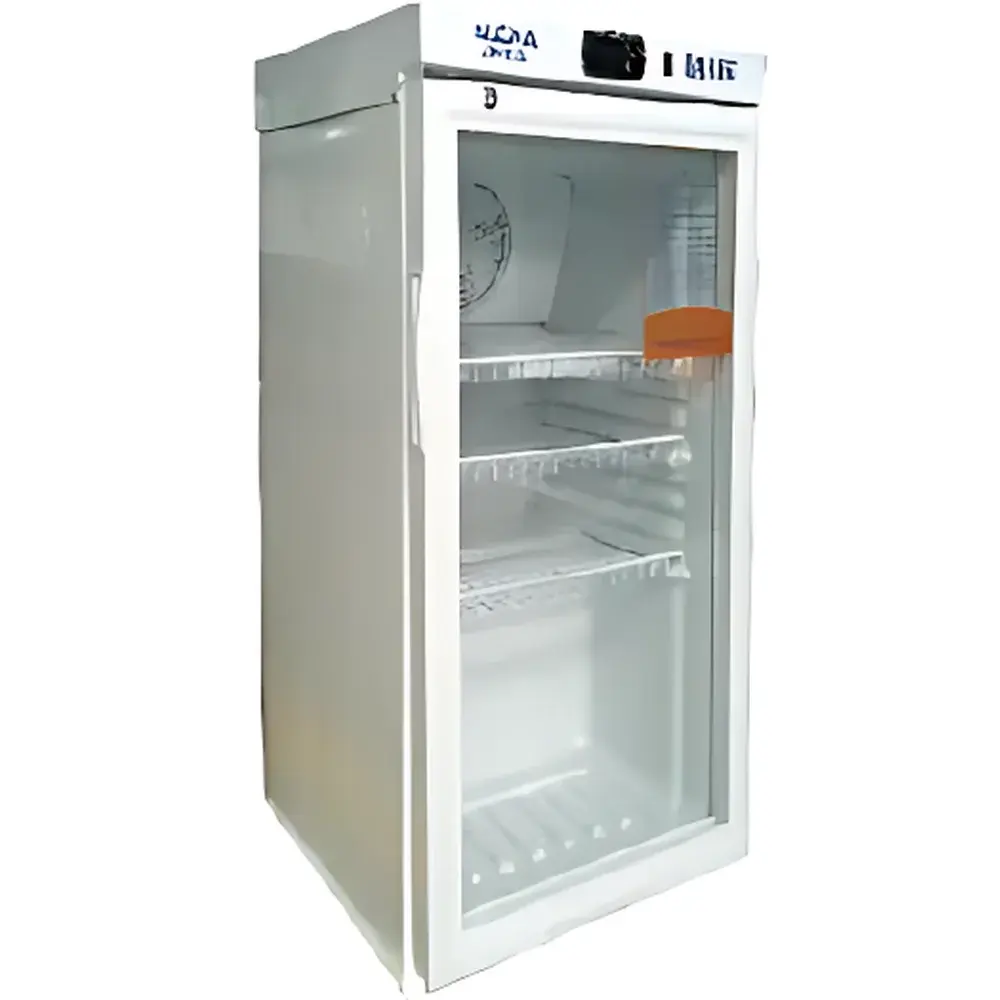

AUCMA YC-80 Pharmaceutical Refrigerator (2–8°C)

Overview

The AUCMA YC-80 Pharmaceutical Refrigerator is a purpose-engineered, microprocessor-controlled cold storage unit designed to maintain a stable, validated temperature range of 2–8°C—strictly aligned with WHO, USP , and EU GDP guidelines for the safe storage of temperature-sensitive pharmaceuticals, vaccines, biological reagents, and clinical specimens. Unlike general-purpose refrigerators, the YC-80 employs forced-air convection with optimized evaporator-coil geometry and high-efficiency thermal insulation (≥60 mm polyurethane foam, CFC-free) to ensure spatial temperature uniformity (±0.8°C across all shelf levels per ICH Q5C stability testing protocols) and rapid recovery (<15 min) after door openings of up to 30 seconds. Its architecture prioritizes regulatory readiness: the digital temperature controller logs internal conditions at user-defined intervals (default: 10-min), retains data for ≥72 hours during mains failure via backup lithium battery, and supports external data extraction via RS485 interface for audit-trail compliance under FDA 21 CFR Part 11 and ISO/IEC 17025-accredited quality systems.

Key Features

• Microprocessor-based PID temperature control with 0.1°C display resolution and ±0.3°C calibration accuracy (traceable to NIST-certified reference standards)
• Forced-air circulation system utilizing an EBM (Germany) brushless DC condenser fan and hermetically sealed rotary compressor for low-vibration, low-noise operation (<42 dB[A]) and extended service life
• Triple-layer safety protocol: real-time monitoring of cabinet temperature, door status, sensor integrity, ambient voltage, and internal battery health—with simultaneous audible (85 dB), visual (LED flash), and relay-based remote alarm outputs
• Robust mechanical design: tempered double-glazed glass door with low-emissivity (Low-E) coating to suppress surface condensation and minimize thermal bridging; integrated door lock compliant with ISO 15197:2013 physical security requirements
• Wide-input voltage tolerance (187–242 V AC) with soft-start circuitry and compressor delay protection (≥3 min restart interval) to withstand grid fluctuations common in multi-instrument laboratory environments
• Three independently adjustable stainless-steel wire shelves (load capacity: 15 kg/shelf), fully removable for cleaning and configurable spacing to accommodate vial racks, cryoboxes, or stacked trays

Sample Compatibility & Compliance

The YC-80 is validated for continuous storage of unopened and in-use parenteral preparations (e.g., insulin, monoclonal antibodies), lyophilized vaccines (e.g., mRNA-LNP formulations), diagnostic enzyme reagents, and human serum/plasma samples. Its interior chamber (360 × 400 × 680 mm) accommodates standard ISO 5564-compliant 2 mL, 5 mL, and 15 mL screw-cap tubes, as well as 100 mm Petri dishes and 96-well plates placed on flat shelving. The unit conforms to IEC 61000-4 electromagnetic compatibility standards and meets CE marking requirements under Directive 2014/30/EU (EMC) and 2014/35/EU (LVD). It supports GLP/GMP documentation workflows through optional CSV-compatible data loggers and satisfies cold-chain validation prerequisites outlined in ASTM D3103-22 (Performance Testing of Refrigerated Transport Equipment).

Software & Data Management

While the YC-80 operates autonomously via its embedded controller, it integrates seamlessly into centralized lab infrastructure via its RS485 serial port (Modbus RTU protocol). Third-party environmental monitoring platforms—including Vaisala viewLinc, DicksonOne, and SensiLog—can poll real-time temperature, alarm status, and event timestamps at configurable intervals (1–60 min). All logged data are time-stamped with internal RTC (battery-backed), include CRC error-checking, and retain full traceability for FDA audit readiness. Optional USB data export enables offline review of 30-day historical trends (min/max/avg per hour) in CSV format, supporting root-cause analysis during out-of-specification (OOS) investigations per ALCOA+ principles.

Applications

• Hospital pharmacy satellite dispensing units requiring 2–8°C storage for IV admixtures and oncology biologics
• QC/QA laboratories performing stability studies per ICH Q1A(R2) under long-term (25°C/60% RH) and accelerated (40°C/75% RH) conditions—where the YC-80 serves as the controlled reference environment for 0-month baselines
• Vaccination centers maintaining WHO-prequalified cold chain integrity for routine immunization programs (EPI)
• Contract research organizations (CROs) managing biobank specimen inventories prior to cryopreservation or nucleic acid extraction
• Biotech startups validating excipient compatibility and formulation robustness during preclinical development phases

FAQ

Is the YC-80 suitable for storing frozen vaccines or lyophilized products requiring sub-zero temperatures?
No. The YC-80 is strictly a +2°C to +8°C refrigerator and does not provide freezing capability. For frozen vaccines (e.g., varicella, MMRV) or lyophilized therapeutics requiring –20°C or –70°C, AUCMA’s YC-25L or YC-86U ultra-low temperature series must be selected.
Does the unit include factory calibration documentation?
Yes. Each unit ships with a Certificate of Conformance and a NIST-traceable temperature calibration report (performed at three points: 2°C, 5°C, and 8°C) using a Fluke 1523 thermometer and dry-block calibrator.
Can the alarm relay output interface with building management systems (BMS)?
Yes. The normally open (NO) contact relay supports 24 VDC/1 A switching and is compatible with standard BMS input modules for centralized alerting and incident logging.
What is the recommended maintenance schedule?
Compressor oil and refrigerant integrity should be verified annually by authorized service personnel; condenser coils require vacuum cleaning every 6 months in dust-prone environments; door gasket integrity must be inspected quarterly per ISO 13485 clause 7.5.11.
Is remote firmware update supported?
No. Firmware updates require local USB connection and authenticated access via AUCMA’s proprietary engineering utility—consistent with IEC 62304 Class B medical device software lifecycle controls.
