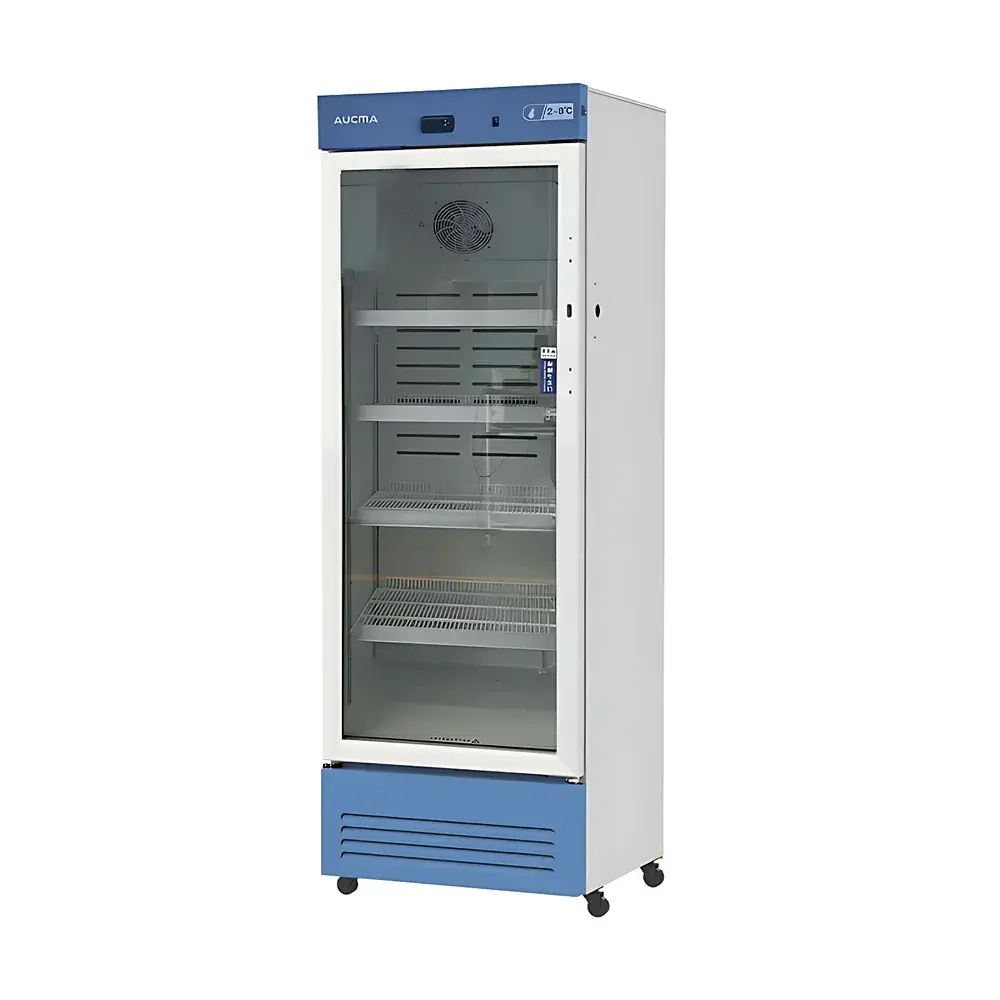

AUCMA YC Series 2–8°C Medical Refrigerator for Laboratory and Clinical Use

Overview

The AUCMA YC Series 2–8°C Medical Refrigerator is a purpose-engineered cold storage solution designed for the secure, compliant, and stable preservation of temperature-sensitive biological materials—including vaccines, reagents, serum, blood components, diagnostic kits, and clinical specimens—in laboratory, pharmacy, and point-of-care environments. Built upon a validated refrigeration architecture, it employs forced-air circulation with precision microprocessor-based PID control to maintain chamber uniformity within ±0.5°C across all load conditions. Unlike general-purpose commercial refrigerators, the YC Series integrates medical-grade thermal validation readiness—featuring calibrated NTC sensors traceable to national standards, continuous internal temperature logging capability (via optional USB export), and structural design aligned with ICH guidelines for long-term stability testing environments. Its cabinet construction utilizes high-density CFC-free polyurethane insulation and an R134a refrigeration loop optimized for low ambient operating ranges (10–32°C), ensuring consistent performance even in non-climate-controlled utility rooms or mobile clinical units.

Key Features

• Microprocessor-controlled temperature management with dual digital LED display (chamber setpoint and real-time reading)
• Forced-air convection system delivering ≤1.2°C vertical/horizontal temperature uniformity (measured per ISO 10570:2021 Annex B)
• Redundant safety architecture: independent high/low temperature alarm thresholds, door-open detection with configurable timeout (1–120 sec), sensor failure diagnostics
• Compressor protection logic including programmable start-delay (0–5 min) and minimum off-cycle interval (≥3 min) to prevent mechanical stress
• Eco-compliant refrigeration: R134a refrigerant and zero-ozone-depletion polyurethane foam insulation (ODP = 0, GWP < 1500)
• Modular interior configuration: removable wire baskets (YC-50 to YC-330) or full-extension drawers (YC-280HC onward); all stainless steel or food-grade coated steel
• Lockable door with key or optional electronic access control (add-on module)

Sample Compatibility & Compliance

The YC Series accommodates primary and secondary packaging formats used in regulated life science workflows—including 2 mL cryovials, 15/50 mL conical tubes, multi-well plates (sealed), vaccine vials (glass and polymer), and diagnostic assay cartridges. Internal dimensions are engineered to support standard ISO/IEC 17025-compliant validation protocols: chamber mapping studies confirm ≥90% usable volume maintains ±0.5°C deviation from setpoint under static and dynamic (door-open) conditions. While not certified to FDA 21 CFR Part 11 out-of-the-box, the unit’s hardware architecture supports integration with third-party electronic logbook systems that provide audit-trail functionality, user authentication, and data integrity controls required for GLP and GMP environments. It conforms to electromagnetic compatibility (EMC) standards IEC 61326-1 and electrical safety standard IEC 61010-1 for laboratory equipment.

Software & Data Management

The base model includes embedded temperature monitoring with local event logging (up to 10,000 records), accessible via USB port for CSV export. Optional upgrades include Ethernet/Wi-Fi connectivity enabling remote monitoring through AUCMA’s CloudLink platform—supporting real-time SMS/email alerts, historical trend visualization, and exportable PDF reports compliant with ISO/IEC 17025 clause 7.7. All logged data includes timestamp, sensor ID, value, and alarm status flags. The system architecture permits integration with enterprise LIMS or environmental monitoring platforms via Modbus RTU or MQTT protocols, facilitating centralized oversight across multi-site clinical trial networks or central lab infrastructures.

Applications

• Vaccine storage and distribution (aligned with WHO PQS and CDC Vaccine Storage Guidelines)
• Stability testing of pharmaceutical intermediates and finished dosage forms per ICH Q5C
• Short-to-medium term storage of human biospecimens (serum, plasma, CSF) prior to nucleic acid extraction or biobanking
• Refrigerated holding of ELISA, lateral flow, and molecular diagnostic reagents requiring 2–8°C conditioning
• Backup cold storage for ultra-low temperature freezers during maintenance cycles
• On-site specimen refrigeration in mobile health clinics and field epidemiology deployments

FAQ

What is the temperature uniformity specification across the chamber volume?

Measured per ISO 10570:2021 methodology, uniformity is ≤±1.2°C at nine defined points under loaded conditions (70% capacity, ambient 25°C).

Does the unit support 21 CFR Part 11 compliance?

The base unit does not include electronic signature or audit-trail features; however, its data export interface and optional CloudLink add-on enable integration with validated Part 11–compliant software platforms.

Can the refrigerator operate continuously at 32°C ambient temperature?

Yes—the condenser and airflow design have been validated for uninterrupted operation at up to 32°C ambient, provided adequate ventilation clearance (≥10 cm rear/side, ≥15 cm top) is maintained.

Is calibration certificate included with shipment?

A factory calibration report (traceable to CNAS-accredited labs) is supplied; on-site IQ/OQ/PQ validation services are available through authorized AUCMA partners.

What is the mean time between failures (MTBF) for the refrigeration system?

Based on accelerated life testing and field data, MTBF exceeds 35,000 hours for the sealed rotary compressor and control electronics under typical laboratory duty cycles.
