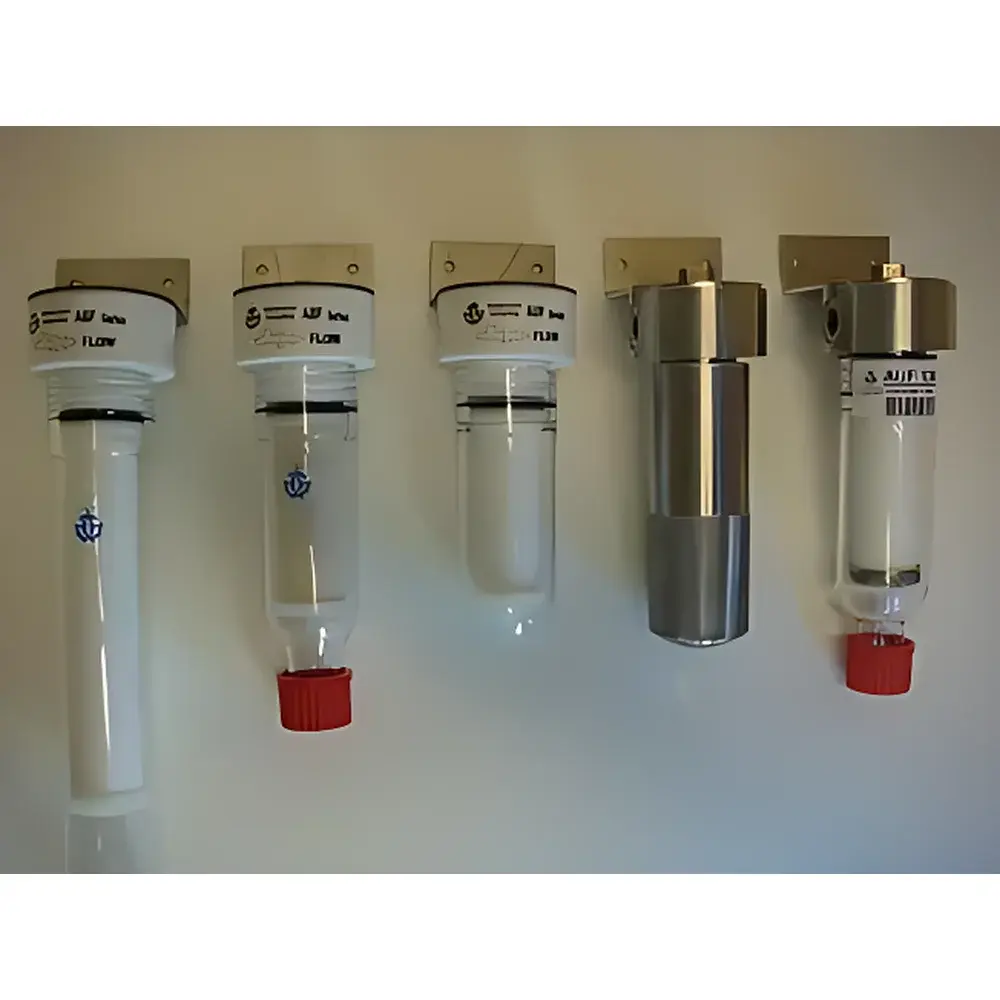

AUF Universal Gas Filter

Overview

The AUF Universal Gas Filter is an engineered inline particulate and moisture separation device designed for integration into continuous gas monitoring and analytical sampling systems. Operating on the principle of inertial impaction, coalescence, and gravitational settling, it removes suspended particulates—including dust, aerosols, and condensed hydrocarbons—as well as liquid water and condensable vapors from sample gas streams prior to delivery to sensitive analytical instruments such as gas chromatographs (GC), non-dispersive infrared (NDIR) sensors, electrochemical cells, or paramagnetic oxygen analyzers. Its modular, tool-free design enables seamless installation in both fixed-site environmental monitoring stations and mobile emission testing platforms. The filter maintains stable pressure drop across its operational flow range and preserves sample integrity by minimizing adsorption, catalytic reaction, or chemical interaction with the sampled gas matrix.

Key Features

• Multi-material filtration chamber compatible with aggressive or high-temperature gas matrices—available in ceramic, PTFE (polytetrafluoroethylene), 316 stainless steel, Teflon®-lined variants, and borosilicate glass fiber media.
• Integrated moisture separation architecture: internal baffle geometry and low-surface-energy materials promote droplet coalescence and gravitational drainage; liquid condensate collects at the bottom chamber for periodic manual or automated drainage.
• Tool-free filter cartridge replacement: standardized bayonet or twist-lock interface allows rapid media exchange without disassembling piping or compromising system integrity.
• Pressure-rated construction compliant with ISO 8573-1 Class 4 particulate and Class 3 moisture specifications for instrument air and process gas conditioning.
• Zero dead-volume inlet/outlet ports with NPT or ISO-KF flange options to minimize residence time and prevent cross-contamination between sampling cycles.

Sample Compatibility & Compliance

The AUF Universal Gas Filter accommodates a broad spectrum of environmental and industrial gas matrices, including ambient air, stack emissions (up to 180 °C with ceramic variant), biogas, landfill gas, natural gas, and compressed air. It meets material compatibility requirements defined in ASTM D6216 (Standard Practice for Continuous Emission Monitoring Systems for Gaseous Pollutants), EPA Method 18 (Determination of Gaseous Organic Compound Emissions), and EN 14181 (Quality Assurance of Automated Measuring Systems). All wetted components comply with USP Class VI and FDA 21 CFR Part 11 traceability guidelines when deployed in regulated QA/QC laboratories. Optional integrated temperature sensors and drain-level indicators support GLP/GMP audit readiness.

Software & Data Management

While the AUF Universal Gas Filter operates as a passive hardware component, its performance is fully integrable into supervisory control and data acquisition (SCADA) ecosystems via optional digital transducers. Compatible with Modbus RTU/ASCII and HART 7 protocols, add-on pressure differential sensors and condensate level switches enable real-time health monitoring and predictive maintenance scheduling. Configuration and event logging are supported through vendor-agnostic OPC UA interfaces, allowing alignment with enterprise LIMS and CMMS platforms. Audit trails for filter change events—including timestamps, operator ID, and batch-specific calibration references—can be generated and exported in CSV or XML formats per ISO/IEC 17025 documentation requirements.

Applications

• Ambient air quality monitoring networks (PM₂.₅, NOₓ, SO₂, O₃ analyzers)
• Continuous emissions monitoring systems (CEMS) for thermal power plants and incinerators
• Odor and VOC measurement campaigns using proton-transfer-reaction mass spectrometry (PTR-MS) or photoionization detectors (PID)
• Calibration gas delivery systems requiring ultra-clean carrier gases (e.g., zero air generators)
• Biogas upgrading facilities where siloxane and moisture removal precedes membrane or PSA separation
• Mobile laboratory vans performing roadside or fugitive emission surveys

FAQ

What is the maximum allowable operating pressure and temperature for the AUF Universal Gas Filter?
Maximum rated pressure is 10 bar(g); maximum continuous operating temperature depends on selected housing material—up to 60 °C for PTFE variants, 180 °C for ceramic, and 120 °C for stainless steel.
Can the AUF filter be used with corrosive gases such as H₂S or Cl₂?
Yes—when configured with PTFE-sealed ceramic or fully fluoropolymer-lined chambers, it demonstrates proven compatibility with acidic and oxidizing gas species per NACE MR0175/ISO 15156 standards.
Is there a recommended maintenance interval for filter media replacement?
Replacement frequency is application-dependent and governed by upstream particulate load; typical service life ranges from 3 to 12 months under ambient air monitoring conditions, with condition-based replacement advised using differential pressure monitoring.
Does the AUF Universal Gas Filter meet explosion-proof certification requirements?
The base unit is non-electric and intrinsically safe; optional explosion-proof housings certified to ATEX II 2G Ex db IIB T4 Gb and IECEx are available upon request.
Are custom port configurations or bespoke filtration media available?
Yes—OEM engineering support includes custom flange layouts, multi-stage filtration modules (e.g., particulate + chemical scrubber), and application-specific media selection (e.g., activated carbon-impregnated glass fiber for mercury vapor capture).
