Auniontech APA Series Amplified Piezoelectric Actuators

Overview

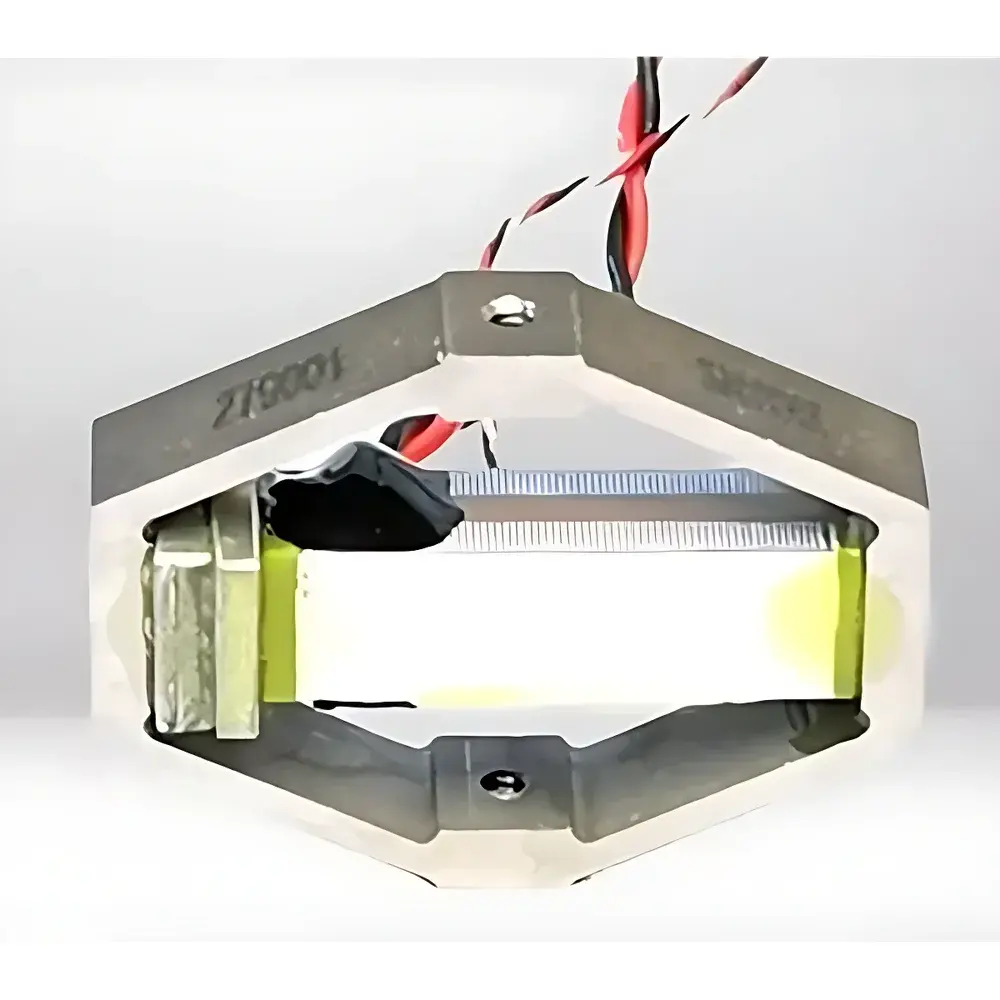

Auniontech APA Series Amplified Piezoelectric Actuators are high-precision, preloaded, monolithic piezo positioning devices engineered for sub-nanometer resolution and exceptional dynamic response in demanding optical and metrological applications. Unlike conventional stack-type piezoelectric actuators limited by intrinsic stroke constraints (~10–20 µm per mm of active material), the APA series employs a patented flexure-based mechanical amplification mechanism—integrating piezoceramic stacks with precision-engineered compliant mechanisms. This architecture converts small intrinsic piezoelectric strain (typically <0.1% length change) into significantly enlarged, guided linear displacement while maintaining zero mechanical backlash, minimal hysteresis (1.2 kHz for APA-220U). The actuator operates on the inverse piezoelectric effect: application of a controlled DC or low-frequency AC voltage induces dimensional change in the PZT ceramic, which is then kinematically amplified via elastic deformation of monolithic stainless steel or Invar flexure hinges. This principle ensures repeatable, frictionless motion ideal for closed-loop nanopositioning systems in interferometry, adaptive optics, and scanning probe microscopy.

Key Features

• Monolithic Flexure Design: All-machined or EDM-cut compliant mechanisms eliminate bearings, screws, and sliding interfaces—reducing wear, stiction, and particle generation critical in cleanroom and vacuum environments (compatible with UHV up to 10⁻⁷ mbar).
• Precision Preloading: Integrated mechanical preloading ensures consistent contact pressure across the piezoceramic stack under all operating conditions, preventing depolarization and enabling bidirectional force control without loss of linearity.
• High Dynamic Performance: Resonant frequencies range from 1.2 kHz (APA-220U) to >4.5 kHz (APA-40U), supporting step-response times <100 µs and bandwidths suitable for real-time feedback control (e.g., tip/tilt correction at 1–5 kHz).
• Thermal & Mechanical Stability: Low coefficient of thermal expansion (CTE) flexure materials (Invar variants available) minimize thermally induced drift; typical long-term positional drift <0.05% FS/°C.
• Electrical Robustness: Rated for continuous operation at ±150 V (APA-220U) and ±120 V (APA-40U/APA-33U); integrated overvoltage protection and ESD-hardened electrode interfaces meet IEC 61000-4-2 Level 4 compliance.

Sample Compatibility & Compliance

The APA series is designed for integration into OEM optical subsystems and laboratory-grade instrumentation requiring traceable, stable, and repeatable nanoscale actuation. Each unit undergoes 100% functional testing—including stroke linearity verification (±0.8% deviation from nominal), capacitance measurement (1.8–3.2 µF, model-dependent), and insulation resistance validation (>10 GΩ at 100 VDC). Units comply with RoHS 2011/65/EU and REACH (EC 1907/2006) directives. Mechanical mounting interfaces adhere to standard photonic breadboard conventions (M3/M4 threaded holes, 12.7 mm or 25.4 mm center-to-center spacing), ensuring drop-in compatibility with Thorlabs, Newport, and Standa translation stages. For regulated environments, documentation packages include calibration certificates traceable to NIM (National Institute of Metrology, China) and support GLP/GMP audit readiness through configurable serial-number logging and test report archiving.

Software & Data Management

Auniontech provides open-architecture control drivers compatible with industry-standard platforms: native LabVIEW VIs (NI-DAQmx), MATLAB Instrument Control Toolbox (.dll/.so), and Python (PyVISA + custom API). All models support analog voltage input (0–10 V, ±10 V) and digital command via RS-232 or optional USB-C interface. Firmware supports user-configurable ramp rates (0.1–1000 V/s), position hold modes with active drift compensation, and real-time status reporting (temperature, voltage, internal capacitance drift). When paired with compatible capacitive or strain-gauge position sensors (e.g., Physik Instrumente E-5xx controllers), the system achieves closed-loop resolution down to 0.1 nm with RMS noise <0.3 nm (bandwidth 0–100 Hz). Audit trails—including timestamped voltage commands, sensor readings, and error logs—are exportable in CSV/JSON format and fully compliant with FDA 21 CFR Part 11 requirements when deployed with validated electronic signature workflows.

Applications

• Adaptive Optics Systems: Fast tip/tilt correction in astronomical telescopes and laser beam steering assemblies—APA-40U delivers 40 µm stroke with 250 N blocking force for mirror mount stabilization.
• Confocal & Super-Resolution Microscopy: Z-axis focusing stages with sub-10 nm repeatability; APA-220U enables large-range (220 µm), high-speed autofocus in light-sheet and STED platforms.
• Fiber Alignment & Photonic Packaging: Sub-micron alignment of single-mode fibers, lens arrays, and PLC chips—APA-33U’s 33 µm travel and 57 N blocking force suit passive alignment fixtures.
• Nanoscale Material Testing: Integration into nanoindenter load frames for displacement-controlled indentation protocols compliant with ASTM E2546 and ISO 14577.
• Quantum Optics Experiments: Active cavity length stabilization in ultra-stable Fabry–Pérot interferometers and ion trap electrode positioning where low electronic noise and zero hysteresis are mandatory.

FAQ

What is the difference between an amplified piezoelectric actuator and a standard stack actuator?
Amplified actuators use flexure-based mechanical leverage to multiply the native piezoelectric strain, achieving 5–10× greater stroke than equivalent stack devices—while preserving stiffness, speed, and linearity. Standard stacks offer higher stiffness but severely limited range and are prone to buckling without external preloading.

Can APA actuators operate in vacuum or inert gas environments?
Yes—standard models are rated for dry nitrogen or argon atmospheres; UHV-compatible versions (with non-outgassing adhesives and metal-ceramic seals) are available upon request with bake-out capability up to 120°C.

Is closed-loop operation supported natively?
The APA series is open-loop by design but fully compatible with external capacitive, inductive, or optical encoders. Auniontech offers optional integrated sensor variants (APA-220U-S, etc.) with factory-aligned, temperature-compensated capacitive position feedback.

What is the recommended driving amplifier for optimal performance?
A high-slew-rate, low-noise bipolar amplifier with ≥150 V output range and <10 ppm linearity (e.g., Piezosystem Jena E-503, Thorlabs MDT694B) is advised. Current-limiting must be configured to avoid exceeding the actuator’s maximum drive current (typically 5–10 mA RMS).
