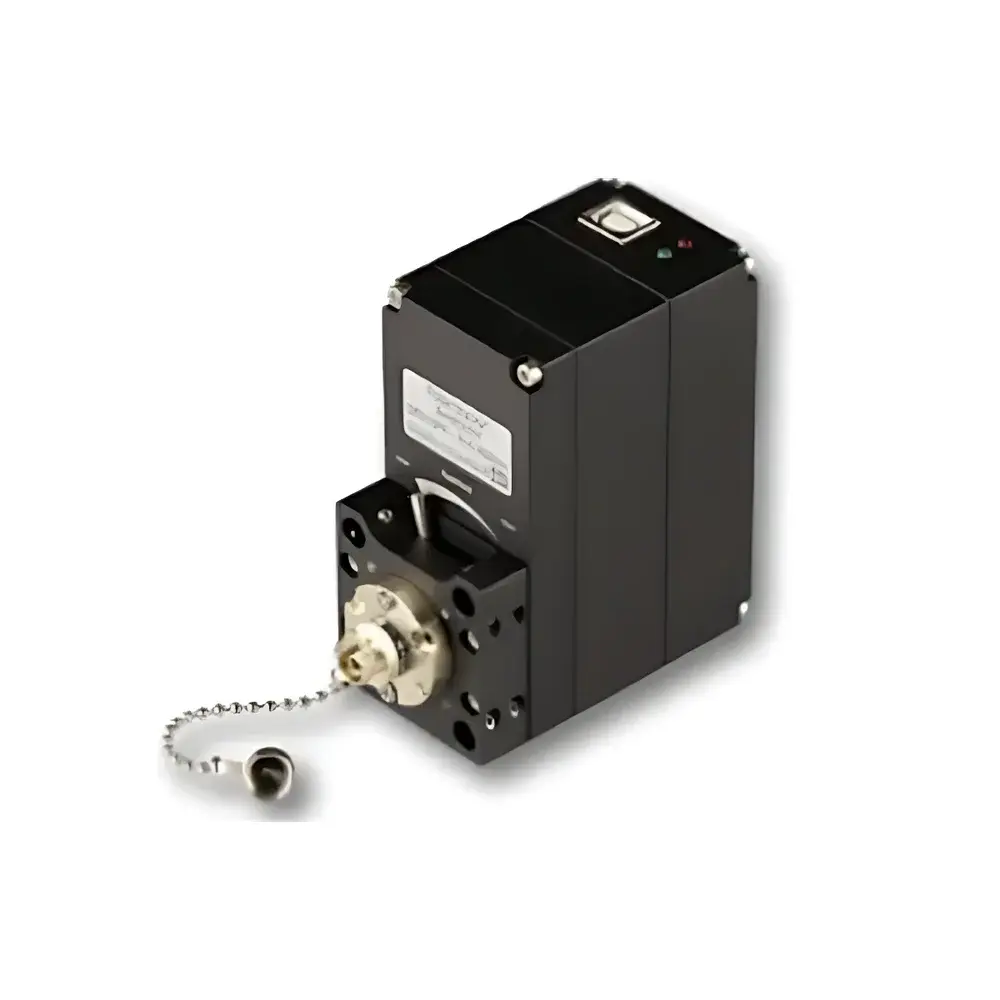

Auniontech SK010PA-IR Polarization State Analyzer for Polarization-Maintaining Fiber Alignment and Characterization

Overview

The Auniontech SK010PA-IR Polarization State Analyzer is a high-precision, compact, and USB-powered instrument engineered for real-time measurement and optimization of the polarization state of light in both free-space and polarization-maintaining (PM) fiber systems. It operates on the fundamental principle of rotating-waveplate polarimetry—employing a calibrated sequence of retarder and analyzer elements to reconstruct the full four-parameter Stokes vector (S₀, S₁, S₂, S₃) from intensity measurements. This enables quantitative determination of the state of polarization (SOP), degree of polarization (DOP), polarization extinction ratio (PER), ellipticity (η), and azimuth angle—all traceable to SI-referenced optical calibration protocols. Designed specifically for demanding applications in PM fiber characterization, laser-to-fiber coupling alignment, and waveplate calibration, the SK010PA-IR delivers reproducible SOP tracking at update rates exceeding 10 Hz, with sub-degree angular resolution in linear SOP and <0.01 rad uncertainty in ellipticity under stable thermal conditions.

Key Features

• Real-time acquisition and display of all four Stokes parameters (S₀–S₃), enabling full SOP reconstruction without assumptions or approximations
• Integrated Poincaré sphere visualization: linear SOPs mapped to equatorial points, circular SOPs at poles, elliptical states distributed across surface—ideal for assessing PM fiber birefringence-induced drift
• Dedicated PM fiber alignment mode: automated rotational feedback loop aligns input polarization axis to fiber slow/fast axis by minimizing SOP deviation from sphere center; outputs optimized PER and residual ellipticity
• USB 2.0 bus-powered operation: eliminates external power supplies—supports control, data streaming, and device power over single cable (no driver installation required on Windows)
• Modular mechanical interface: compatible with standard cage systems (40 mm), kinematic mounts, translation stages, and fiber adapters including FC/APC and FC/PC; optional PA-AP-M4 post-mount enables rigid coupling to OEM optical benches
• Waveplate quantification capability: supports quarter-wave plate (QWP) alignment verification via SOP trajectory analysis—right/left circular output confirmed by convergence to North/South pole on Poincaré sphere

Sample Compatibility & Compliance

The SK010PA-IR is validated for use with single-mode PM fibers (e.g., Panda, Bow-tie, and elliptical-clad types) operating in the near-infrared band (1064 nm, 1310 nm, and 1550 nm configurations available). Its optical design meets ISO 10110-8:2017 requirements for polarization measurement instrumentation in terms of stray-light suppression and detector linearity. While not certified to IEC 61340-5-1 (ESD) or MIL-STD-810G out-of-box, the unit complies with CE marking directives for electromagnetic compatibility (2014/30/EU) and low-voltage safety (2014/35/EU). Data integrity adheres to GLP-aligned practices: timestamped SOP logs include metadata (wavelength, integration time, ambient temperature), and raw Stokes values are stored in HDF5 format—supporting audit-ready traceability for regulated R&D environments.

Software & Data Management

The included SKPolarizationAnalyzer software provides a deterministic, deterministic GUI for real-time SOP monitoring, batch measurement logging, and post-processing. It supports dual-display mode: simultaneous time-series plots of individual Stokes parameters and dynamic Poincaré sphere projection with color-coded distance-from-center metrics. All acquired datasets are saved with embedded calibration coefficients and system configuration headers. A documented C/C++ DLL (x86/x64) enables integration into LabVIEW, MATLAB, Python (via ctypes), or custom C# applications—facilitating closed-loop alignment automation in production test stands. Export options include CSV (for Excel/Origin), MATLAB .mat, and industry-standard SDF (Standard Data Format) for interoperability with optical simulation tools such as Zemax OpticStudio and Lumerical MODE.

Applications

• PM fiber coupling optimization: Quantifies PER degradation induced by thermal cycling or mechanical stress; identifies optimal launch polarization orientation prior to splicing or connectorization
• Fiber optic gyroscope (FOG) coil characterization: Measures SOP drift versus temperature and vibration—critical for bias stability assessment per IEEE Std 952™
• Quantum communication systems: Verifies polarization fidelity of entangled photon sources coupled into PM delivery fibers, supporting Bell-state measurement validation
• Free-space polarization calibration: Aligns QWPs, HWPs, and polarization rotators in interferometric setups (e.g., gravitational wave detection pathlength stabilization)
• OEM instrument integration: Embedded in laser seed source modules, fiber amplifier test platforms, and coherent receiver assemblies requiring in-situ SOP monitoring

FAQ

What wavelength ranges does the SK010PA-IR support?
Standard configurations cover 1064 nm, 1310 nm, and 1550 nm—each with wavelength-specific calibration files. Custom calibrations are available upon request for other NIR bands (980–1650 nm), subject to detector responsivity and optical coating specifications.
Can the SK010PA-IR measure depolarized or partially polarized light?
Yes. It calculates the Degree of Polarization (DOP = √(S₁² + S₂² + S₃²)/S₀) directly from measured Stokes parameters, distinguishing fully polarized, partially polarized, and unpolarized components per ISO 8578:2020 Annex B.
Is the device suitable for use in cleanroom or Class 1000 environments?
The aluminum housing and sealed optical path meet ISO 14644-1 Class 8 particulate limits; however, it is not rated for vacuum or high-humidity operation. Optional conformal coating is available for enhanced ESD and corrosion resistance.
Does the software support FDA 21 CFR Part 11 compliance?
While the base software does not include electronic signature or audit-trail modules, its HDF5-based logging architecture supports third-party validation packages (e.g., LabArchives ELN, Veeva Vault) for regulated pharmaceutical or medical device development workflows.
How is calibration traceability maintained?
Each unit ships with NIST-traceable calibration certificate referencing SRM 2241 (polarization reference standards); annual recalibration services are offered through Auniontech’s Shanghai metrology lab, accredited to CNAS CL01:2018 (equivalent to ISO/IEC 17025).
