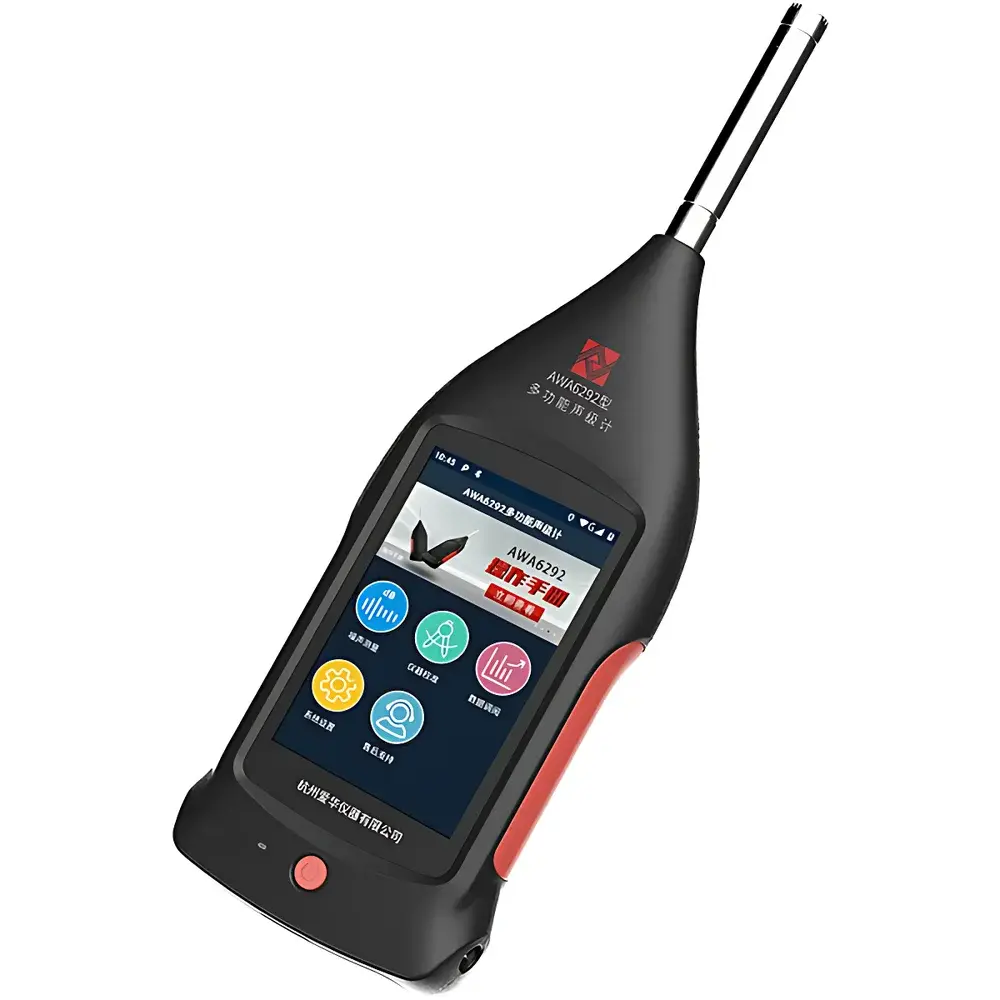

AWA AWA6292 Advanced Class 1 Sound Level Meter

Overview

The AWA AWA6292 Advanced Class 1 Sound Level Meter is a high-precision, digitally signal-processed acoustic measurement instrument engineered for compliance-critical applications in occupational health, environmental noise monitoring, industrial product testing, airport noise assessment, and architectural acoustics. Built upon real-time parallel processing architecture, it simultaneously captures and computes multiple acoustic metrics—including time-weighted (Fast, Slow, Impulse), frequency-weighted (A, C, Z), and statistical descriptors—without temporal aliasing or computational latency. Its core transducer system employs a pre-polarized ½″ condenser microphone with extended low-frequency response down to 10 Hz and full audio-band coverage up to 20 kHz, enabling accurate characterization of both tonal and broadband noise sources under dynamic field conditions. The device conforms strictly to IEC 61672-1:2013 Class 1 for sound level meters and IEC 61260-1:2014 Class 1 for octave and fractional-octave band filters—ensuring metrological traceability and regulatory acceptability across EU, North America, and APAC jurisdictions.

Key Features

• Real-time parallel acquisition of A-, C-, and Z-frequency weightings alongside F-, S-, and I-time weightings—no mode switching required
• Integrated 4.3″ capacitive touchscreen with intuitive, icon-driven UI optimized for gloved-hand operation and outdoor readability
• Dual-mode data logging: continuous waveform capture (with selectable sampling rate) and event-triggered statistical integration
• Onboard 1/1 and 1/3-octave real-time spectrum analysis compliant with ISO 13472-1 for pavement noise and ISO 3382 for room acoustics
• Embedded FFT engine supporting up to 65,536-point spectral resolution for detailed tonality and harmonic analysis
• STI (Speech Transmission Index) and RT60 (reverberation time) calculation modules per ISO 3382-2 and ISO 3382-1
• IP65-rated enclosure (excluding microphone assembly), rated for sustained operation in rain, dust, and temperature extremes (−20 °C to +60 °C)
• 20 W USB-C fast charging: achieves full battery capacity in ≤2 hours; supports uninterrupted 24-hour autonomous monitoring on single charge

Sample Compatibility & Compliance

The AWA6292 is compatible with all IEC 61094-4-compliant ½″ pre-polarized condenser microphones and extends interoperability to third-party calibrators meeting IEC 60942 Class 1 specifications. Its firmware implements automatic transducer identification and calibration factor recall, reducing manual entry errors during field deployment. Regulatory alignment includes full support for EU Environmental Noise Directive (END) Annex II reporting templates, OSHA 29 CFR 1910.95 and MSHA Part 62 compliance workflows, and Chinese GB/T 3785.1–2010 and GB/T 3241–2010 mandatory requirements. All measurement records include embedded metadata—GPS coordinates, UTC timestamps, microphone serial ID, calibration history, and environmental sensor readings (optional)—to satisfy GLP/GMP audit trails and FDA 21 CFR Part 11 electronic record integrity criteria when paired with validated cloud platforms.

Software & Data Management

Data export is supported via encrypted CSV, HDF5, and IEC 61260-compliant .SND binary formats. The included AWA CloudLink software suite enables over-the-air firmware updates, remote configuration push, and synchronized multi-device campaign management. All wireless transmissions (4G/Wi-Fi/Bluetooth) employ TLS 1.3 encryption and AES-256 payload ciphering. Audit logs record every parameter change, user login, calibration event, and data export action—with immutable SHA-256 hashing and optional blockchain timestamping for forensic-grade data provenance. Internal storage maintains write-cycle redundancy and wear-leveling algorithms to ensure ≥100,000 measurement sessions without file system degradation.

Applications

• Ongoing environmental noise monitoring near highways, railways, airports, and urban construction sites per ISO 1996-2
• Workplace noise exposure assessment for hearing conservation programs aligned with ISO 9612 and ANSI S1.25
• Product noise certification testing per ISO 3744, ISO 3746, and ECMA-74 standards
• Room acoustic diagnostics including early decay time (EDT), clarity (C50), and definition (D50) per ISO 3382-1
• Industrial machinery condition monitoring through spectral anomaly detection in rotating equipment
• Community noise complaint investigation with geotagged, time-synchronized evidence packages

FAQ

Does the AWA6292 support external GPS synchronization for georeferenced noise mapping?
Yes—integrated GNSS receiver (GPS + GLONASS + BeiDou) provides sub-3-meter horizontal accuracy and automatic coordinate embedding in all measurement files.
Can the instrument perform simultaneous 1/1 OCT, 1/3 OCT, and FFT analysis without compromising real-time performance?
Yes—dedicated DSP hardware allocates independent processing cores to each spectral engine, ensuring zero inter-modulation delay or buffer overflow.
Is the device suitable for long-term unattended monitoring in outdoor environments?
Yes—IP65-rated housing, wide-temperature lithium battery, and dual-power input (DC 9 V + USB-C PD) enable continuous deployment for >30 days with periodic 4G data upload.
How does the AWA6292 handle calibration traceability and audit readiness?
Each unit ships with NIST-traceable calibration certificate (valid for 12 months); firmware enforces mandatory pre-/post-measurement acoustic calibrator checks with auto-log archiving.
What file formats are supported for third-party acoustic analysis software import?
Standardized .WAV (linear PCM), .SND (IEC 61260), and .CSV (ISO 1996-2 Annex D compliant) formats are natively exported; MATLAB and Python APIs available via SDK.
