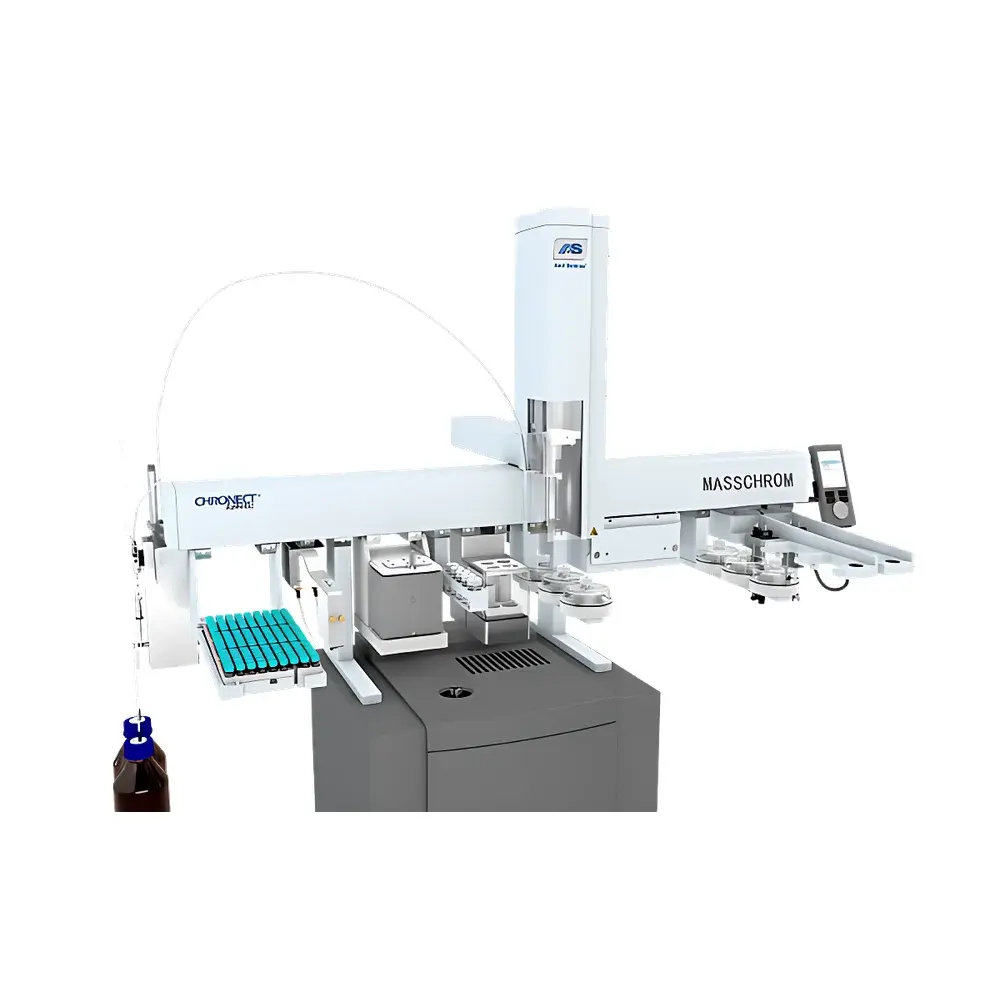

Axel Semrau Chronect Automated MCPD Esters and Glycidyl Esters Analysis System

Overview

The Axel Semrau Chronect Automated MCPD Esters and Glycidyl Esters Analysis System is a fully integrated, laboratory-grade platform engineered for the precise, high-throughput quantification of 3-monochloropropane-1,2-diol esters (MCPDE) and glycidyl esters (GE) in edible oils and complex food matrices. These process-induced contaminants—formed during high-temperature deodorization and refining of vegetable oils—are hydrolyzed in vivo by lipases to release free 3-MCPD and glycidol, both classified as probable human carcinogens (IARC Group 2A). The Chronect system implements a validated, multi-step analytical workflow grounded in gas chromatography–mass spectrometry (GC–MS/MS) sample preparation principles: automated spiking with isotopically labeled internal standards (e.g., d₅-3-MCPD and d₅-glycidol), controlled transesterification (ester bond cleavage), liquid–liquid extraction (LLE), derivatization (typically with phenylboronic acid or sodium bromide/acetic acid), and quantitative injection into downstream GC–MS instrumentation. Designed for regulatory compliance laboratories, it eliminates manual handling variability and ensures traceable, auditable sample processing from raw material to reportable result.

Key Features

• Fully automated sample preparation: sequential execution of preheating, vortex mixing, internal standard addition, transesterification (with programmable reaction time control between 30–60 min), LLE, derivatization, and GC-ready vial loading
• High reproducibility: ±1.5% RSD for internal standard recovery across 24-h unattended operation
• Throughput optimization: completes full preparation of one sample in 45–55 minutes; batch capacity up to 48 samples per run
• Modular expandability: optional integrated nitrogen blow-down module for solvent evaporation and centrifuge unit for phase separation—both controlled via the central software interface
• Robust architecture: corrosion-resistant fluidic pathways, PTFE-coated reagent probes, and temperature-stabilized reaction blocks (±0.3 °C) ensure long-term method stability
• Method flexibility: pre-configured protocols for ISO 18363 series, AOCS Cd 29a/b/c, AOAC 2018.03 & 2018.12, GB 5009.191, and China Grain Industry Standards; user-definable methods for emerging contaminants (e.g., 2-MCPD esters, chloropropanols in hydrolyzed proteins)

Sample Compatibility & Compliance

The Chronect system accommodates diverse lipid-rich and complex food matrices without modification: refined and crude vegetable oils (palm, soybean, sunflower), infant formula powders, baked goods (cakes, biscuits), fried snacks (potato chips, doughnuts), coffee beans, fermented soy products, and enzymatically hydrolyzed vegetable proteins. All operational parameters align with Good Laboratory Practice (GLP) and are fully traceable under FDA 21 CFR Part 11-compliant audit trail functionality. It satisfies method validation requirements per ISO/IEC 17025:2017 for accredited testing laboratories and supports full documentation packages required for EU Commission Regulation (EC) No 1881/2006 and subsequent amendments governing maximum levels of MCPDE and GE in foods—particularly infant foods (≤0.5 mg/kg GE in vegetable oils for infants) and edible oils (≤1.0 mg/kg GE; ≤2.5 mg/kg MCPDE).

Software & Data Management

The Chronect Control Suite is a Windows-based, role-based application supporting electronic signatures, method locking, and version-controlled protocol management. It logs every actuator movement, reagent volume dispensed, temperature setpoint deviation, and timing event with timestamped, immutable records. Raw data files (including .csv export of all intermediate step outputs) are stored in a secure, encrypted local database compliant with ISO 17025 clause 7.5.2. Audit trails meet GLP/GMP requirements for regulatory submissions to EFSA, FDA, CNCA, and customs authorities. Integration with LIMS is supported via ASTM E1482-compliant API and direct SQL Server connectivity.

Applications

• Regulatory testing labs performing routine surveillance of edible oil supply chains
• Food safety QA/QC departments validating refining process controls and thermal treatment efficacy
• Research institutions investigating formation kinetics of MCPDE/GE under varying deodorization conditions
• Contract testing organizations delivering ISO 17025-accredited reports for export certification (EU, ASEAN, GCC, China Customs)
• Method development laboratories extending the platform to novel lipid-bound contaminants (e.g., acrylamide-bound lipids, oxidized phospholipid adducts)

FAQ

Does the Chronect system include GC–MS instrumentation?
No—the Chronect is a dedicated sample preparation automation platform. It prepares derivatized extracts compatible with standard GC–MS/MS systems (e.g., Agilent 8890/7010B, Thermo ISQ EC, Shimadzu GCMS-TQ8050).
Can it handle powdered infant formula without clogging?
Yes—integrated ultrasonic-assisted dispersion and programmable homogenization protocols ensure complete suspension and uniform lipid extraction from dry, protein-lipid matrices.
Is method validation data provided?
Axel Semrau supplies full validation reports per ISO 17025 Annex A.3, including precision (within-lab reproducibility), spike recovery (85–115%), LOD/LOQ, and matrix effect assessment across 12 representative food types.
What maintenance intervals are recommended?
Preventive maintenance every 6 months; fluidic path cleaning after every 200 samples; calibration verification using certified reference materials prior to each analytical batch.
Is remote monitoring supported?
Yes—via secure HTTPS web interface with real-time status dashboard, email/SMS alerts for error conditions, and encrypted remote desktop support for technical troubleshooting.
