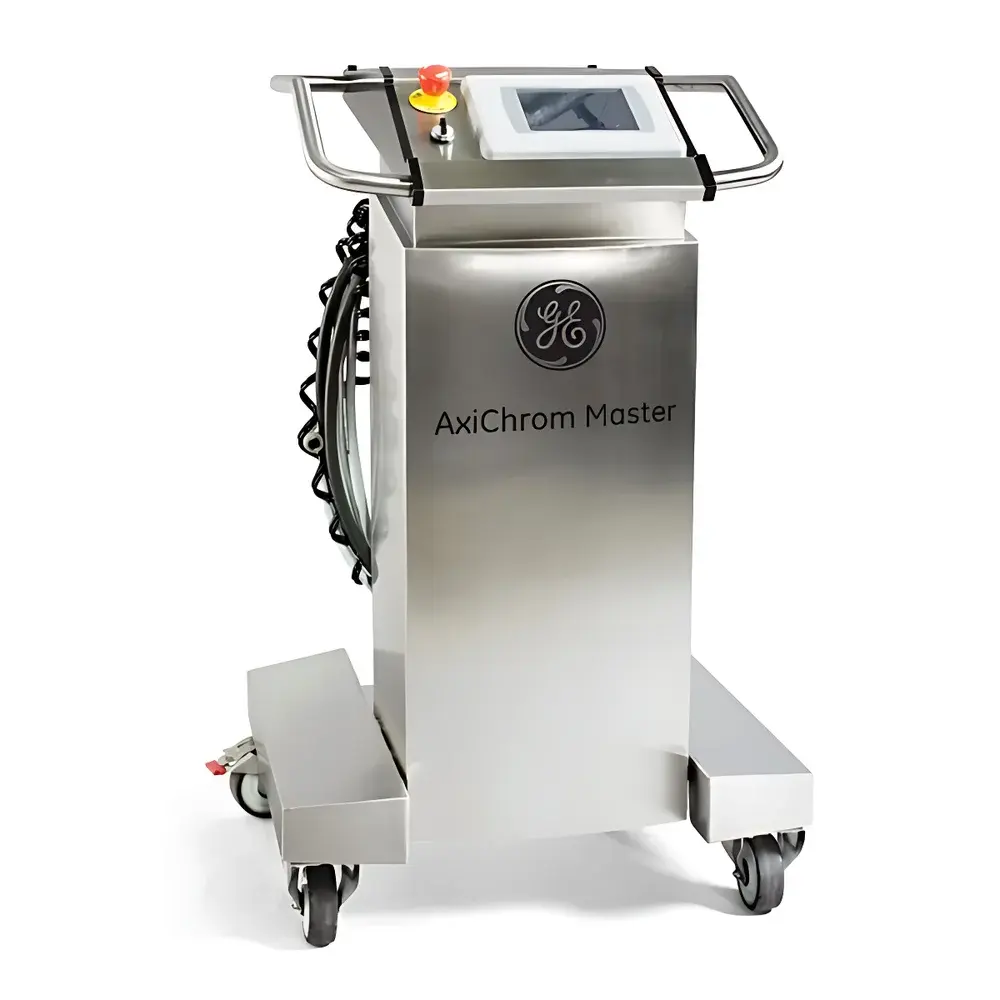

AxiChrom Master Axial Compression System by Cytiva
| Brand | Cytiva |
|---|---|
| Origin | USA |
| Model | AxiChrom Master |
| Instrument Type | Dynamic Axial Compression System |
| Regulatory Compliance | 21 CFR Part 11 compliant software |
| Column Diameter Range | 300–2000 mm |
| Operation Mode | Automated column packing with preloaded and user-editable packing methods |
Overview
The AxiChrom Master Axial Compression System by Cytiva is a fully automated, dynamic axial compression (DAC) workstation engineered for reproducible, scalable, and regulatory-compliant column packing in preparative and process-scale chromatography. Designed specifically for high-performance liquid chromatography (HPLC) and continuous chromatographic purification workflows, the system applies controlled, uniform axial force to chromatographic beds—ensuring optimal bed density, minimal channeling, and long-term column stability across repeated runs. Unlike static compression or manual packing approaches, the AxiChrom Master utilizes real-time pressure feedback and programmable piston displacement to maintain constant bed compression during slurry packing and post-packing consolidation. This principle—rooted in fundamental fluidized bed mechanics and compressible solid-phase behavior—is critical for achieving consistent resolution, recovery, and productivity in GMP-aligned bioprocessing applications.
Key Features
- Dynamic axial compression architecture with closed-loop hydraulic actuation and integrated load cell feedback for precise, repeatable bed consolidation.
- Wide column compatibility: supports standard and custom chromatography columns with internal diameters ranging from 300 mm to 2000 mm—enabling seamless transition from lab-scale method development to commercial manufacturing.
- Pre-validated, vendor-specific packing protocols embedded in firmware—including optimized methods for common Cytiva resins such as Capto™, STREAMLINE™, and SOURCE™ media—reducing method transfer risk and operator dependency.
- Intuitive touchscreen interface with guided workflow navigation, real-time compression force and displacement monitoring, and on-screen troubleshooting prompts.
- Modular design accommodates integration into existing cleanroom environments and automated downstream processing lines via standard OPC UA and Modbus TCP interfaces.
Sample Compatibility & Compliance
The AxiChrom Master is validated for use with aqueous and organic solvent-based slurries, including agarose-, dextran-, and polymer-based chromatographic media. It maintains mechanical integrity under typical packing pressures up to 5 bar (72.5 psi), compatible with both rigid and compressible resin matrices. All operational software components are developed and qualified in accordance with FDA 21 CFR Part 11 requirements, featuring role-based user access control, electronic signatures with biometric or token-based authentication options, immutable audit trails for all critical actions (e.g., method edits, parameter changes, packing start/stop events), and secure data export with cryptographic hash verification. The system supports full traceability per ICH Q5E and Q5A guidelines and aligns with EU Annex 11 and ISO 13485 documentation expectations for medical device and biopharmaceutical manufacturing environments.
Software & Data Management
The embedded AxiChrom Control Software v4.x provides comprehensive data governance functionality, including structured method storage with version history, automatic timestamped logging of all sensor inputs (force, position, time, temperature), and CSV/PDF report generation with digital signature embedding. Raw data files are stored in vendor-neutral HDF5 format, supporting third-party analysis tools and long-term archival per ALCOA+ principles (Attributable, Legible, Contemporaneous, Original, Accurate, Complete, Consistent, Enduring, Available). Audit trail records are tamper-evident and cannot be disabled or deleted—even by administrators—ensuring compliance readiness for regulatory inspections and internal quality audits.
Applications
- Preparative purification of monoclonal antibodies, viral vectors, plasmid DNA, and other large biomolecules using packed-bed chromatography.
- Method scale-up from analytical or pilot-scale columns to production-scale systems (e.g., 1 L → 500 L resin volume).
- Reproducible re-packing of columns after cleaning-in-place (CIP) or resin replacement in multi-cycle campaigns.
- Supporting Quality-by-Design (QbD) initiatives through Design Space exploration of packing pressure, slurry concentration, and flow rate parameters.
- Facilitating technology transfer between contract development and manufacturing organizations (CDMOs) and sponsor companies under ICH M4Q(R2) regulatory frameworks.
FAQ
Does the AxiChrom Master support non-Cytiva resins?
Yes—the system allows full customization of packing parameters (slurry flow rate, compression ramp profile, hold time, final pressure) and accepts user-defined resin-specific methods for third-party media.
Is remote monitoring or cloud-based data backup supported?
Local network connectivity enables remote desktop access via IT-approved VNC solutions; however, no native cloud upload capability is included due to data sovereignty and security policies in regulated biomanufacturing environments.
What validation documentation is supplied with the system?
Cytiva delivers a complete qualification package including Factory Acceptance Test (FAT), Site Acceptance Test (SAT), Installation Qualification (IQ), Operational Qualification (OQ), and Performance Qualification (PQ) templates aligned with ASTM E2500 and ISPE GAMP 5 standards.
Can the AxiChrom Master integrate with MES or SCADA systems?
Yes—through its open communication protocols (OPC UA, Modbus TCP), it supports bidirectional data exchange with manufacturing execution systems and supervisory control platforms for batch record synchronization and real-time KPI tracking.
